| Integrated Serial IIC Display | PCF8574T IIC Module + Standard Parallel Display (LCD / OLED / VFD) |
|||||
| 08YY | 16YY | 20YY | 24YY | 40YY | ||
| PCF8574T (3) | Y 01 | 0801(1) | 1601(2) | |||
| AIP31068 (6) | Y 02 | 1602 (7) | 2002 (5) | 2402 (1) | 4002 (2) | |
| RW1063 (2) | Y 03 | |||||
| ST7032i (1) | Y 04 | 1604 (1) | 2004 (6) | 4004 (1) | ||
| Others (3) | ||||||
| Model No. SPU |
Content | Outline Size (MM) |
View Area (MM) |
Active Area (MM) |
Voltage | Interface | Mark | Datasheet | Controller | Buy Now (Image) |
|
||||||||||
| SL1602Q 7957705 |
16X02 Characters |
80.00*36.00 | 64.50*14.50 | 55.70*11.00 | 5.0V | 4P/2.54 Serial IIC |
 |
AIP31066 PCF8574T |
 |
|
| SLC1604B 27787184 |
16X04 Characters |
87.00*60.00 |
62.00*27.20 |
56.21*20.81 |
5.0V |
4P/2.54 Serial IIC |
|
AIP31066 PCF8574T |
 |
|
| SLC2004A5 6907116 |
20X04 Characters |
98.00*60.00 | 76.00*25.80 | 70.40*20.80 | 5.0V | 4P/2.54 Serial IIC |
|
AIP31066 PCF8574T |
 |
|
|
||||||||||
| SLC1602G 7583885 |
16X02 Characters |
80.00*36.00 | 66.00*16.00 | 55.02*11.00 | 5.0V | 1X8P/2.54 IIC / SPI |
Integrated Serial IIC Serial SPI |
|
AIP31068 |  |
| SLC1602H 7646502 |
16X02 Characters |
80.00*36.00 | 64.50*14.50 | 55.70*11.00 | 5.0V | 1X5P/2.54 1X6P/2.54 IIC / SPI |
Integrated Serial IIC Serial SPI |
|
AIP31068 |  |
| SLC1602J 7655747 |
16X02 Characters |
80.00*36.00 | 64.50*14.50 | 55.70*11.00 | 5.0V | 1X16P/2.54 IIC / SPI |
Integrated Serial IIC Serial SPI |
|
AIP31068 |  |
| SLC1602M 7661892 |
16X02 Characters |
87.00*32.00 |
64.50*16.00 |
56.20*11.50 |
5.0V |
1X4P/PH2.0 IIC |
Integrated Serial IIC |
|
AIP31068 |
 |
| SLC1602O 8109143 |
16X02 Characters |
80.00*36.00 |
64.50*16.00 |
56.20*11.50 |
3.3-5.0V |
4P/PH2.0 5P/2.54 IIC |
Integrated Serial IIC RGB Backlight |
|
AIP31068 SN3193 |
 |
| SLC2004A2 6903358 |
20X04 Characters |
98.00*60.00 |
77.00*25.20 |
70.40*20.80 |
5.0V |
1X4P/2.54 IIC |
AIP31068 IIC Chip |
|
AIP31068 |
 |
| SLC1602KM 8131705 |
16X02 Characters |
66.70*37.46 |
62.40*17.60 |
56.20*10.90 |
5.0V |
1X6P/2.54 Serial IIC |
Integrated Serial IIC COG |
|
ST7032i |
 |
| SLC1602P 7752832 |
16X02 Characters |
86.00*30.00 |
64.50*14.50 |
55.70*11.00 |
5.0V |
1X4P/2.54 IIC |
Integrated Serial IIC |
|
RW1063 |  |
| SLC2004A4 6903359 |
20X04 Characters |
98.00*60.00 |
76.00*25.20 |
70.40*20.80 |
5.0V |
Parallel IIC, SPI |
RW1063 IIC Chip |
|
RW1063 |
 |
| Model No. SPU |
Content | Outline Size (MM) |
View Area (MM) |
Active Area (MM) |
Voltage | Interface | Mark | Datasheet | Controller | Buy Now |
|
||||||||||
| SLC0801A -IIC 6629725 |
08X01 Characters |
85.00*29.50 | 64.50*15.80 | 60.38*11.96 | 5.0V | 2X7P/2.54 Parallel |
|
AIP31066 |  |
|
| SLC0802A -IIC 6742976 |
08X02 Characters |
40.00*35.80 | 30.00*14.00 | 25.74*9.48 |
5.0V | 2X8P/2.54 Parallel |
|
AIP31066 |
 |
|
| SLC0802B -IIC 6743029 |
08X02 Characters |
58.00*32.00 | 39.00*16.00 | 27.81*11.50 |
5.0V | 2X8P/2.54 Parallel |
|
AIP31066 |
 |
|
|
||||||||||
| SLC1601A -IIC 6752196 |
16X01 Characters |
80.00*36.00 |
64.50*14.50 |
59.45*6.35 |
5.0V |
1X16P/2.54 Parallel |
|
AIP31066 |
 |
|
| SLC1601B -IIC 6753147 |
16X01 Characters |
122.00*33.00 |
99.00*13.00 |
94.84*9.66 |
5.0V |
1X16P/2.54 Parallel |
|
AIP31066 |
 |
|
| SLC1602A1 -IIC 8633288 |
16X02 Characters |
80.00*36.00 |
64.50*14.50 |
55.45*10.85 |
3.3V/5.0V |
1X16P/2.54 Parallel |
Standard 1602 | |
AIP31066 |
 |
| SLC1602B -IIC 6984734 |
16X02 Characters |
122.00*44.00 |
99.00*24.00 |
94.84*20.00 |
5.0V |
1X16P/2.54 Parallel |
1602 Larger Character |
|
AIP31066 |
 |
| SLC1602L -IIC 7658090 |
16X02 Characters |
80.00*36.00 |
64.50*16.00 |
58.00*12.46 |
5.0V |
1X18P/2.54 Parallel |
RGB Backlight | |
AIP31066 |
 |
| SLC1602N -IIC 7732397 |
16X02 Characters |
58.00*20.00 |
36.00*10.00 |
34.10*7,40 |
5.0V |
1X16P/1.0 Parallel |
Smaller 1602 | |
AIP31066 |
 |
| SLC1604A -IIC 6769386 |
16X04 Characters |
87.00*60.00 |
62.00*27.20 |
56.21*20.81 |
5.0V |
1X16P/2.54 Parallel |
|
AIP31066 |
|
|
|
||||||||||
| SLC2002A -IIC 6836220 |
20X02 Characters |
116.00*37.00 |
93.50*15.80 |
88.30*11.50 |
5.0V |
2X8P/2.54 Parallel |
|
AIP31066 |
 |
|
| SLC2002B -IIC 6850911 |
20X02 Characters |
180.00*40.00 |
149.00*23.00 |
143.85*20.80 |
5.0V |
2X8P/2.54 Parallel |
NOT Standard Interface |
|
AIP31066 |
 |
| SLC2002C -IIC 6860474 |
20X02 Characters |
146.00*43.00 |
122.00*23.00 |
118.84*18.97 |
5.0V |
1X16P/2.54 Parallel |
|
AIP31066 |
 |
|
| SLC2004A1 -IIC 6882669 |
20X04 Characters |
98.00*60.00 | 76.00*25.80 | 70.40*20.80 | 5.0V | 1X16P/2.54 Parallel |
Standard 2004 | |
AIP31066 |  |
| SLC2004A3 -IIC 6907131 |
20X04 Characters |
116.00*40.00 |
76.00*25.20 |
70.40*20.80 |
5.0V |
2X8P/2.54 Parallel |
Left Interface |
|
AIP31066 |
 |
| SLC2004B -IIC 6907132 |
20X04 Characters |
146.00*62.50 | 123.50*43.00 | 118.84*38.47 | 5.0V | 1X16P/2.54 Parallel |
Larger 2004 | |
AIP31066 |  |
| SLC2004C -IIC 6907626 |
20X04 Characters |
182.00*90.00 | 147.00*65.40 | 137.00*59.80 | 5.0V | 2X9P/2.54 Parallel |
Largest 2004 | |
AIP31066 |  |
| SLC2004D -IIC 6908219 |
20X04 Characters |
77.00*47.00 | 60.00*22.00 | 55.12*17.56 | 5.0V | 1X16P/2.54 Parallel |
Smaller 2004 | |
AIP31066 |  |
|
||||||||||
| SLC2402A -IIC 6681632 |
24X02 Characters |
118.00*36.00 |
93.50*15.80 |
88.30*11.50 |
5.0V |
2X8P/2.54 Parallel |
|
AIP31066 |
 |
|
| SLC4002A -IIC 6770969 |
40X02 Characters |
182.00*33.50 |
152.30*16.70 |
147.50*11.50 |
5.0V |
2X8P/2.54 Parallel |
|
AIP31066 |
 |
|

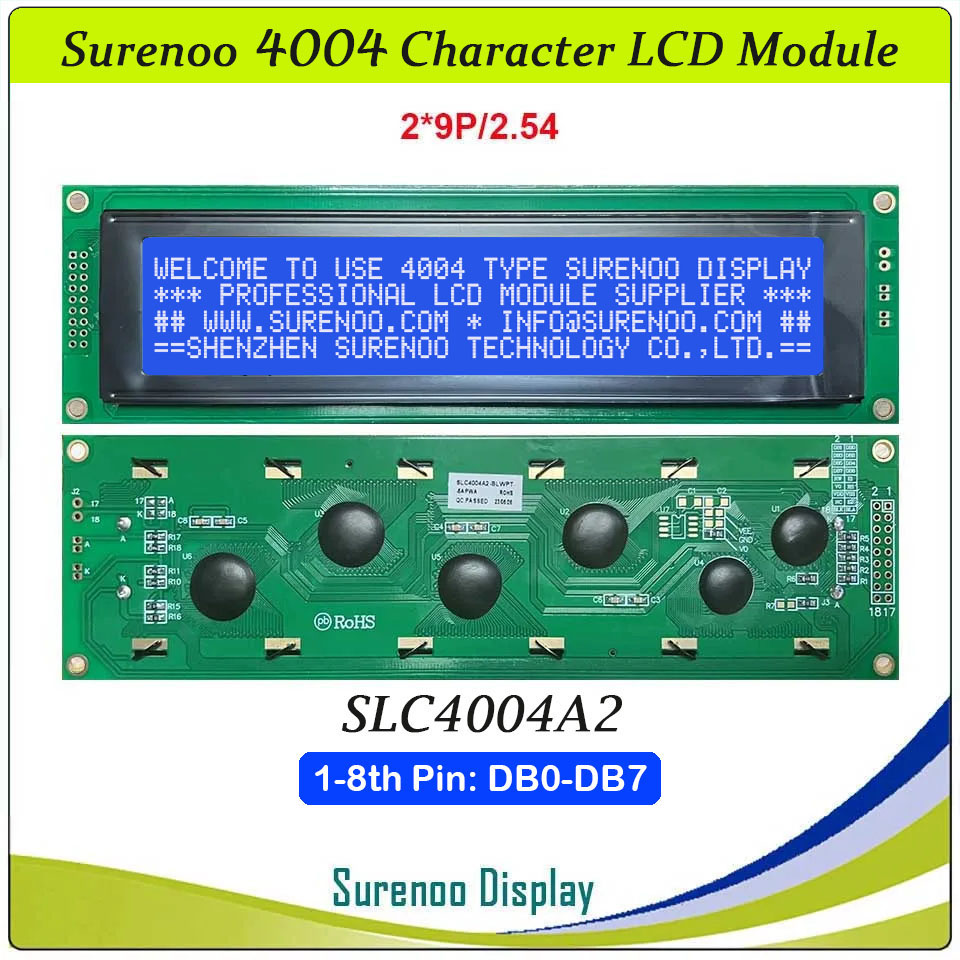

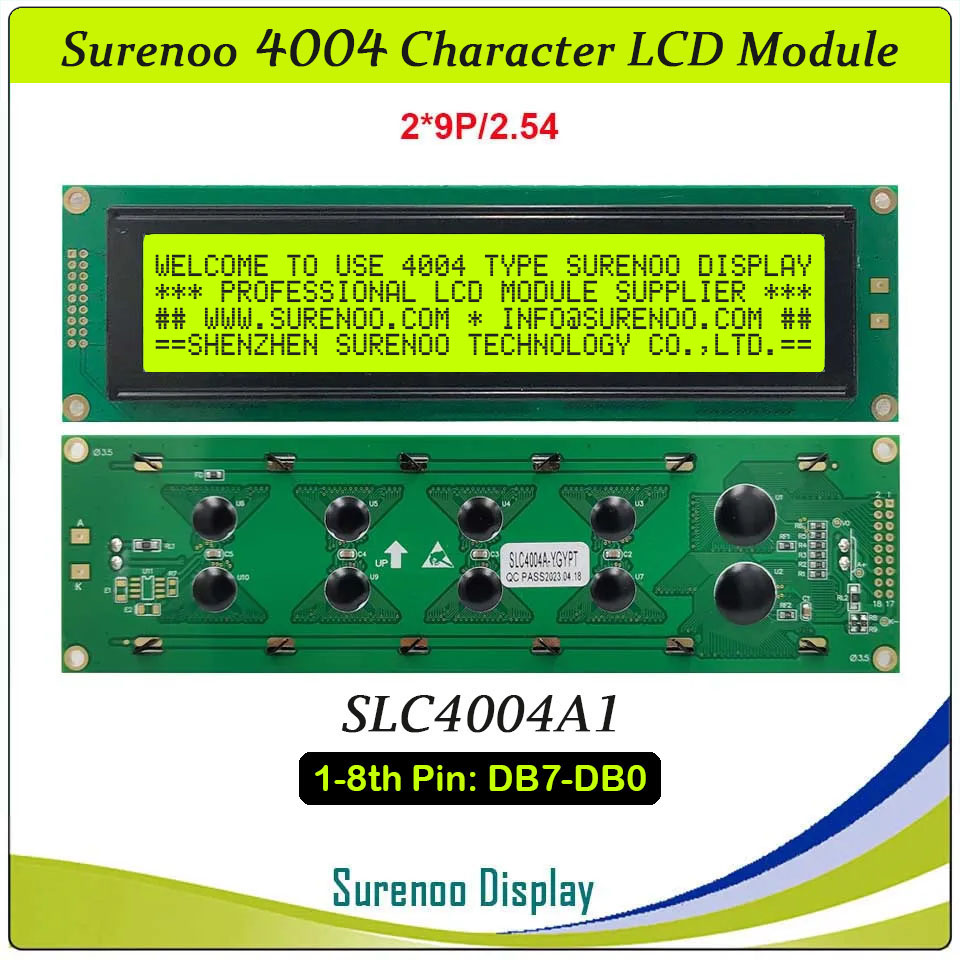

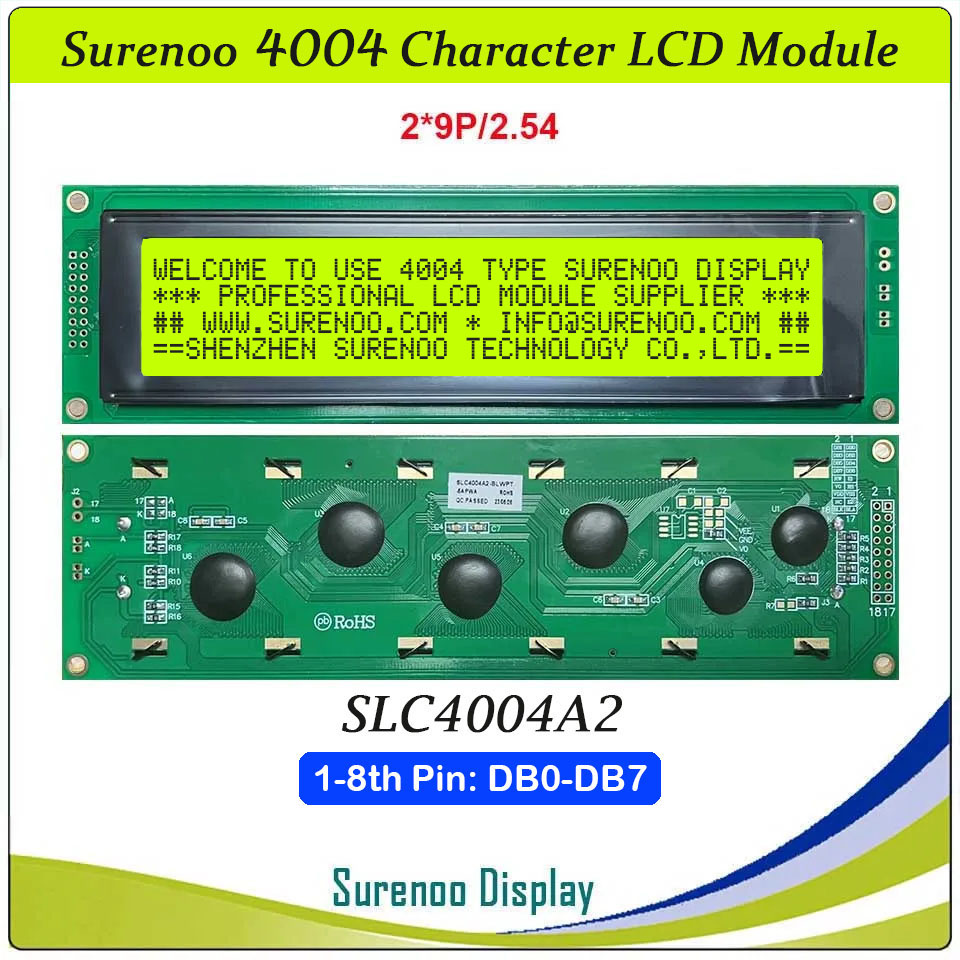

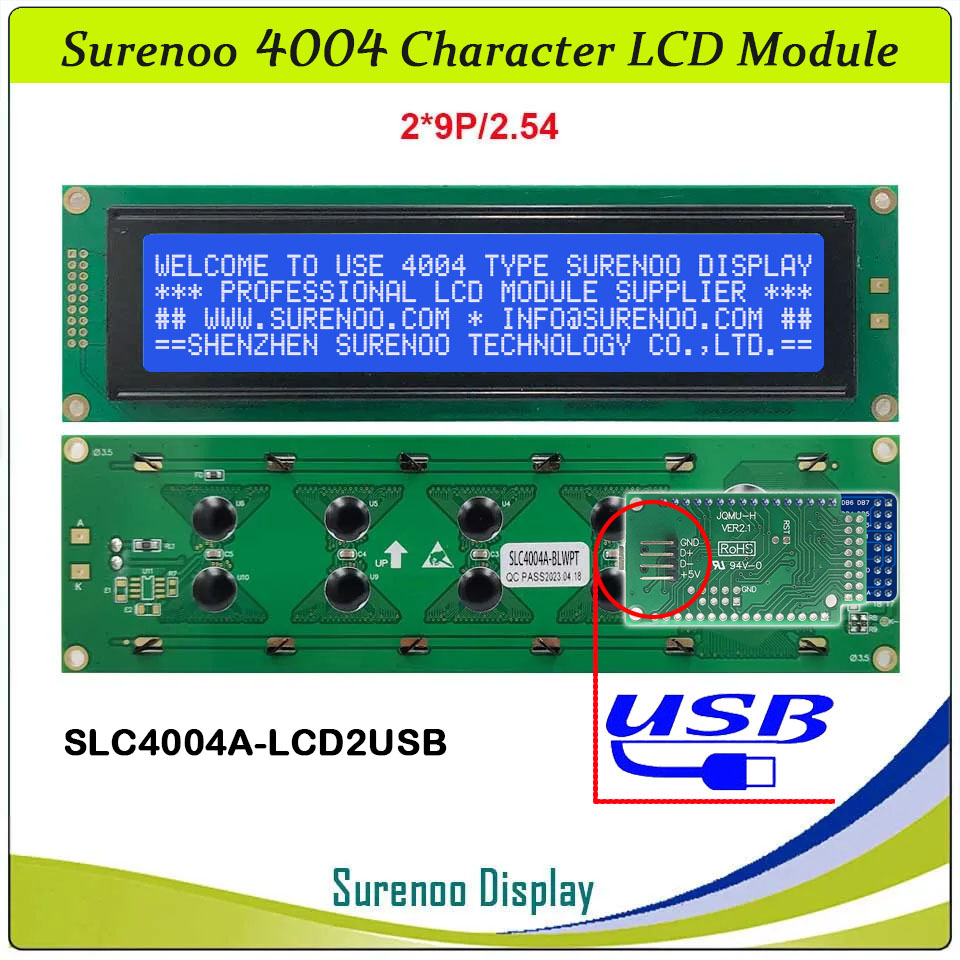

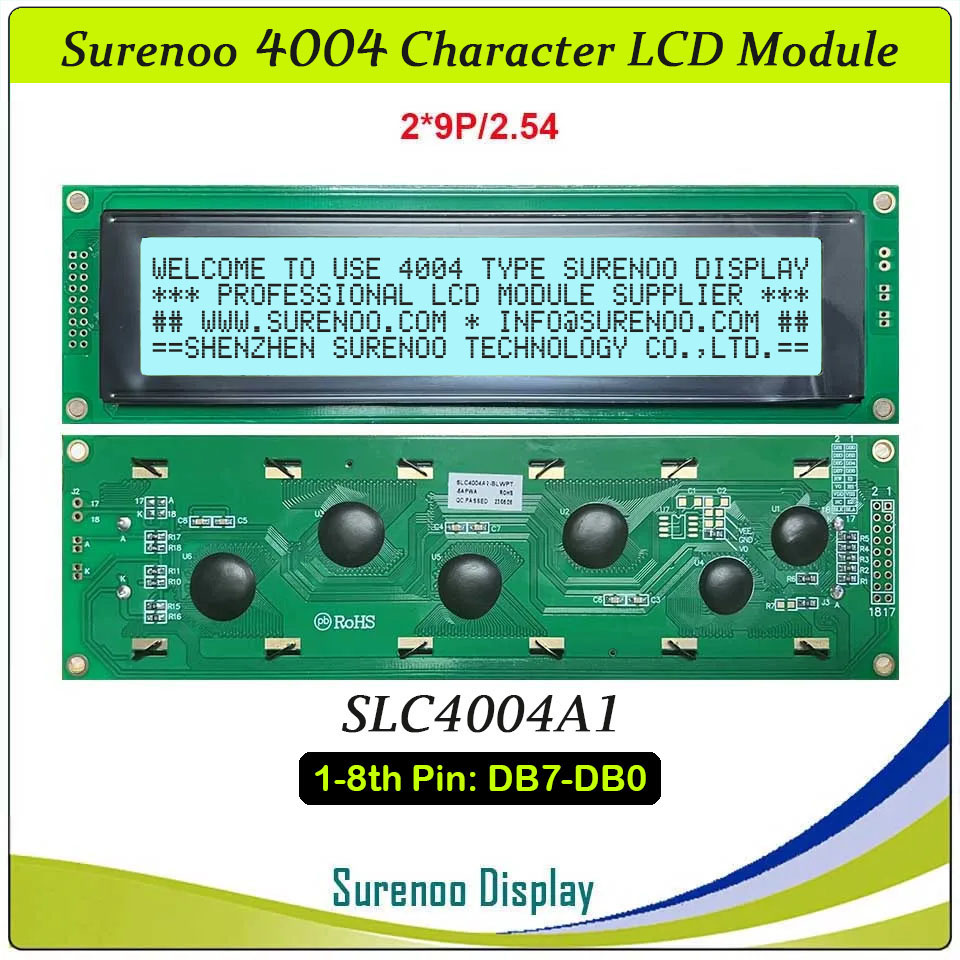

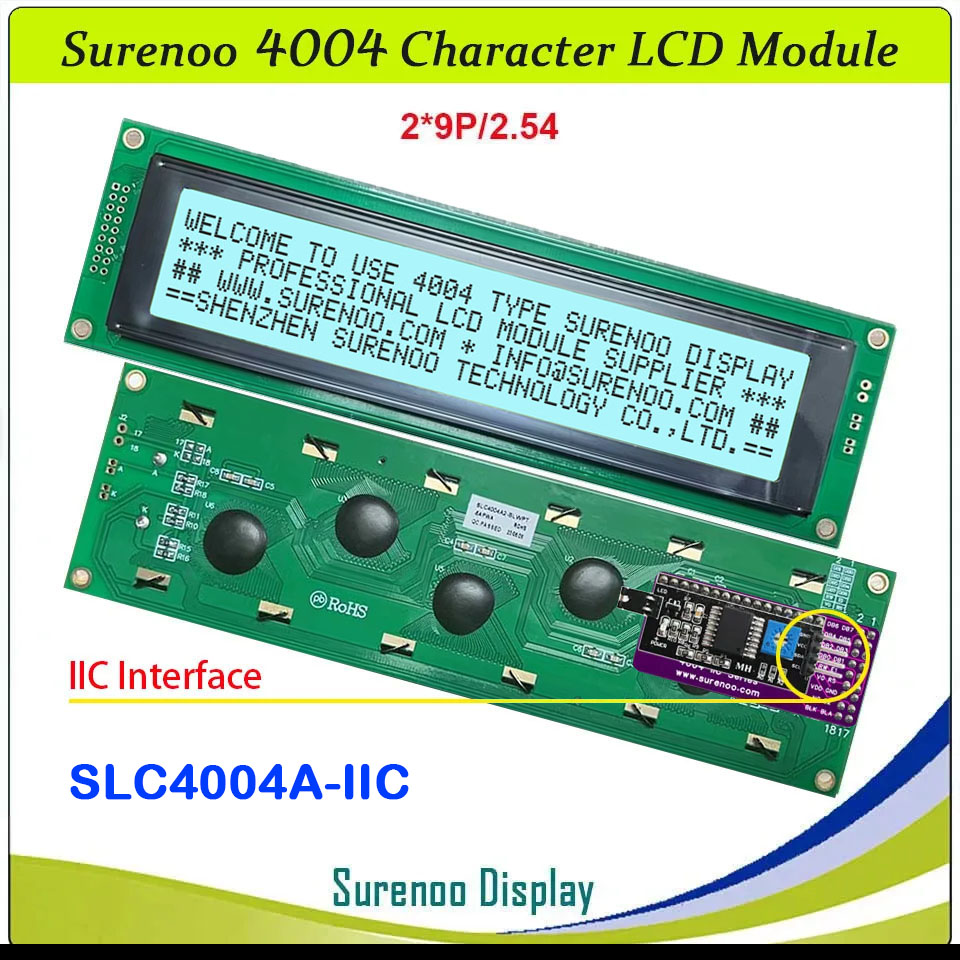

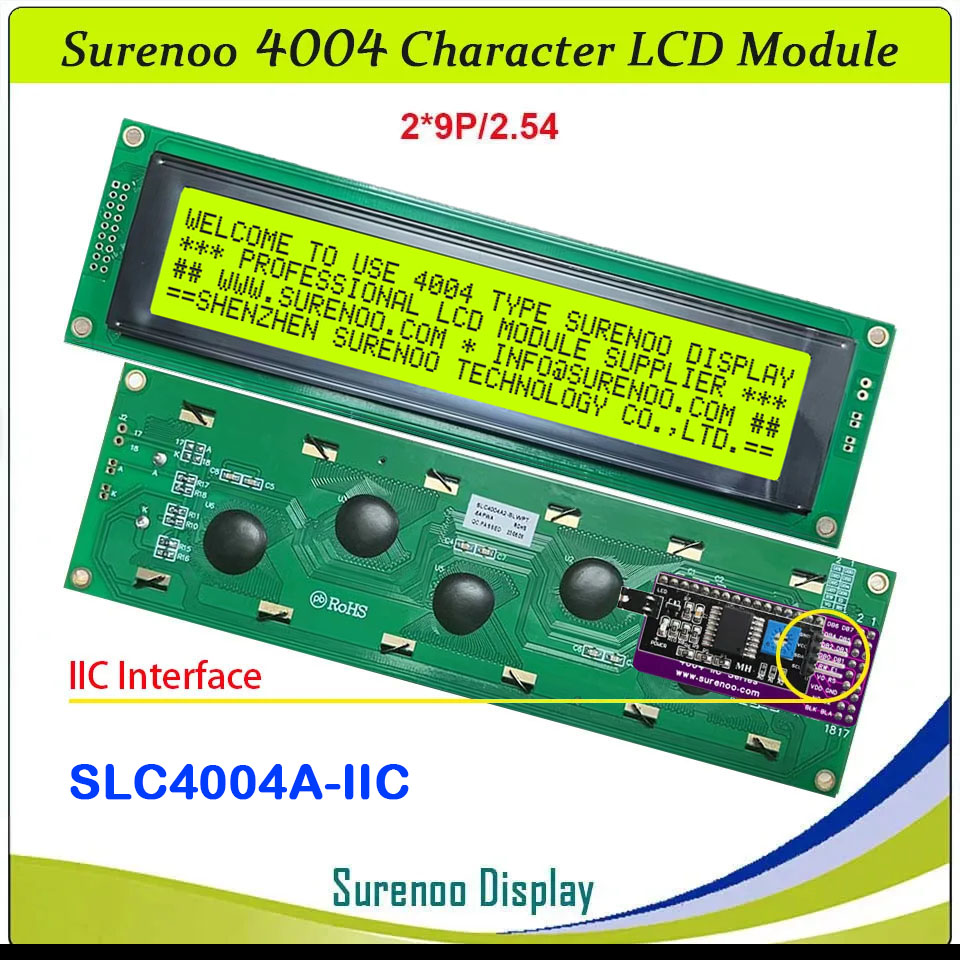

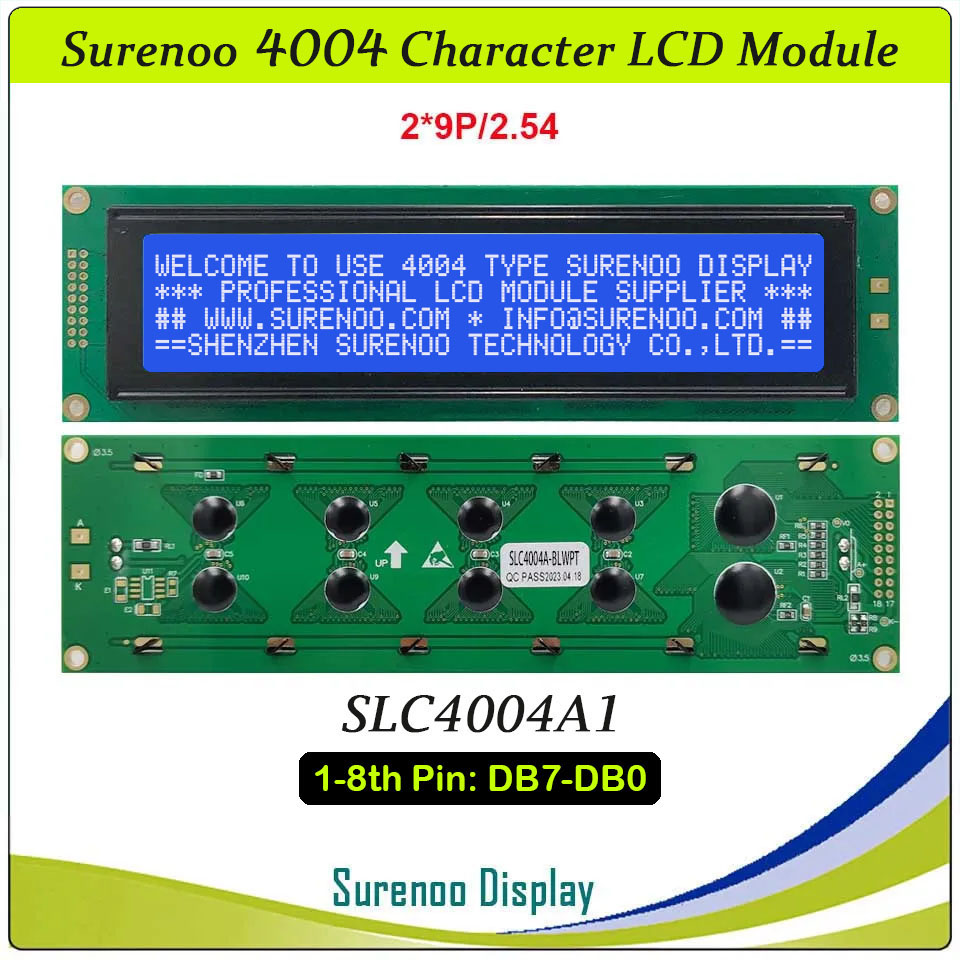

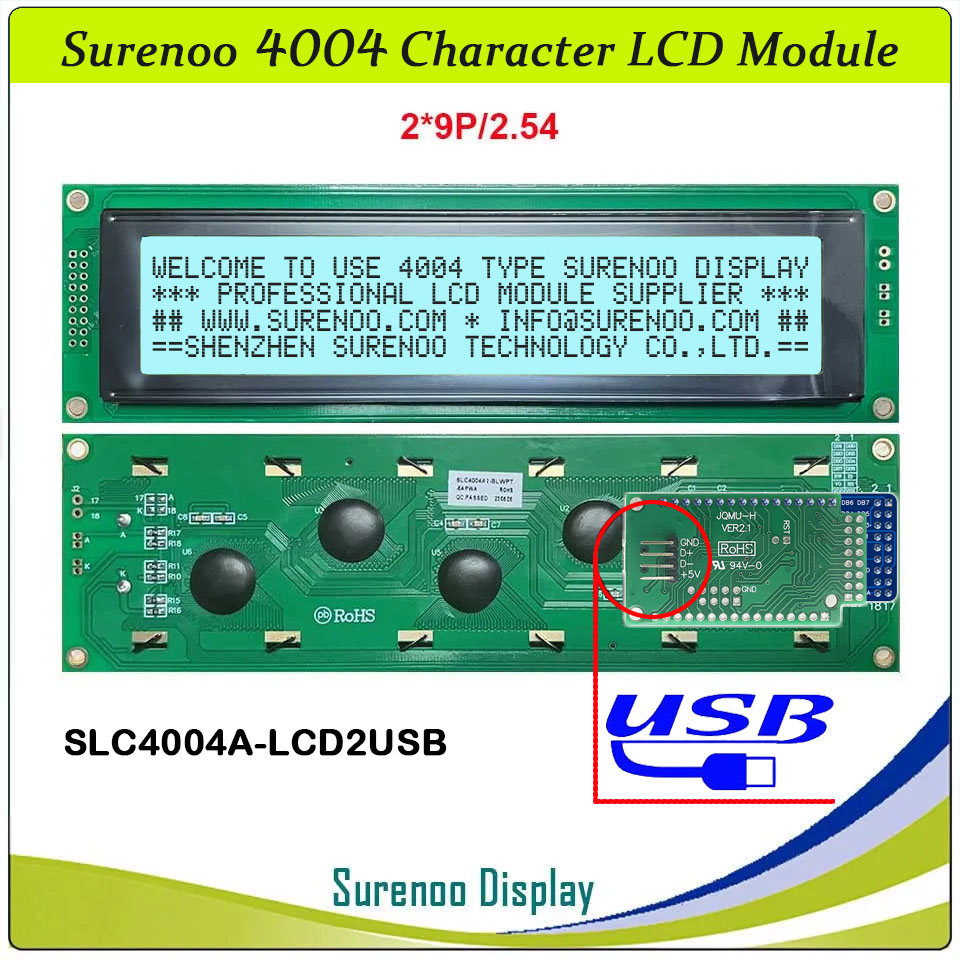

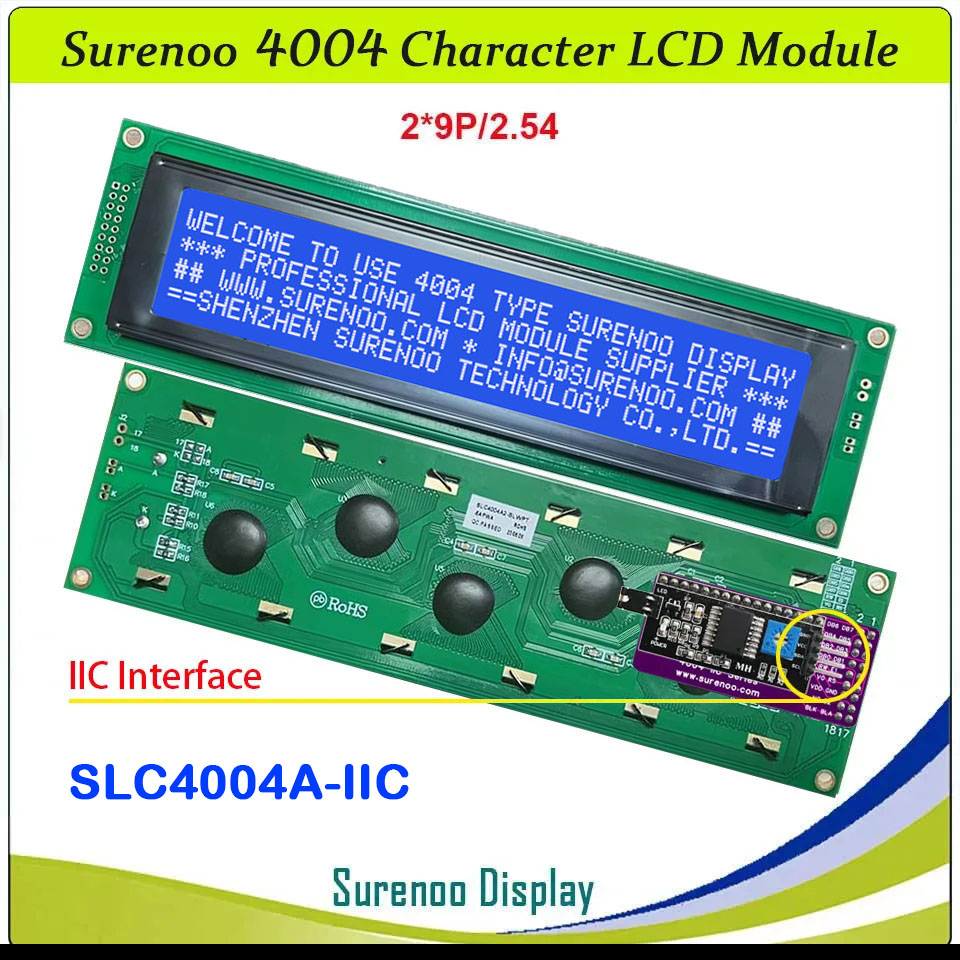

| SLC4004A -IIC 12293883 |
40X04 Characters |
190.00*54.00 | 149.00*30.00 | 140.45*23.16 | 5.0V | 2X9P/2.54 Parallel |
|
AIP31066 |  |
|
| Model No. SPU |
Content | Outline Size (MM) |
View Area (MM) |
Active Area (MM) |
Voltage | Interface | Mark | Datasheet | Controller | Buy Now (Image) |
| 3.0" SLG12864C 14335693 |
128*64 Dots |
93.00*70.00 |
72.00*40.00 |
66.52*33.24 |
5.0V |
1X8P/2.54 Serial IIC |
Integrated Serial IIC |
|
- |  |
| 2.2" SLG12864Q 14600783 |
128X64 Dots |
56.00*44.60 |
50.80*27.00 |
48.62*24.30 |
3.3V | 1X4P/2.54 Serial IIC |
|
ST7567 |
 |
|
| SLG12864A -IIC 14310006 |
3.0" 128X64 Dots |
93.00*70.00 |
70.70*38.80 |
66.52*33.24 |
5.0V | 1X8P/2.54 Serial IIC |
|
AIP31108 |
 |
