| Nextion HMI Display Selection Guide | ||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| 4.3”-10.1” HMI Display |
2.4”-7.0” HMI Display |
2.4", 2.8", 3.5” HMI Display |
2.4”- 7.0” HMI Display |
USB to TTL Adapter lO Adapter IO Expansion Board
|
| (R) |
2.4"/2.8"/3.2"/3.5" (R)
4.3"/5.0"/7.0" (N)
|
(R) | (N) | Status |
| 4.3”-10.1” |
2.4”-7.0”
|
2.4", 2.8", 3.5” |
2.4”- 7.0” | Size |
|
10.1" Without Only
|
7.0" With Only
|
✘ | ✘ | Enclosure |
| ✔ |
✔
|
✔ |
✔ | Resistive Touch Panel |
| ✔ |
7.0" With Only
|
✘ |
✘ | Capacitive Touch Panel |
| 200 MHz |
108/48 MHz
|
64 MHz |
48 MHz | MCU |
| 128 MB |
32/16 MB
|
16/4 MB |
16/4 MB | Flash Memory |
| 512 KB |
8192/3584 Byte
|
3584 Byte |
3584 Byte | SRAM |
| 1024 Byte |
1024 Byte
|
✘ |
✘ | EEPROM |
| 8 |
8
|
✘ |
✘ |
GPIOs |
| ✔ |
✔
|
✘ |
✘ | RTC |

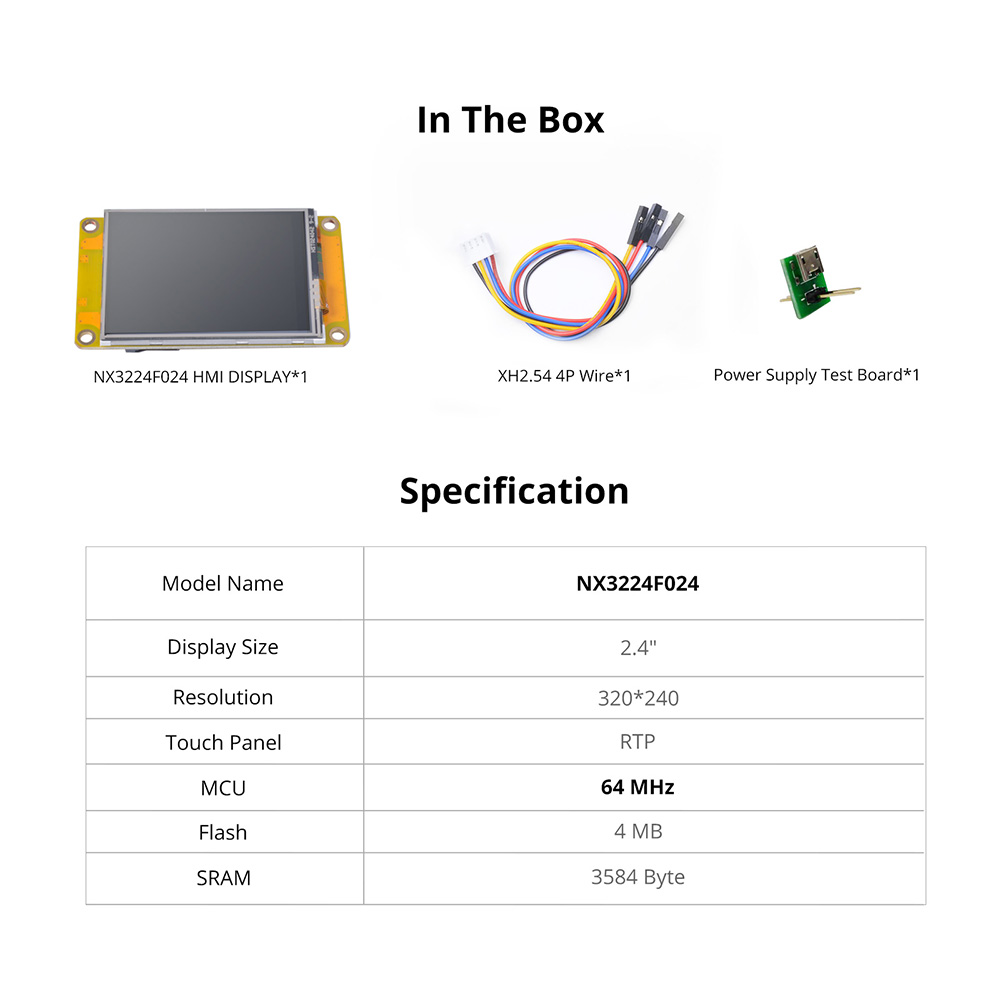

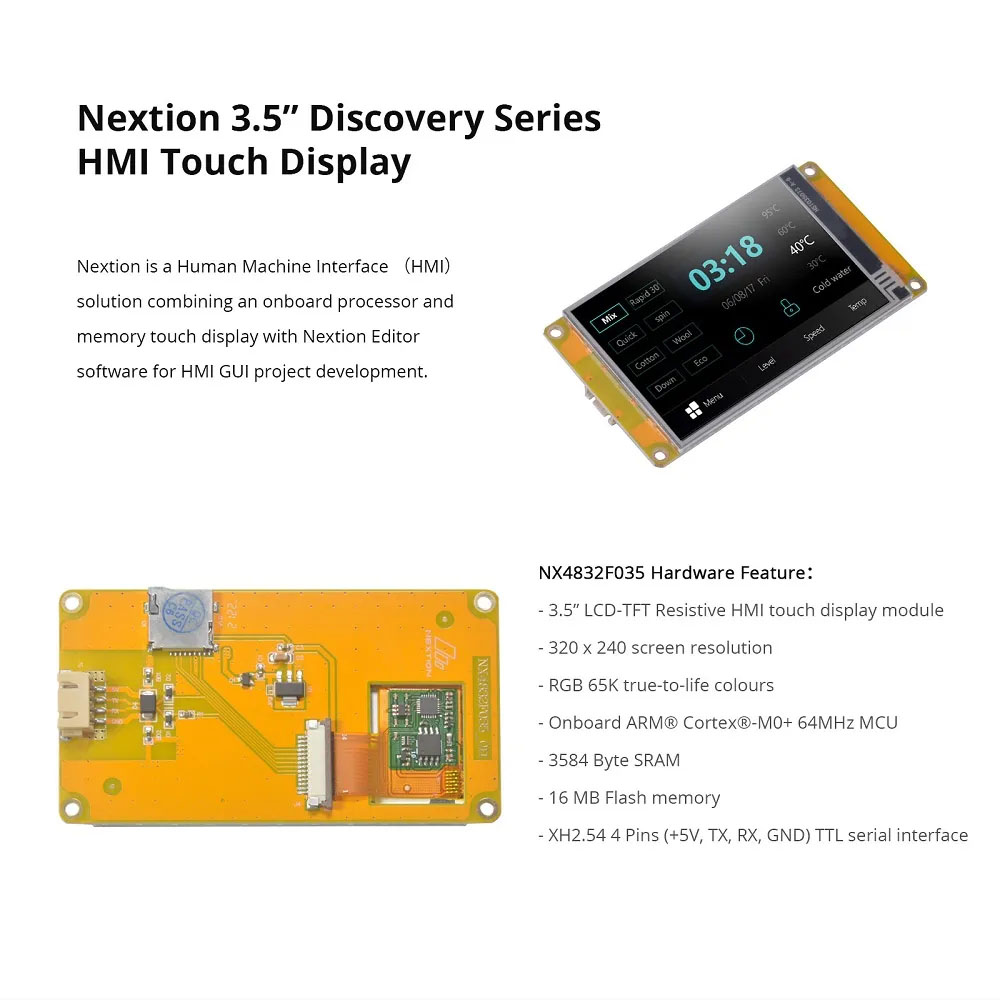

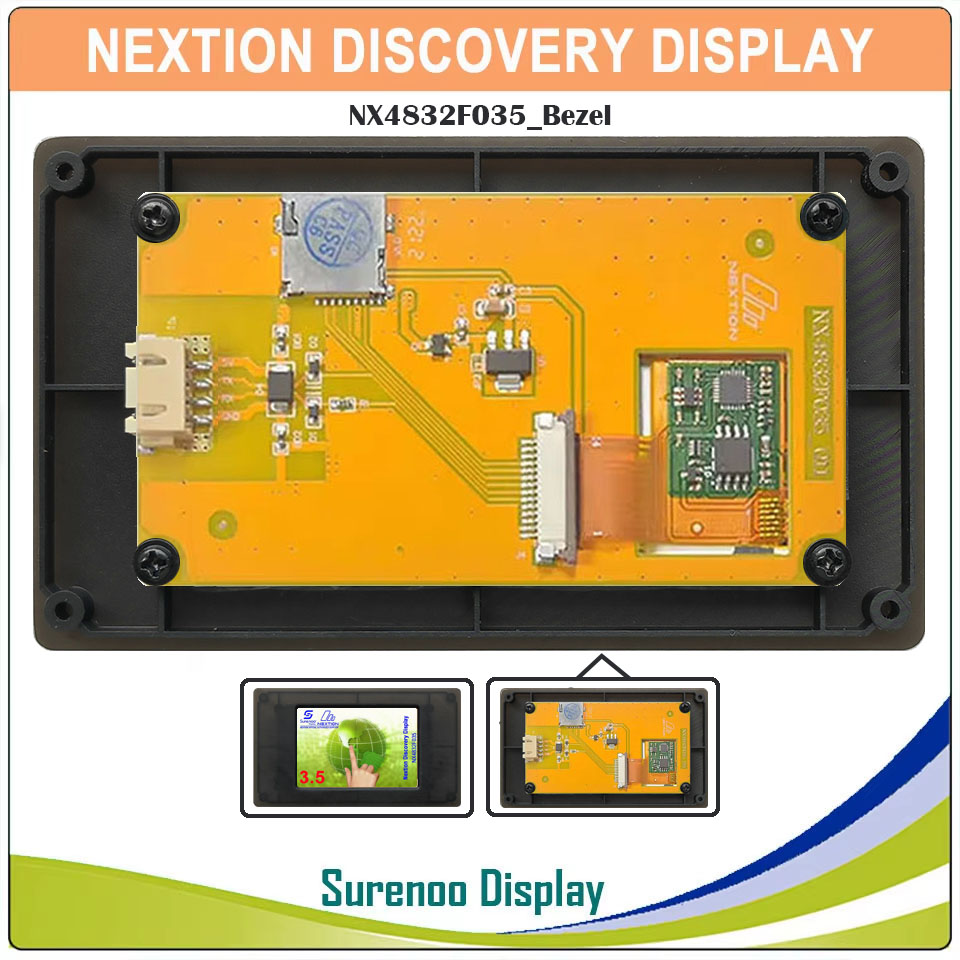

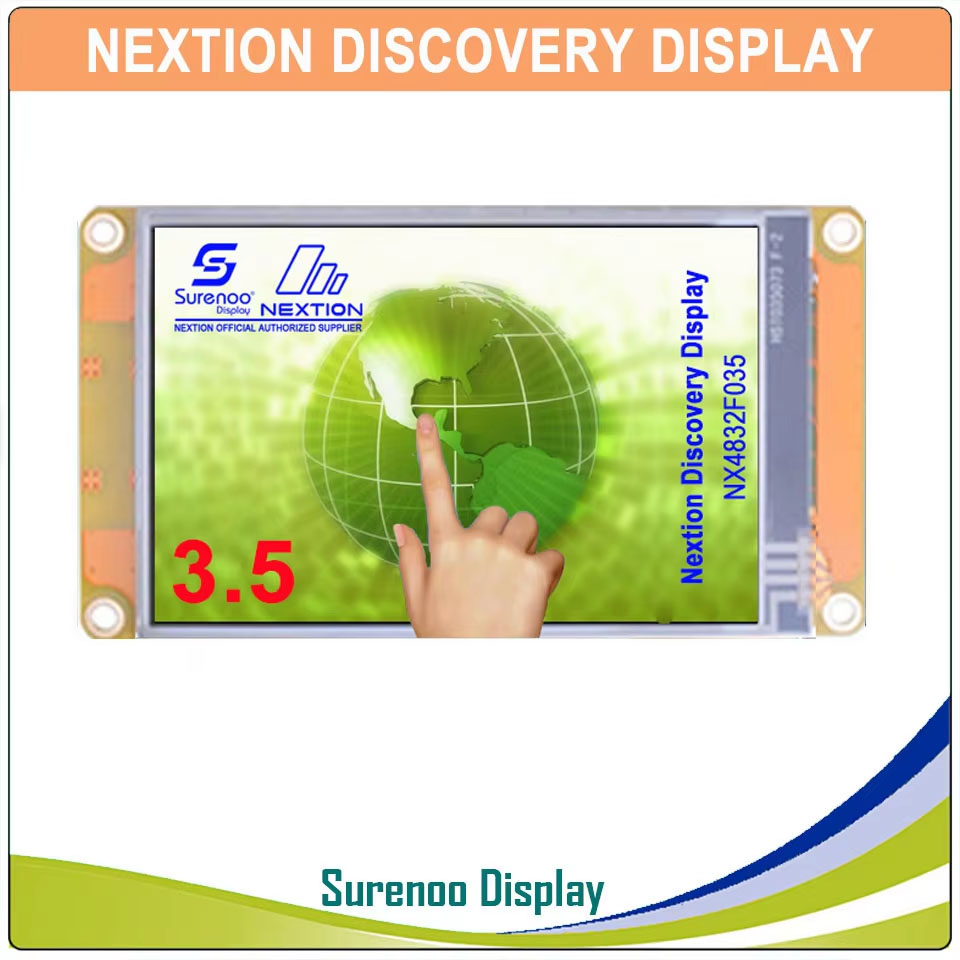

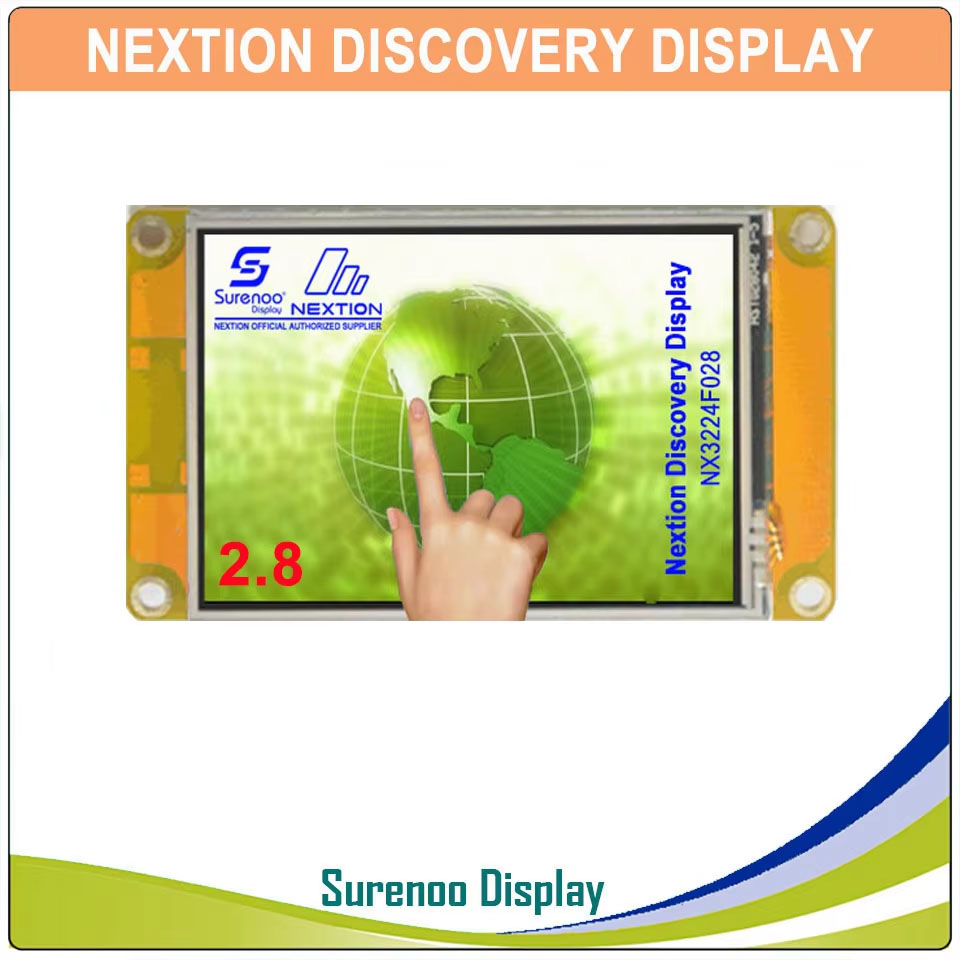

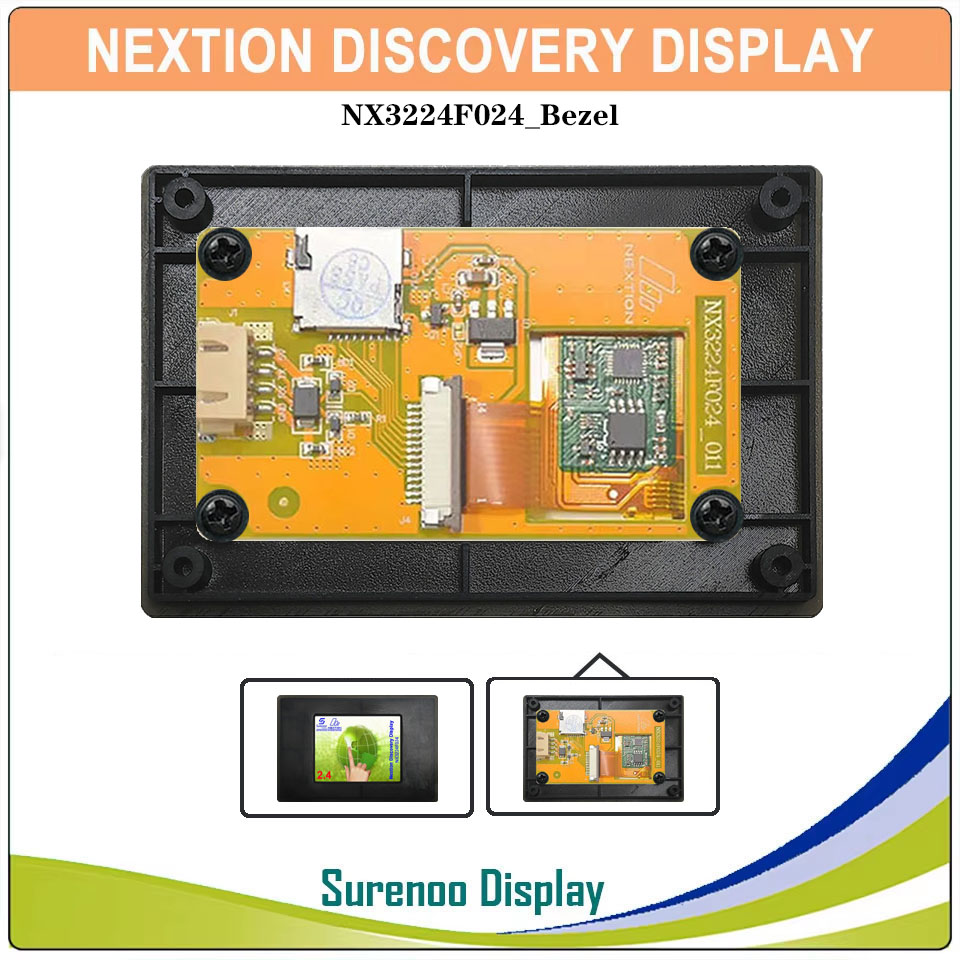

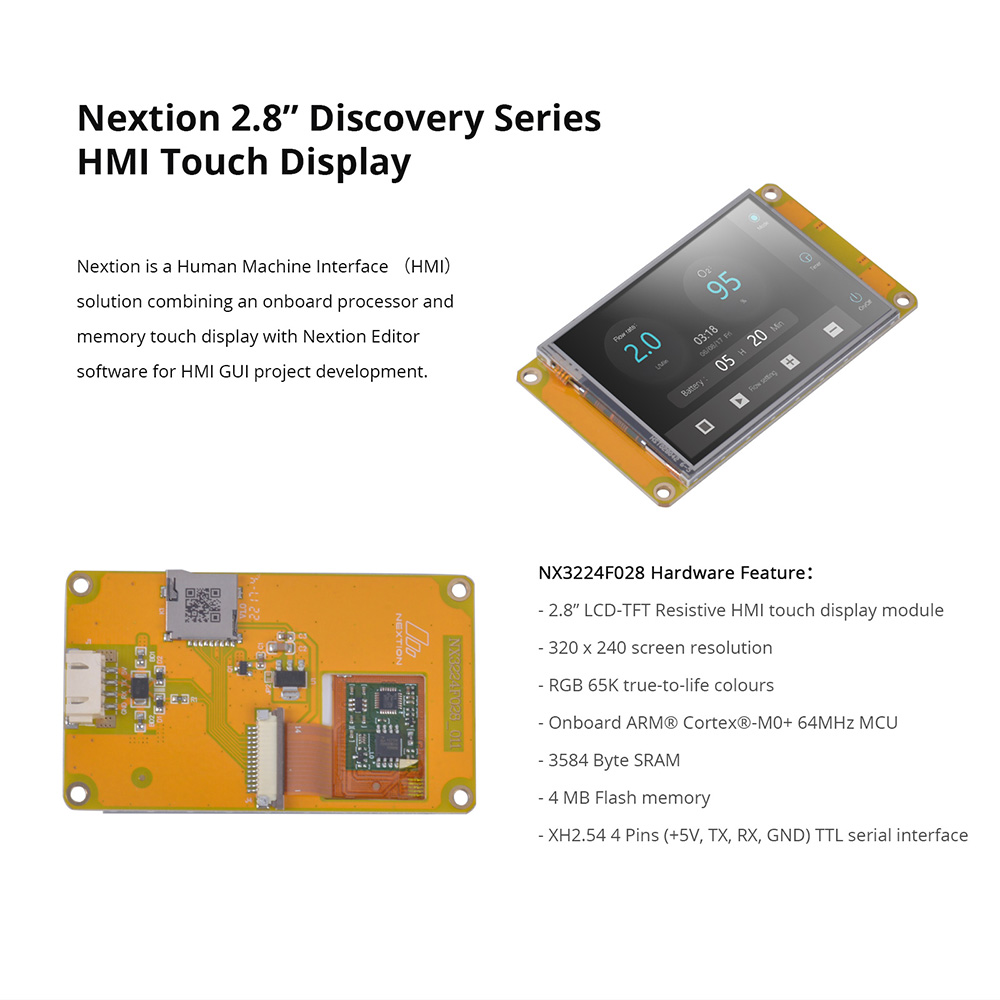

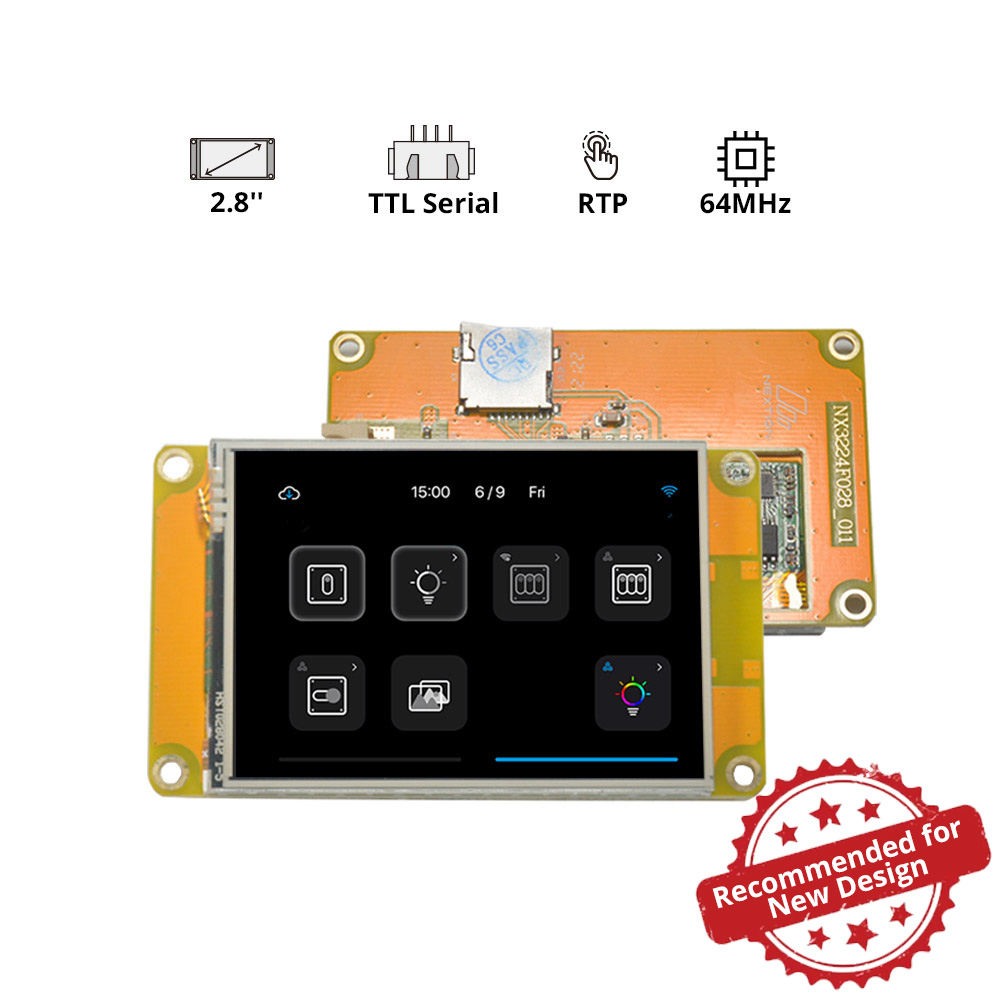

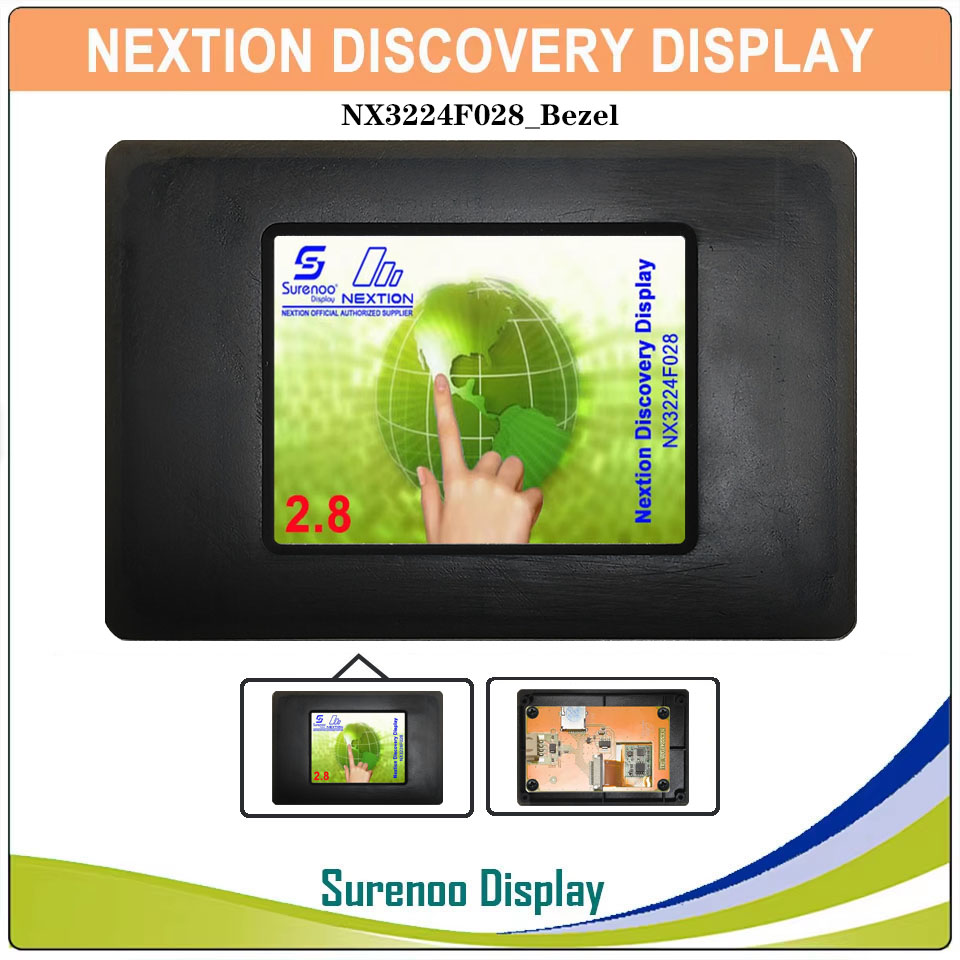

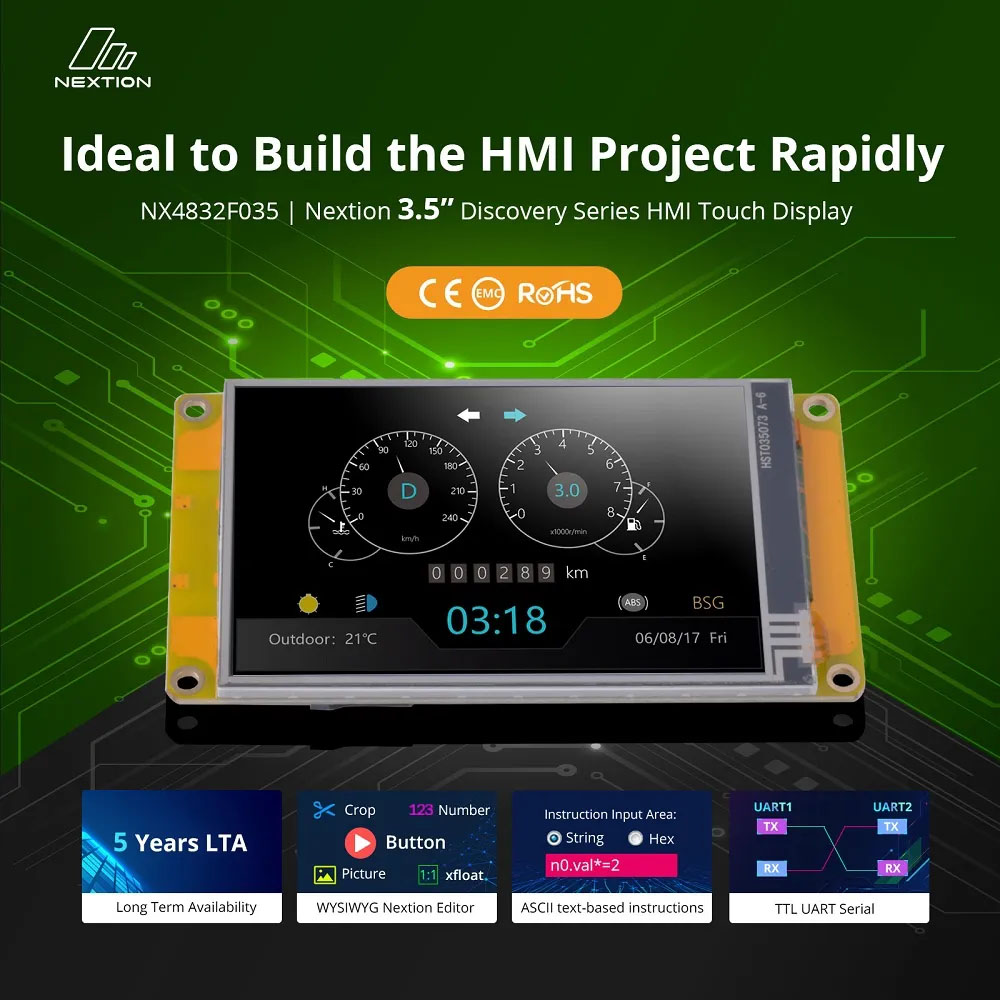

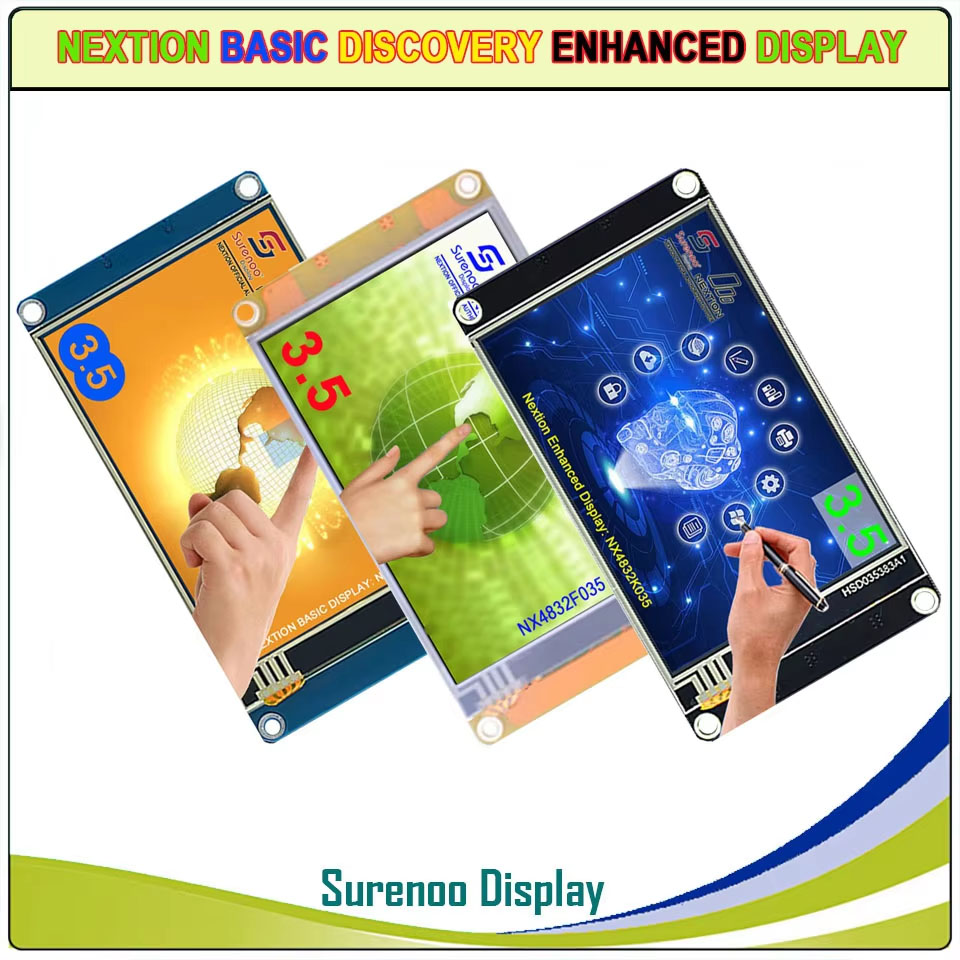

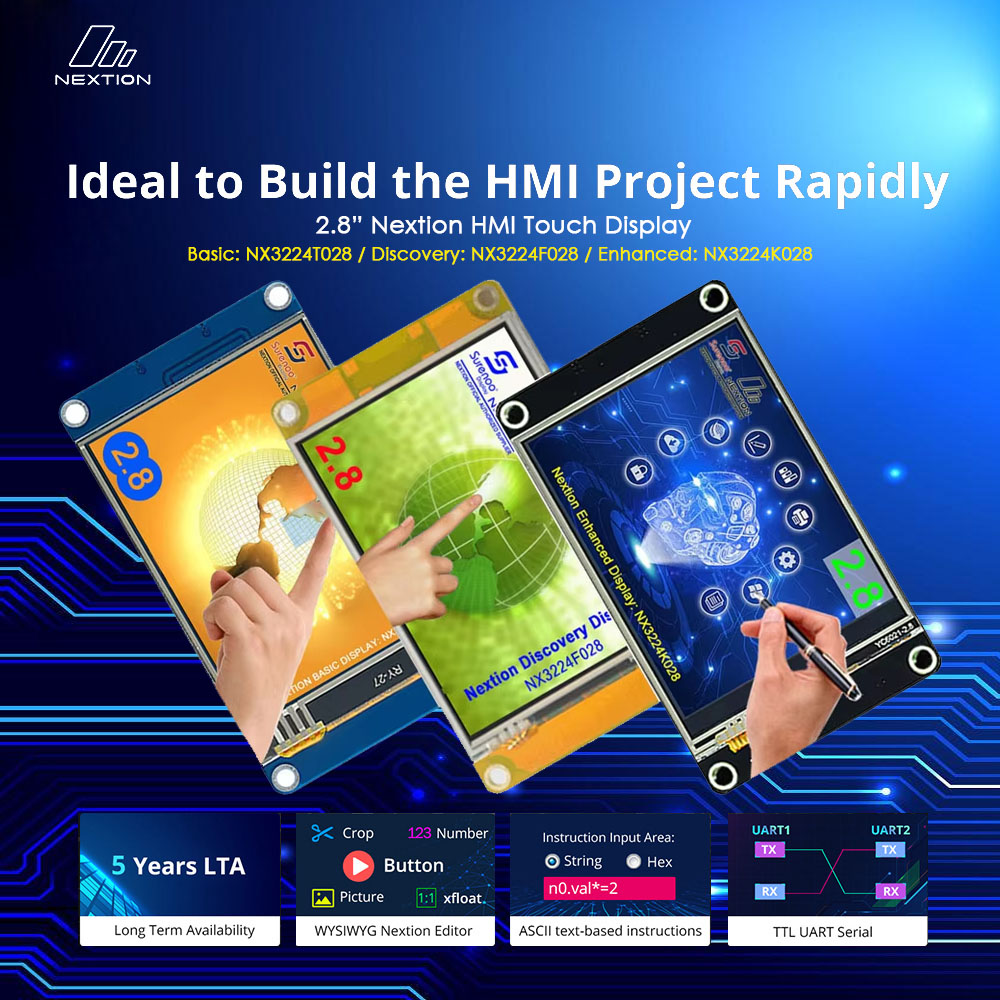

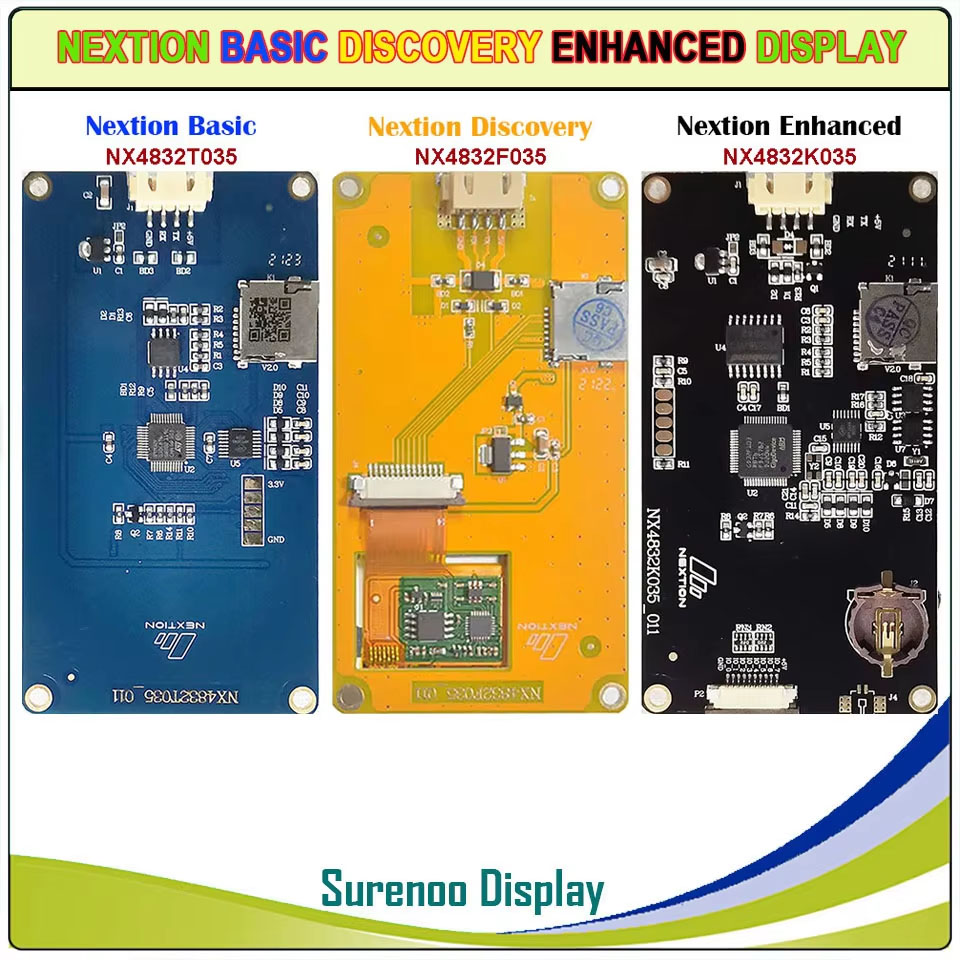

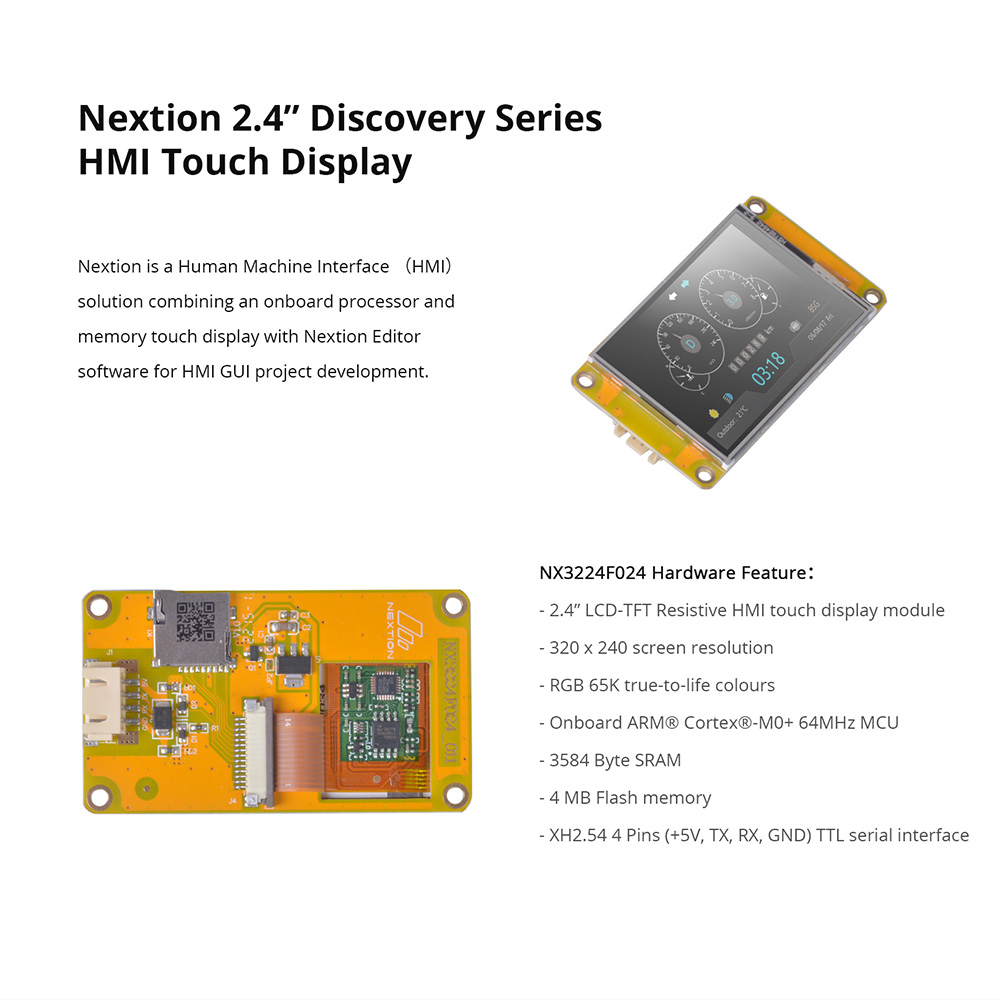

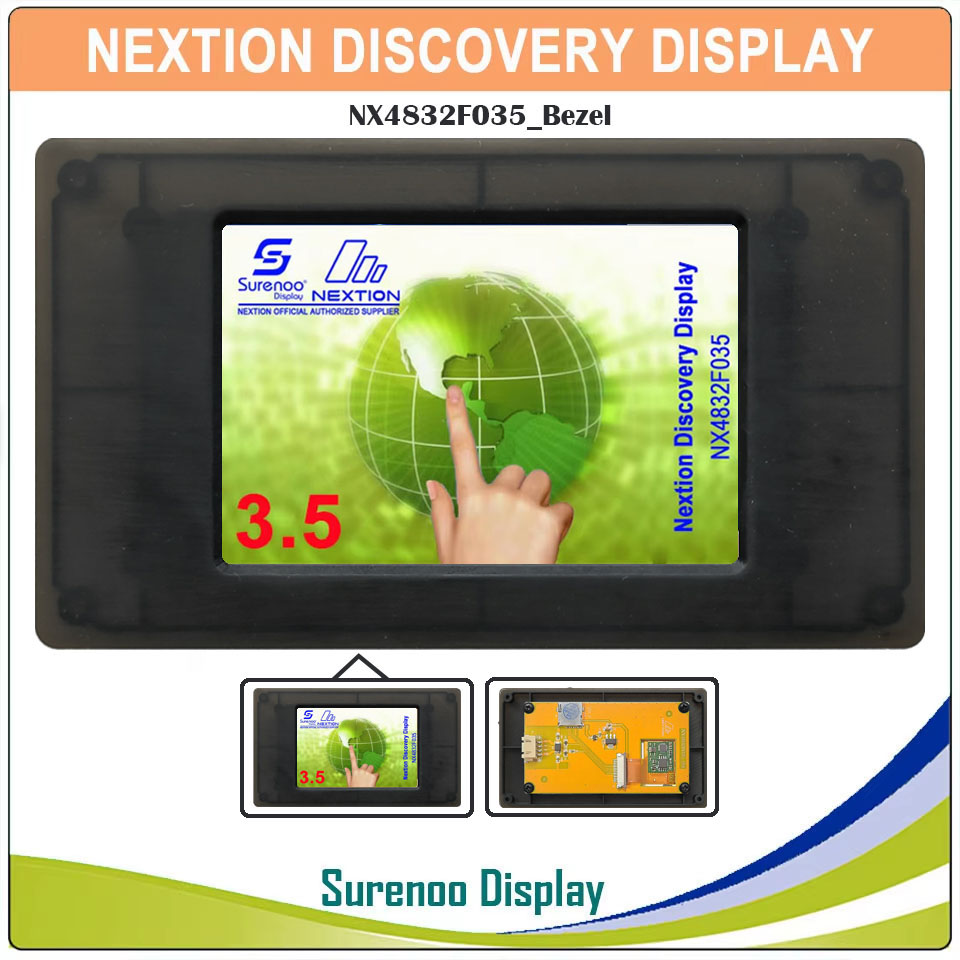

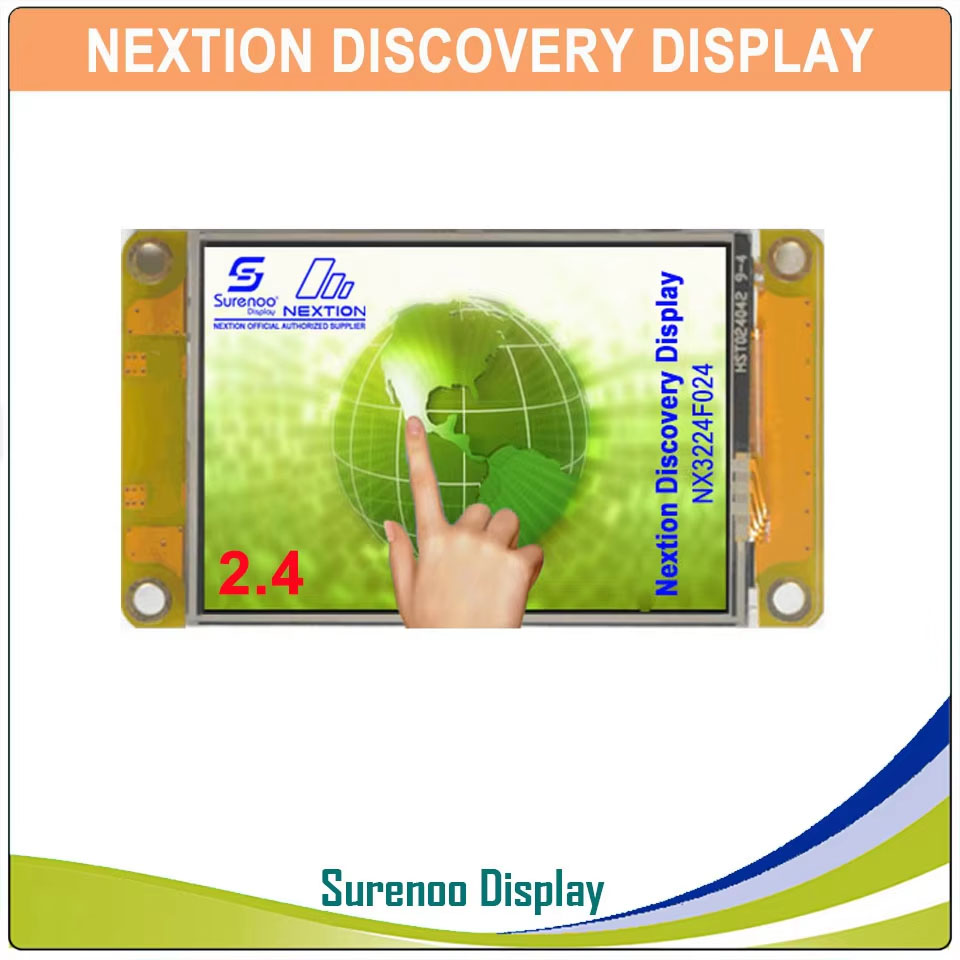

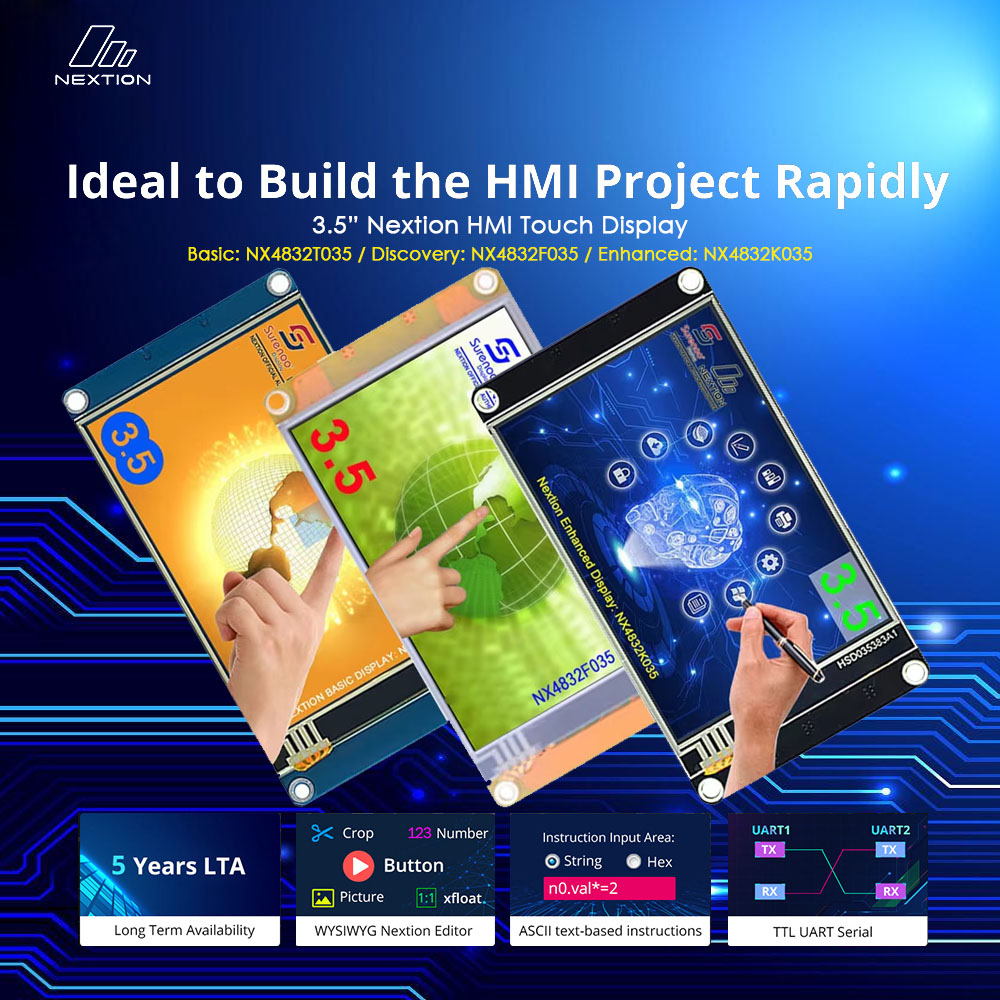

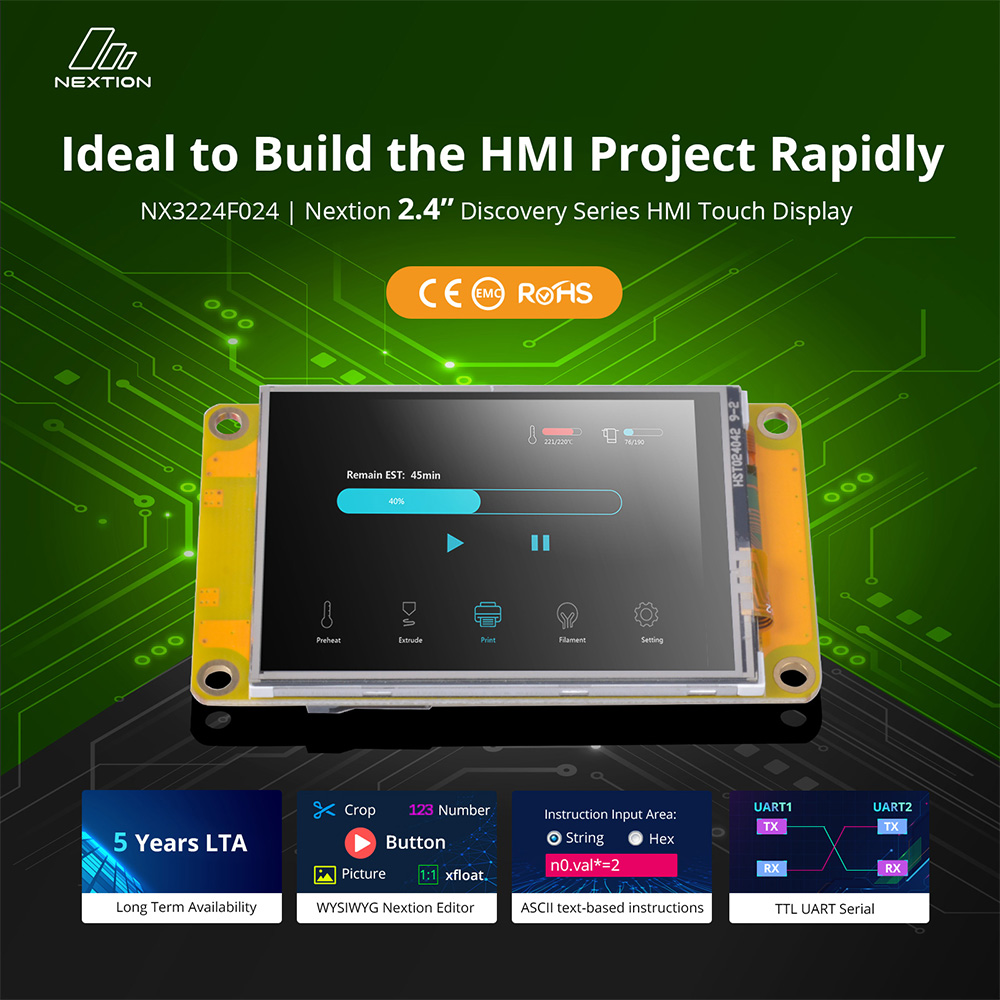

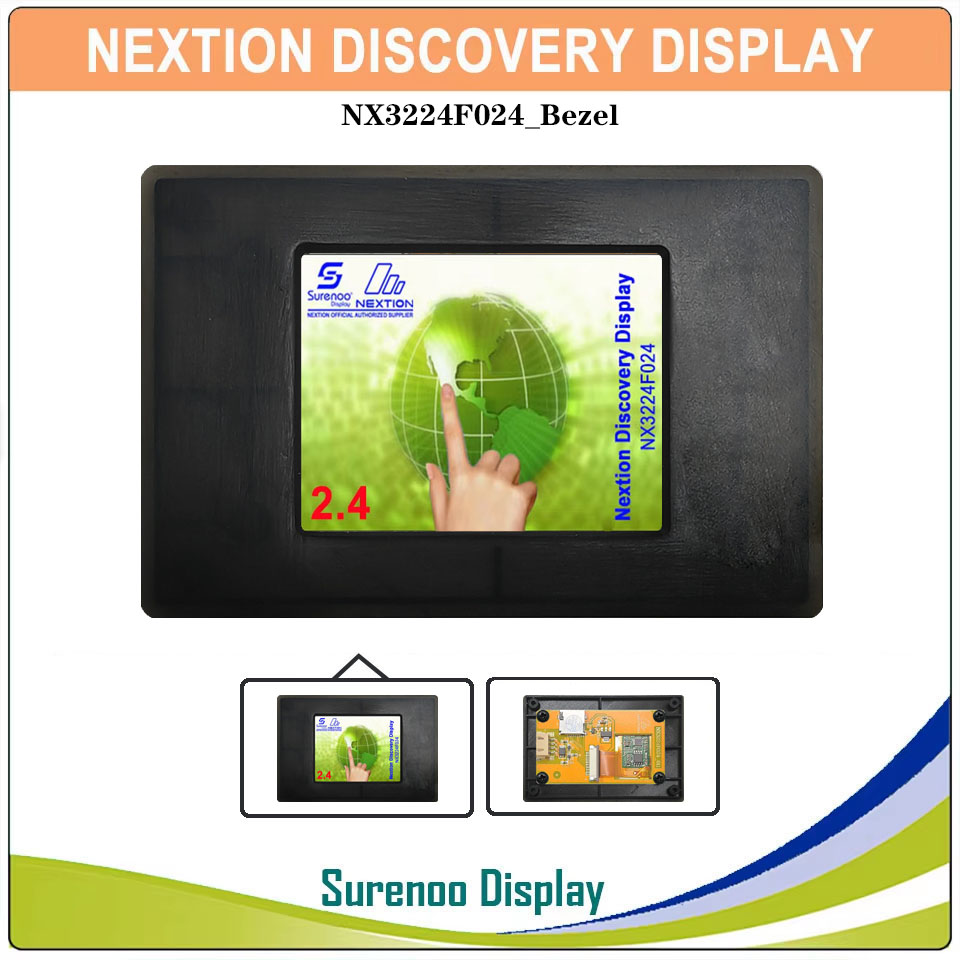

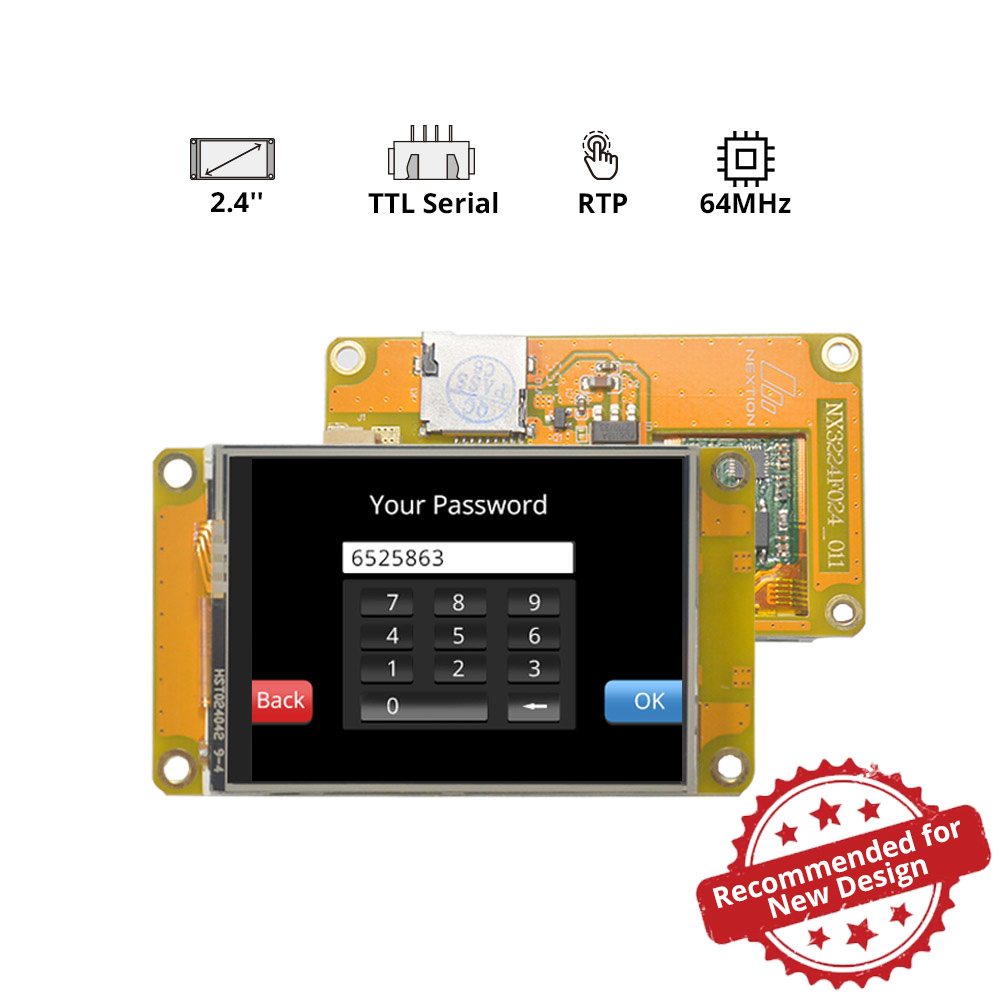

| Model Name | NX3224F024 | NX3224F028 | NX4832F035 |
| Size | 2.4″ | 2.8″ | 3.5″ |
| Resolution | 320*240 | 320*240 | 480*320 |
| Touch Panel | RTP | RTP | RTP |
| Color | 65536 | 65536 | 65536 |
| Flash | 4 MB | 4 MB | 16 MB |
| RAM |
3584 Byte |
3584 Byte |
3584 Byte |
| MCU |
64 MHz |
64 MHz |
64 MHz |
| EEPROM |
— |
— |
— |
| GPIOs |
— |
— |
— |
| RTC | — | — | — |
| Enclosure | No | No | No |
| Datasheet | Click | Click | Click |
