SLC0801A PCB=85.00X29.50MM 0801 8*1 Surenoo Character LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel Serial IIC I2C AIP31066 SPLC780D ST7066 PCF8574 Controller STN Yellow Green LED Backlight

Model No.: SLC0801A
Display Format: 08X01 Characters
PCB Size: 85.0X29.5MM
Controller: AIP31066, ST7066 or Equal
129 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLC0801A is 8 characters wide, 1 row character lcd module, AIP31066 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31066 datasheet for the full character set. It's 5V or 3.3V power supply, and I2C adapter board is optional for Arduino.

It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.040Kg
Manufacturer Surenoo
Diaplay Type Character LCD Module / IIC Display
Continuity Supply More than 10 years
Part No. SLC0801A
Display Format 8x1 Characters
Interface 6800 4-bit Parallel, 6800 8-bit Parallel, Serial IIC
IC or Equivalent AIP31066, ST7066 or Equal
Fonts English-Japanese, Other Fonts is Optional for Bulk Order.
Voltage(Type) 5.0V in default, 3.3V is Optional
Connection (2*7+2)P/2.54 Pin Header
Outline Dimension 85.00(W)x29.50(H)x12.00(T)mm
Visual Area 64.50x15.80mm
Active Area
 60.38x11.96mm
Display Type STN LCD-Yellow Green, STN Blue Negative, STN Gray
Backlight Type (LED) Yellow Green, White
IC Package COB
Viewing Direction 6:00 O'Clock
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃

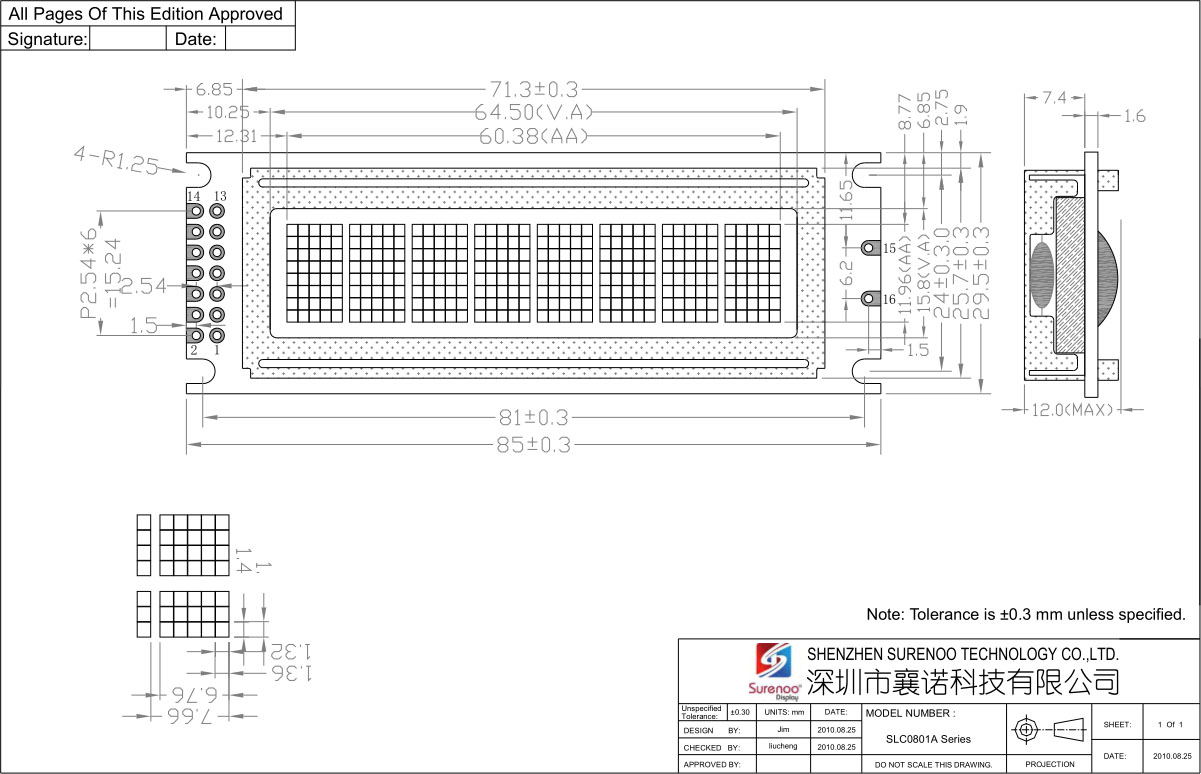

  • Outline Drawing

  • Interface
Pin No. Pin Name Description
1 VDD Power Supply for LCD
2 VSS Ground 0V
3 V0 Operating voltage for LCD
4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
5 R/W Read / Write (H: Read Mode, L: Write Mode)
6 E Enable Signal
7-14 DB0-DB7 Data Bus
15 LED_A Backlight Anode
16 LED_K Backlight Cathode
  • Documents
No. Item File Name File Type ICON Date Description Mark
1 Datasheet SLC0801A PDF 2013-03-17 Standard 0801 Character LCD Module
2 Controller AIP31066 PDF 2008-09-24 Character LCD Controller, Compatible with SPC780, ST7066, HD44780, ......
3 Accessory
(PCF8574T IIC Module)		 PCF8574T IIC Module PDF 2011-02-09 1*16 and 2*8 Pin valid for Standard 0801, 0802, 1601, 1602, 1604, 2002, 2004, 2402, 4002 Character LCD Module
4 51 Library 51 Library TXT 2006-09-11 STC86S52 6800 4/8-Bit Parallel Library
5 IIC Library IIC Library ZIP 2009-07-19 Surenoo IIC Library for PCT8574T, AIP31068, RW1063, ST7032i to work on Arduino test Board
