Surenoo HDMI Display Code Instruction

For Example: S HD 070 A - 1024600 - CTP

1 S=Surenoo Brand

2.1 HD=Standard HDMI Interface
2.2 HN=Inner HDMI Interface
2.3 HV=Vertical HDMI Interface
2.4 HS=Double Screen HDMI Series
2.5 HR=Round Screen HDMI Series
2.6 HF=Square Screen HDMI Series
2.7 HL=Long Strip Display HDMI Series
2.8 HE=HDMI Display with Encloure

3 A=Serial Number

4 1024600=1024*600 Resolution

5.1 CTP=Capactitive Touch Panel
5.2 LTP=Large Capactitive Touch Panel
5.3 RTP=Reisitive Touch Panel
5.4 NTP=Without Touch Panel
Clear all
Filter
Filter
Sort by
Clear all
APPLY
3 Products
Sort by
1

Surenoo Display Selection Guide for Surenoo HDMI Display >> Vertical-HDMI Series (SHV)

Model No.
 Content Outline Size
(MM)		 View Area
(MM)		 Active Area
(MM)		 Voltage Interface Mark Datasheet Buy Now
(Image)

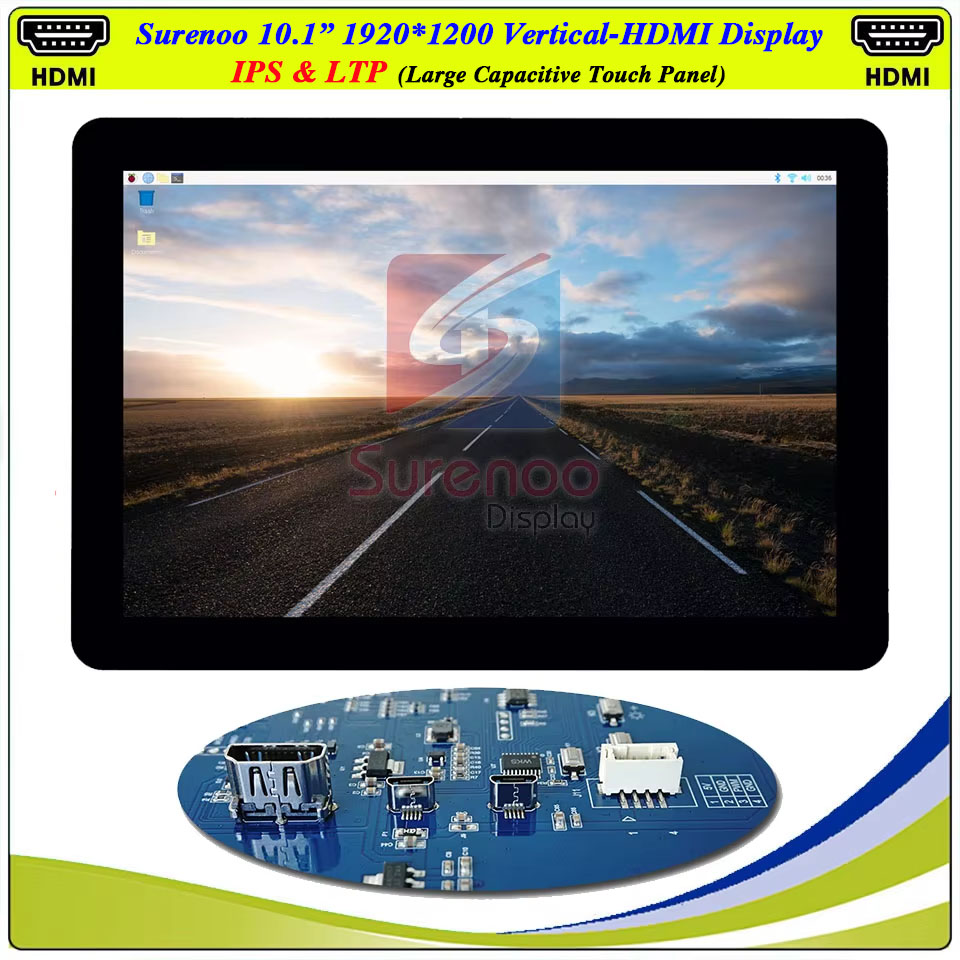

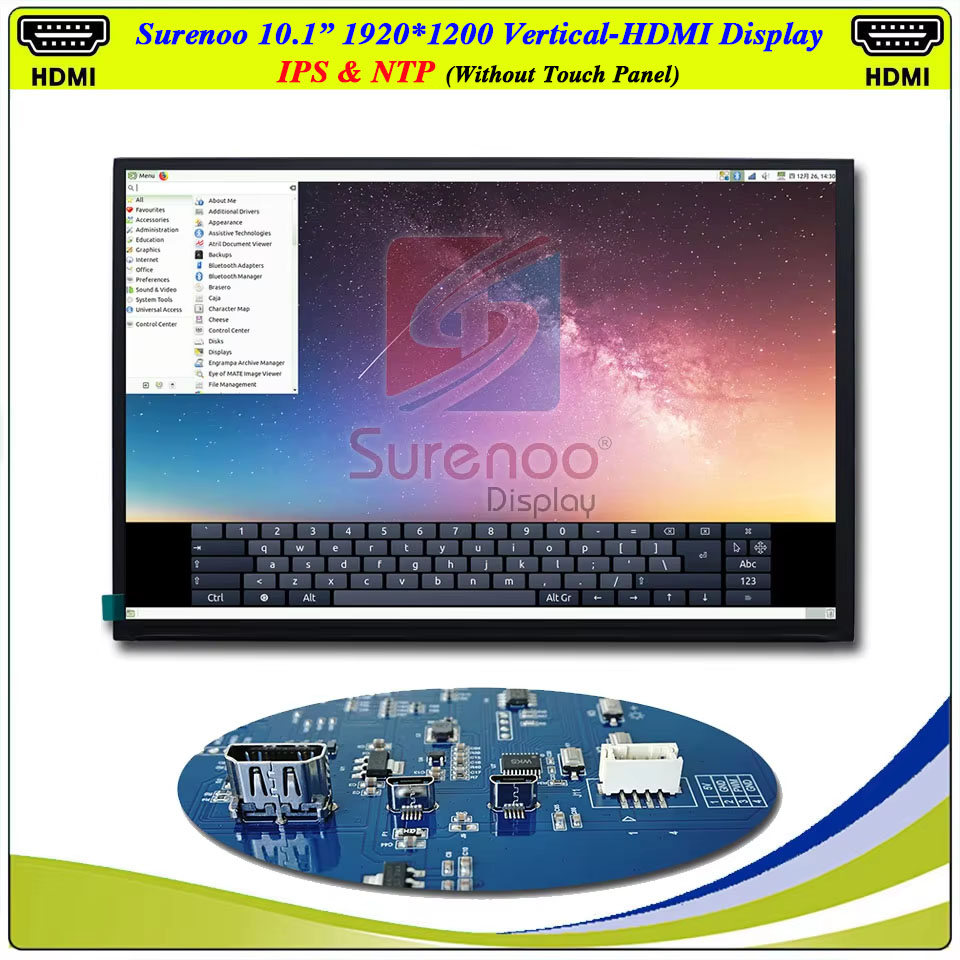

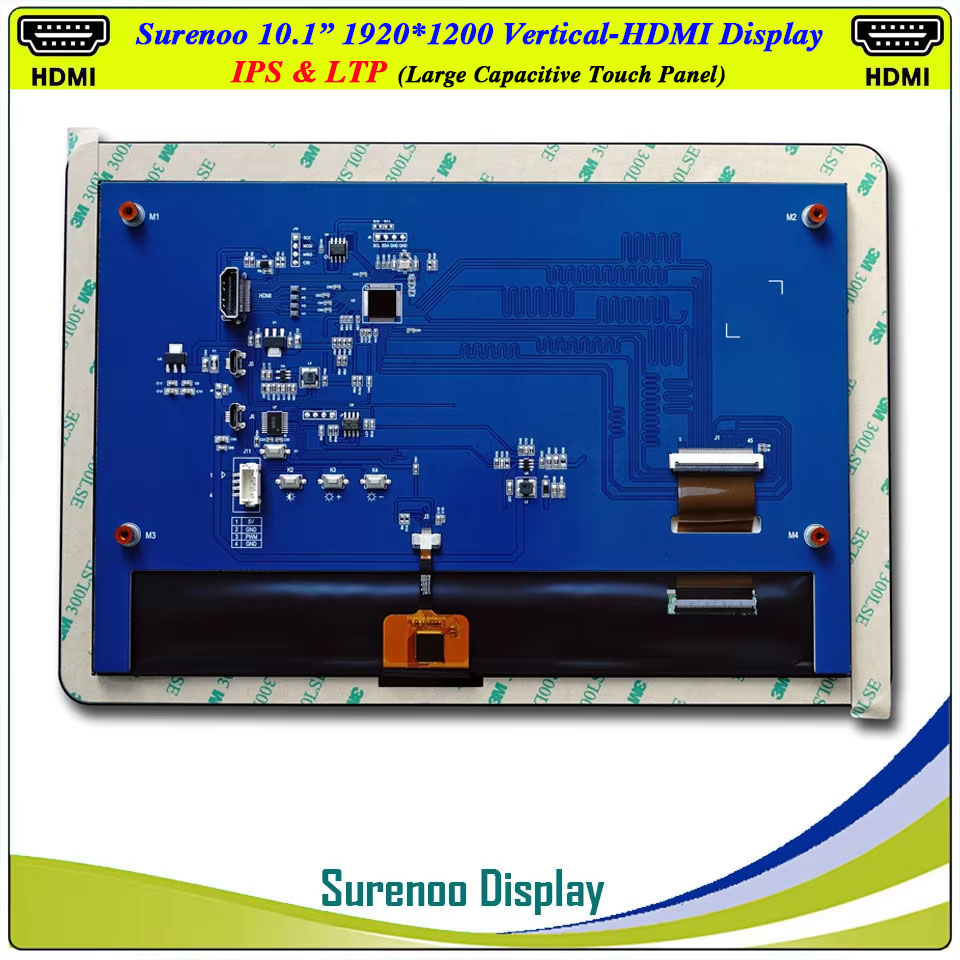

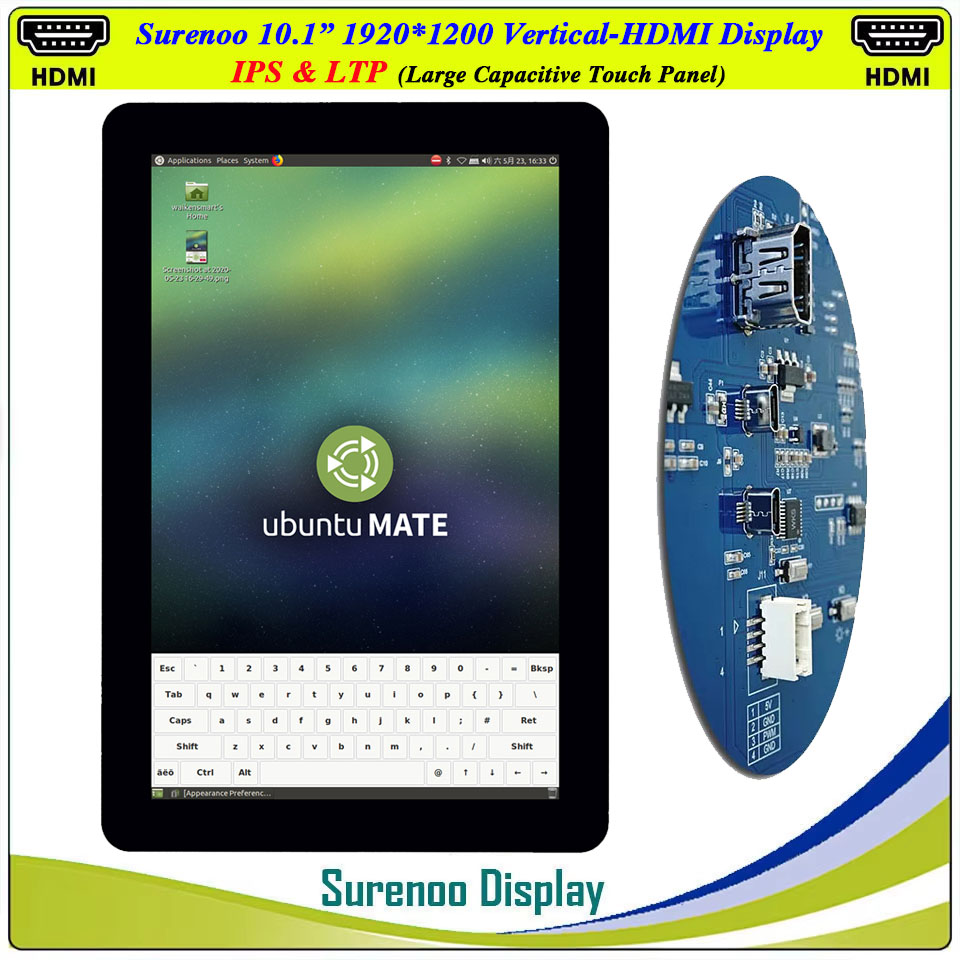

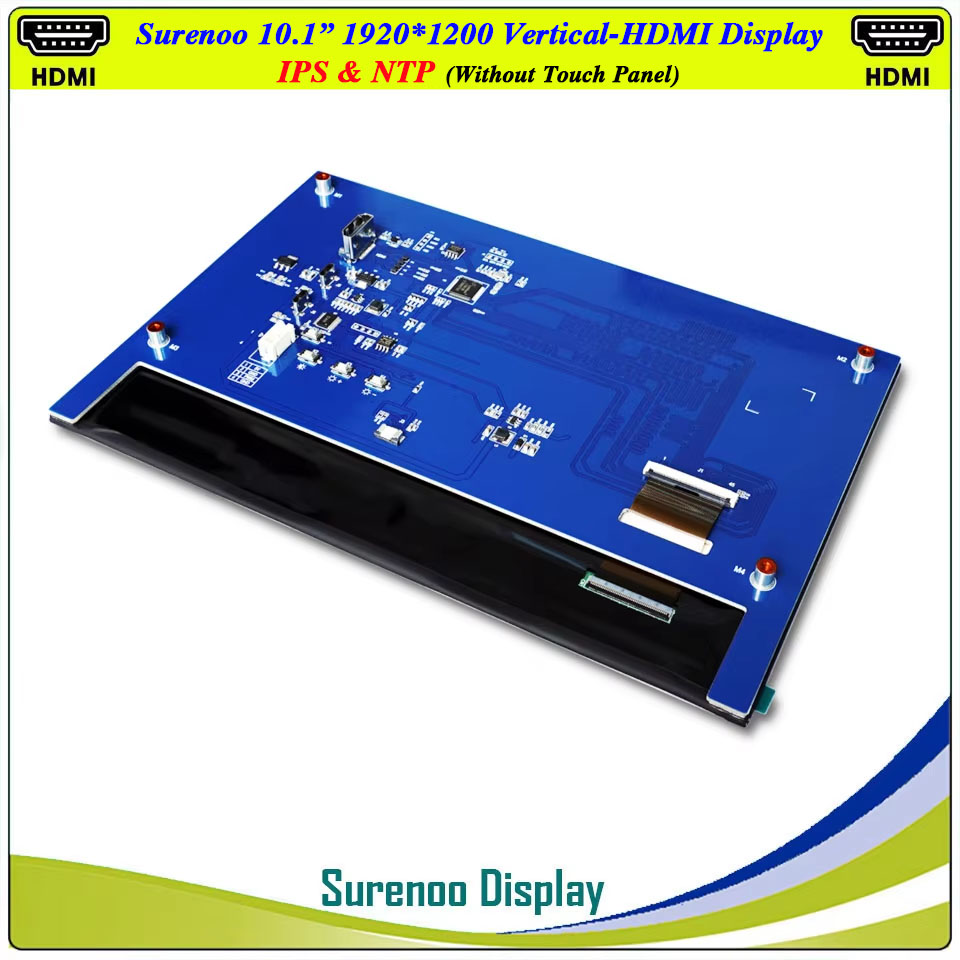

SHV101A
-19201200		 10.1" IPS
1920*1200
NTP/LTP		 NTP: 229.32*148.96
LTP: 255.00*172.60
 NTP: 217.40*136.15
LTP: 217.70*136.60		 216.81*135.50 5.0V Vertical
HDMI Type A		 Micro USB

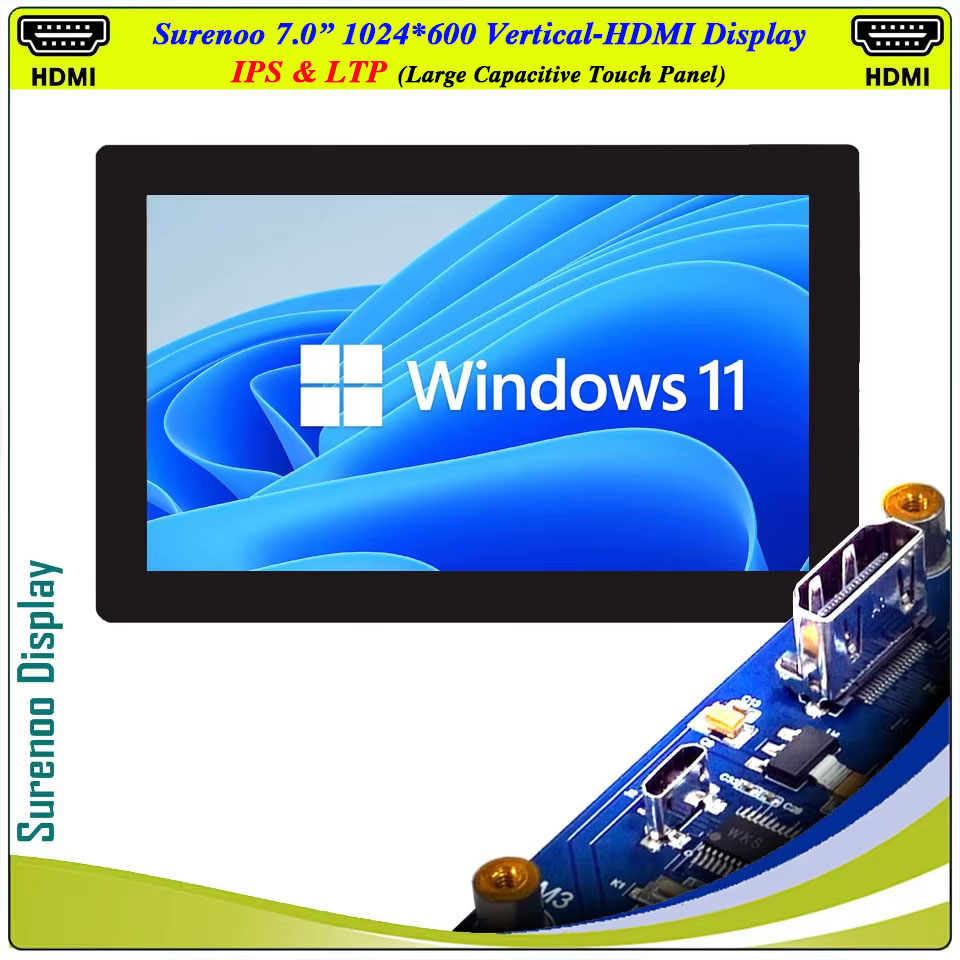

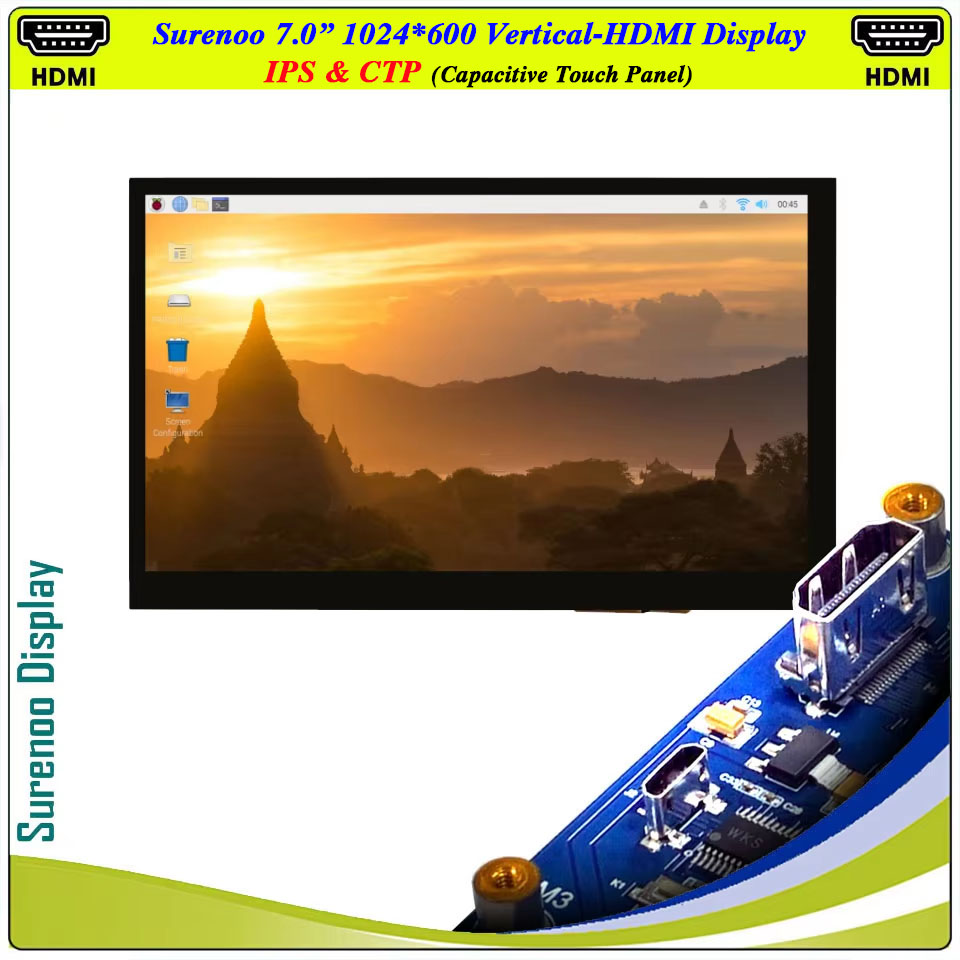

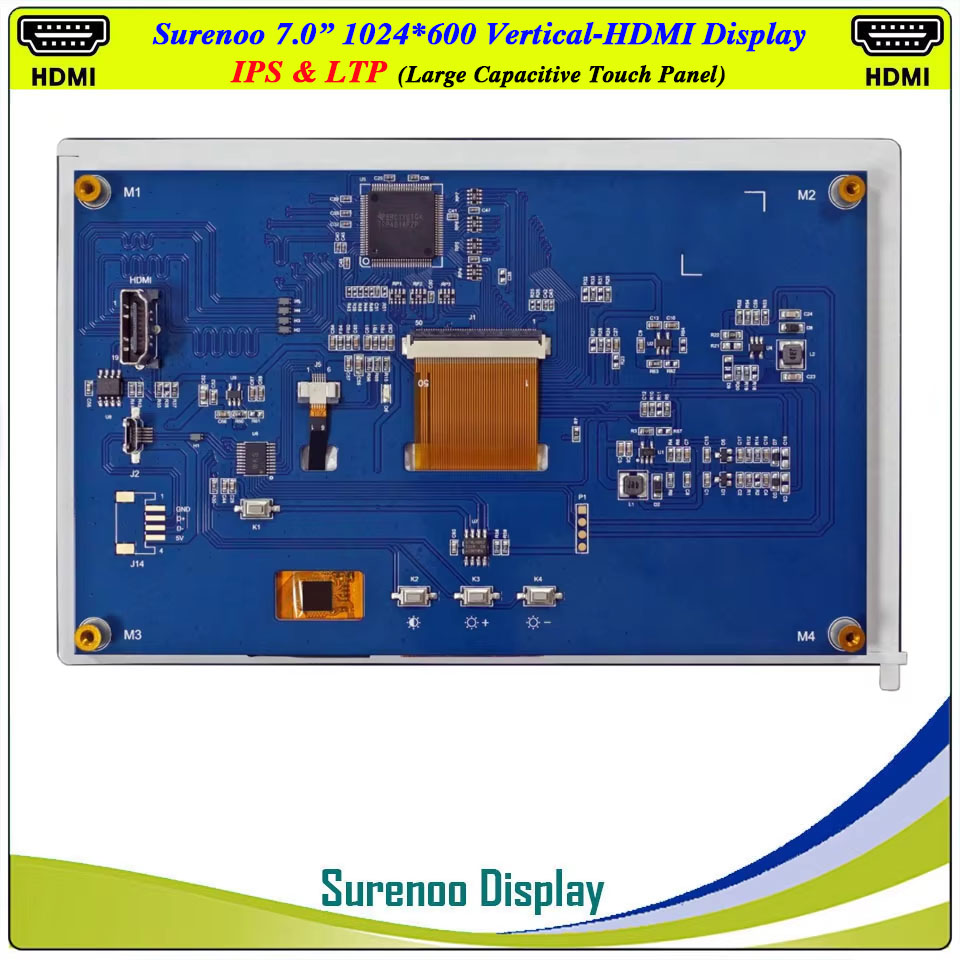

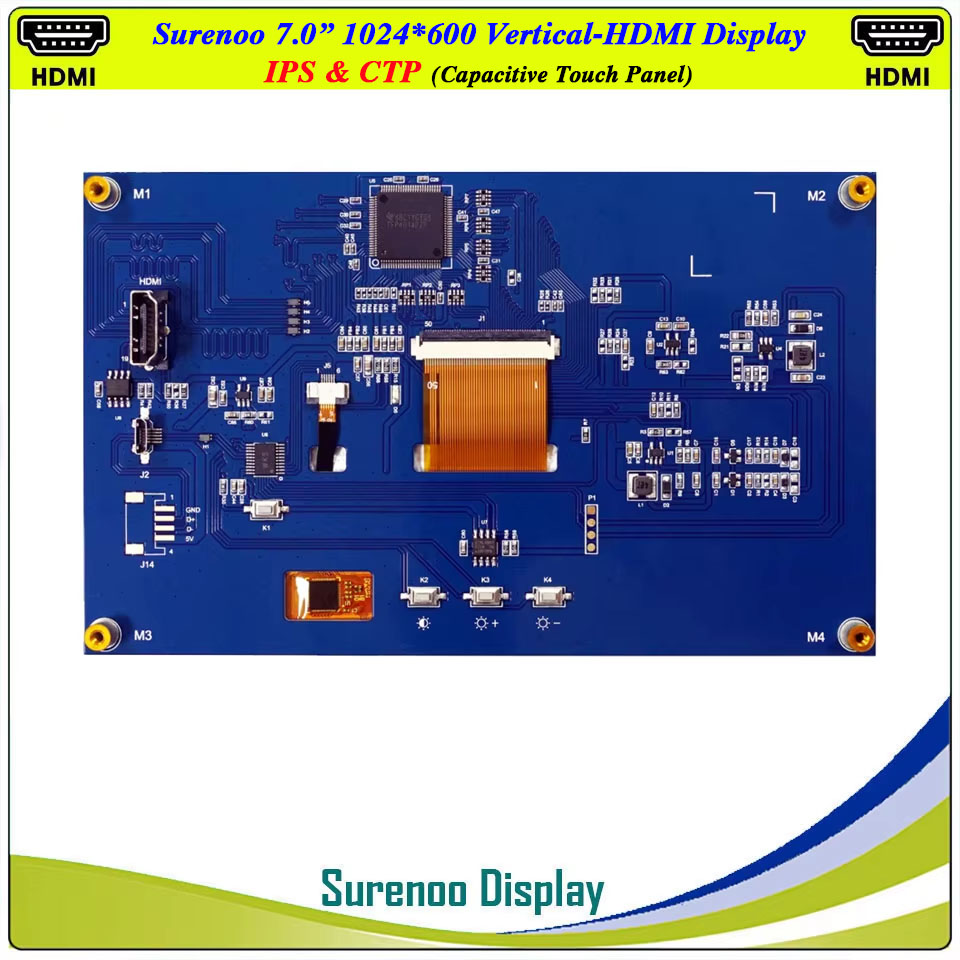

SHV070A
-1024600		 7.0" IPS
1024*600
CTP/LTP		 CTP: 164.90*100.00
LTP: 178.80*110.72		 154.80*86.72 154.21*85.92 5.0V Vertical
HDMI Type A		 Micro USB

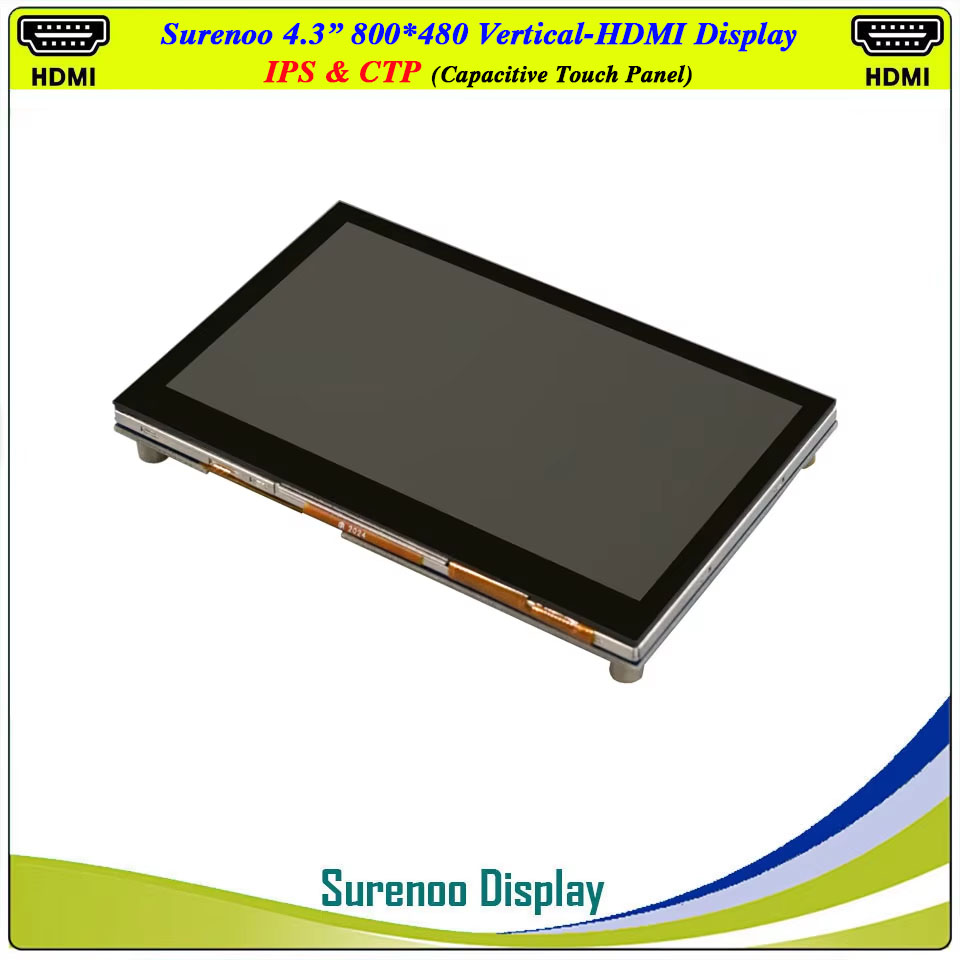

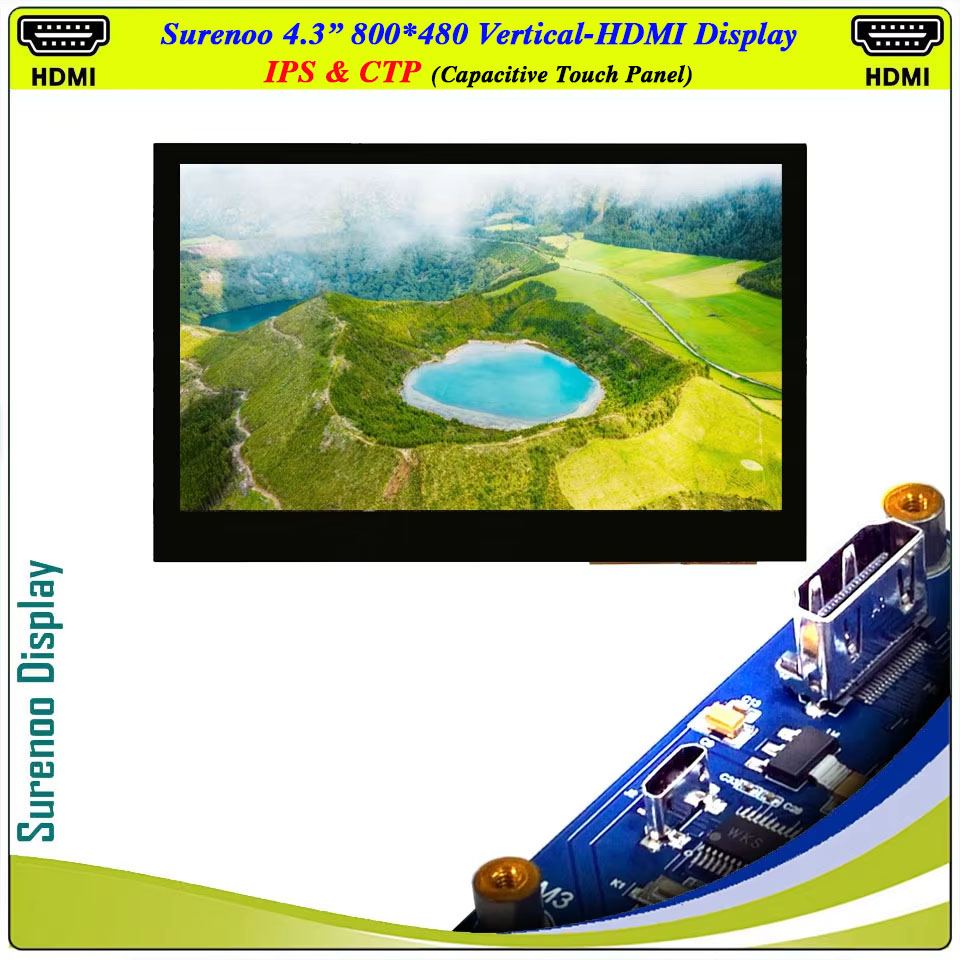

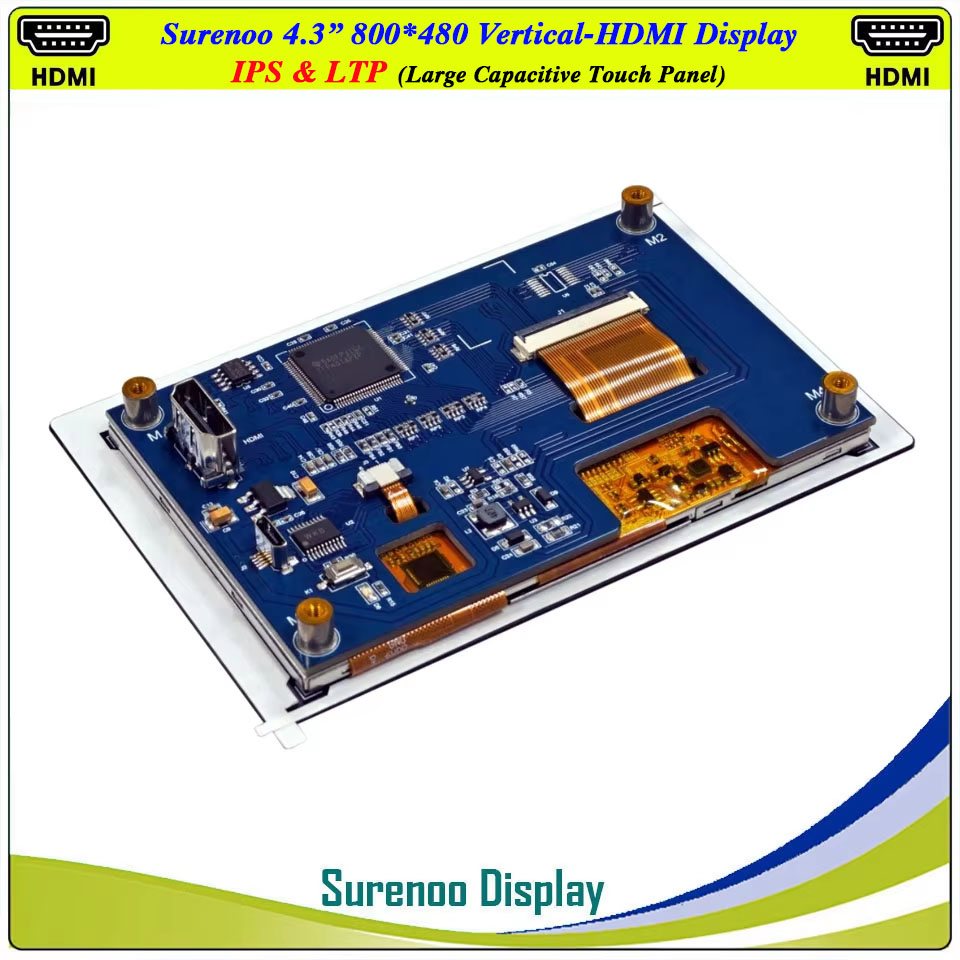

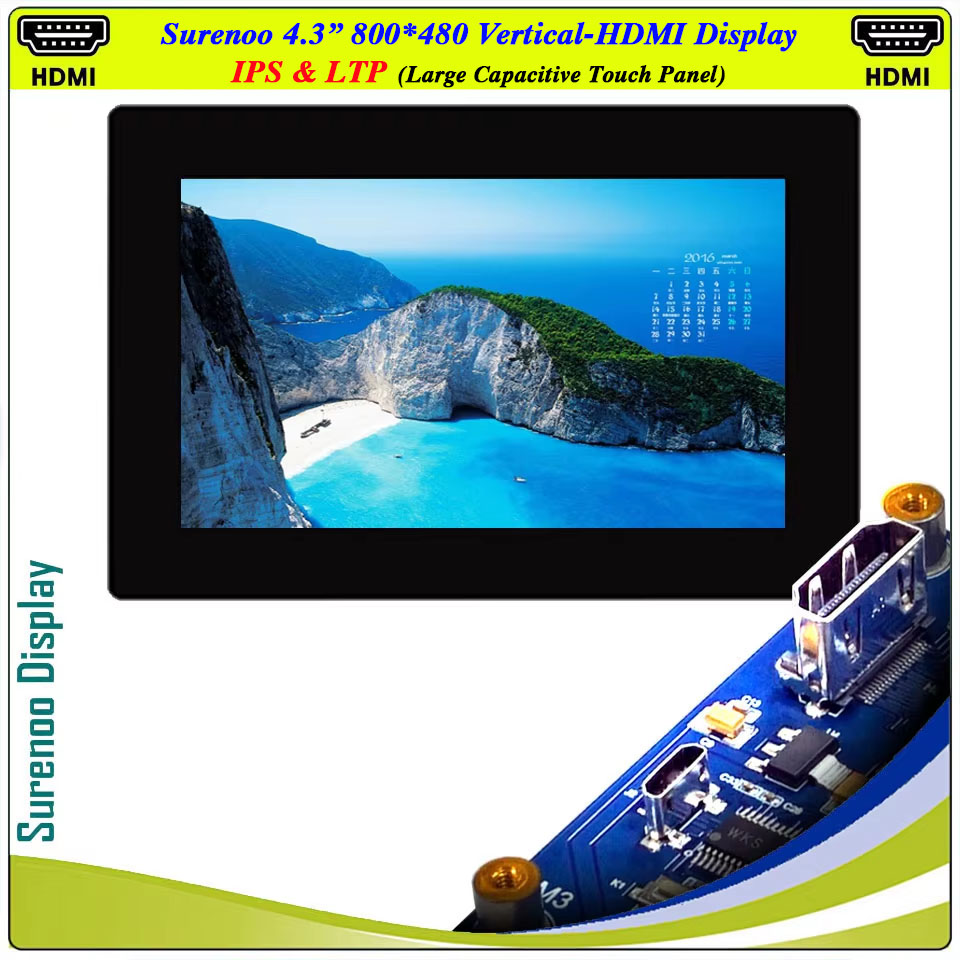

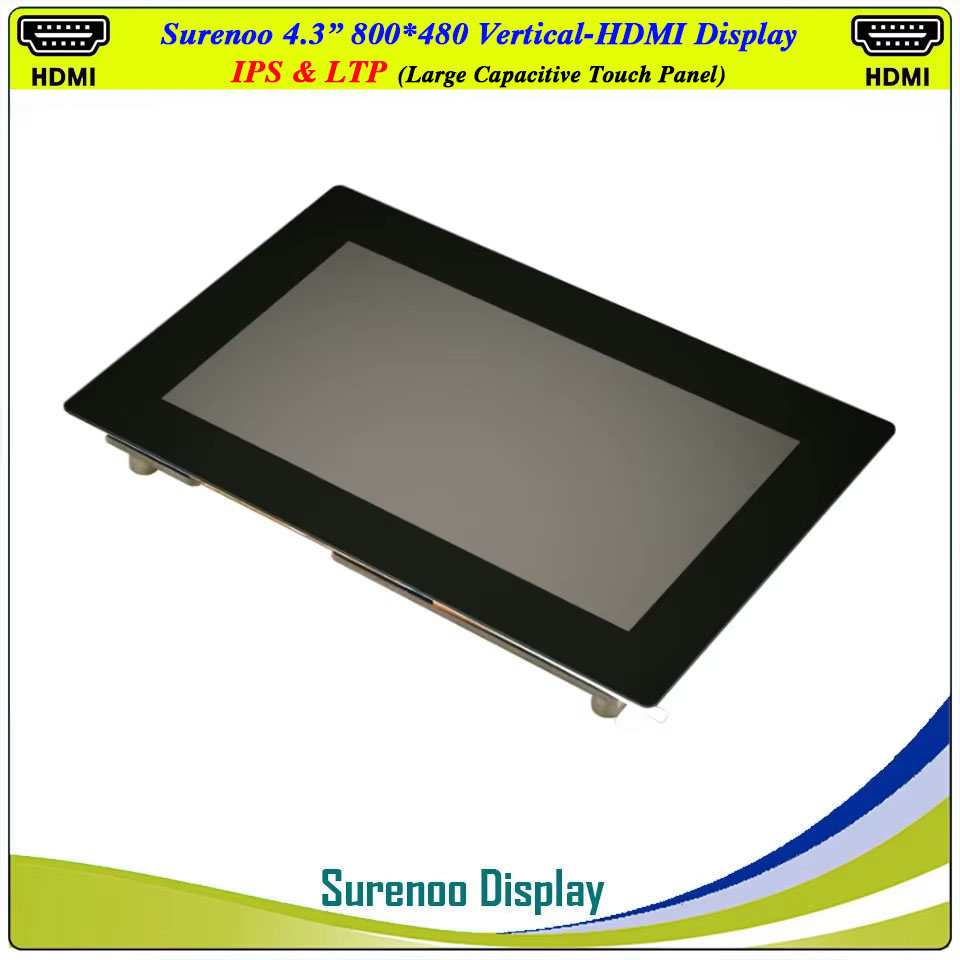

SHV043A
-800400		 4.3" IPS
800*480
CTP/LTP		 CTP105.40*67.10
LTP: 120.04*78.86		 96.44*55.26 95.04*53.86 5.0V Vertical
HDMI Type A
 Micro USB
