Model No.: SLC1602K
Display Format: 16X02 Characters
PCB Size: 66.70*37.46MM
Controller: ST7032i or Equal
18 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLC1602K is 16 characters wide, 2 rows character lcd module, ST7032i controller Integrated Serial IIC interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the ST7032i datasheet for the full character set. It's 5V or 3.3V power supply, can connect with Arduino UNO to work directly.

It's easily controlled by ARDUINO and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.040Kg
Manufacturer Surenoo
Display Type Character LCD Module / IIC Display
Continuity Supply More than 10 years
Part No. SLC1602K
Display Format 16x2 Character
Interface Integrated Serial IIC
IC or Equivalent ST7032i or Equal
Fonts English-Japanese
Voltage(Type) K1 & K2: 3.3V in default
K3: 5.0V in default
Connection K1 & K2: 1X10P/1.27 Iron Pin
K3: 1X6P/2.54 Pin Header
Outline Dimension K1: 74.50(W)x27.70(H)x5.10(T)mm
K2: 66.70(W)x29.40(H)x8.40(T)mm
K3: 66.70(W)x37.46(H)x5.90(T)mm
Visual Area 62.40x17.60mm
Active Area 56.20x10.90mm
Display Type STN Blue Negative
Backlight Type (LED) White
IC Package COG
Viewing Direction 6:00 O'Clock
Operating Temperature
-10℃~60℃
Storage Temperature
-20℃~70℃
  • Outline Drawing

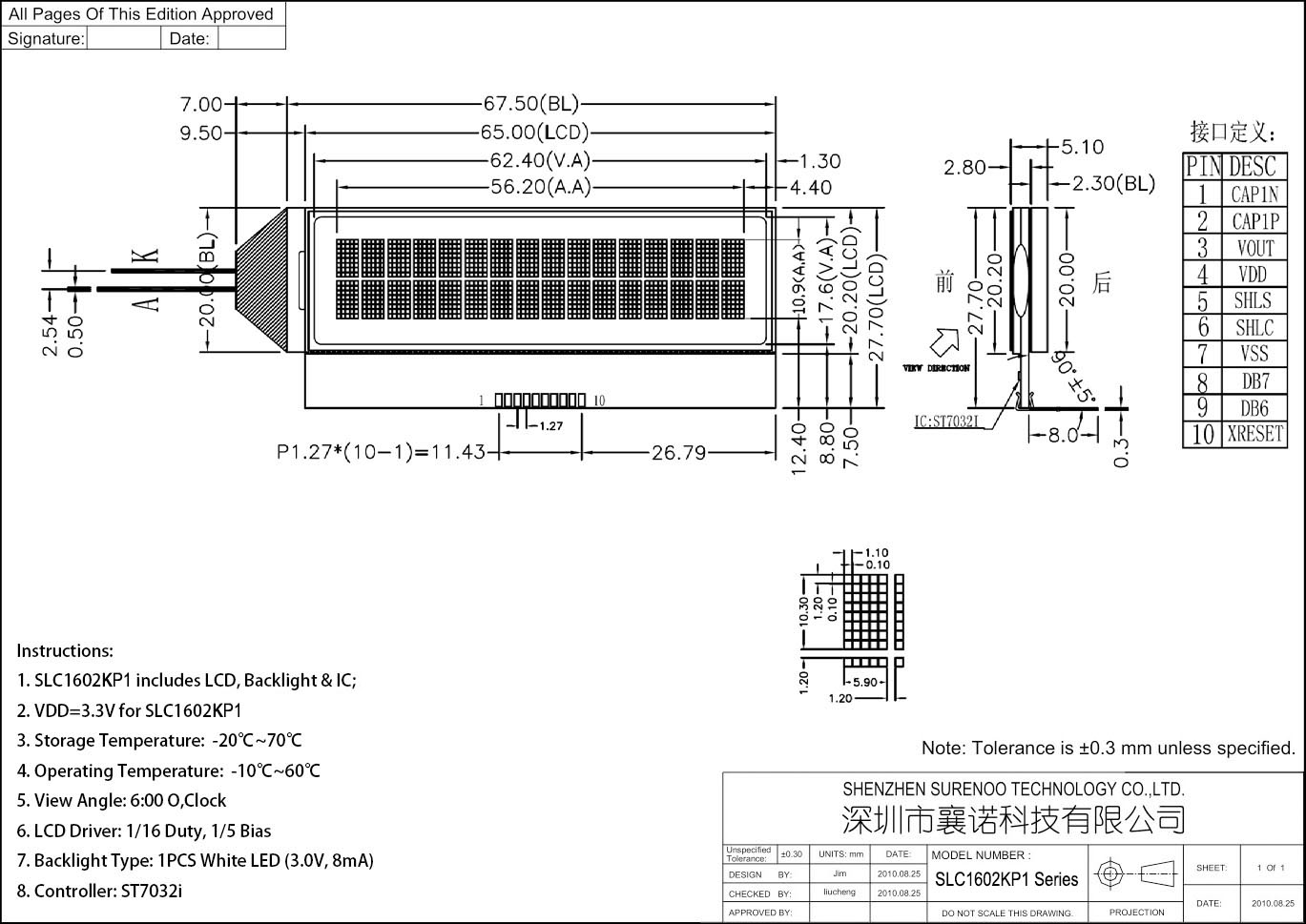

1. SLC1602K1 Series

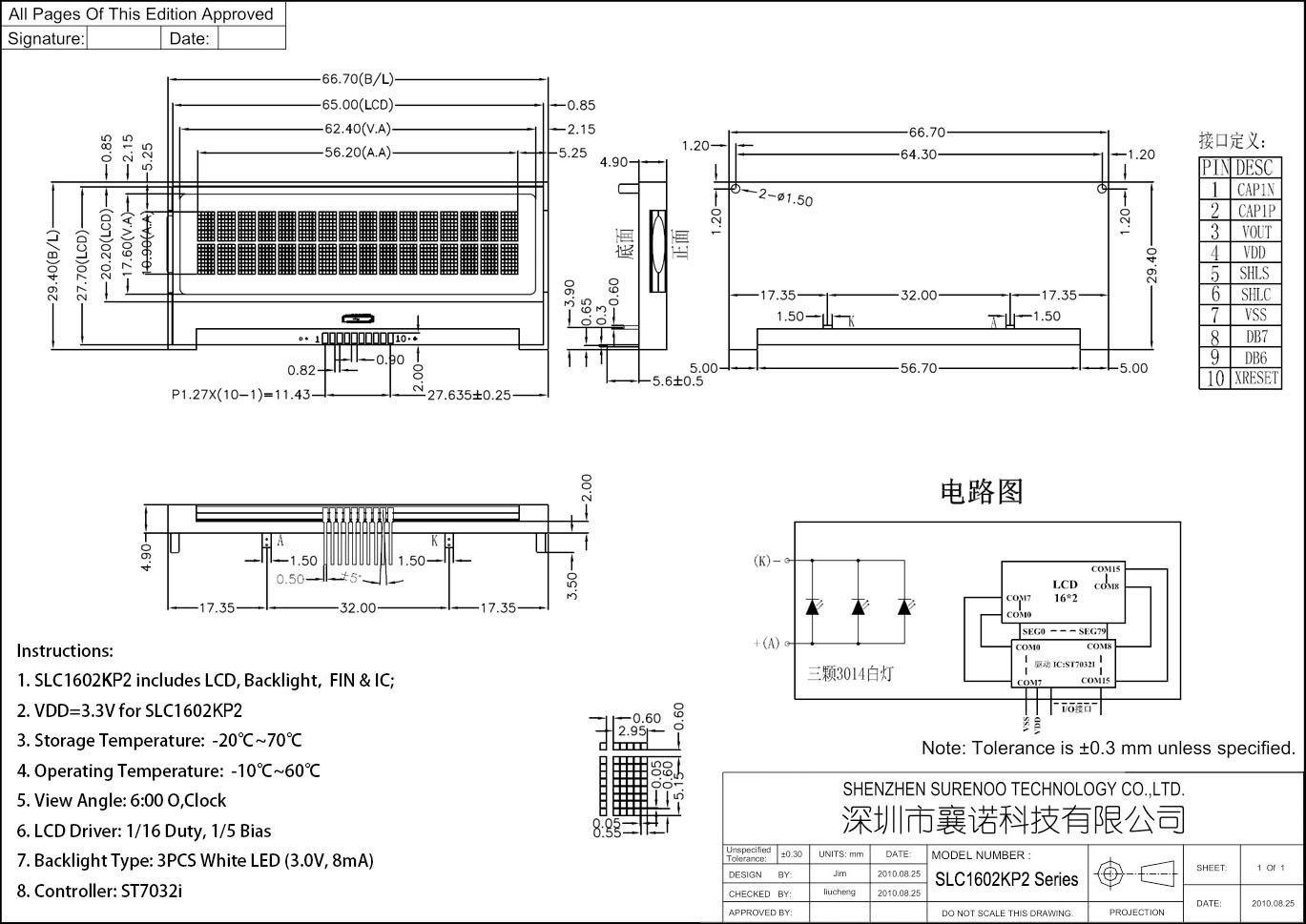

2. SLC1602K2 Series

3. SLC1602K3 Series

  • Interface
Pin No. Symbol Description  Pin No. Symbol

SLC1602K1 / SLC1602K2 SLC1602K3
1 CAP1N Bias Voltage (Insrt 1uF Capacitor between them) 1 LEDA Power Suppy for Backlight (5.0V)
2 CAP1P 2 VSS Ground 0V
3 VOUT Bias Voltage (Insrt 1uF Capacitor between VOUT and VSS) 3 VDD Logic Power Supply (5.0V)
4 VDD Logic Power Supply 3.3V 4 SDA Serial Data Signal
5 VSS Ground 0V 5 SCK Serial Clock Signal
6 SHLS Command: SHLS=1 6 RST Reset Pin
7 SHLC Command: SHLC=1
8 D6(SCLK) Serial Clock
9 D7(SDA) Serial Data
10 RST Reset Pin
BLA & BLK=3.3V
  • Documents
No. Item File Name File Type ICON Date Description Mark
1 Datasheet SLC1602K PDF 2013-03-17 Standard 1602 Character LCD Module
2 Controller ST7032i PDF 2008-09-24 Character LCD Controller ST7032i in IIC Mode
3 51 IIC Library 51 IIC Library C 2006-09-11 ST7032i 51 IIC Library
4 Arduino IIC Library Arduino IIC Library ZIP 2009-07-19 Surenoo IIC Library for PCT8574T, AIP31068, RW1063, ST7032i to work on Arduino test Board
