| Standard-HDMI Series (SHD) |
Inner-HDMI Series (SHN) |
Vertical-HDMI Series (SHV) |
Thunderbolt USB Type-C Series (STU) |
| 10.1" HDMI Display | |||
| 7.0" HDMI Display |
|||
| 5.0"-4.3" HDMI Display |
|||
| Other HDMI Display |
| Model No. |
Content | Outline Size (MM) |
View Area (MM) |
Active Area (MM) |
Voltage | Interface | Mark | Datasheet | Buy Now (Image) |

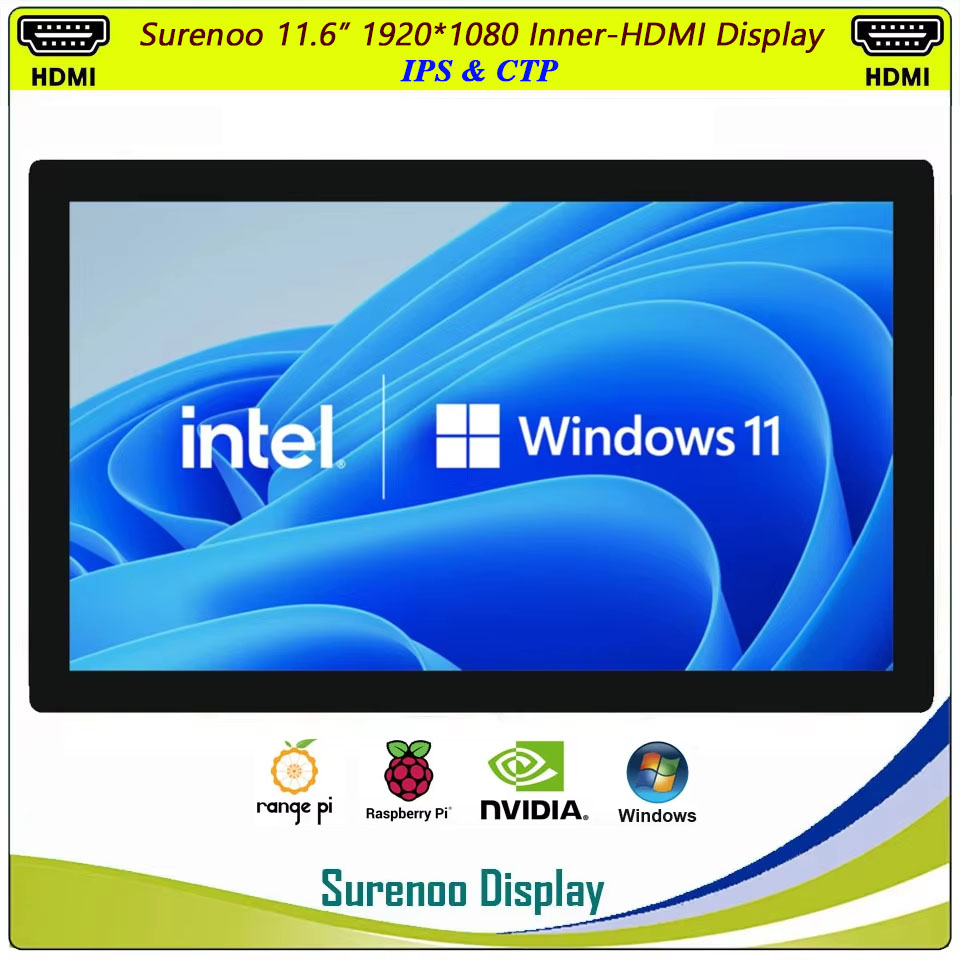

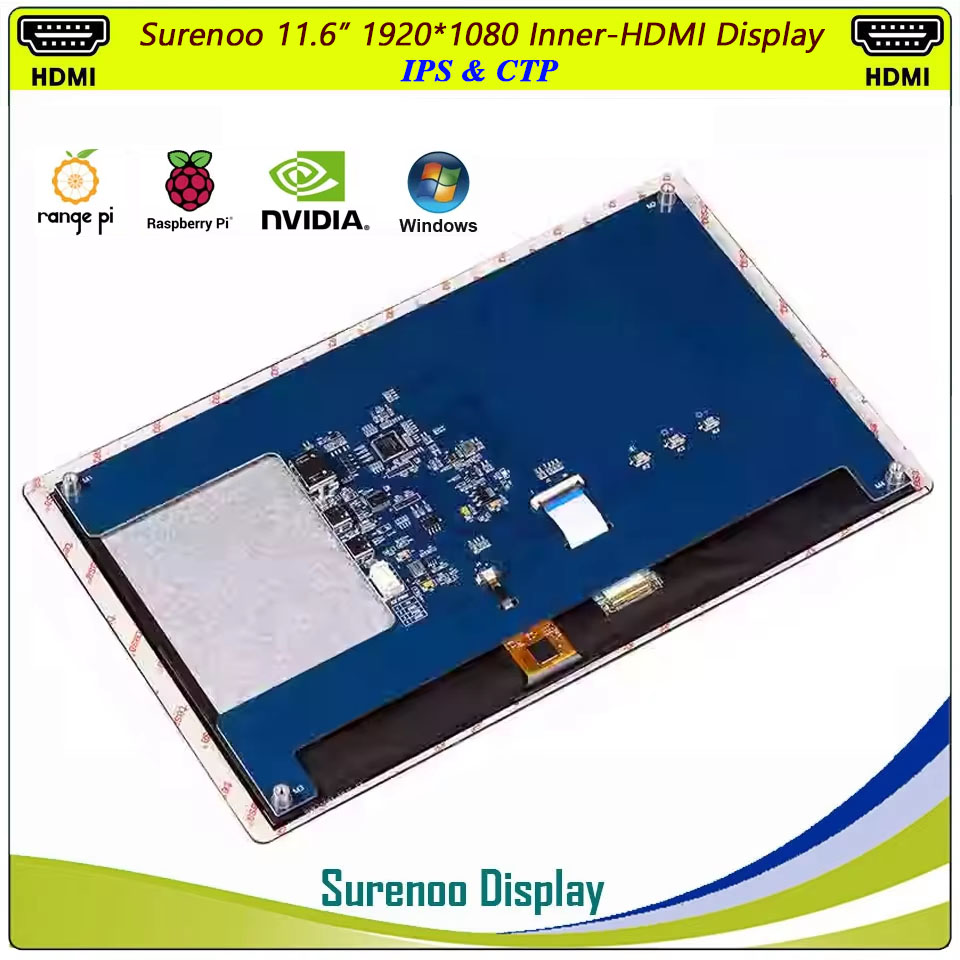

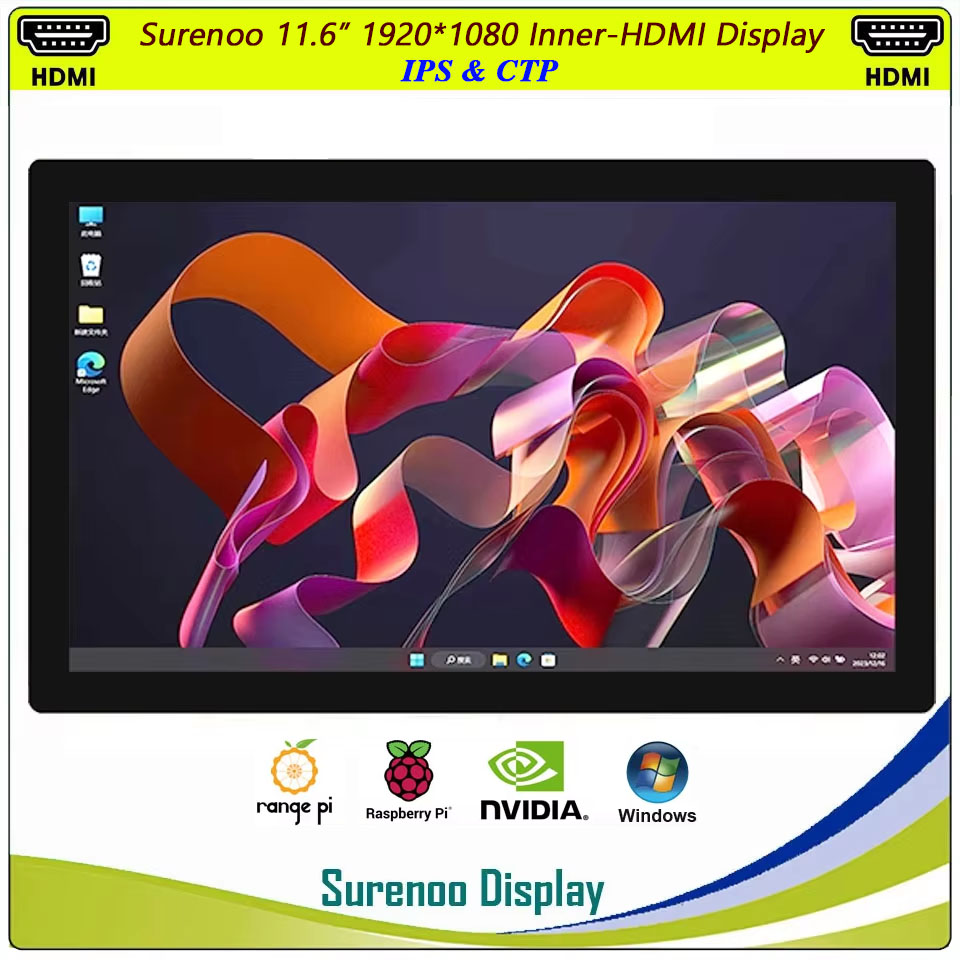

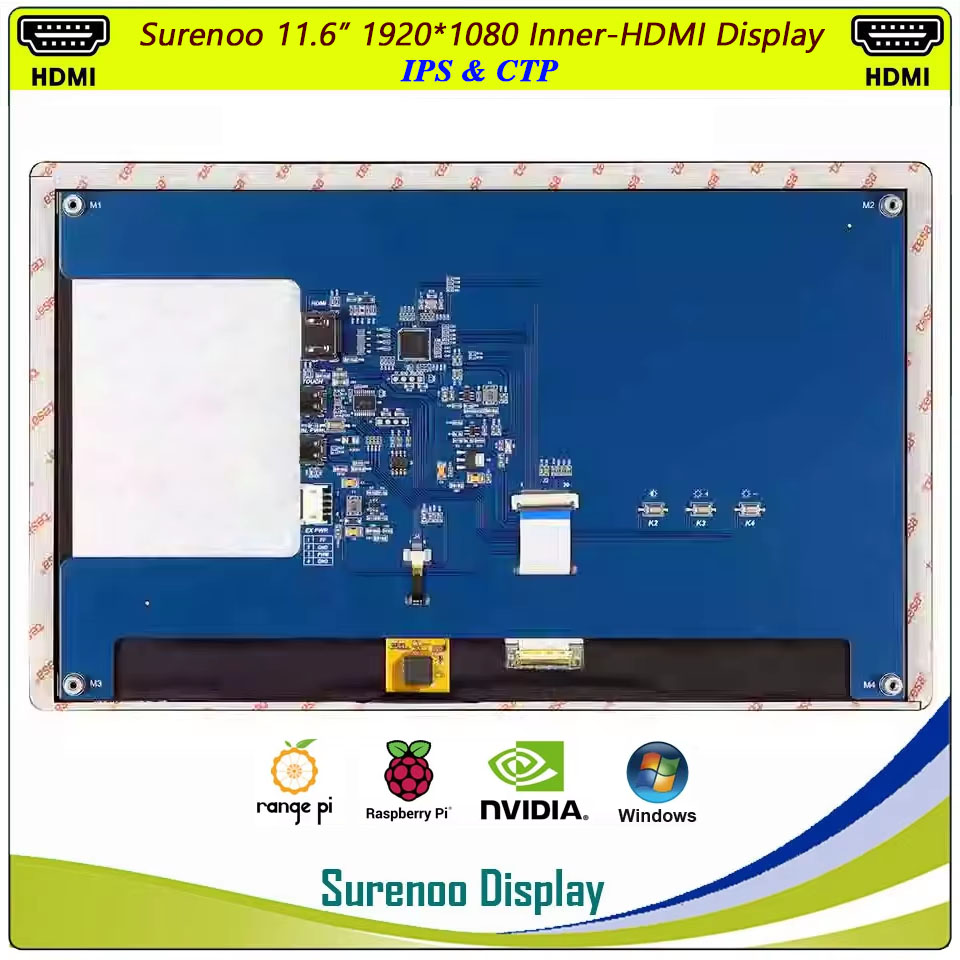

| SHN116A -19201080 |
11.6" IPS 1920*1080 LTP |
282.92*170.78 |
256.92*144.78 |
256.32*144.18 |
5.0V |
Inner HDMI Type A USB Type-C |
 |
 |
|

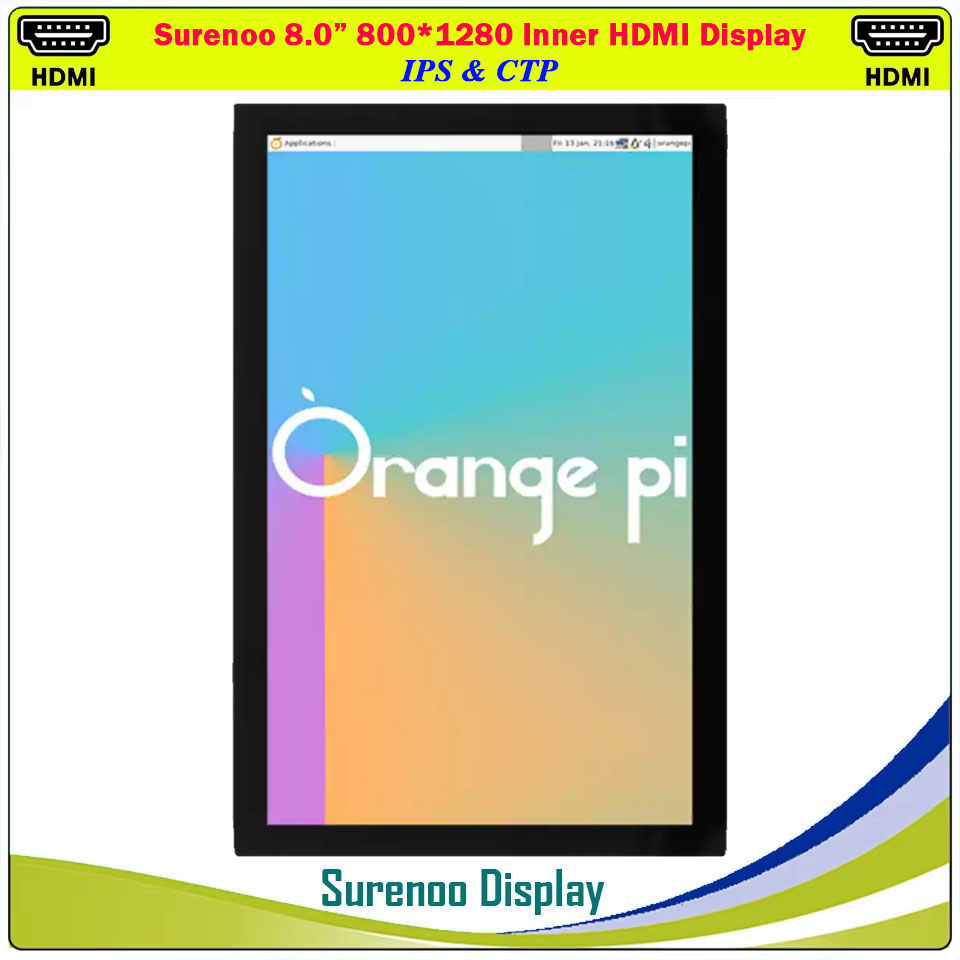

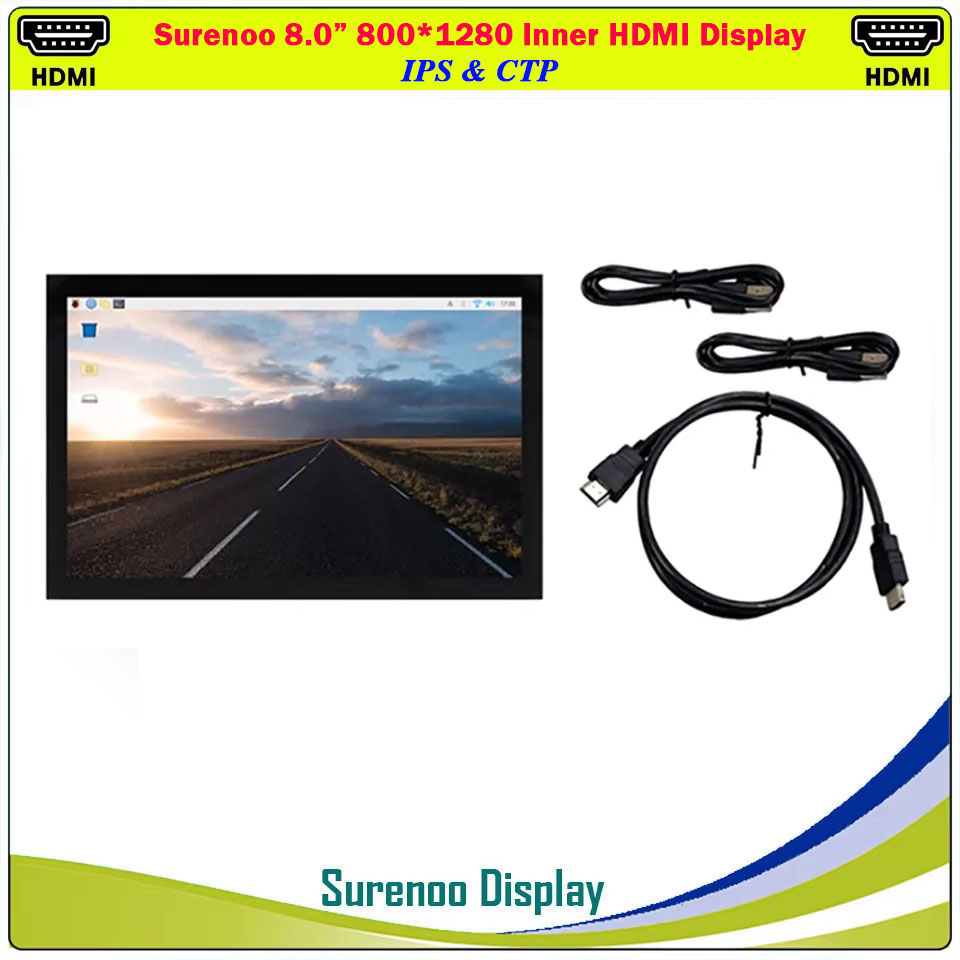

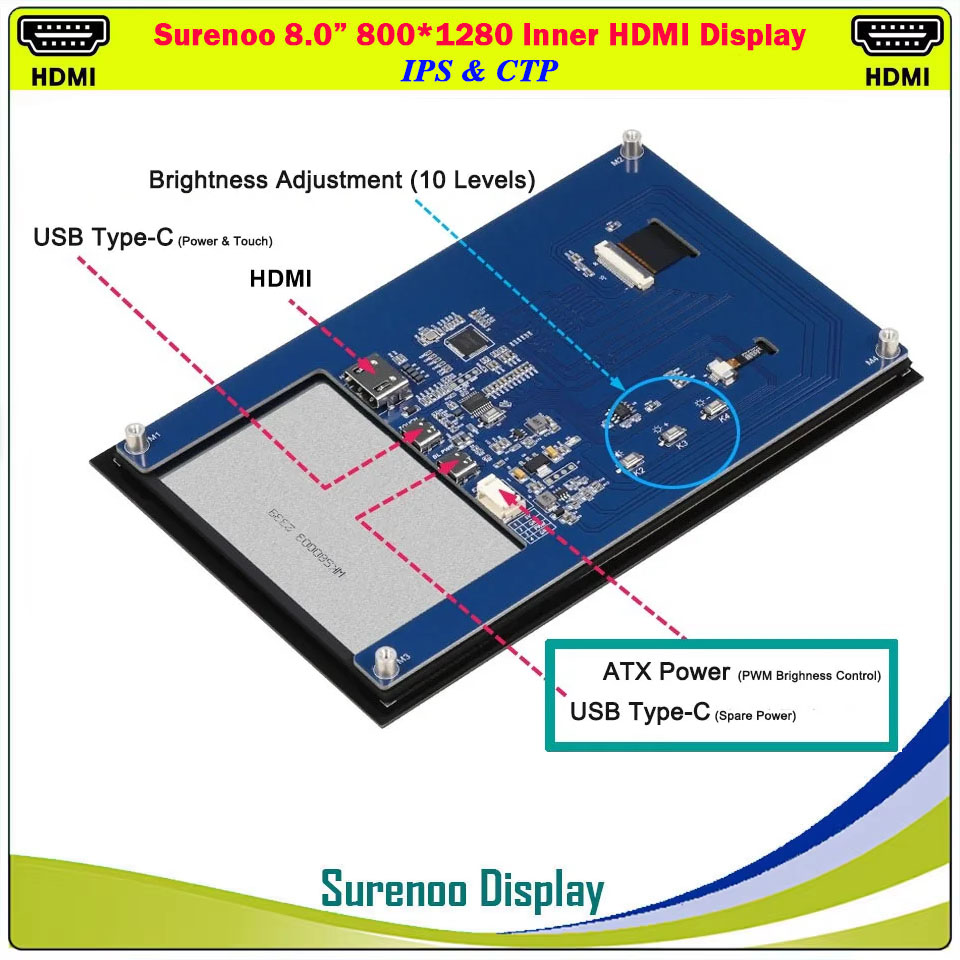

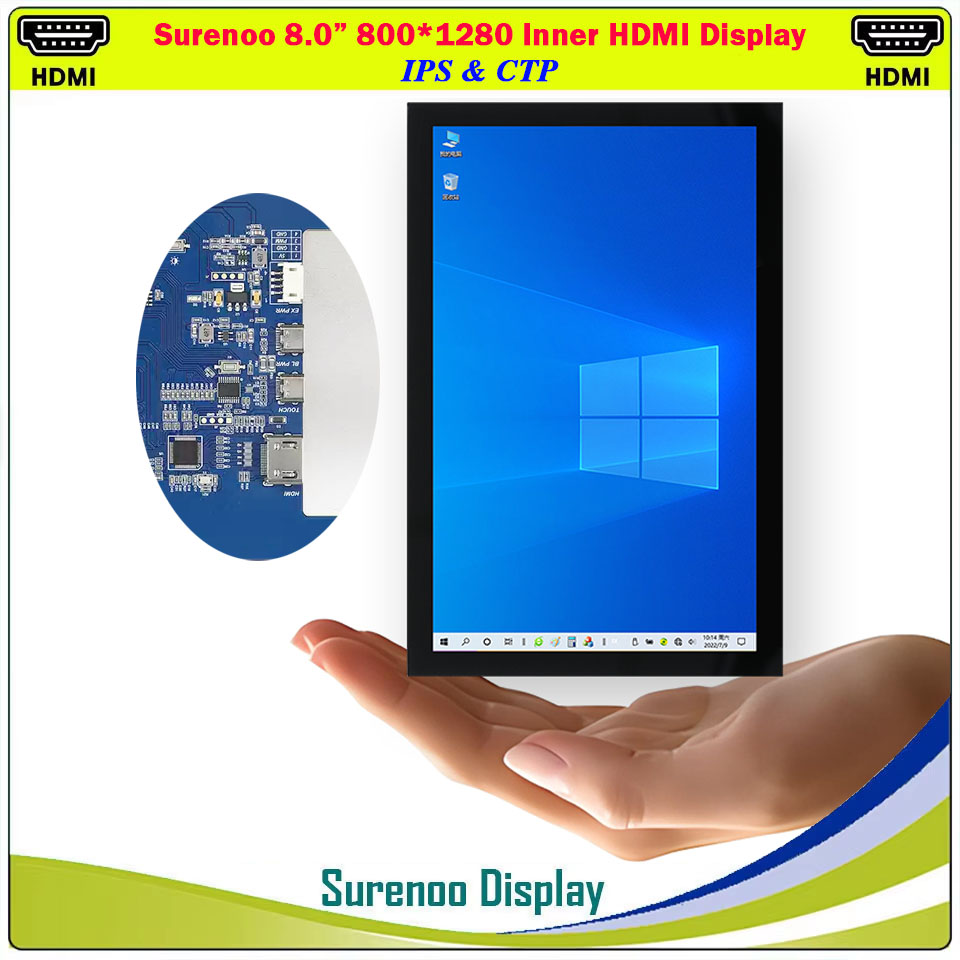

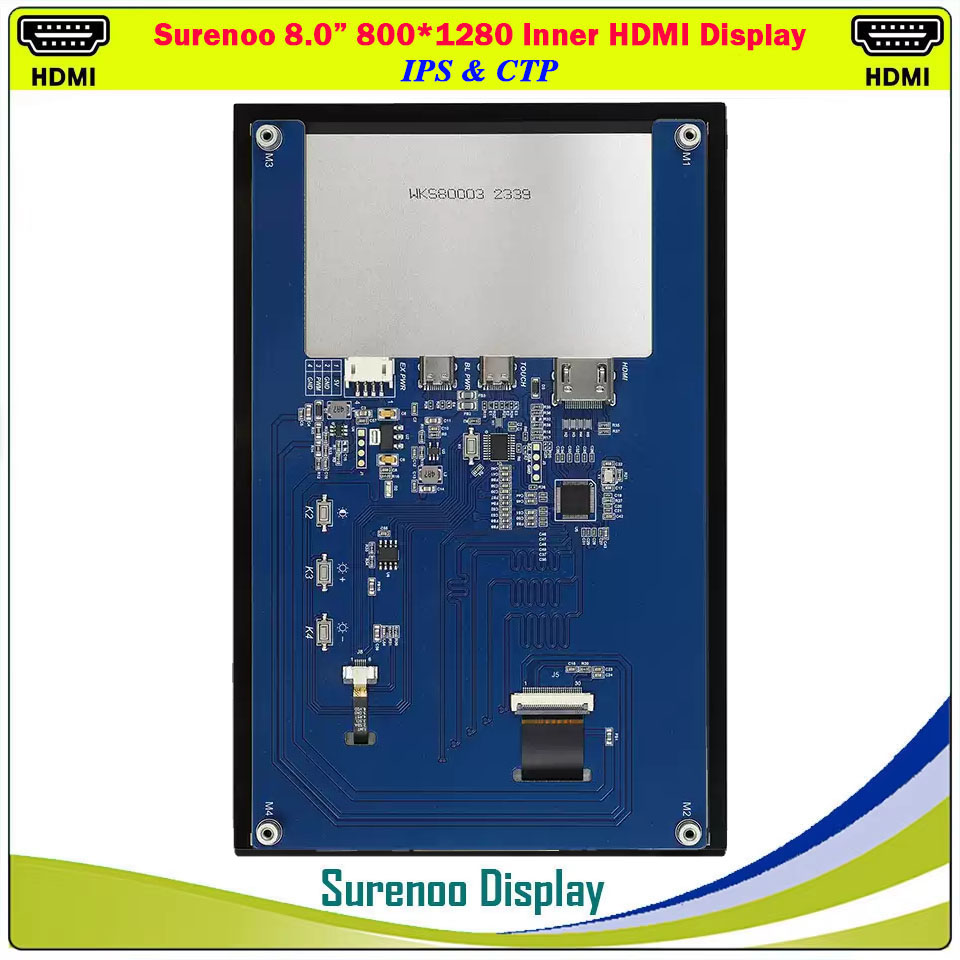

| SHN080A -8001280 |
8.0" IPS 800*1280 CTP |
125.21*189.79 | 108.34*172.92 | 107.64*172.22 | 5.0V | Inner HDMI Type A USB Type-C |
|
 |
|
| SHN070A -1024600 |
7.0" IPS 1024*600 CTP/LTP |
164.90*100.00 178.80*110.72 |
154.80*86.72 | 154.21*85.92 | 5.0V | Inner HDMI Type A Micro USB |
|
 |
|
| SHN070B -1024600 |
7.0" IPS 1024*600 NTP/CTP/LTP |
164.90*100.00 164.90*100.00 178.80*110.72 |
154.80*86.72 | 154.21*85.92 | 5.0V | Inner HDMI Type A Micro USB |
|
 |
|
| SHN070C -1024600 |
7.0" IPS 1024*600 NTP/CTP/LTP |
164.90*100.00 164.90*100.00 178.80*110.72 |
154.80*86.72 | 154.21*85.92 | 5.0V | Inner HDMI Type A Micro HDMI USB Type-C |
|
|
|
| SHN070D -1024600 |
7.0" IPS 1024*600 CTP |
164.90*102.00 | 154.68*87.02 | 55.01*27.49 | 5.0V | Inner HDMI Type A USB Type-C |
|
 |
|
| SHN055A -10801920 |
5.5" IPS 1080*1920 CTP |
76.88*134.20 | 68.64*121.56 | 68.04*120.96 | 5.0V | Inner HDMI Type A USB Type-C |
|
 |
|
| SHN055B -10801920 |
5.5" AMOLED 1080*1900 Oncell CTP |
76.00*138.00 | 68.60*121.65 | 68.31*121.44 | 5.0V | Inner HDMI Type A USB Type-C Micro USB |
AMOLED | |
 |
| SHN050A -7201280 |
5.0" IPS 720*1280 CTP |
83.40*131.70 |
62.70*111.00 | 62.10*110.40 | 5.0V |
Inner HDMI Type A Micro USB |
|
 |
|
| SHN050B -1024600 |
5.0" IPS 1024*600 CTP |
121.11*77.93 | 109.20*66.05 | 108.00*64.80 | 5.0V | Inner HDMI Type A USB Type-C |
|
 |
