 Nextion HMI Display Selection Guide |
|||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| 2.1”/2.8"/4.3" HMI Display | 4.3”-10.1” HMI Display |
2.4”-7.0” HMI Display
|
2.4", 2.8", 3.5” HMI Display | 2.4”- 7.0” HMI Display | USB to TTL Adapter lO Adapter IO Expansion Board
|
| (R) | (R) |
2.4"/2.8"/3.2"/3.5" (R)
4.3"/5.0"/7.0" (N)
|
(R) | (N) | Status |
| 2.1-2.8" 480*480 4.3" 480*800 |
4.3”-10.1” |
2.4”-7.0”
|
2.4", 2.8", 3.5” | 2.4”- 7.0” | Size |
| ✘ |
10.1" Without Only
|
7.0" With Only
|
✘ | ✘ | Enclosure |
| ✘ | ✔ |
✔
|
✔ | ✔ | Resistive Touch Panel |
| ✔ | ✔ |
7.0" With Only
|
✘ | ✘ | Capacitive Touch Panel |
| 200 MHz | 200 MHz |
108/48 MHz
|
64 MHz | 48 MHz | MCU |
| 128 MB | 128 MB |
32/16 MB
|
16/4 MB | 16/4 MB | Flash Memory |
| 512 KB | 512 KB |
8192/3584 Byte
|
3584 Byte | 3584 Byte | SRAM |
| 1024 Byte | 1024 Byte |
1024 Byte
|
✘ | ✘ | EEPROM |
| 8 | 8 |
8
|
✘ | ✘ | GPIOs |
| ✔ | ✔ |
✔
|
✘ | ✘ | RTC |

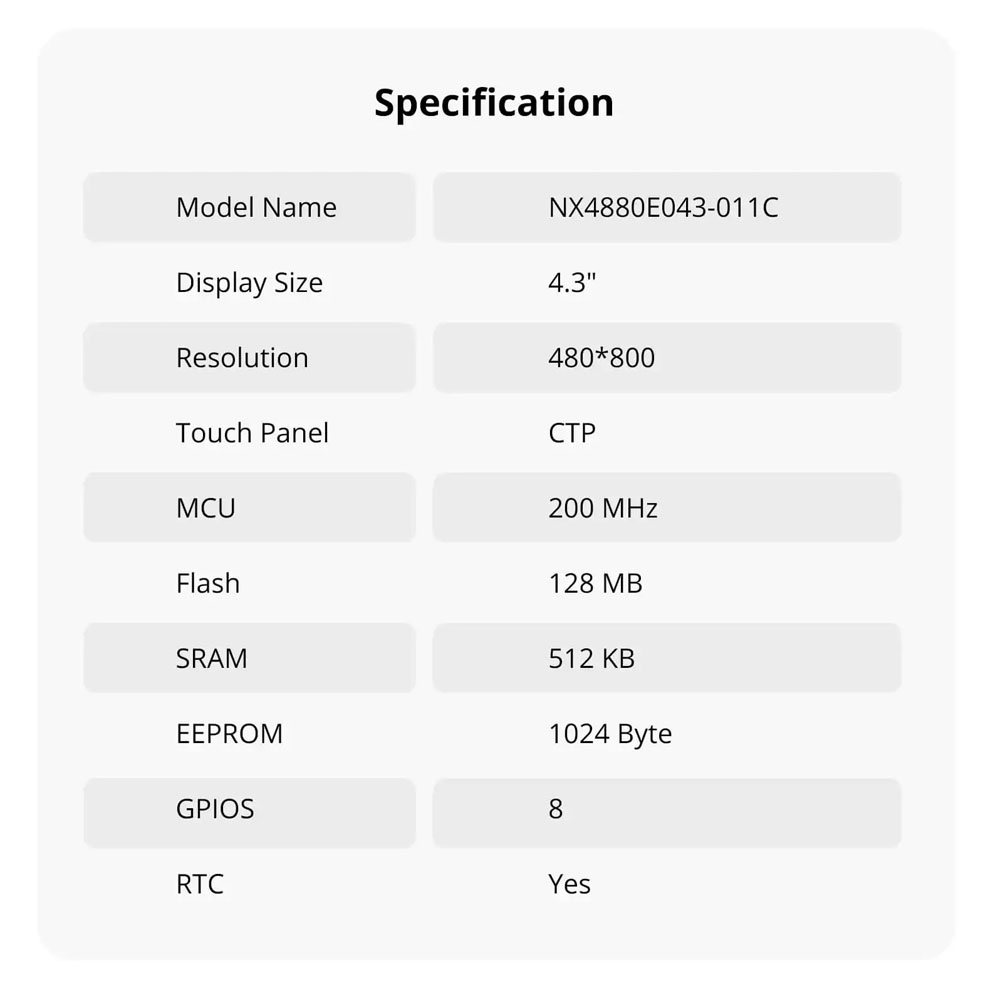

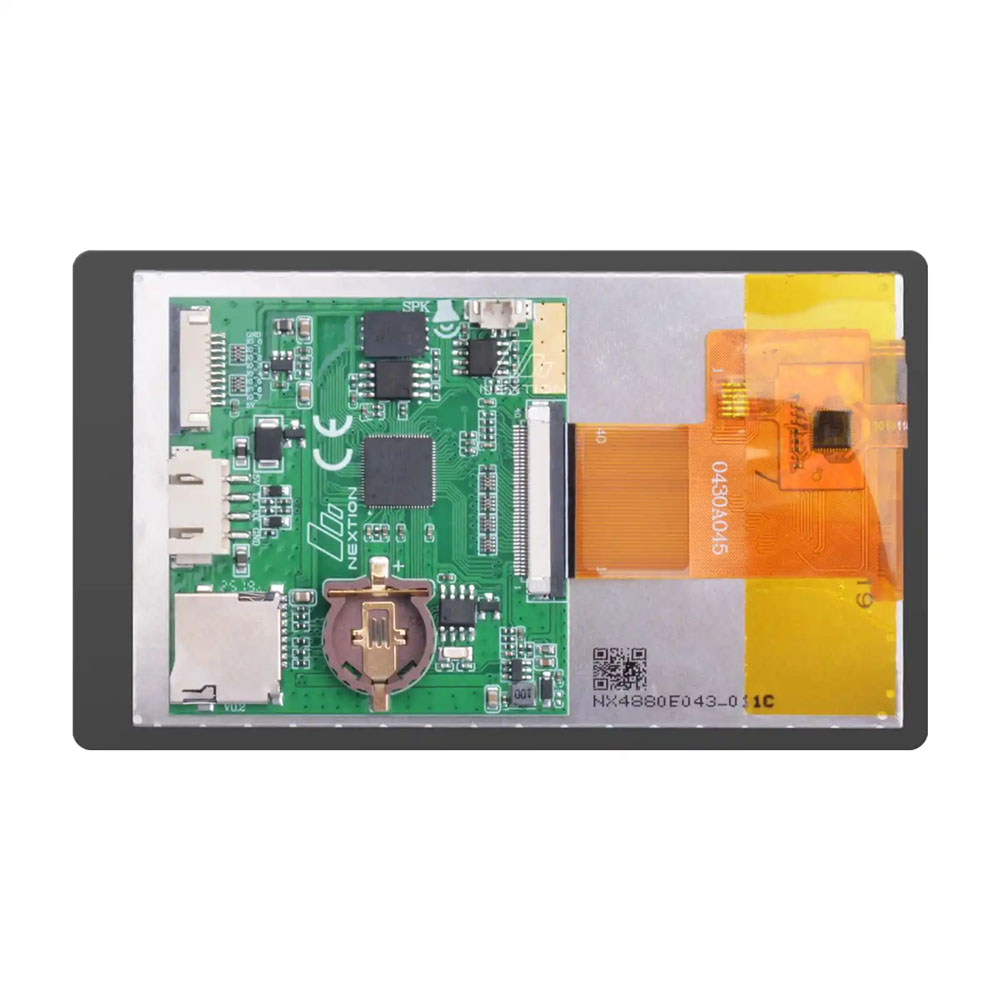

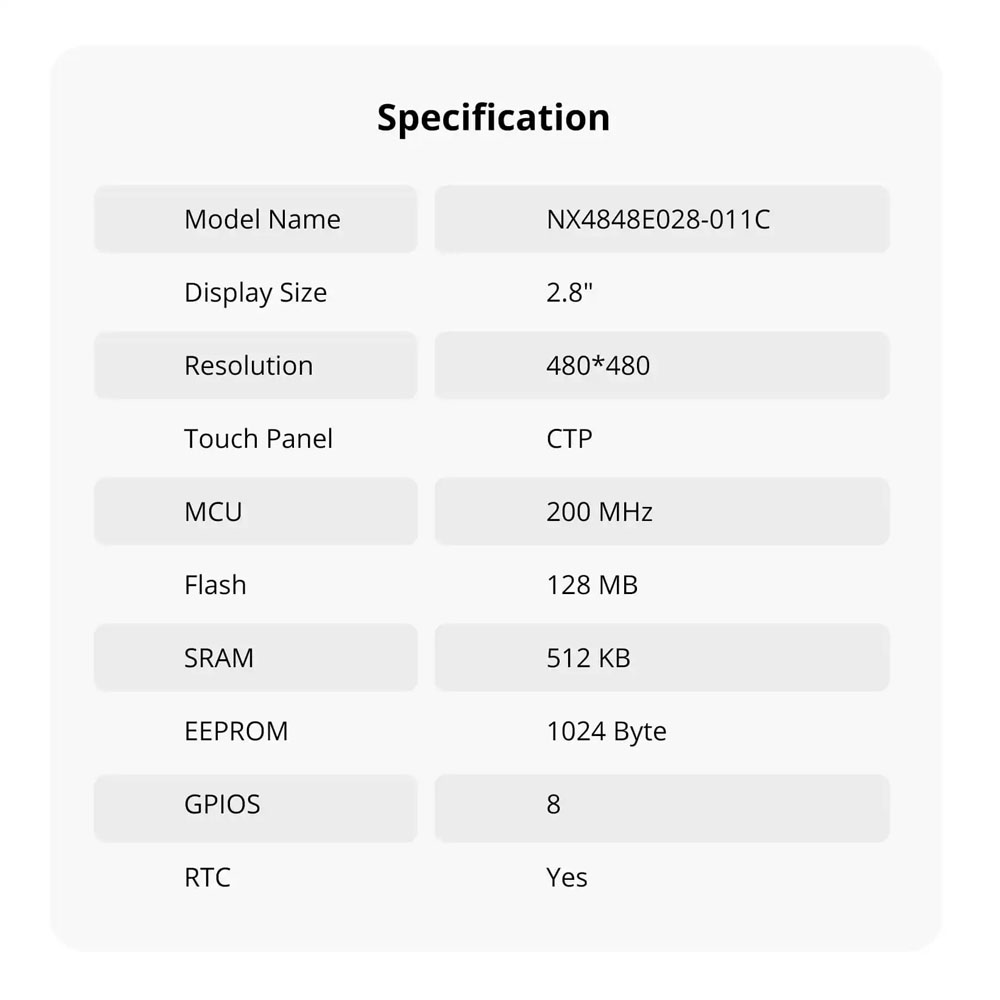

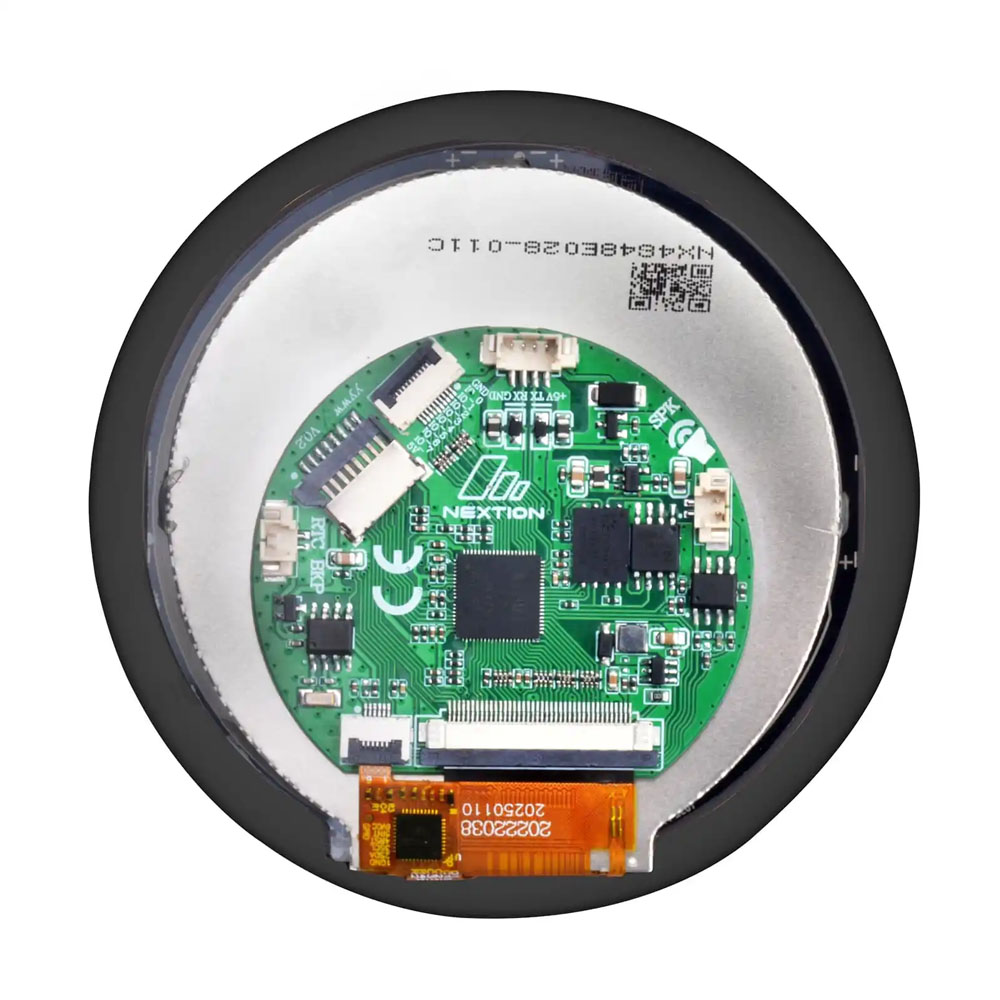

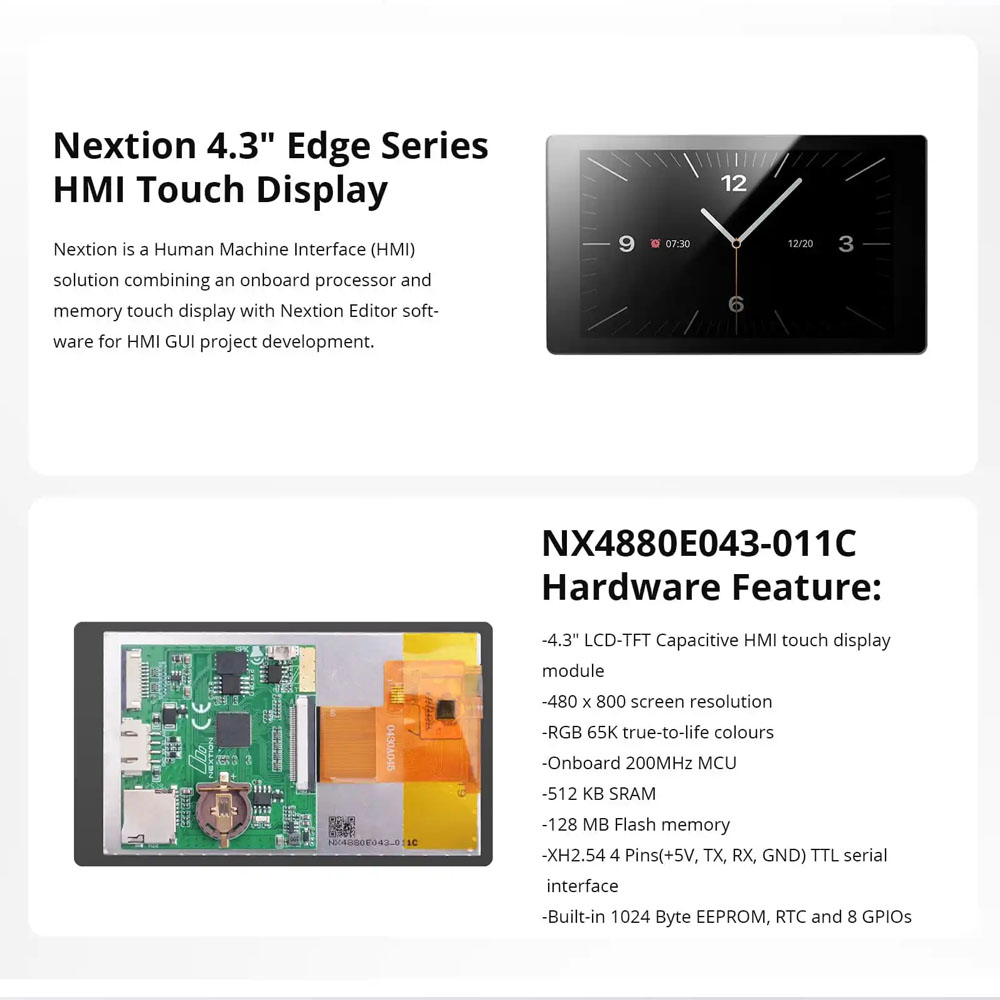

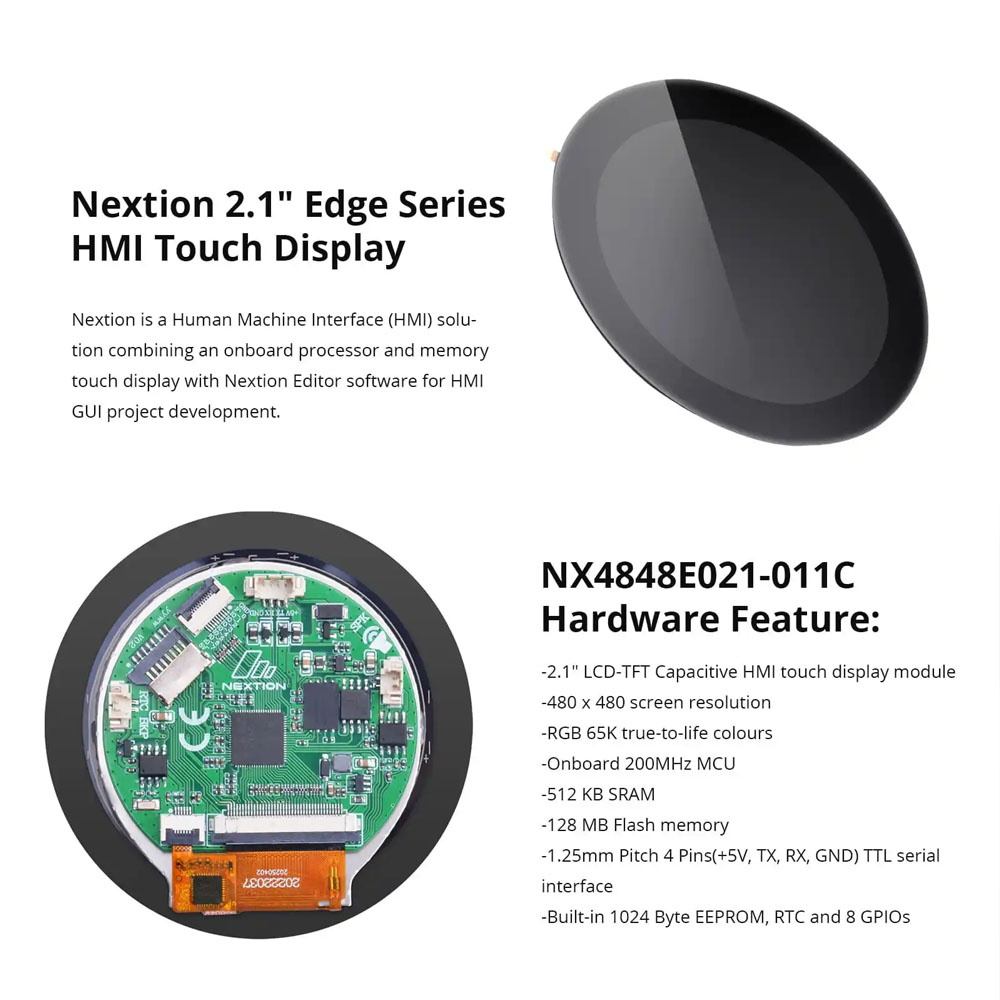

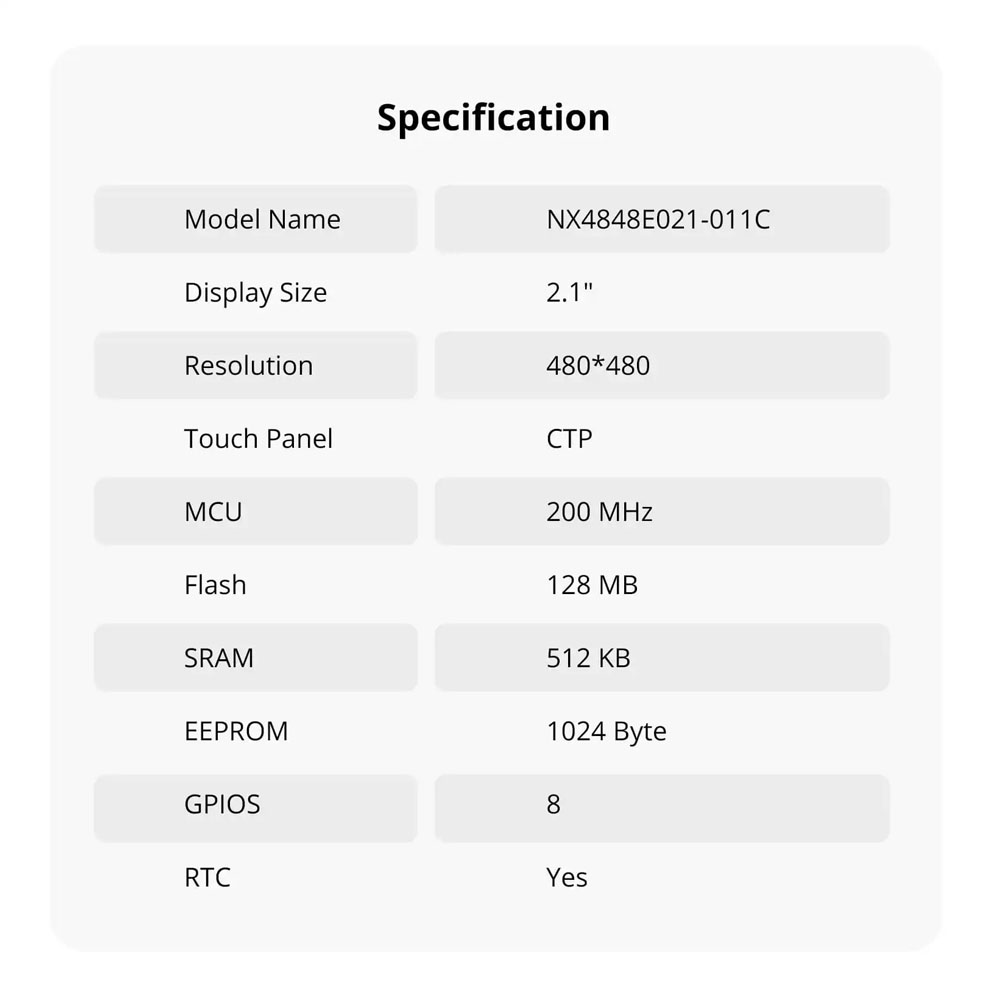

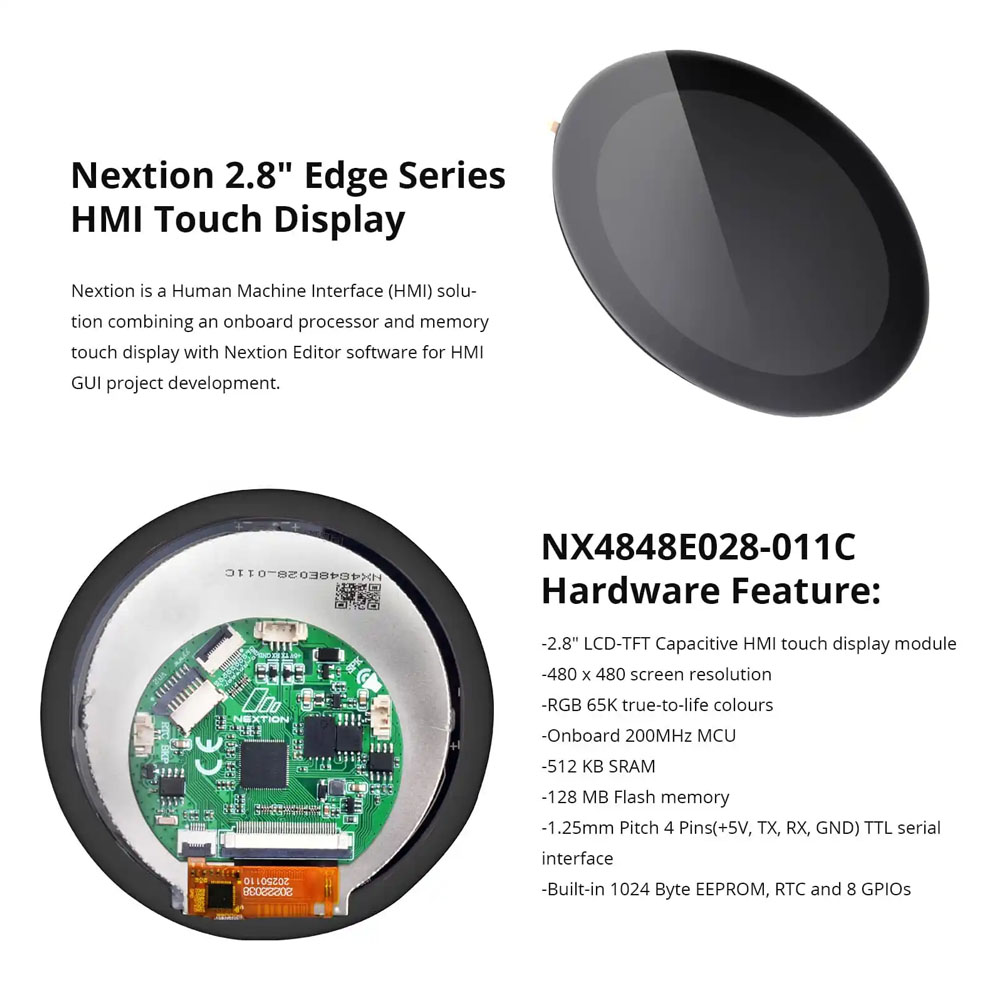

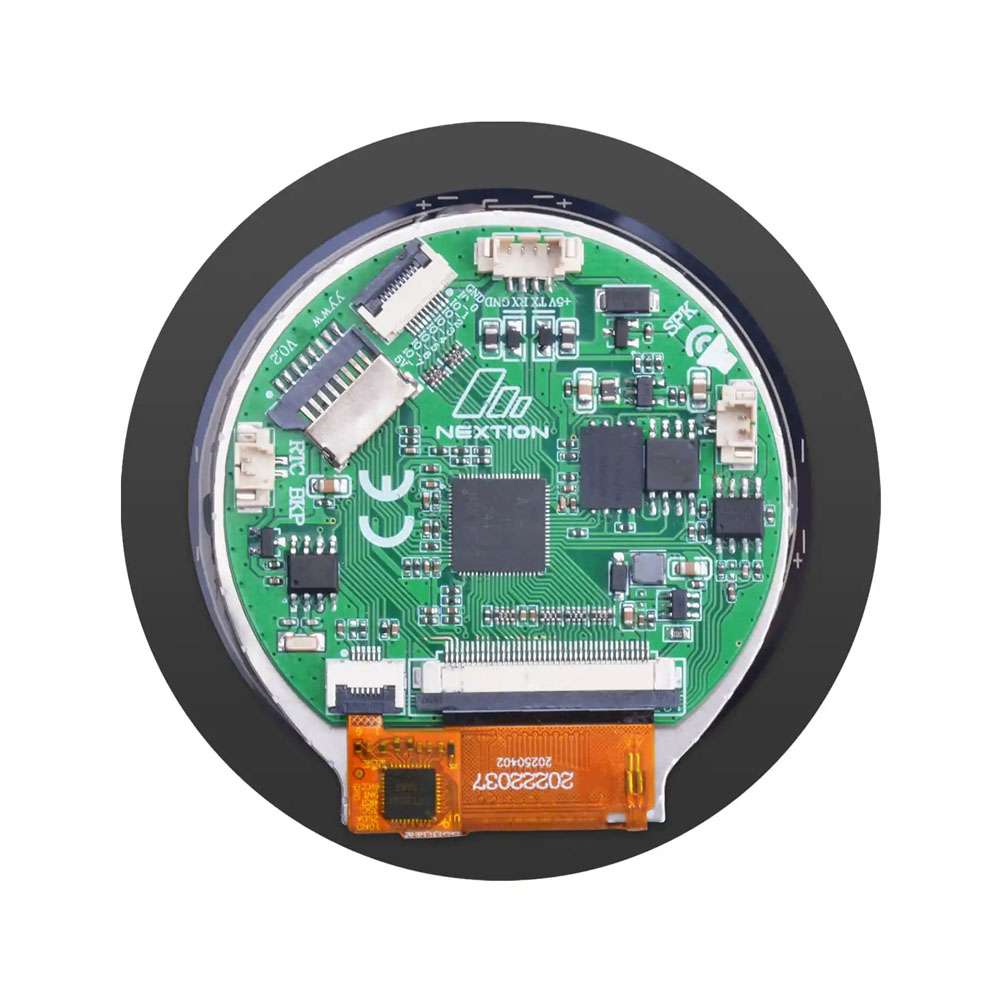

| MODEL NAME | NX4848E021-011C | NX4848E028-011C | NX4880E043-011C |

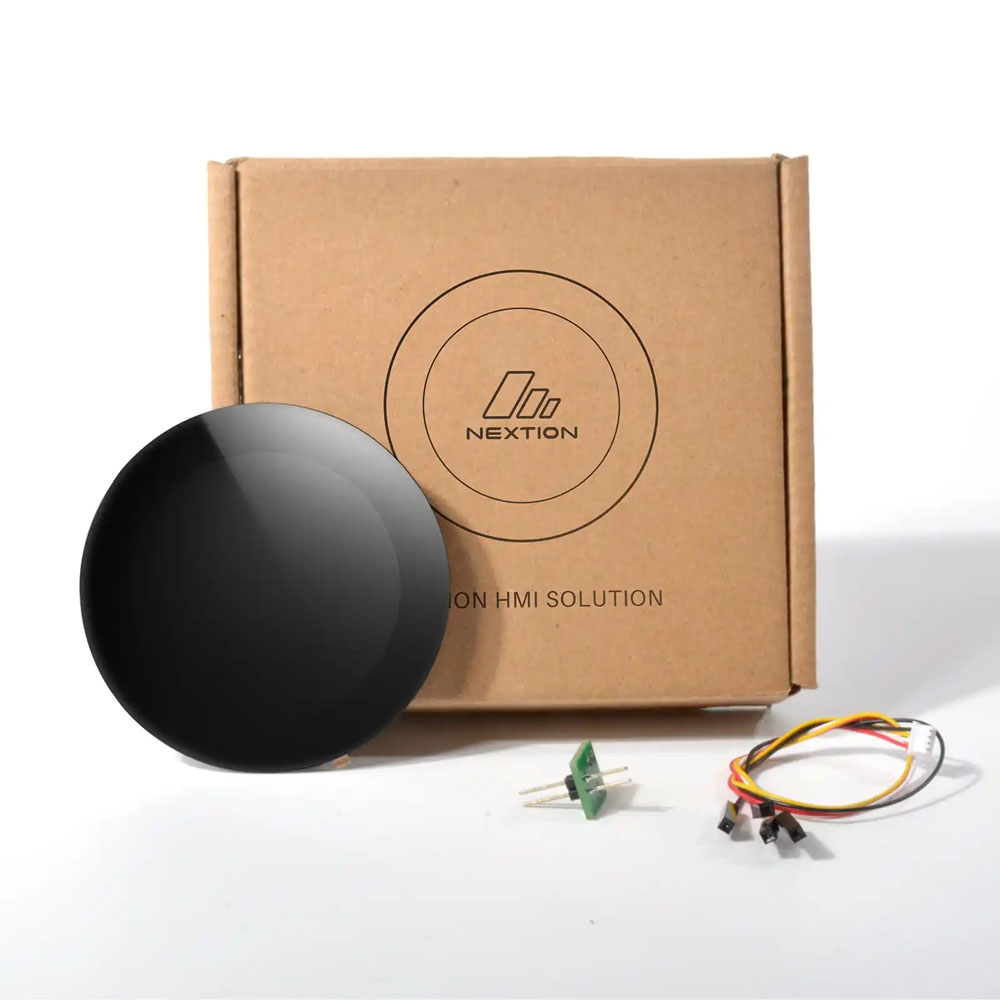

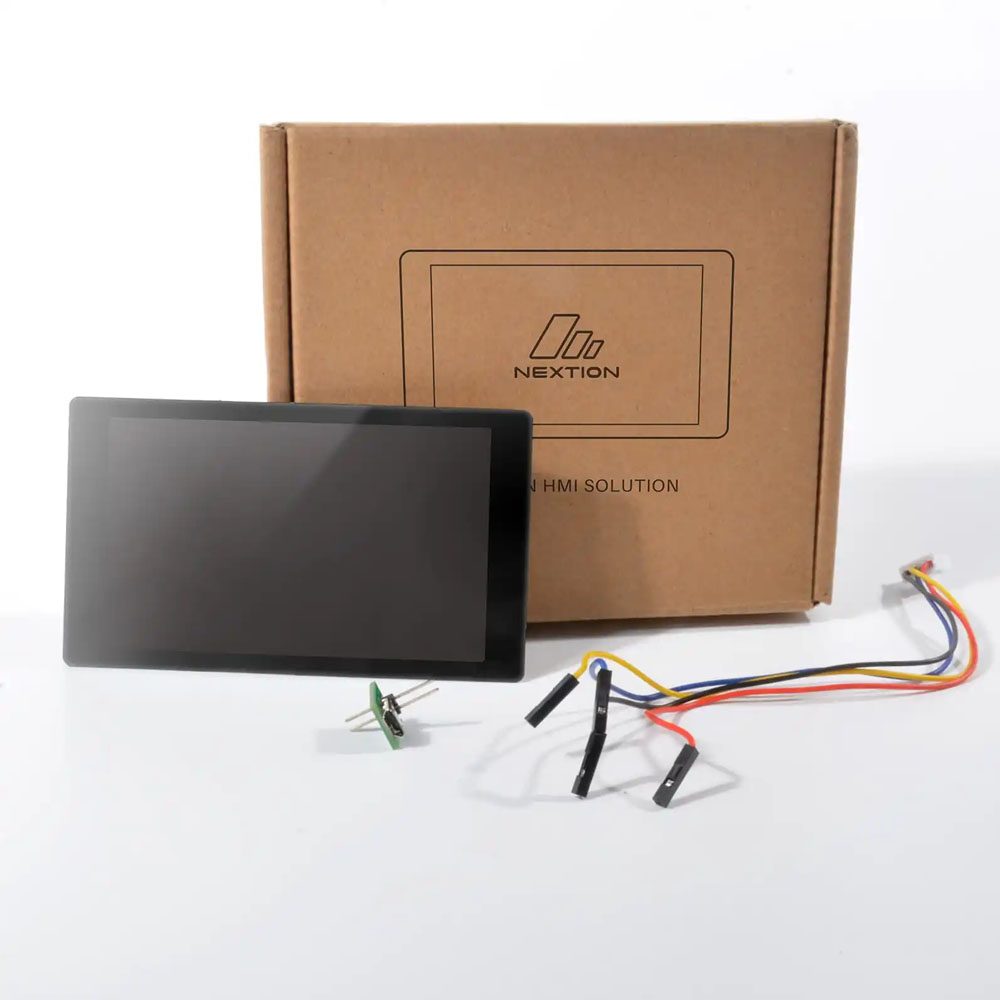

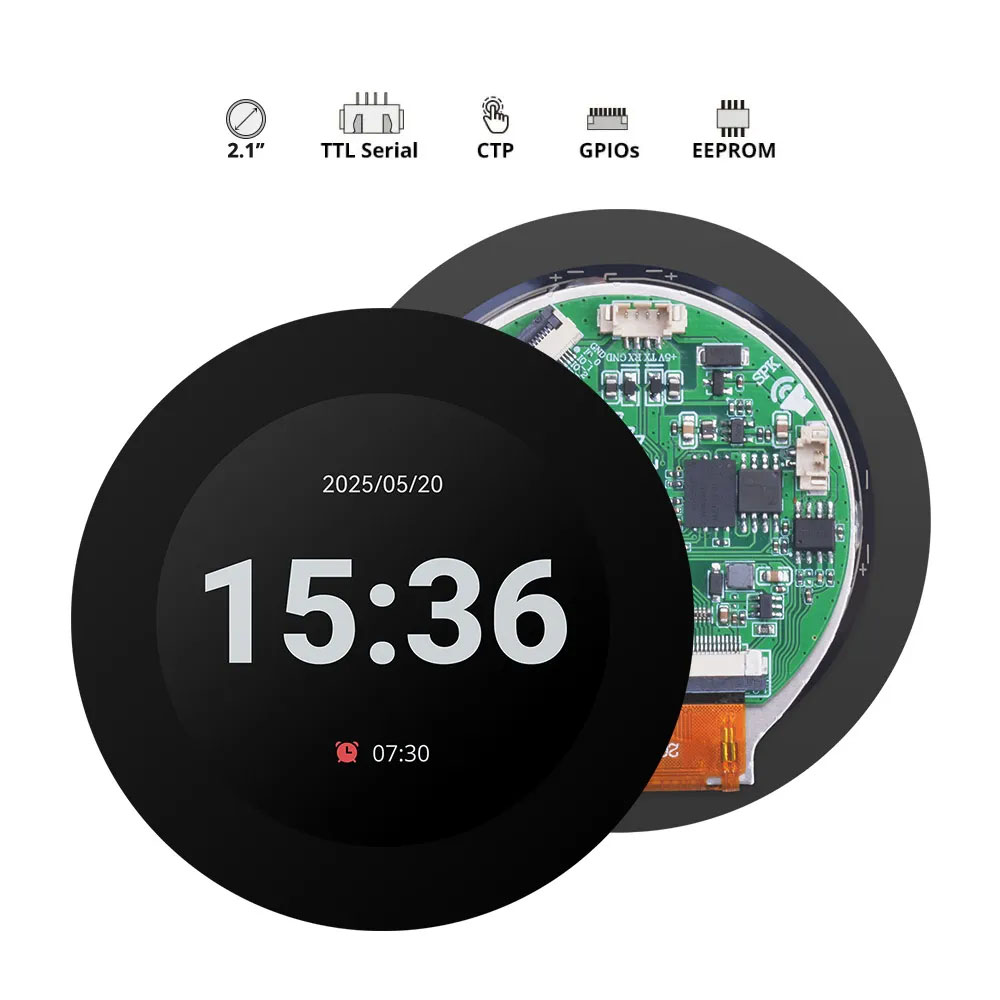

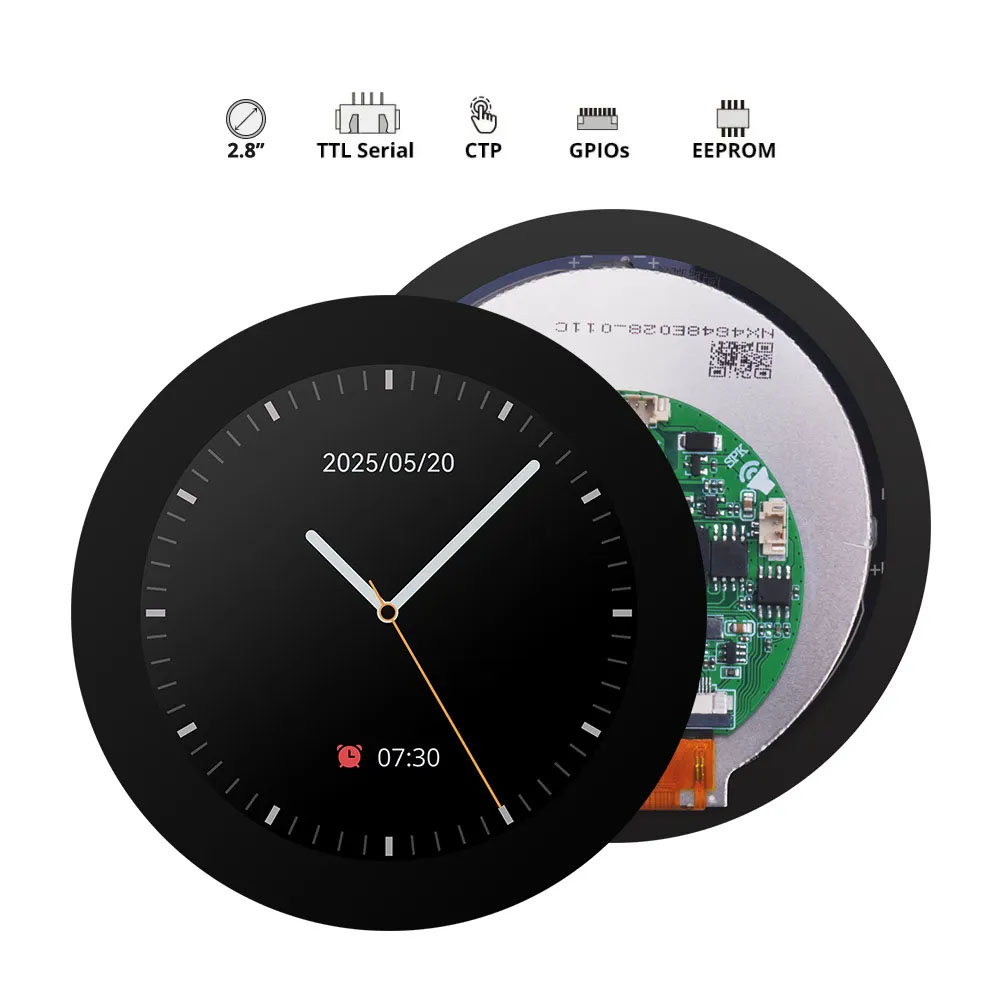

| Size | 2.1″ | 2.8″ | 4.3″ |
| Resolution | 480*480 | 480*480 | 480*800 |
| Touch Panel | CTP | CTP | CTP |
| Color | 65536 | 65536 | 65536 |
| Flash | 128 MB | 128 MB | 128 MB |
| RAM | 512KB | 512KB | 512KB |
| MCU | 200 MHz | 200 MHz | 200 MHz |
| EEPROM | 1024 Byte | 1024 Byte | 1024 Byte |
| GPIOs | 8 | 8 | 8 |
| RTC | Yes | Yes | Yes |
| Datasheet | NX4848E021-011C | NX4848E028-011C | NX4880E043-011C |
