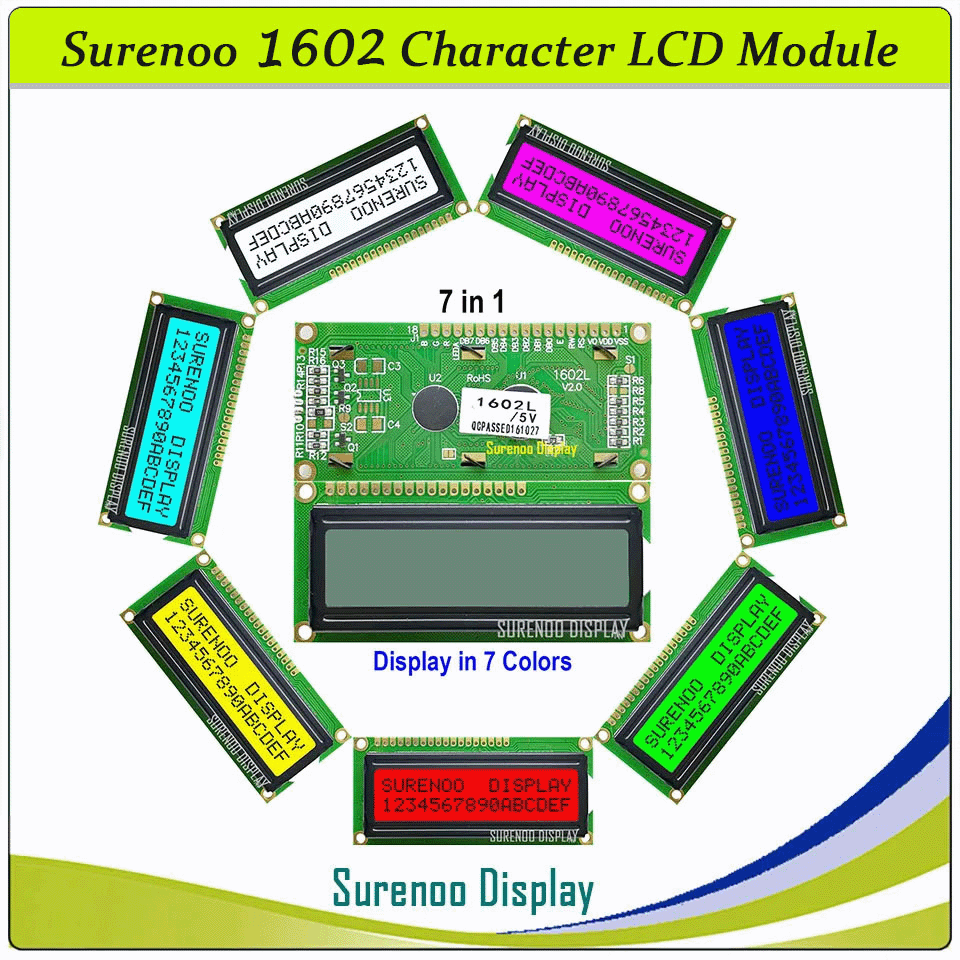

SLC1602L 80X36 1602 16*2 Surenoo Character LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel AIP31066 SPLC780D ST7066 Controller FSTN Positive Double D-FSTN Negative with RGB LED Backlight

Model No.: SLC1602L
Display Format: 16X02 Characters
PCB Size: 80.0X36.0MM
Controller: AIP31066, ST7066 or Equal
37 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLC1602L is 16 characters wide, 2 rows character lcd module, AIP31066 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31066 datasheet for the full character set. It's 5V power supply.

It's easily controlled by MCU such as 8051, PIC, AVR, ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.040Kg
Manufacturer Surenoo
Display Type Character LCD Module / IIC Display
Continuity Supply More than 10 years
Part No. SLC1602L
Display Format 16x2 Character
Interface 6800 4-bit Parallel, 6800 8-bit Parallel, Serial IIC
IC or Equivalent AIP31066, ST7066 or Equal
Fonts English-Japanese
Voltage(Type) 5.0V in default
Connection 1X18P/2.54 Pin Header
Outline Dimension 80.00(W)x36.00(H)x12.00(T)mm
Visual Area 64.50x16.00mm
Active Area 58.00x12.46mm
Display Type FSTN Positive, D-FSTN Negative
Backlight Type (LED) RGB Backlight
IC Package COB
Viewing Direction 6:00 O'Clock
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
  • Outline Drawing

  • Interface
Pin No. Pin Name Description
1 VSS Ground 0V
2 VDD Logic Power Supply (5.0V)
3 V0 Operating voltage for LCD
4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
5 R/W Read / Write (H: Read Mode, L: Write Mode)
6 E Enable Signal
7-14 DB0-DB7 Data Bus
15 LED_A Backlight Anode (5.0V)
16 LED_R LED Backlight Control Pin. High Level(5.0V): on. Low Level: Off (Red)
17 LED_G LED Backlight Control Pin. High Level(5.0V): on. Low Level: Off (Green)
18 LED_B LED Backlight Control Pin. High Level(5.0V): on. Low Level: Off (Blue)
  • Documents
No. Item File Name File Type ICON Date Description Mark
1 Datasheet SLC1602L PDF 2013-03-17 Standard 1602 Character LCD Module
2 Controller AIP31066 PDF 2008-09-24 Character LCD Controller, Compatible with SPC780, ST7066, HD44780, ......
3 Accessory
(PCF8574T IIC Module)		 PCF8574T IIC Module PDF 2011-02-09 PWM 1602L Arduino IIC Convert Board
4 51 Library 51 Library TXT 2006-09-11 STC86S52 6800 4/8-Bit Parallel Library
5 Arduino IIC Library SLC1602L INO 2009-07-19 Surenoo IIC Library for PCT8574T, AIP31068, RW1063, ST7032i to work on Arduino test Board
