Model No.: SLC1601A
Display Format: 16X01 Characters
PCB Size: 80.00X36.00MM
Controller: AIP31066, ST7066 or Equal
237 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLC1601A is 16 characters wide, 1 rows character lcd module, AIP31066 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31066 datasheet for the full character set. It's 5V or 3.3V power supply, and I2C adapter board is optional for Arduino.

It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.040Kg
Manufacturer Surenoo
Display Type Character LCD Module / IIC Display
Continuity Supply More than 10 years
Part No. SLC1601A
Display Format 16x1 Character
Interface 6800 4-bit Parallel, 6800 8-bit Parallel, Serial IIC
IC or Equivalent AIP31066, ST7066 or Equal
Fonts English-Japanese
Voltage(Type) 5.0V in default, 3.3V is Optional
Connection 1X16P/2.54 Pin Header
Outline Dimension 80.0(W)x36.0(H)x11.0(T)mm
Visual Area 64.50x14.50mm
Active Area 59.45x6.35mm
Display Type STN Yellow Green, STN Blue Negative
Backlight Type (LED) Yellow Green, White
IC Package COB
Viewing Direction 6:00 O'Clock
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃

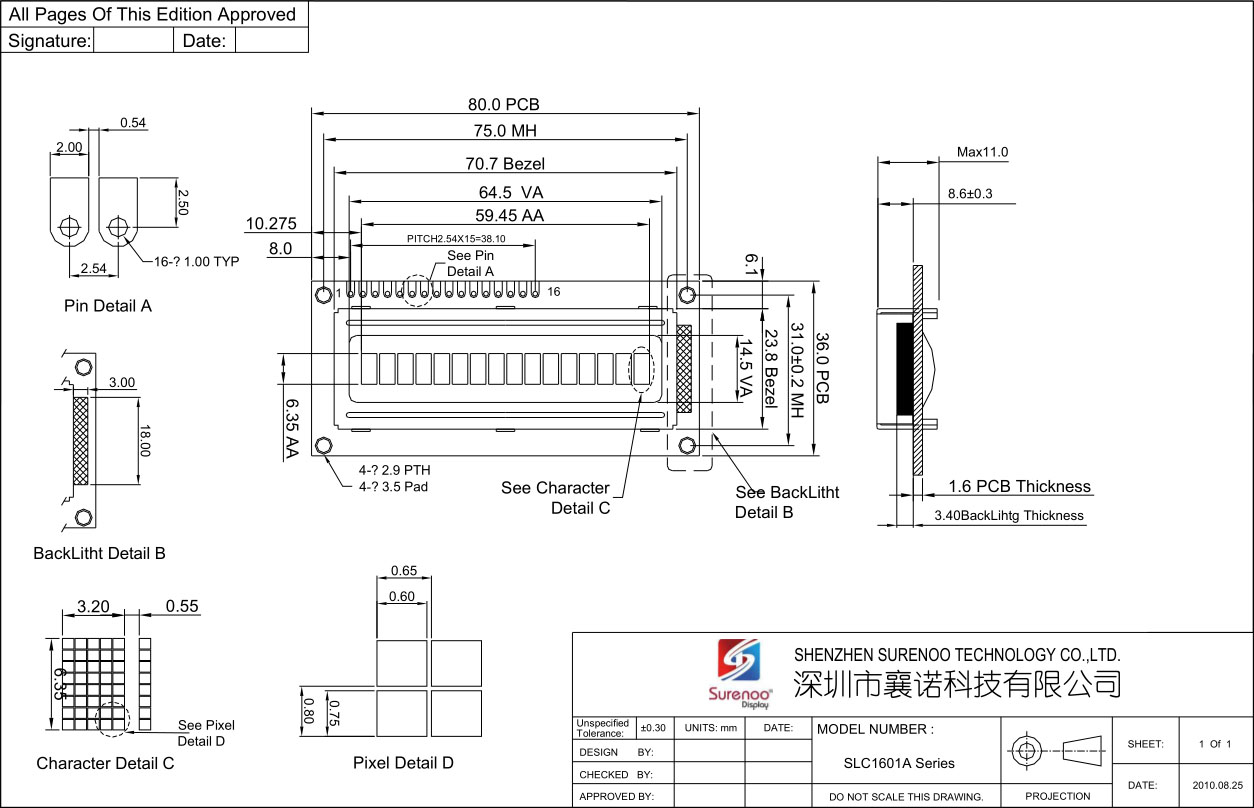

  • Outline Drawing

  • Interface
Pin No. Pin Name Description
1 VSS Ground 0V
2 VDD Logic Power Supply
3 V0 Operating voltage for LCD
4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
5 R/W Read / Write (H: Read Mode, L: Write Mode)
6 E Enable Signal
7-14 DB0-DB7 Data Bus
15 LED_A Backlight Anode
16 LED_K Backlight Cathode
