| Standard-HDMI Series (SHD) |
Inner-HDMI Series (SHN) |
Vertical-HDMI Series (SHV) |
Thunderbolt USB Type-C Series (STU) |
| 10.1" HDMI Display | |||
| 7.0" HDMI Display |
|||
| 5.0"-4.3" HDMI Display |
|||
| Other HDMI Display |
| Model No. |
Content | Outline Size (MM) |
View Area (MM) |
Active Area (MM) |
Voltage | Interface | Mark | Datasheet | Buy Now (Image) |
| SHD (Standard-HDMI) Series | |||||||||

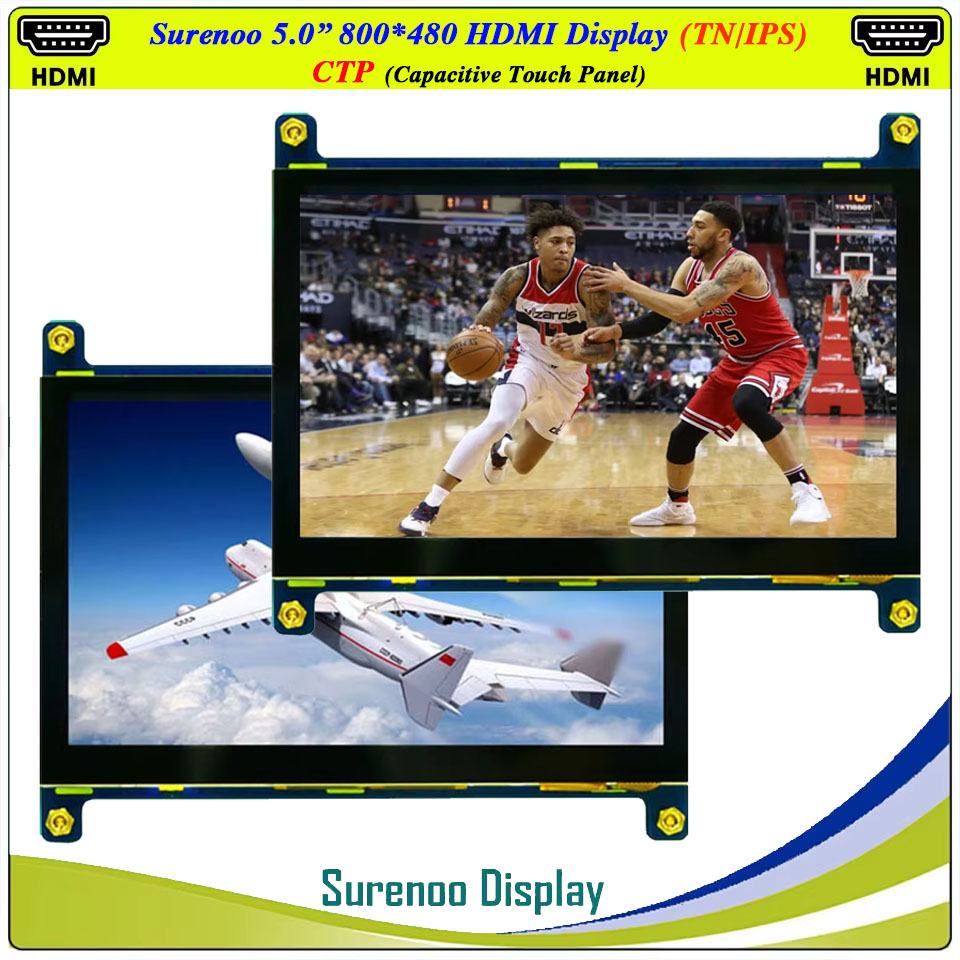

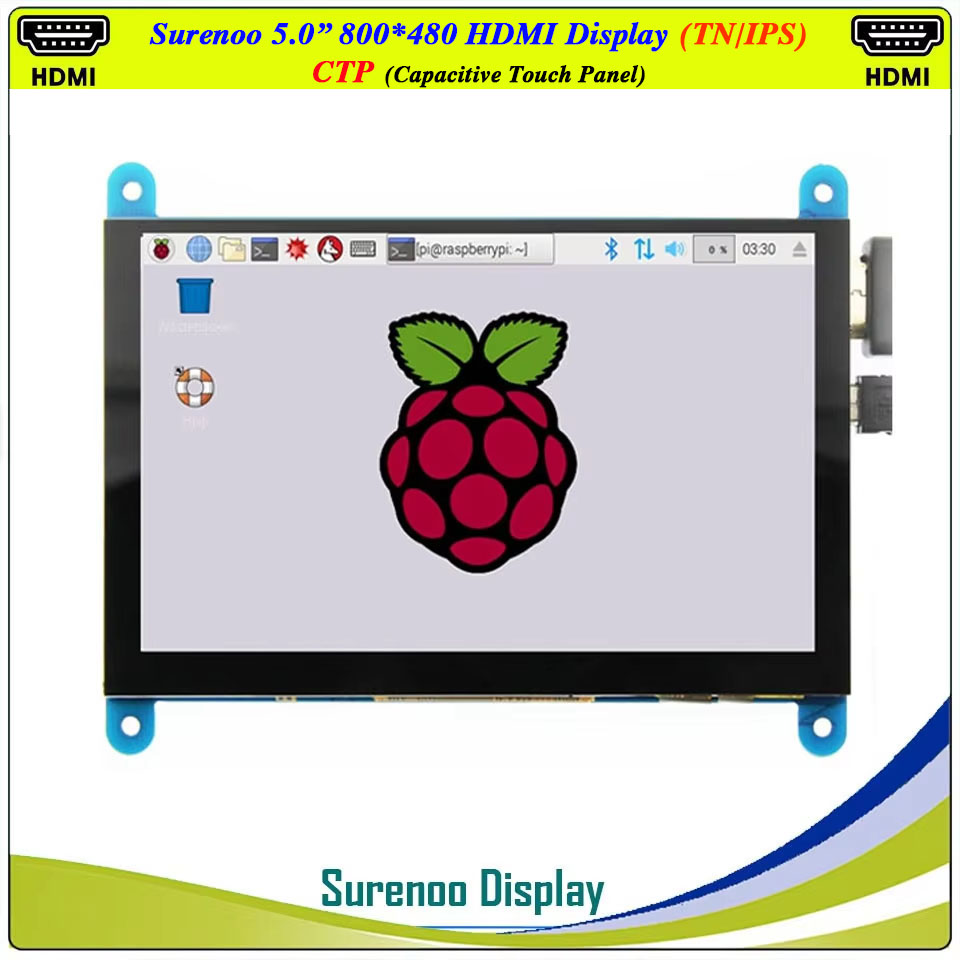

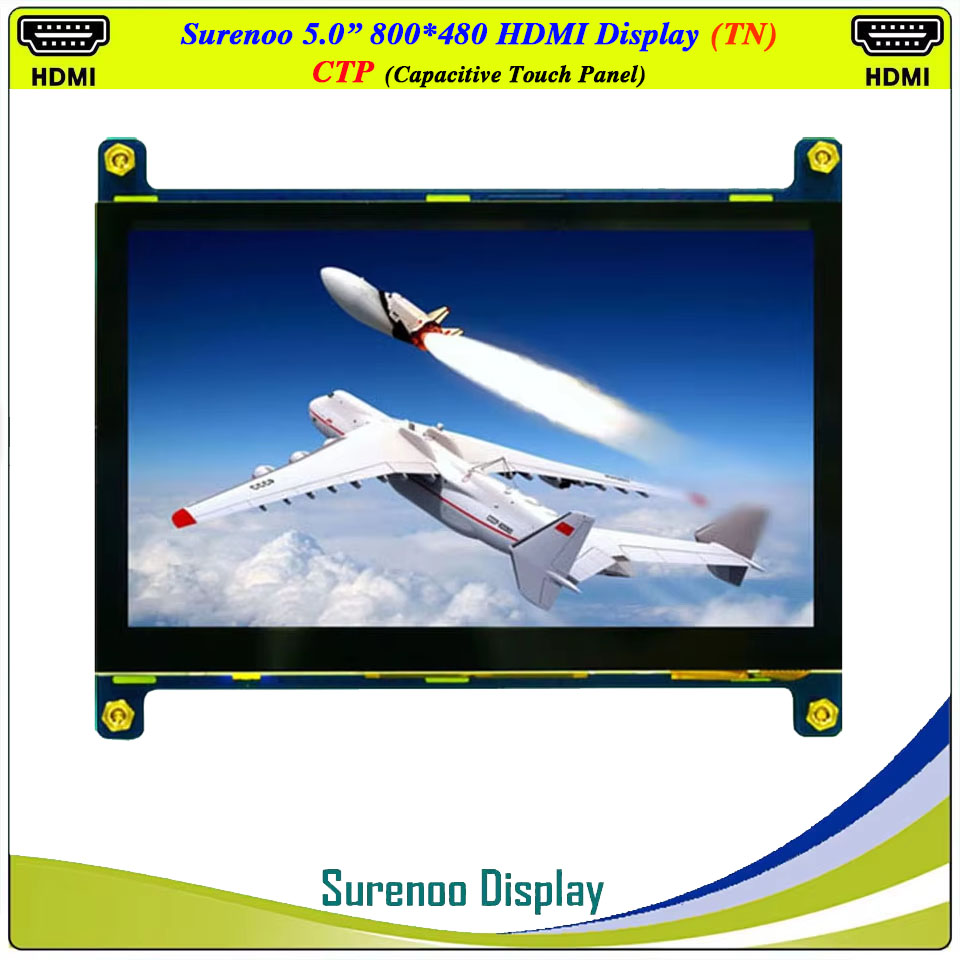

| SHD050A -800480 |
5.0" TN/IPS 800*480 CTP |
120.70*97.05 |
109.00*65.80 |
108.00*64.80 | 5.0V |
HDMI Type A Micro USB |
 |
 |
|

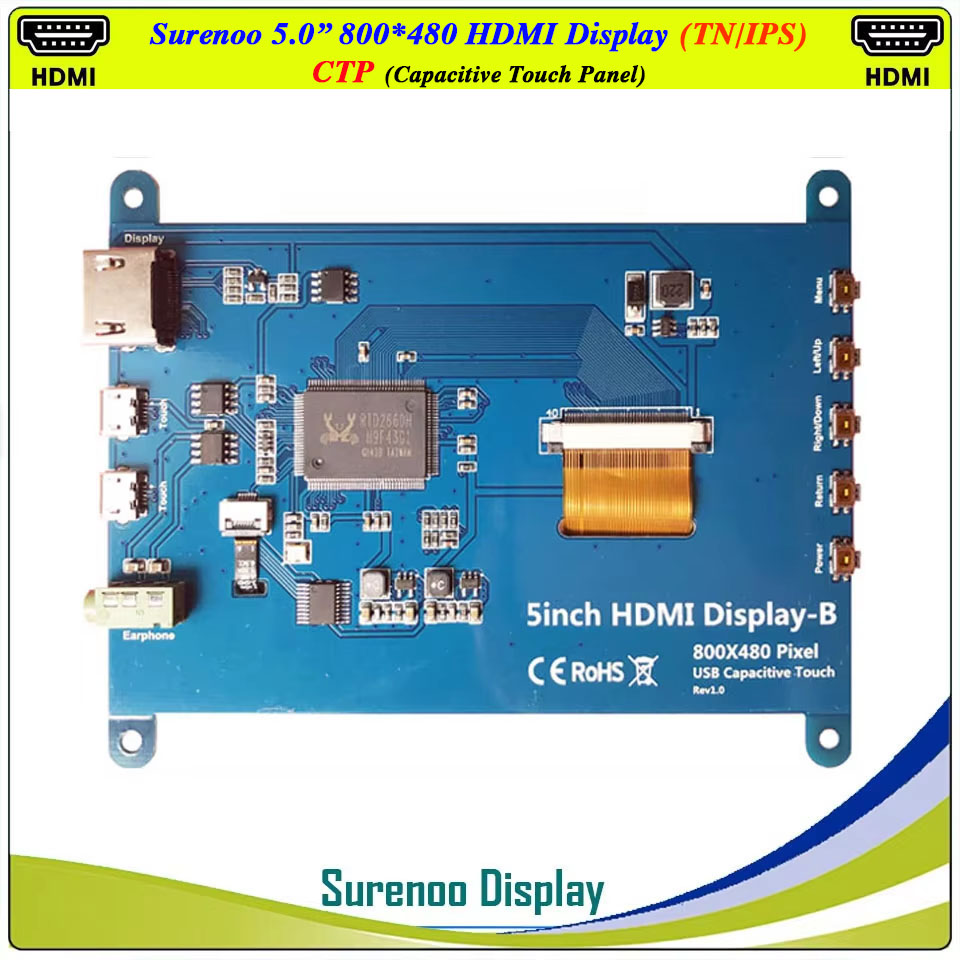

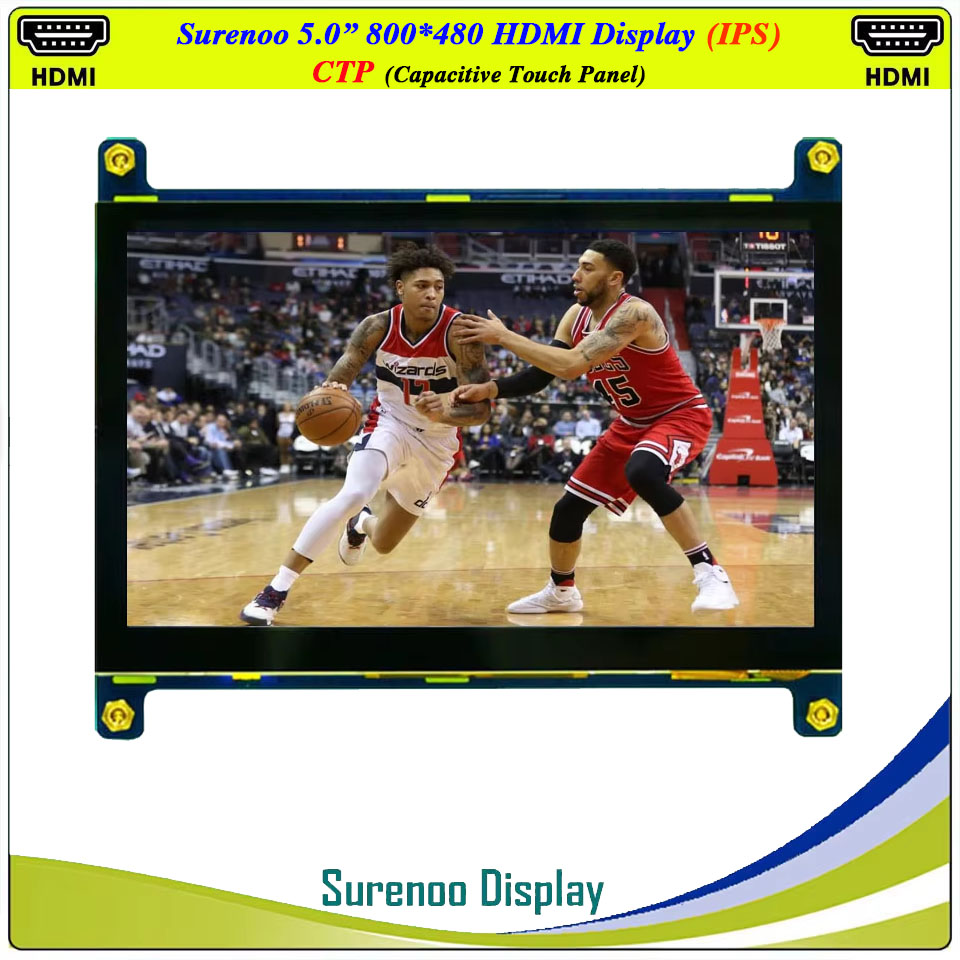

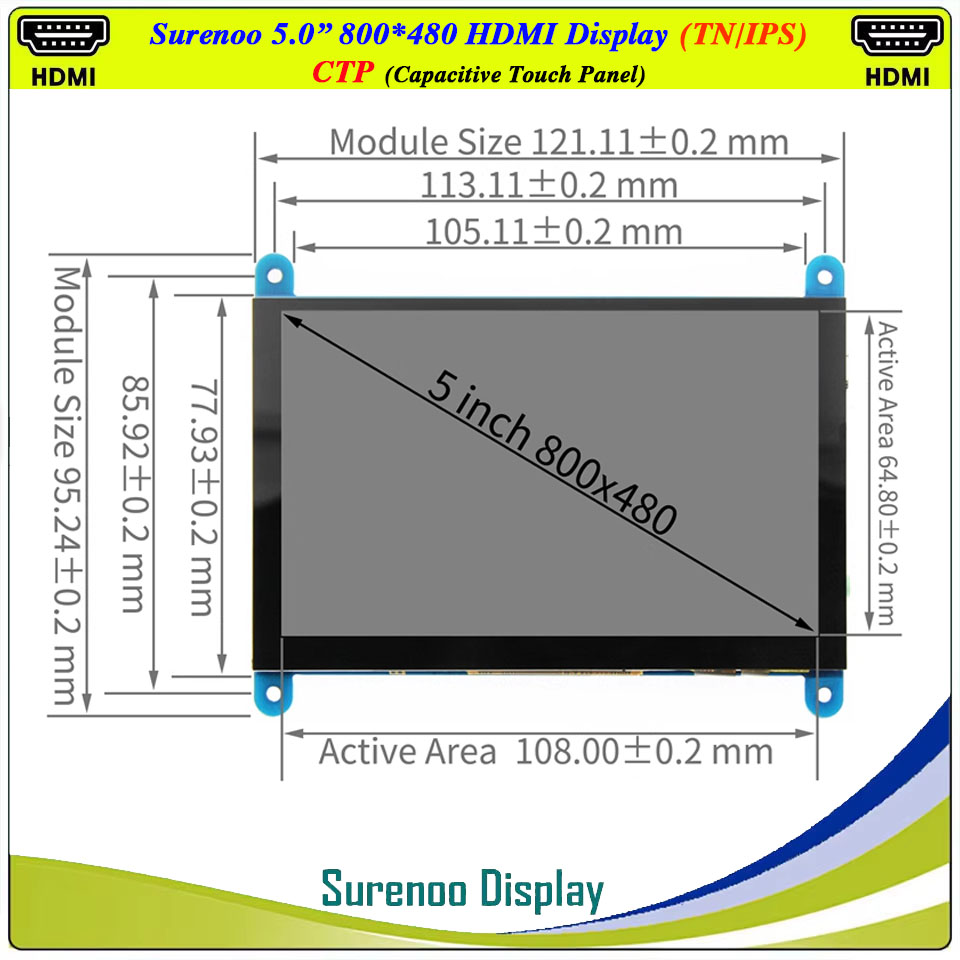

| SHD050B -800480 |
5.0" TN/IPS 800*480 CTP |
121.11*95.24 | 109.00*66.00 | 108.00*64.80 | 5.0V | HDMI Type A Micro USB |
Support Audio Output |
|
 |

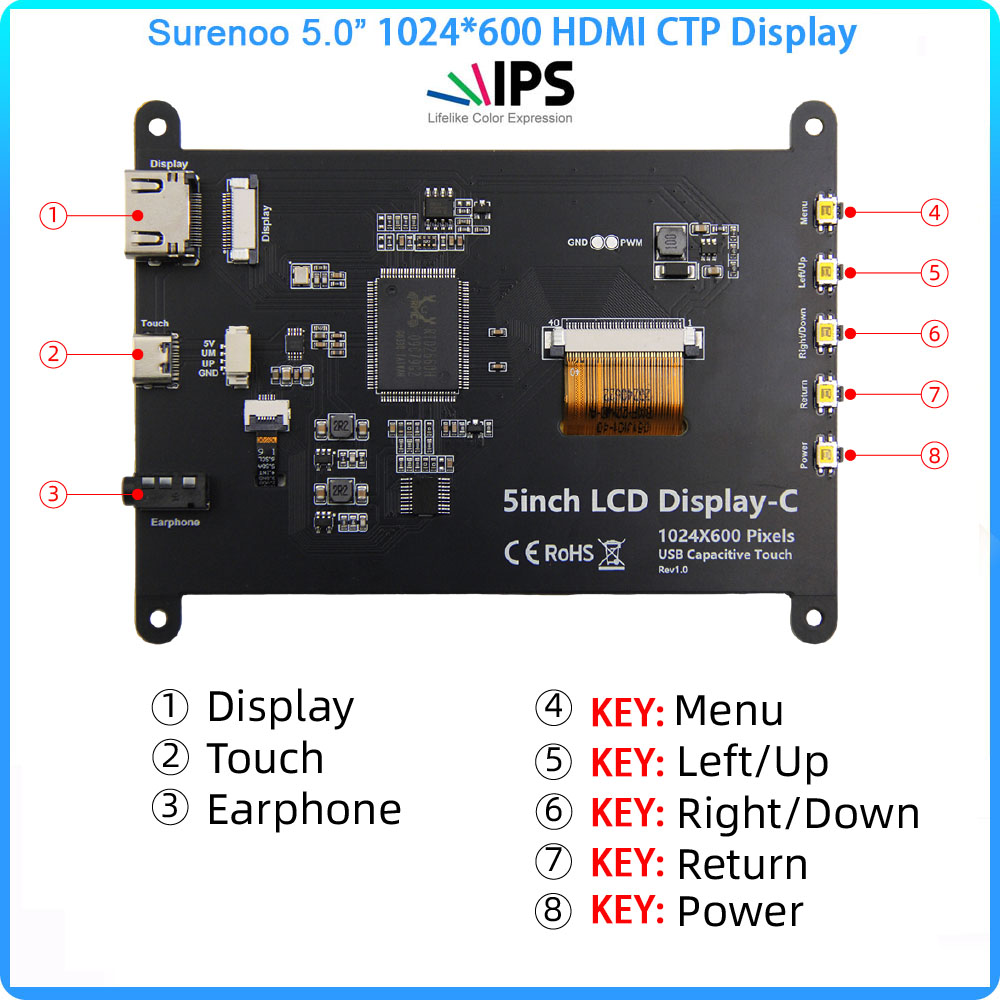

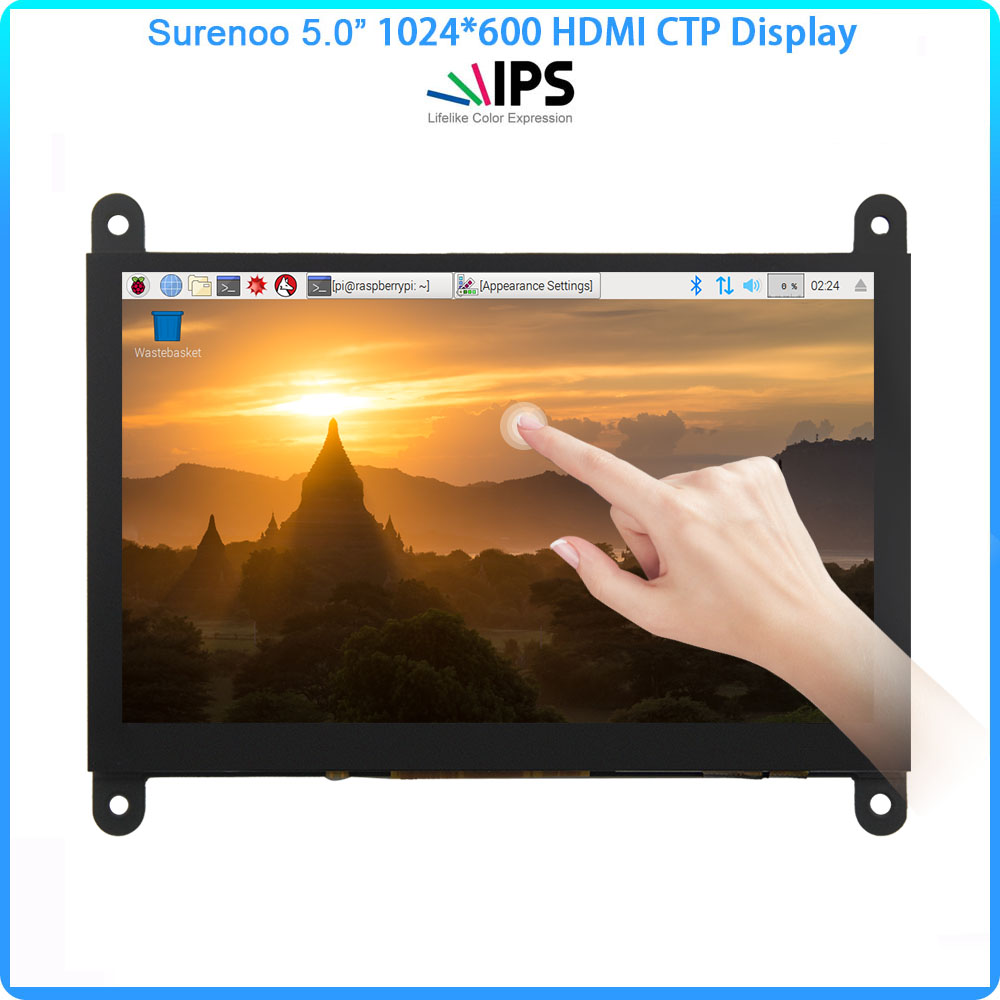

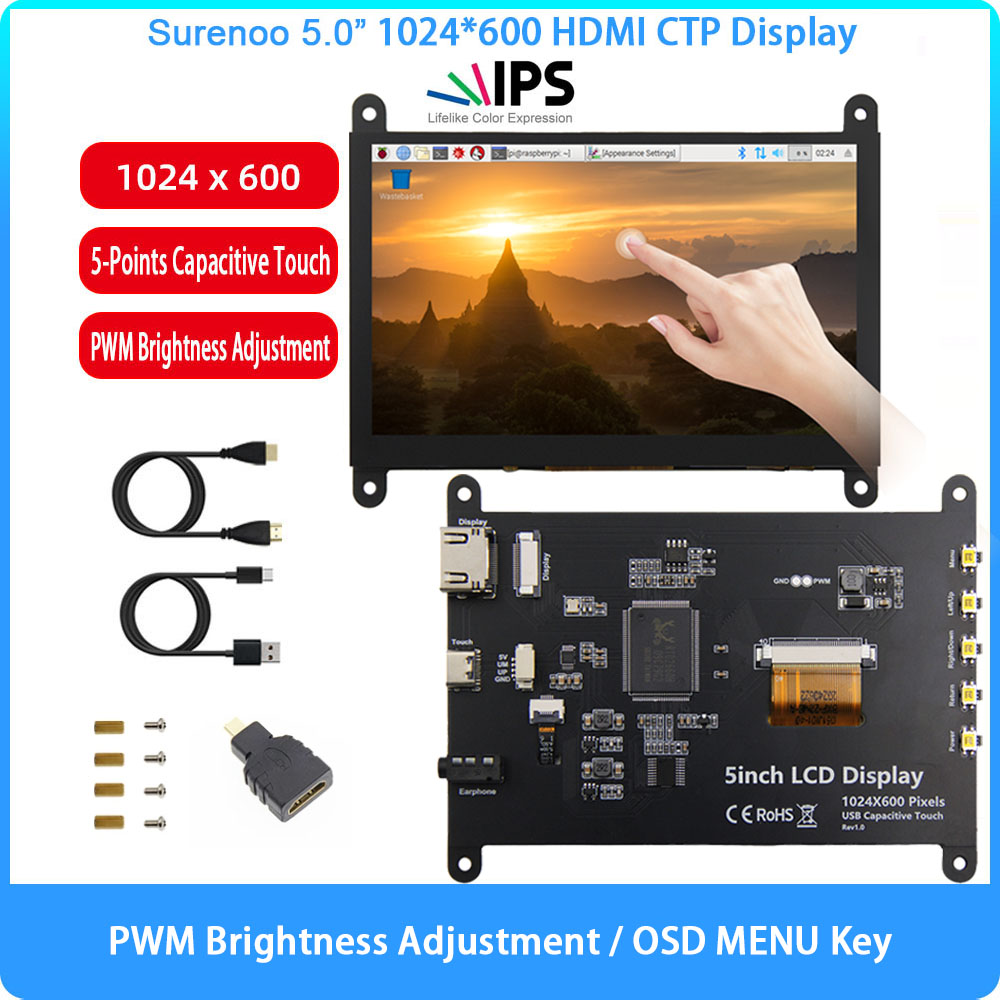

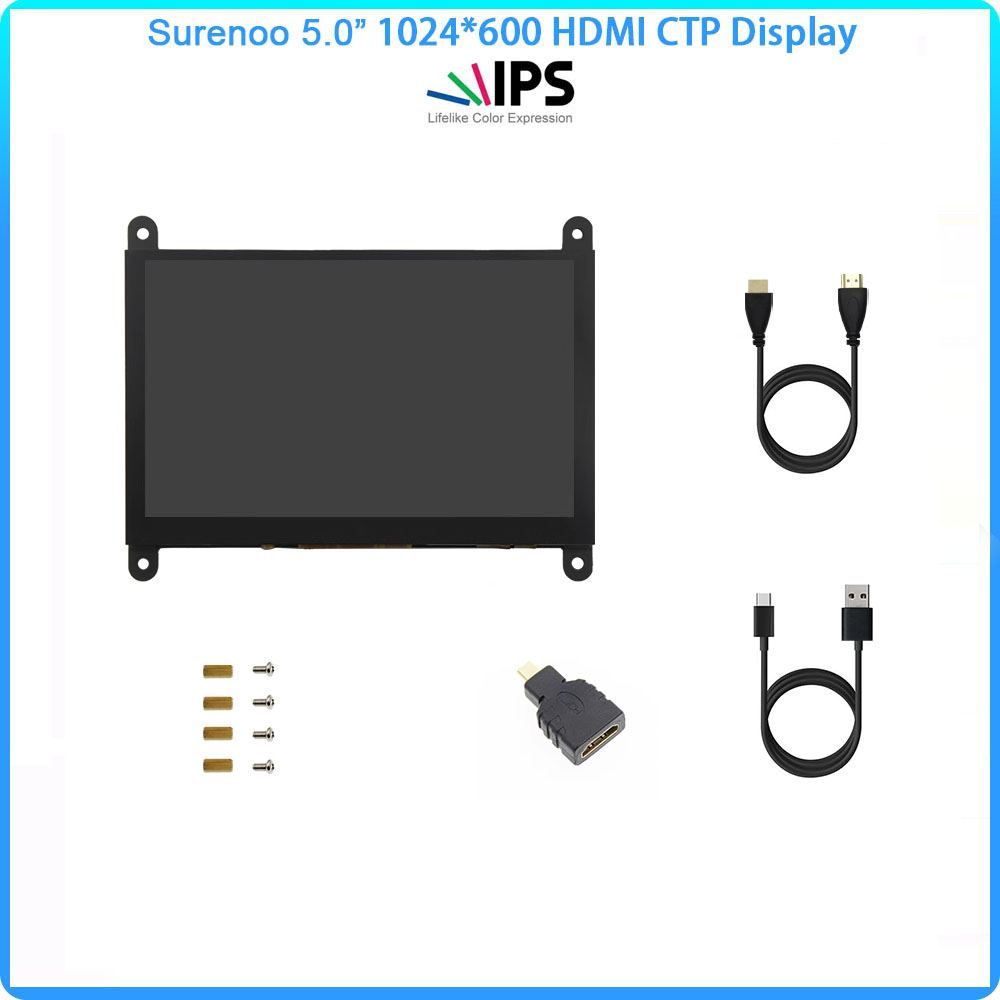

| SHD050C -1024600 |
5.0" IPS 1024*600 CTP |
121.31*95.47 | 109.20*66.05 | 108.00*64.80 | 5.0V | HDMI / 20P-1.0 Type C-USB / 4P-1.25 |
1024*600 Support Audio Output |
|
 |

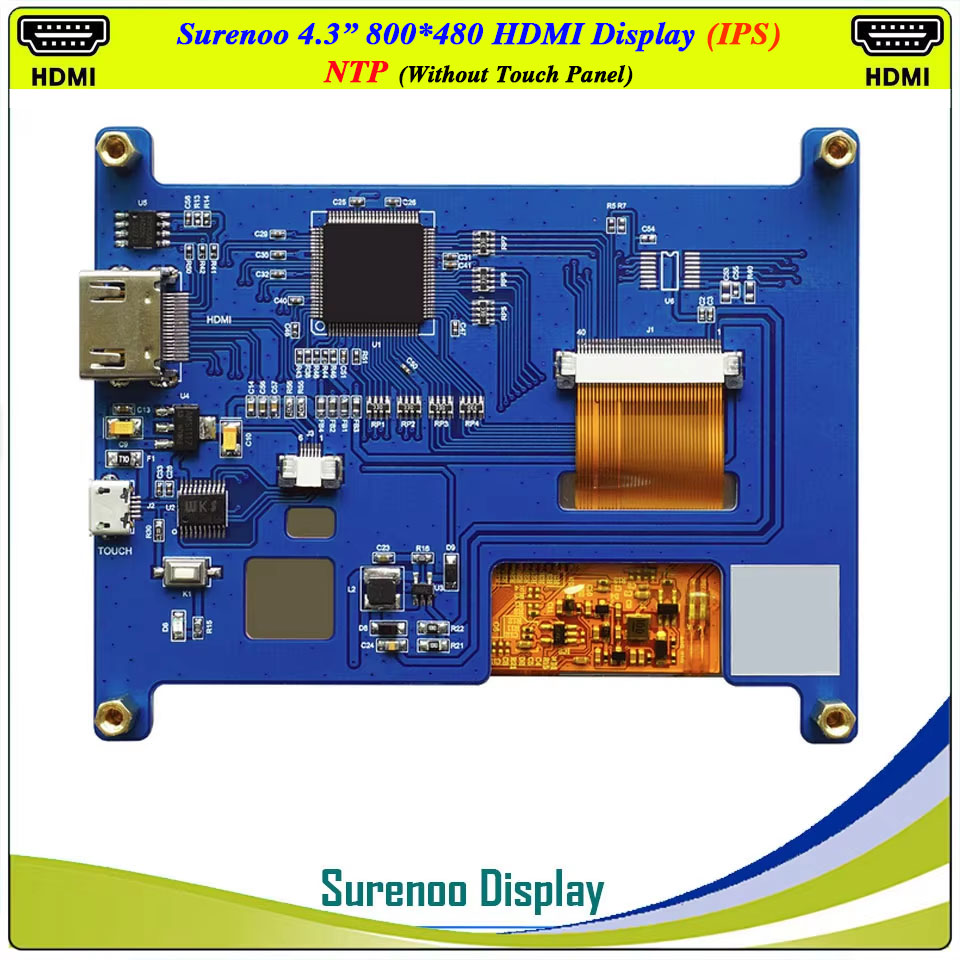

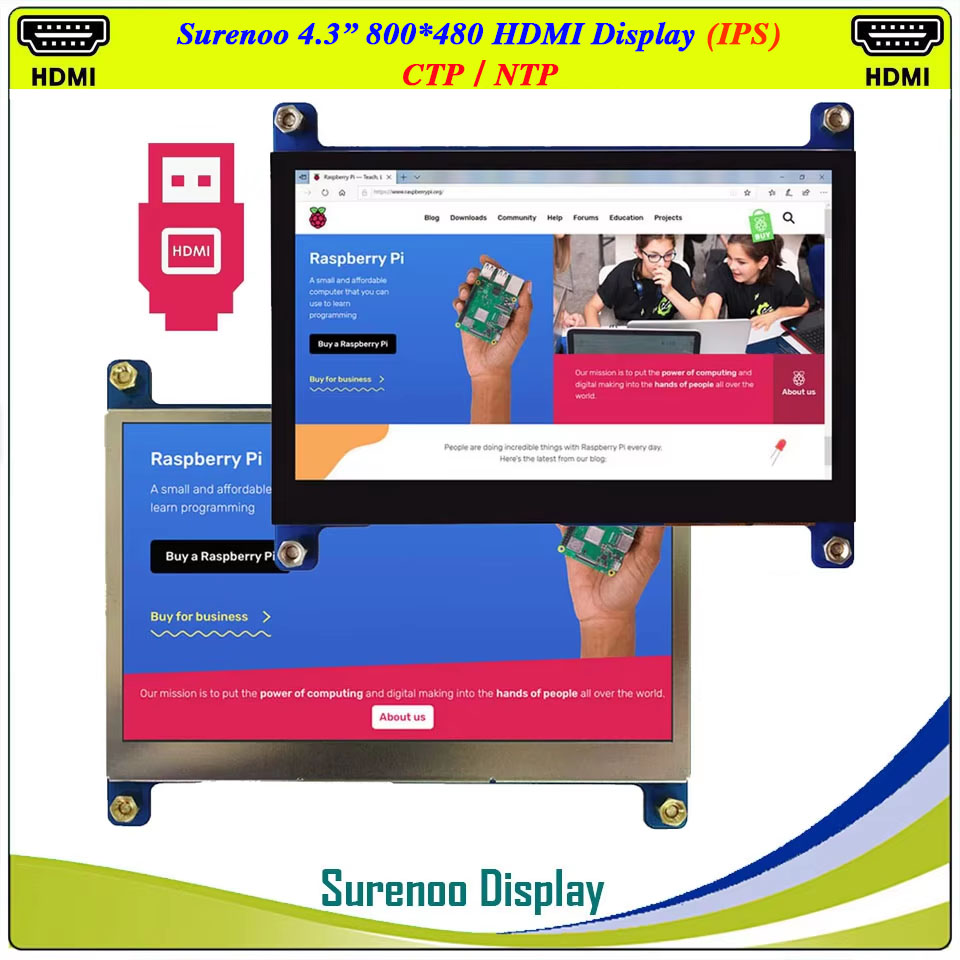

| SHD043A -800480 |
4.3" TN 800*480 NTP/CTP |
105.80*95.09 | 96.44*55.26 | 95.04*53.86 | 5.0V | HDMI Type A Micro USB |
|
 |
|

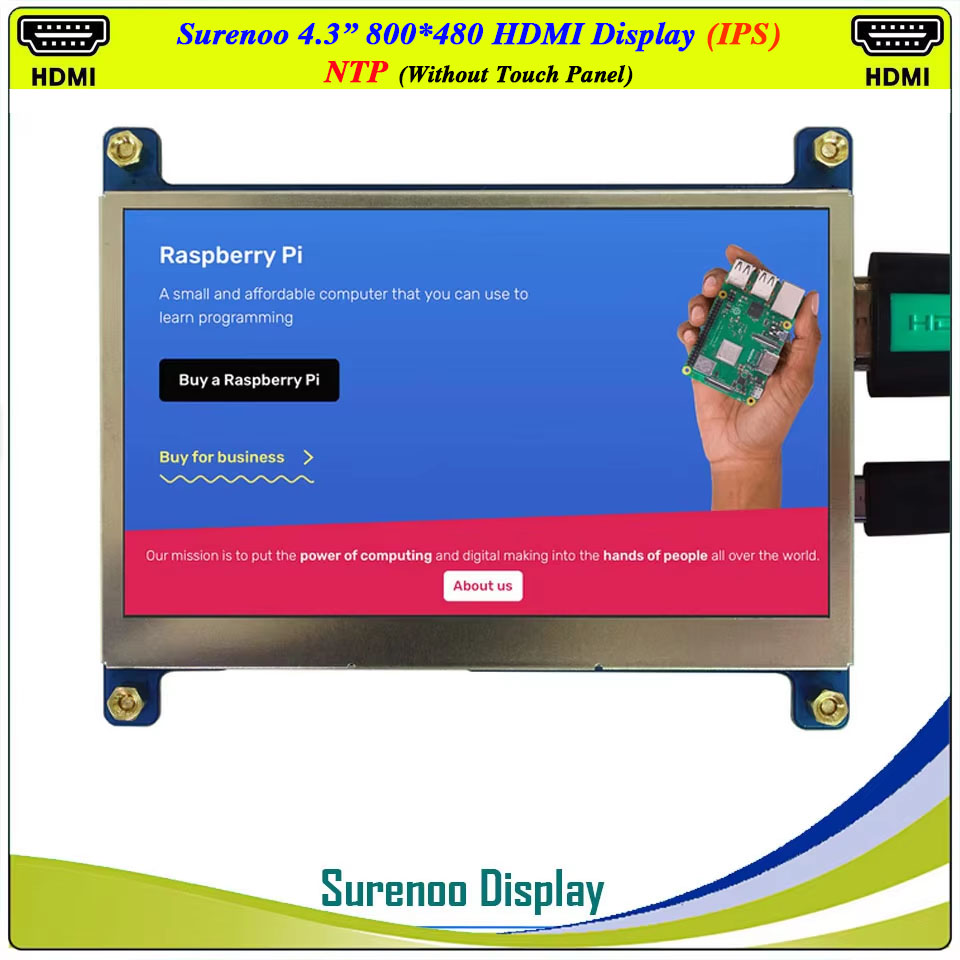

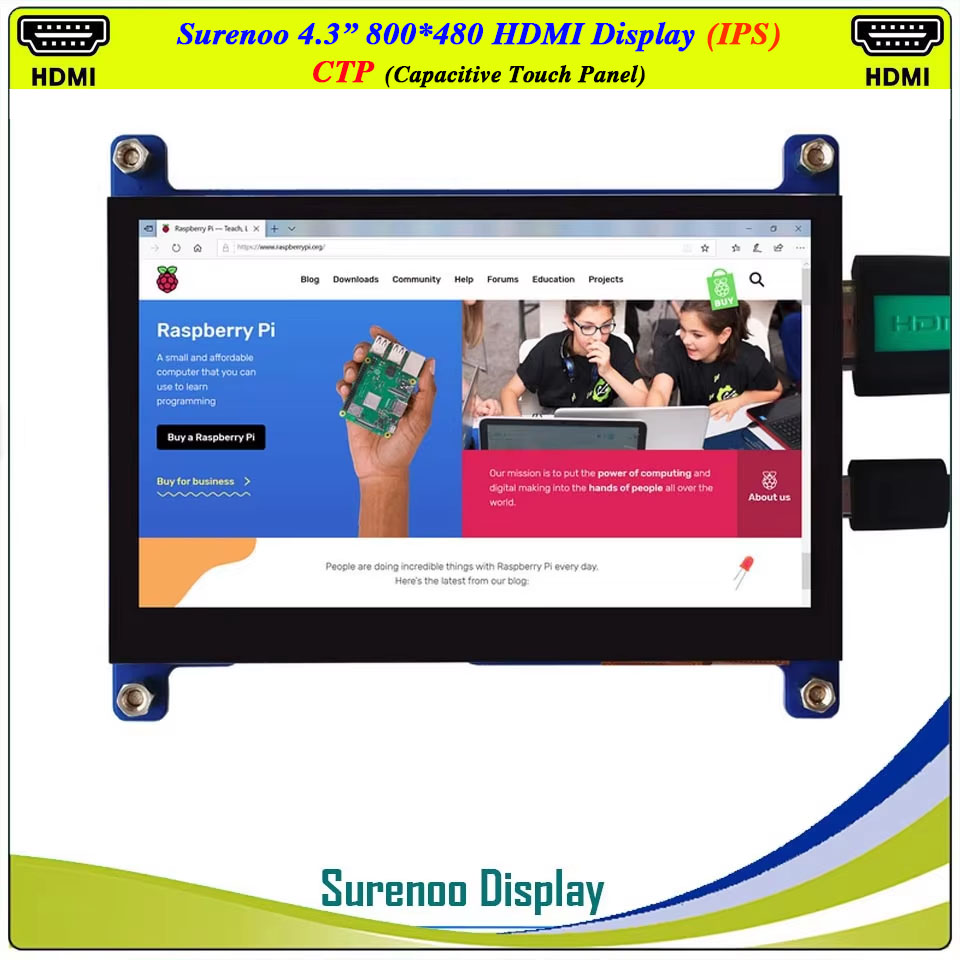

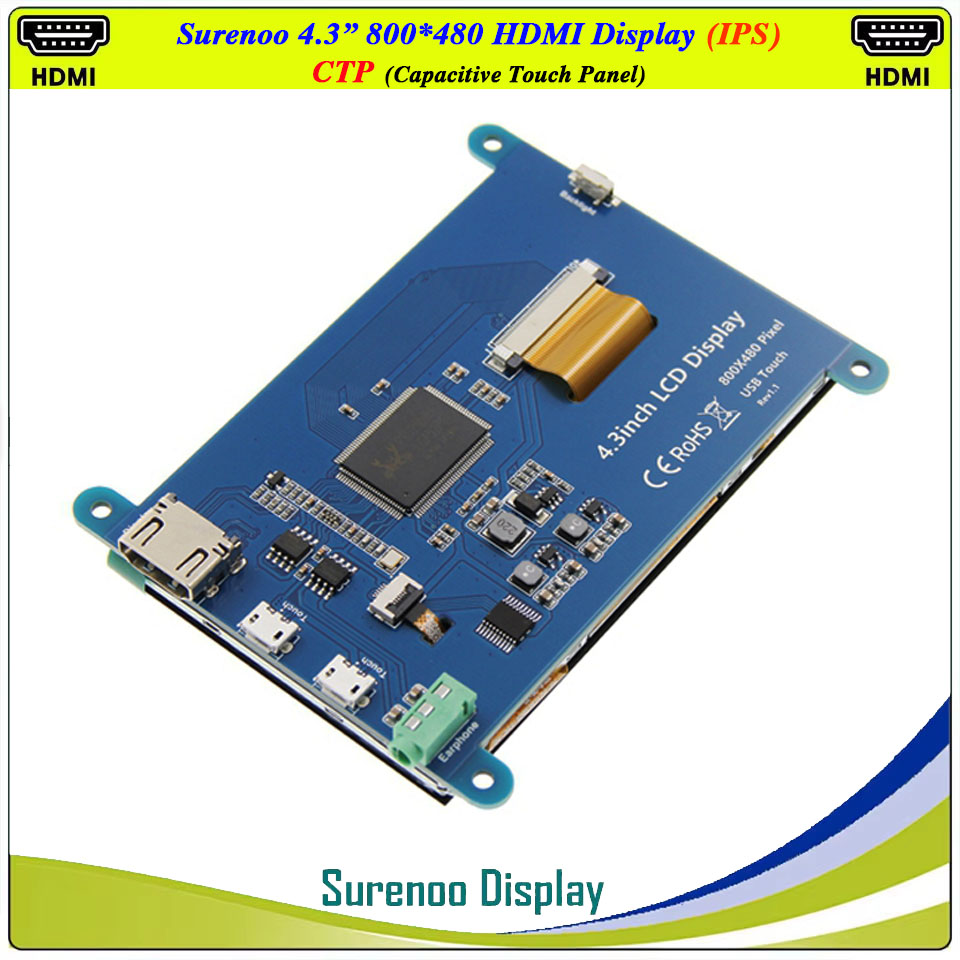

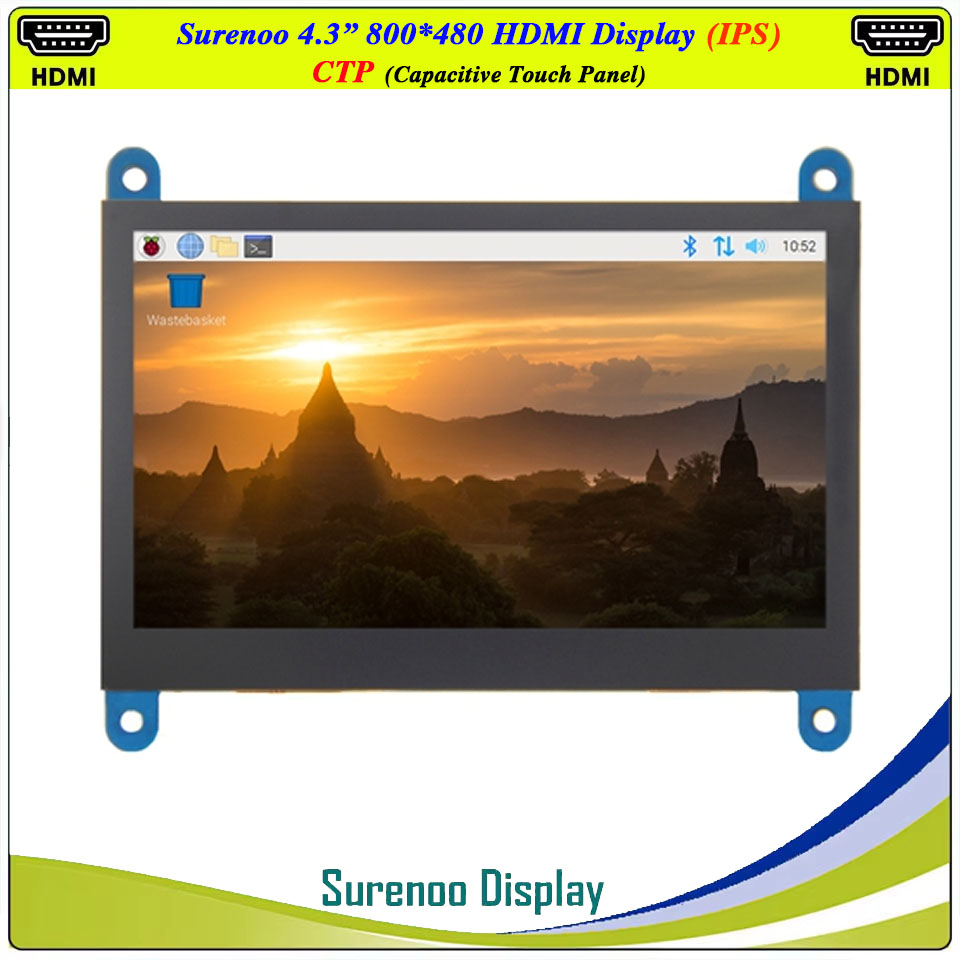

| SHD043B -800480 |
4.3" IPS 800*480 CTP |
106.04*85.31 | 96.04*54.86 | 95.04*53.86 | 5.0V | HDMI Type A Micro USB |
Support Audio Output |
|
 |
| SHN (Inner-HDMI) Series | |||||||||

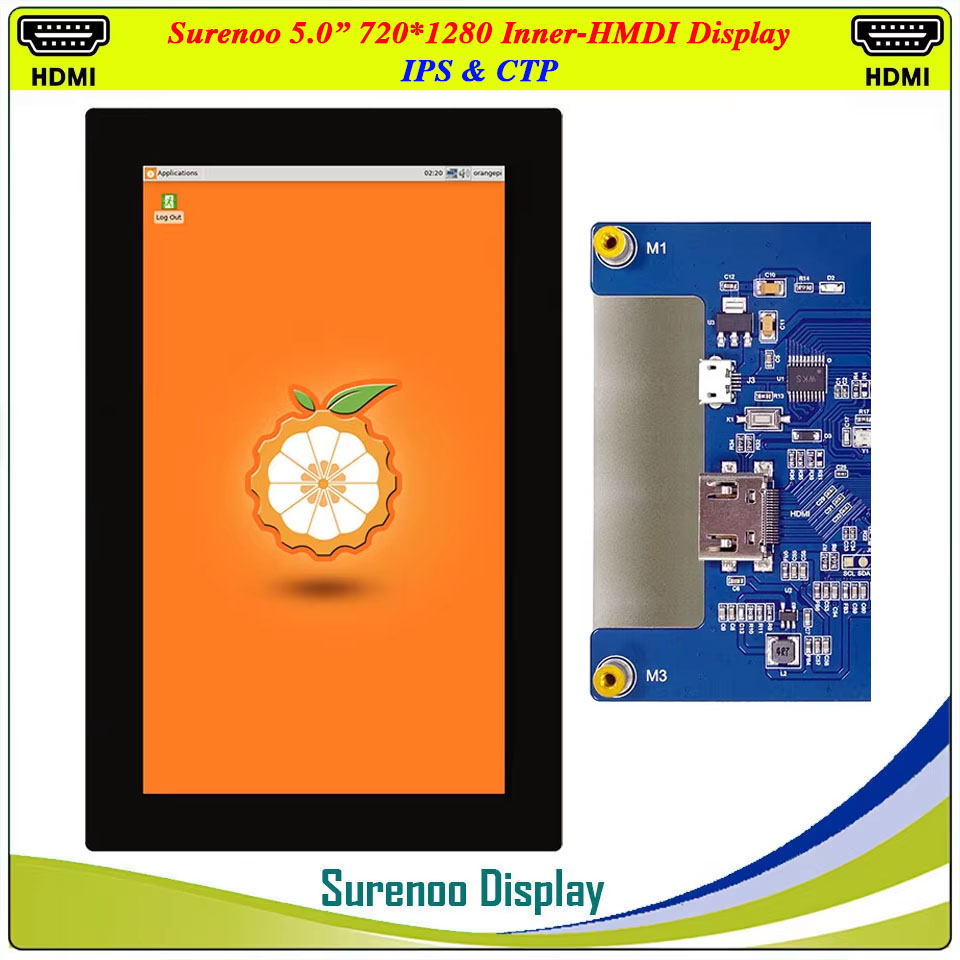

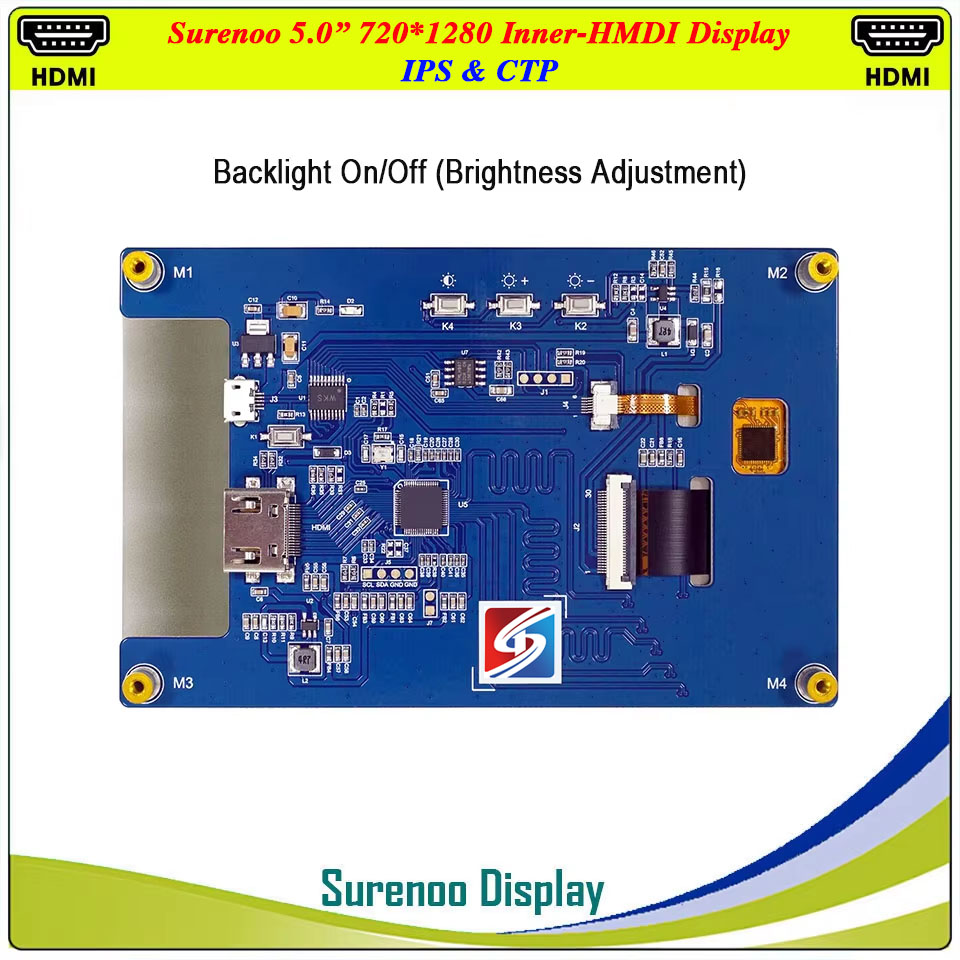

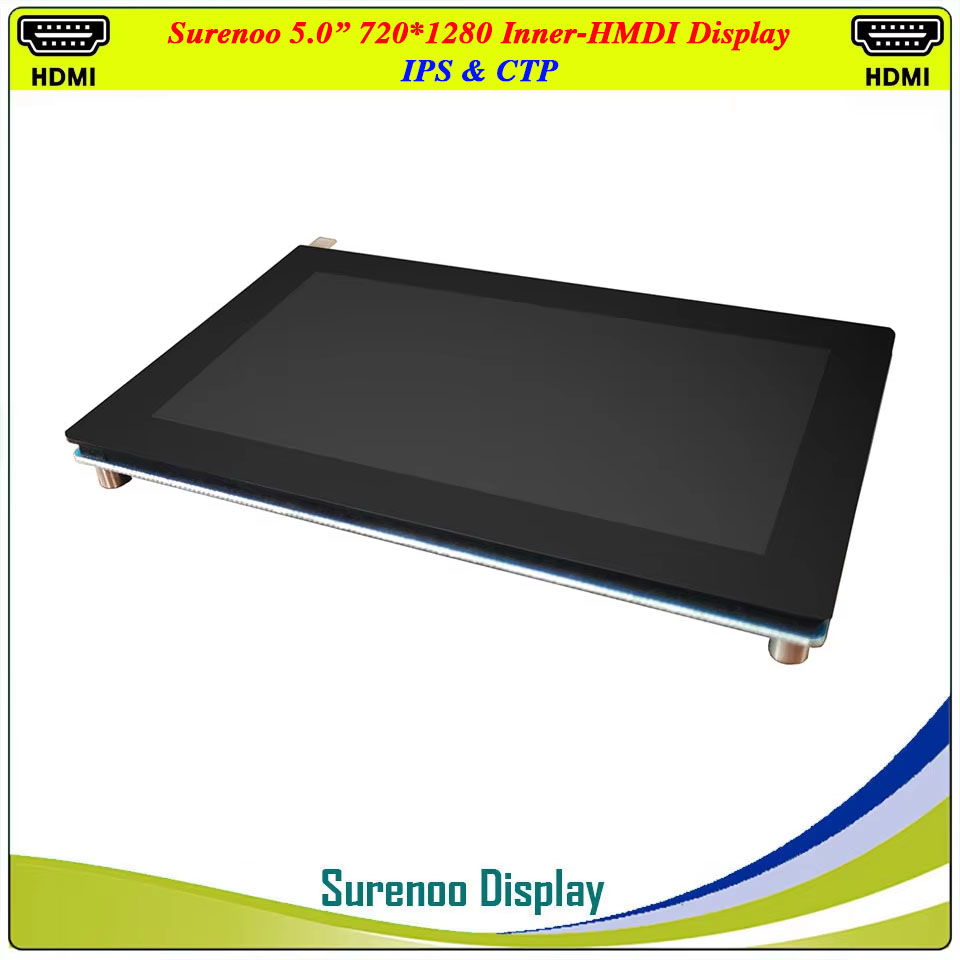

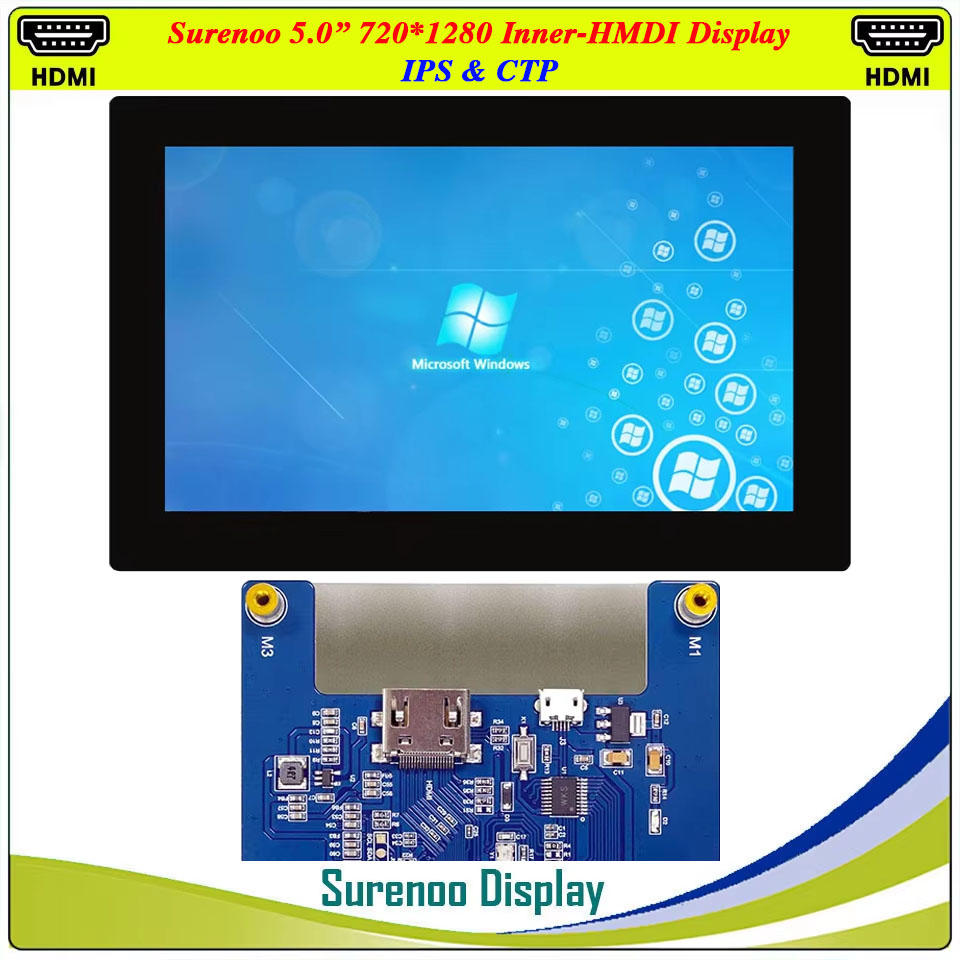

| SHN050A -7201280 |
5.0" IPS 720*1280 CTP |
83.40*131.70 | 62.70*111.00 | 62.10*110.40 | 5.0V | Inner HDMI Type A Micro USB |
|
 |
|

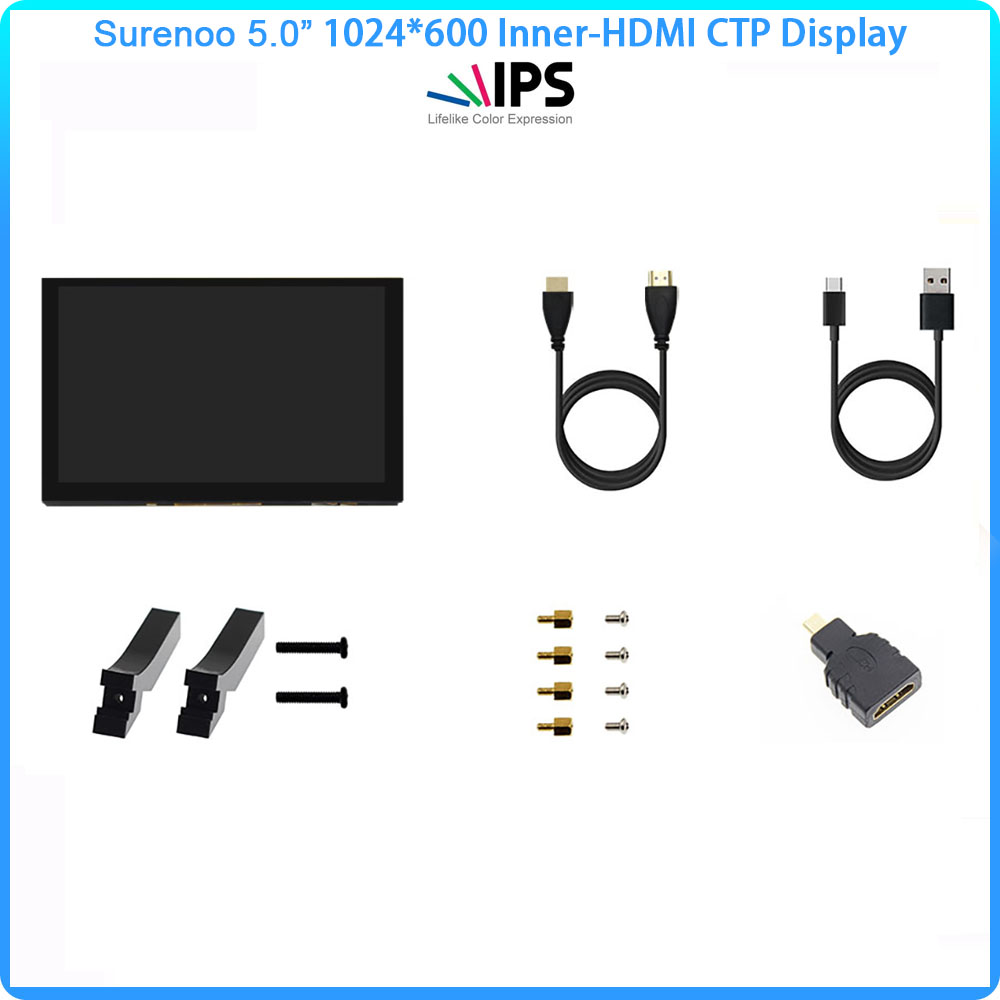

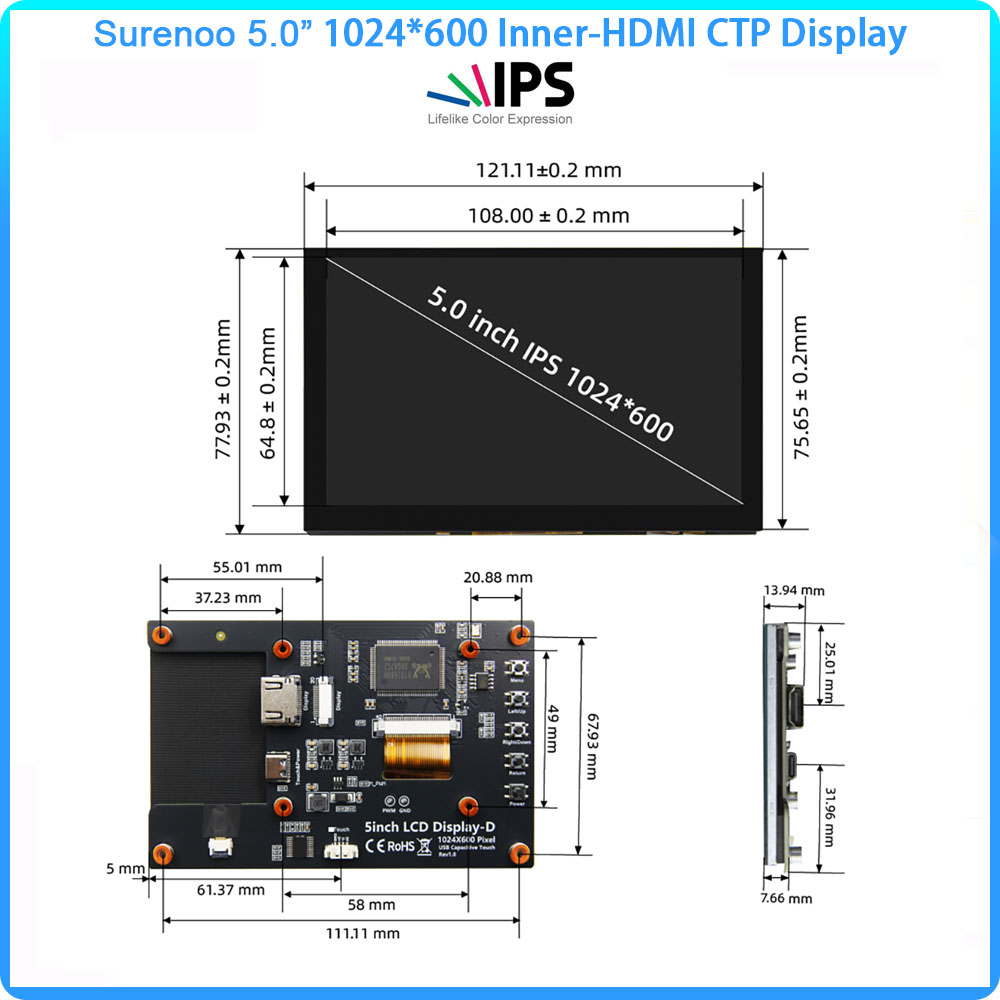

| SHN050B -1024600 |
5.0" IPS 1024*600 CTP |
121.11*77.93 |
109.20*66.05 |
108.00*64.80 |
5.0V |
Inner HDMI Type A USB Type-C |
|
 |
|
| SHV (Vertical-HDMI) Series | |||||||||
| SHV043A -800400 |
4.3" IPS 800*480 CTP/LTP |
105.40*67.10 120.04*78.86 |
96.44*55.26 | 95.04*53.86 | 5.0V | Vertical HDMI Type A Micro USB |
|
 |
|
| STU (Thunderbolt USB Type-C) Series | |||||||||

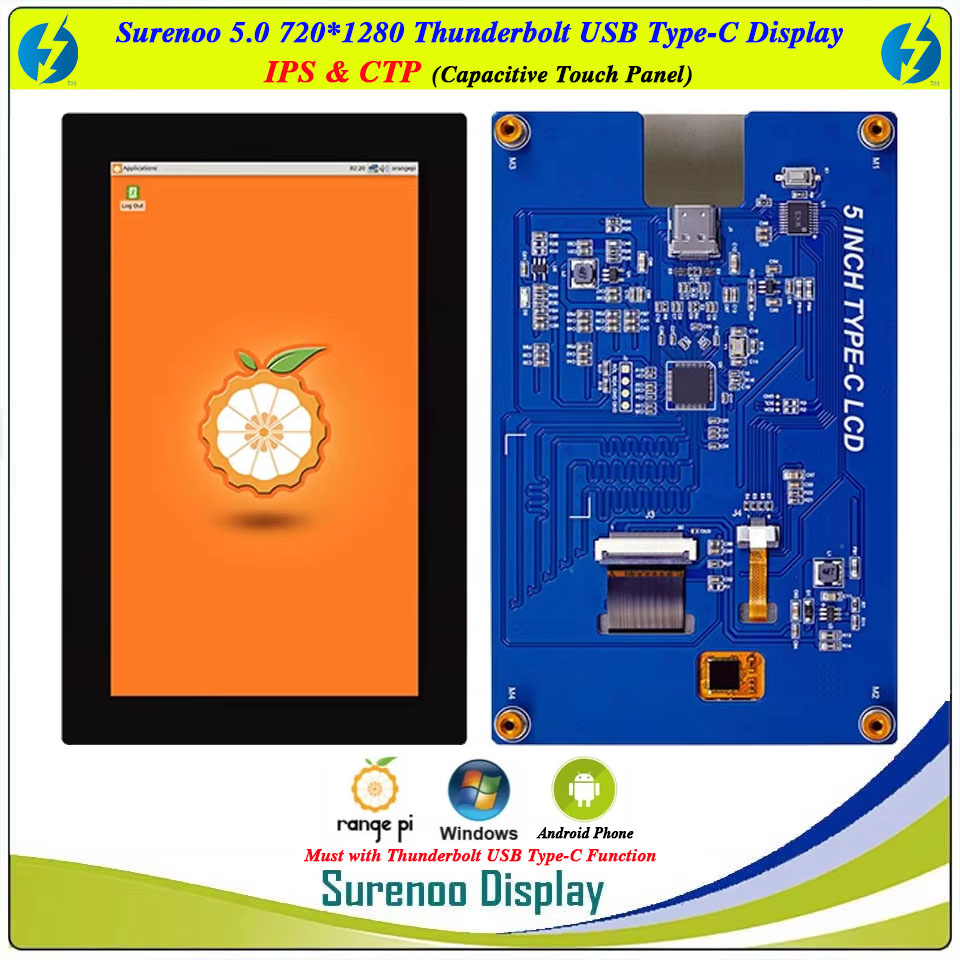

| STU050A -7201280 |
5.0" IPS 720*1280 CTP |
83.40*131.70 | 62.70*111.00 | 62.10*110.40 | 5.0V | Thunderbolt USB Type-C |
|
 |
|
