Model No.: SLC1602P
Display Format: 16X02 Characters
PCB Size: 86.00X30.00MM
Controller: RW1063 or Equal
44 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLC1602P is 16 characters wide, 2 rows character lcd module, RW1063 controller Integrated Parallel, Serial SPI IIC interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the RW1063 datasheet for the full character set. It's 5V or 3.3V power supply, can connect with Arduino UNO to work directly.

It's easily controlled by ARDUINO and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.040Kg
Manufacturer Surenoo
Display Type Character LCD Module / IIC Display
Continuity Supply More than 10 years
Part No. SLC1602P
Display Format 16x2 Character
Interface Integrated Serial IIC
IC or Equivalent RW1063 or Equal
Fonts English-Japanese
Voltage(Type) 5.0V in default
Connection 1X4P/2.54 Pin Header
Outline Dimension 86.00(W)x30.00(H)x11.00(T)mm
Visual Area 64.50x14.50mm
Active Area 55.70x11.00mm
Display Type STN LCD-Yellow Green, STN Blue Negative, FSTN Positive
Backlight Type (LED) Yellow Green, White
IC Package COB
Viewing Direction 6:00 O'Clock
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃

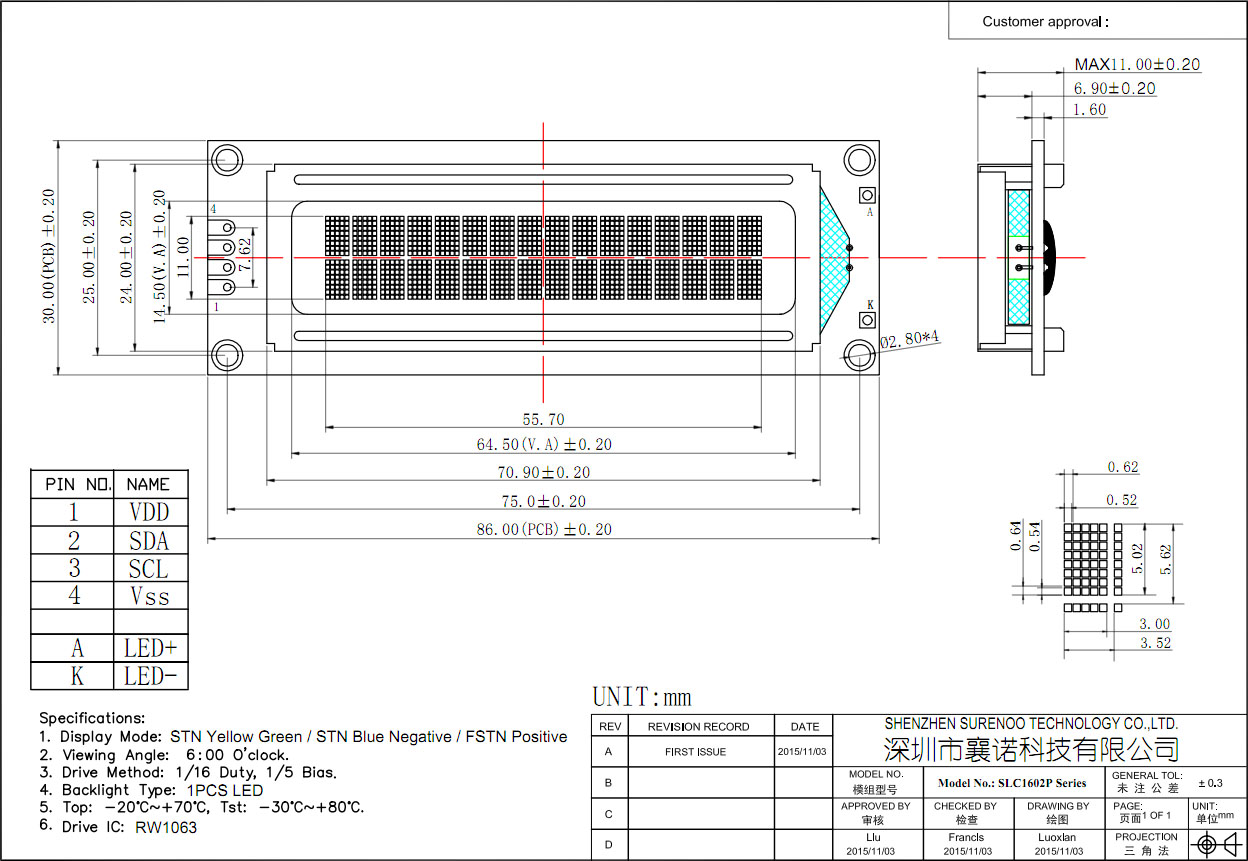

  • Outline Drawing

  • Interface
Pin No. Pin Name Description
1 VDD Logic Power Supply
2 SDA Serial Data Signal
3 SCL Serial Clock Signal
4 VSS Ground 0V
BLA Backlight Anode
BLK Backlight Cathode
  • Documents
No. Item File Name File Type ICON Date Description Mark
1 Datasheet SLC1602P PDF 2013-03-17 Standard 2004 Character LCD Module
2 Controller RW1063 PDF 2008-09-24 RW1063 Character LCD Controller, Compatible with SPC780, ST7066, HD44780, ......, and Build-in Serial SPI/IIC also
3 RW1063 51 IIC Library RW1063 C 2017-08-22 AIP31068 51 IIC Library on STC15W4K32S4 MCU
4 Arduino IIC Library IIC Library ZIP 2009-07-19 Surenoo IIC Library for PCT8574T, AIP31068, RW1063, ST7032i to work on Arduino test Board
