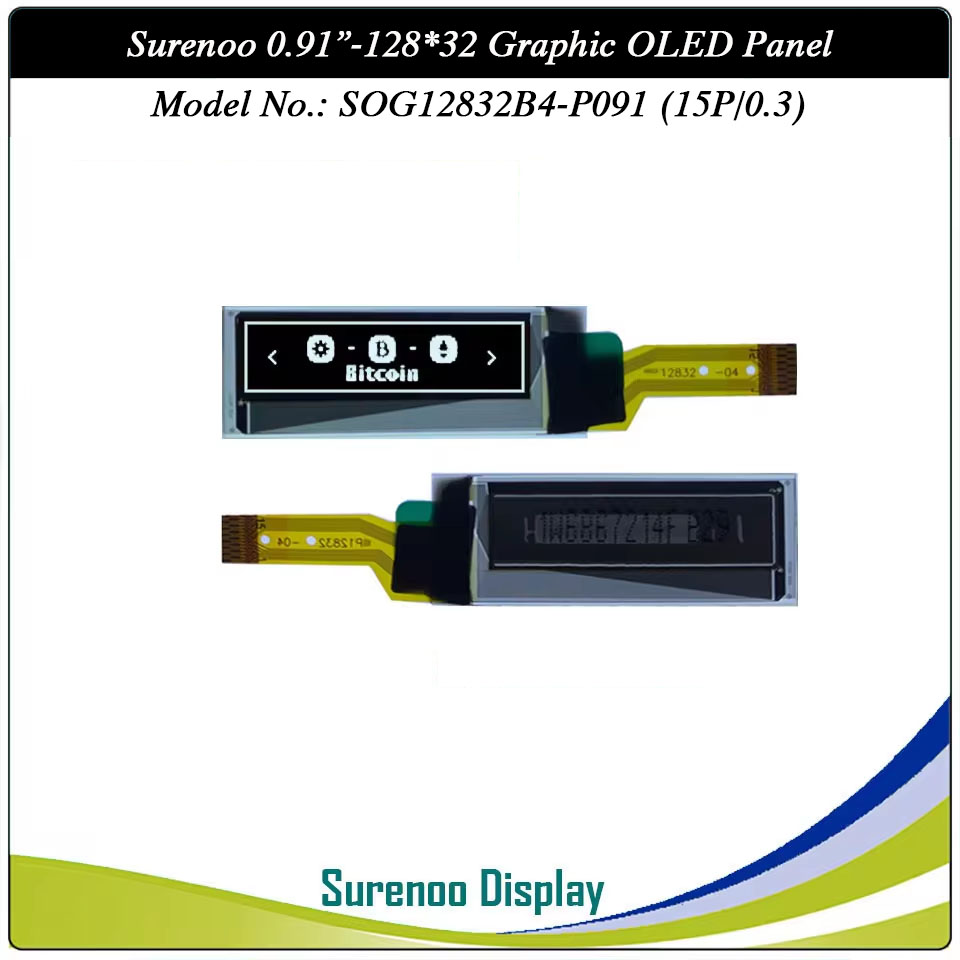

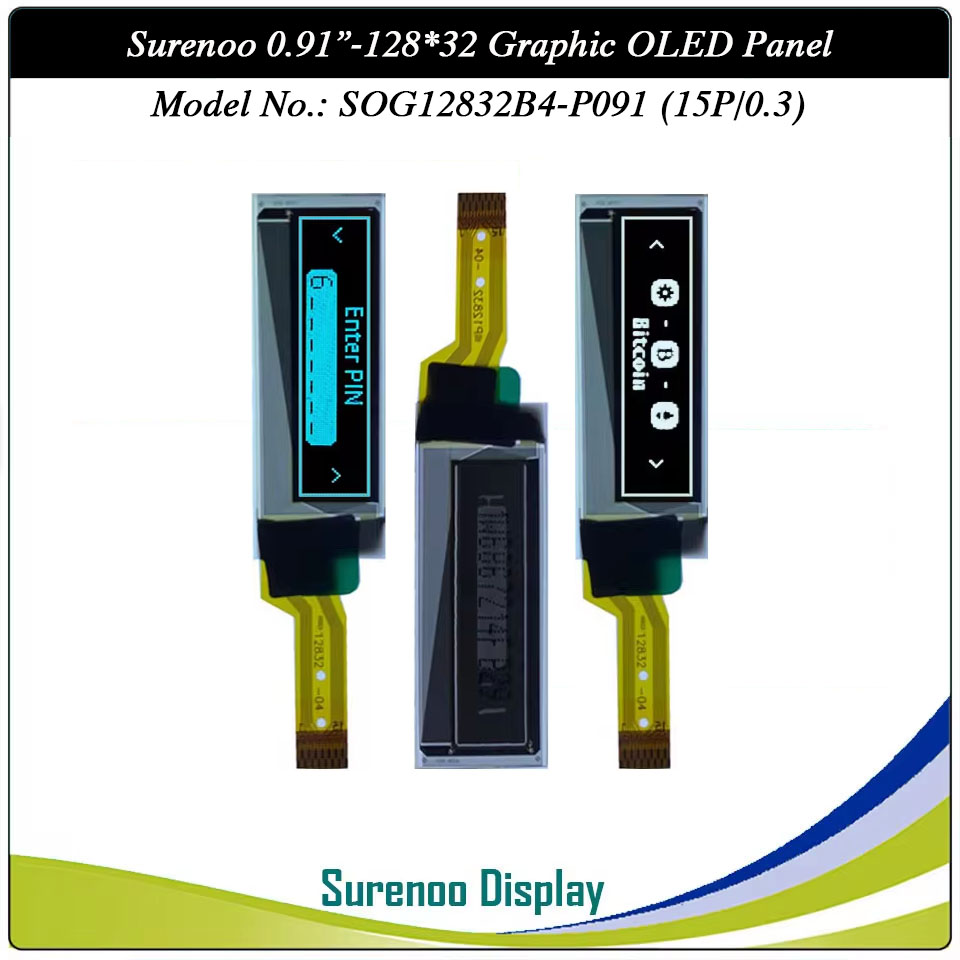

Surenoo Graphic OLED Module 0.91" 12832 128*32 128X32 15Pin 15P 0.3 Pitch Graphic LCD Module Display Screen Panel PM-OLED PMOLED Serial SPI SSD1306 Replacement Repair for Ledger Nano S

WISHLIST
Display Size: 0.91"
Model No.: SOG12832B4_P091
Display Format: 128*32 Dots
Outline: 30.00x11.50mm
Controller: SSD1306 or Equal
112 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Improtant Note

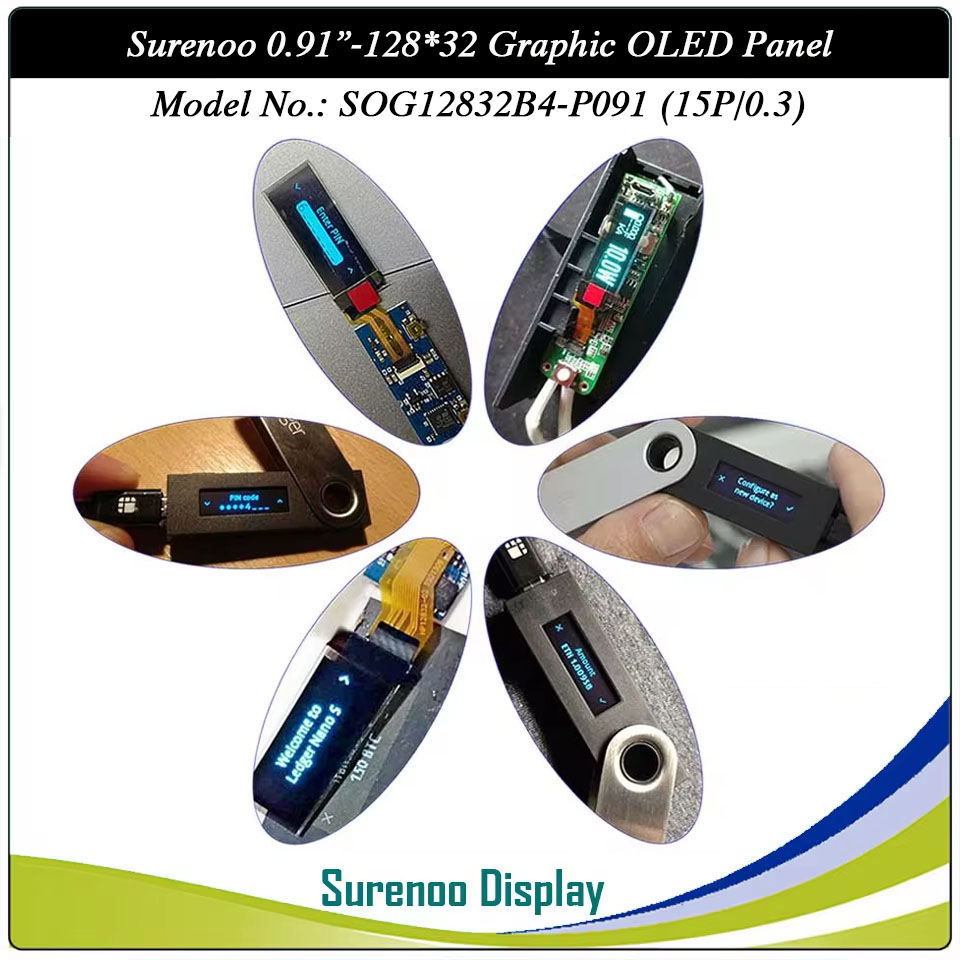

    1. If you buy it for Replacement OLED for Ledger Nano S, please check the FPC of your old OLED carefully.

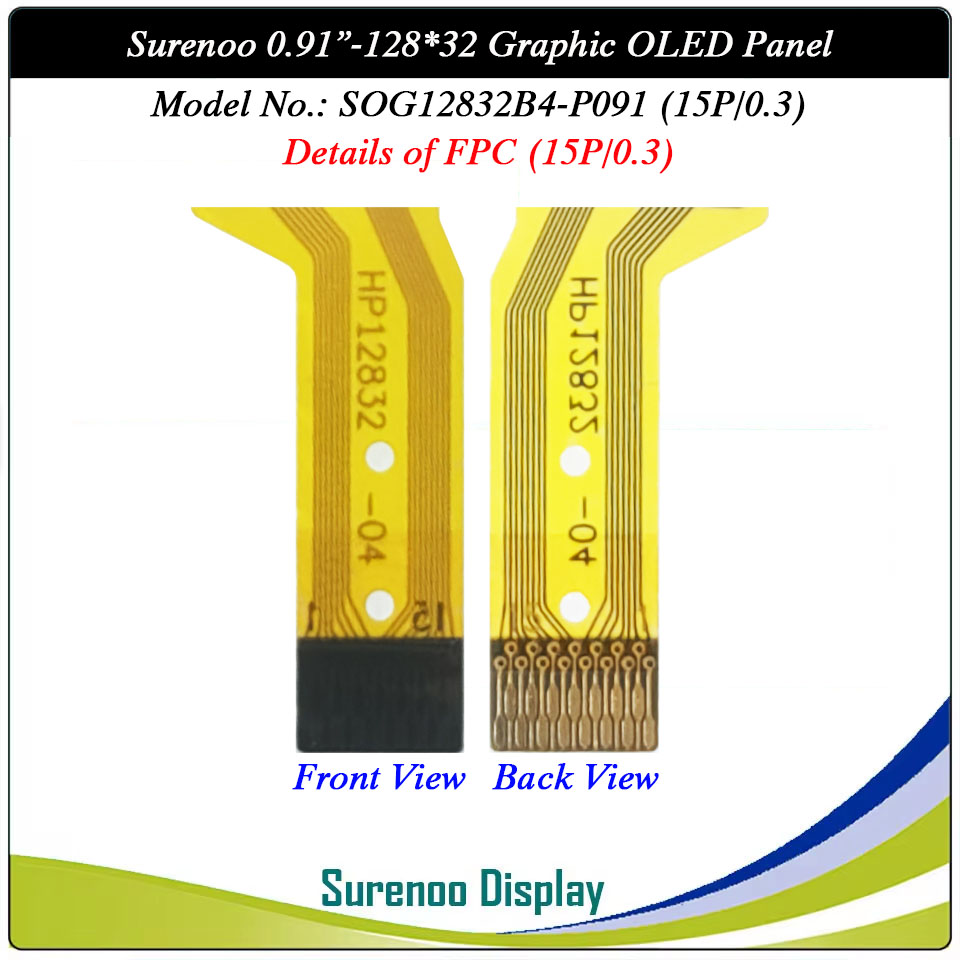

    2. The Pin of the OLED is have 2 types:     12P/0.5 FPC & 15P/0.3 FPC.
    3. Most of them are     12P/0.5 FPC OLED Version.
    4. This link is 15P/0.3 FPC OLED Version.


    • Overview
    SOG12832B4_P091 is a 8P/0.5 0.91" 128X32 Dots Graphic OLED Module, build-in SSD1306 controller supprot Serial SPI MPU interface, wide operating temperature range, RoHS Compliant, It's 3.3V power supply.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.020Kg
    Manufacturer Surenoo
    Display Type Graphic OLED Panel
    Continuity Supply More than 10 years
    Part No. SOG12832B4_P091 (15P/0.3 FPC)
    Diagonal Size (Visual Area)
    		 0.91"
    Display Format 128*32 Dots
    Interface (OLED Panel)
    		 Serial SPI
    IC or Equivalent SSD1306 or Equal
    Voltage(Type) 3.3V
    Outline Dimension 30.00(W)x11.50(H)x1.20(T)mm
    Visual Area 24.38x7.58mm
    Active Area
    		 22.38x5.58mm
    Dots Size 0.159x0.159mm
    Dots Pitch
    		 0.175x0.175mm
    Display Type PM-OLED Panel
    Colors Code White(SOGW) / Blue(SOGB)
    IC Package COG
    Viewing Direction Full Viewing Angle
    Operating Temperature
    -40℃~70℃
    Storage Temperature
    -40℃~80℃

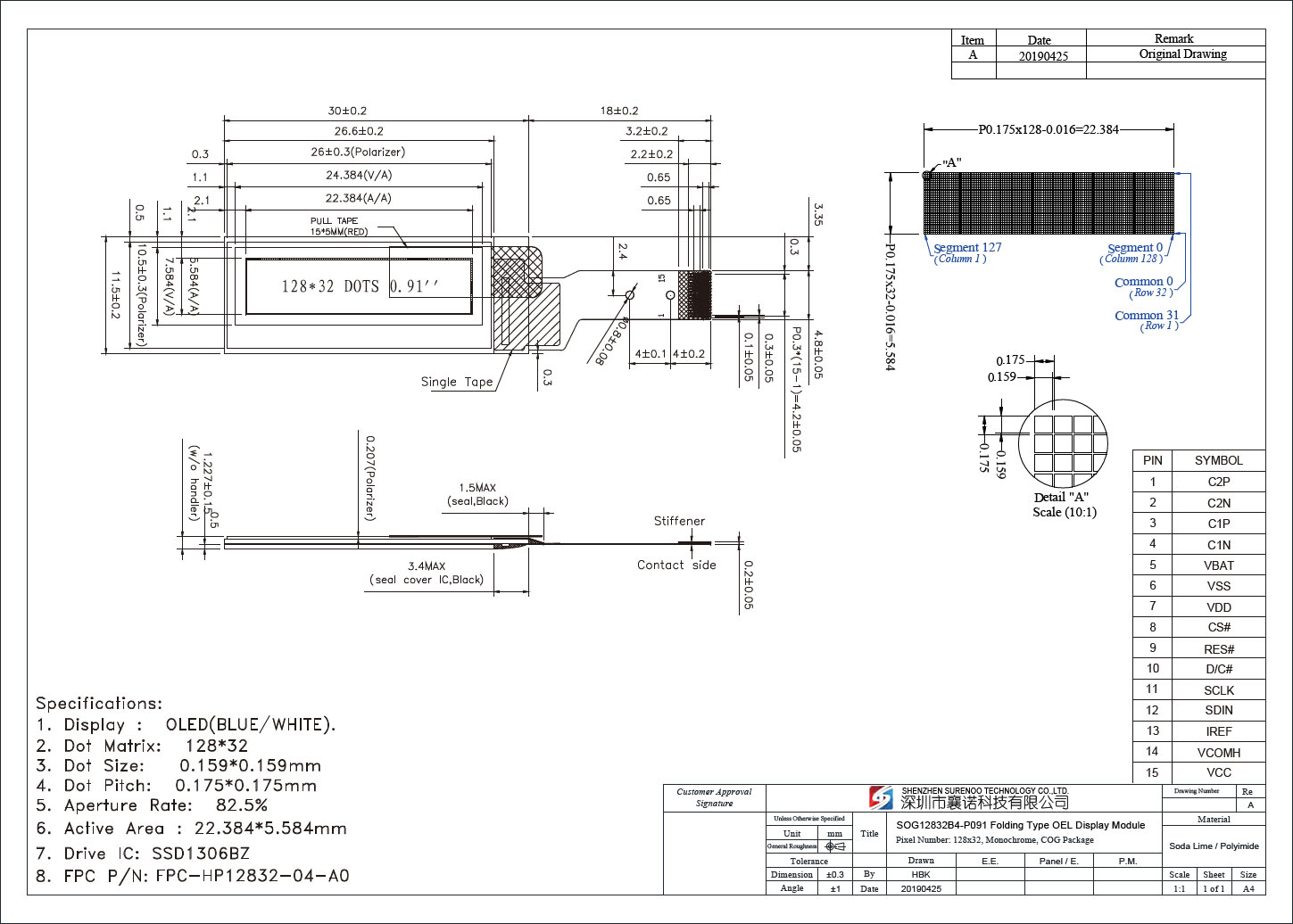

    • Outline Drawing (OLED Panel: SOG12832B4-P091-15P/0.3)

    • Interface
    PIN No. 1   2  3 4  5  6 7 8 9 10 11 12 13 14 15
    Symbol C2P C2N C1P C1N VBAT VSS VDD CS# RES# D/C# SCLK SDIN IREF VCOMH VCC
    Please download the datasheet to get the detailed Pin description.
