Model No.: SLC1602F
Display Format: 16X02 Characters
PCB Size: 80.00X36.00MM
Interface: RS232 / UART
29 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLC1602F is 16 characters wide, 2 rows character lcd module,  build-in RS232 or UART interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31066 datasheet for the full character set. It's 5V power supply.

RS232 is easily controlled by MCU such as PC and PLC. UART can work with UART of Processor directly.
  • Specification
Gross Weight  0.040Kg
Manufacturer Surenoo
Continuity Supply More than 10 years
Part No. SLC1602F
Display Format 16x2 Character
Interface RS232 / UART
Band Rate 9600b/s
Data Bits 8 bit
Parity / Stop Bits None / 1 bit
Fonts English-Japanese
Voltage(Type) 5.0V in default
Connection 1X5P/2.54 Pin Header
Outline Dimension 80.00(W)x36.00(H)x11.00(T)mm
Visual Area 64.50x14.50mm
Active Are 55.70x11.00mm
Display Type STN Yellow Green, Blue Negative
Backlight Type (LED) Yellow Green, White
IC Package COB
Viewing Direction 6:00 O'Clock
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃

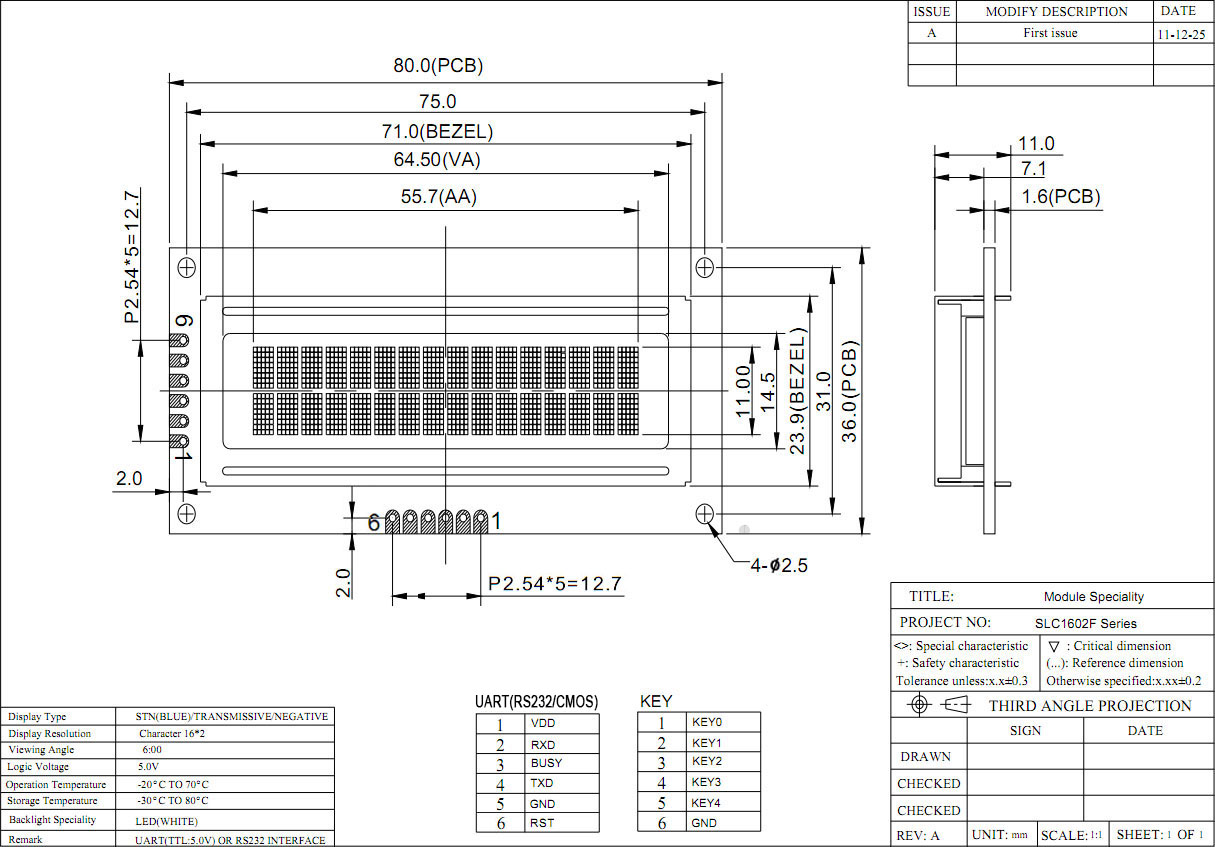

  • Outline Drawing


  • Interface
Pin No. Symbol I/O Description
RS232/UART Interface
1 VDD P Power (+5.0V)
2 RXD I Receive Data
3 BUSY O Busy Signal, High is Busy
4 TXD O Transmit Data
5 GND P Ground
KEY Interface
1 KEY0 I KeyPad Scan Signal
2 KEY1 I KeyPad Scan Signal
3
KEY2
I
KeyPad Scan Signal
4
KEY3
I
KeyPad Scan Signal
5
KEY4
I
KeyPad Scan Signal
6 GND
P
Ground

  • Application

  • Documents
No. Item File Name File Type ICON Date Description Mark
1 Datasheet SLC1602F PDF 2013-03-17 Standard 1602 Character LCD Module
2 Tools & Code Tools & Code ZIP 2009-07-19 Tools & Code for RS232/UART 1602 Display
