SLC1602C 80X36 1602 16*2 Surenoo Up and Down 16P Interface Character LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel AIP31066 SPLC780D ST7066 Controller STN Yellow Green STN Blue Negative FSTN Positive LED Backlight

Model No.: SLC1602C
Display Format: 16X02 Characters
PCB Size: 80.00X36.00MM
Controller: AIP31066, ST7066 or Equal
127 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLC1602C is 16 characters wide, 2 rows character lcd module, AIP31066 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31066 datasheet for the full character set. It's 5V or 3.3V power supply, and I2C adapter board is optional for Arduino.

It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.040Kg
Manufacturer Surenoo
Display Type Character LCD Module
Continuity Supply More than 10 years
Part No. SLC1602C
Display Format 16x2 Character
Interface 6800 4-bit Parallel, 6800 8-bit Parallel
IC or Equivalent AIP31066, ST7066 or Equal
Fonts English-Japanese
Voltage(Type) 5.0V in default
Connection 1X16P/2.54 Pin Header
Outline Dimension 80.00(W)x36.00(H)x11.00(T)mm

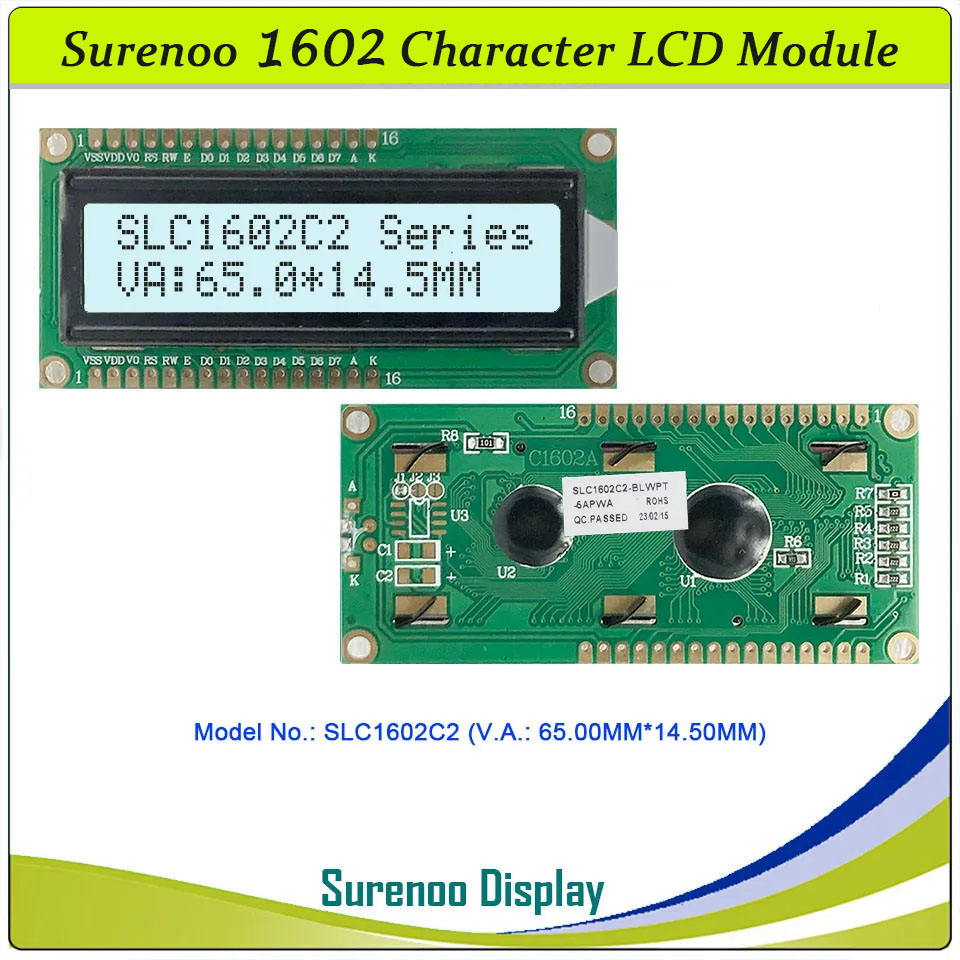

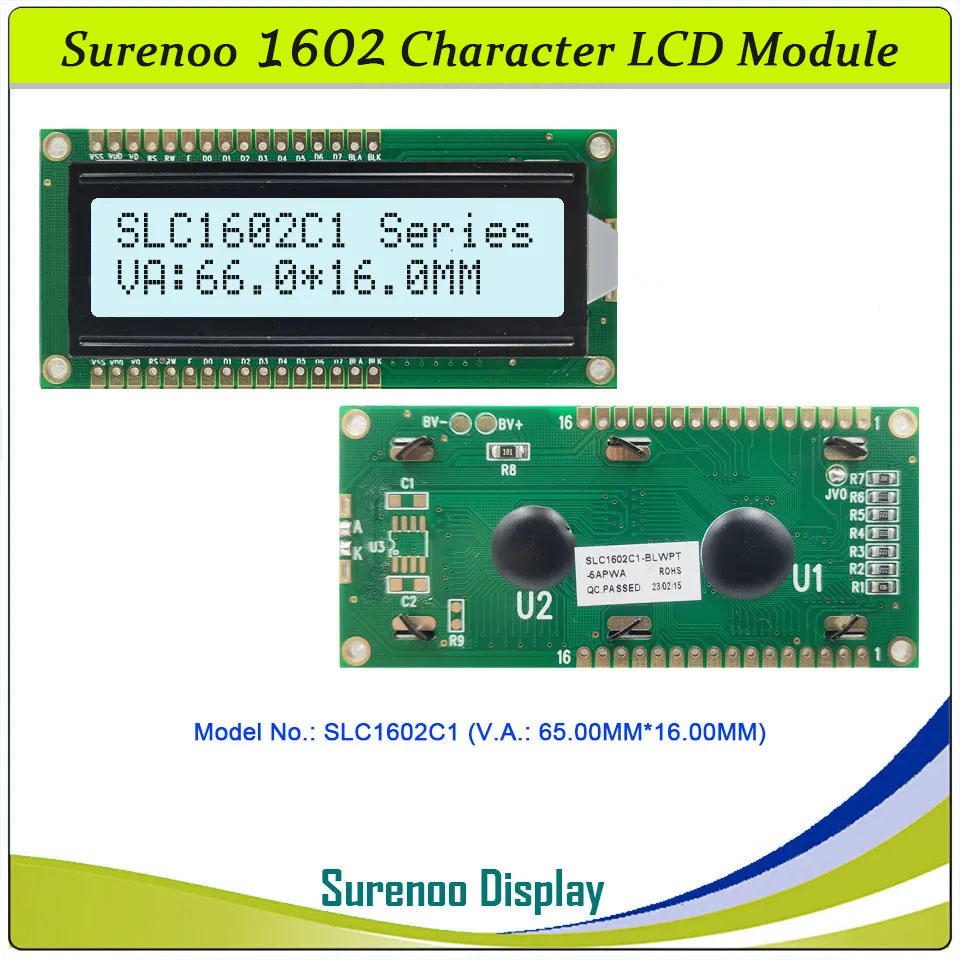

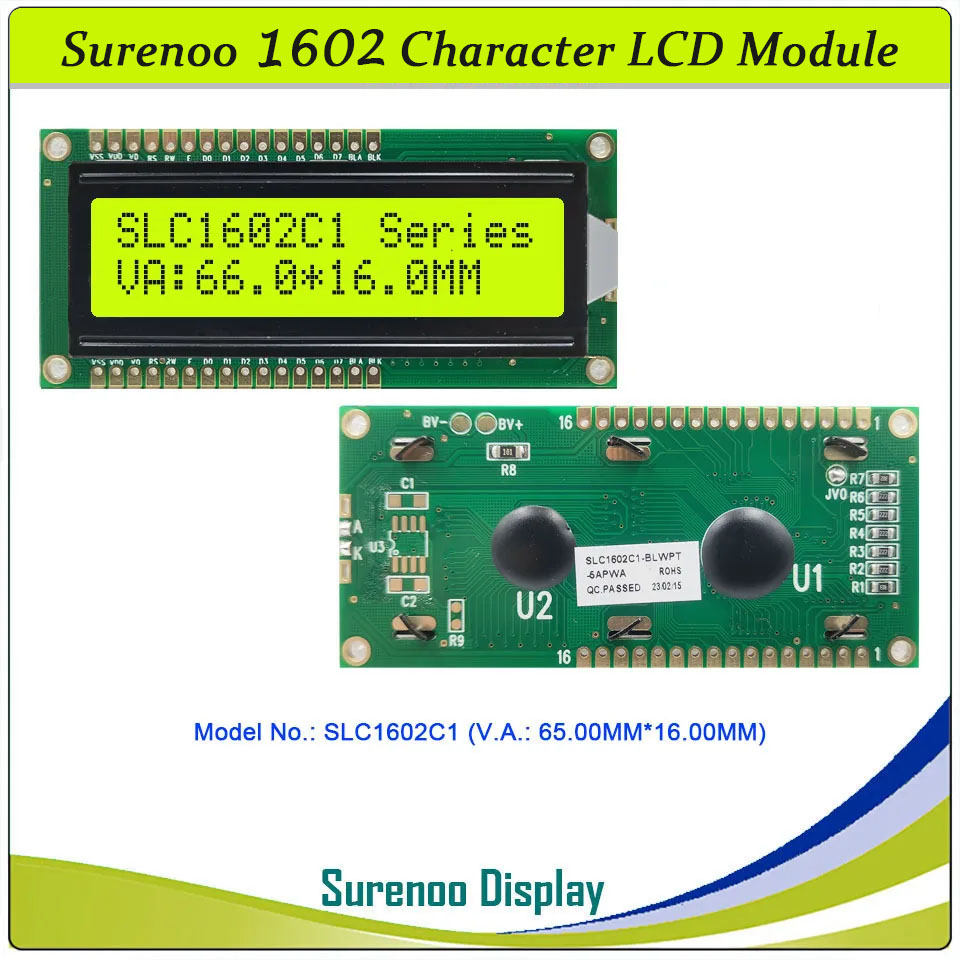

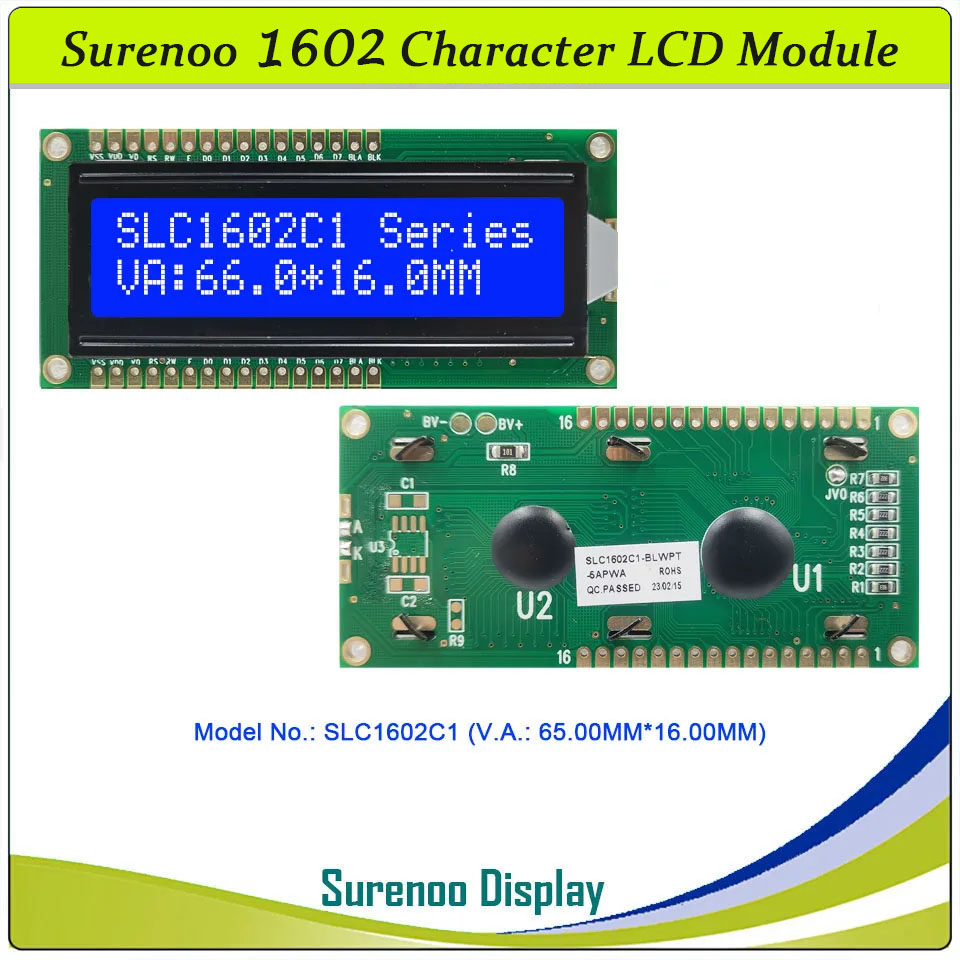

Visual Area C1: 64.50x16.00mm / C2: 64.50x14.50mm
Active Are C1: 56.20x11.50mm / C2: 55.45x10.85mm

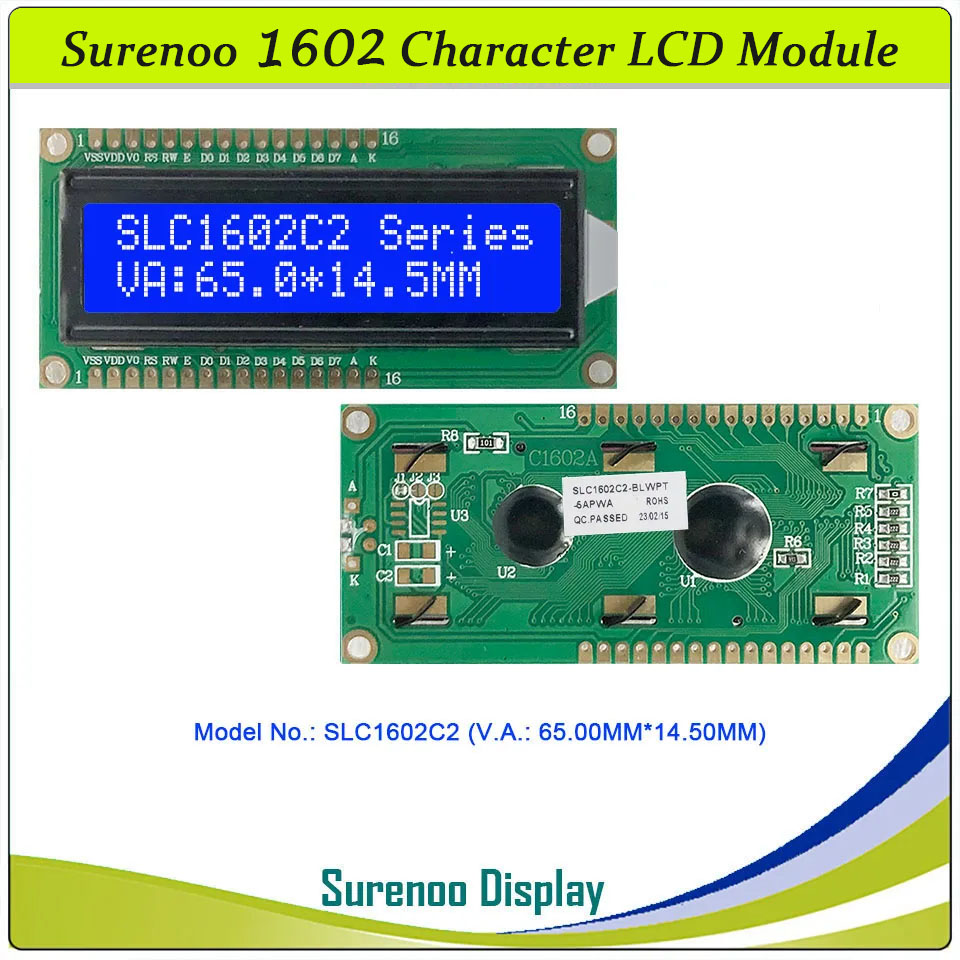

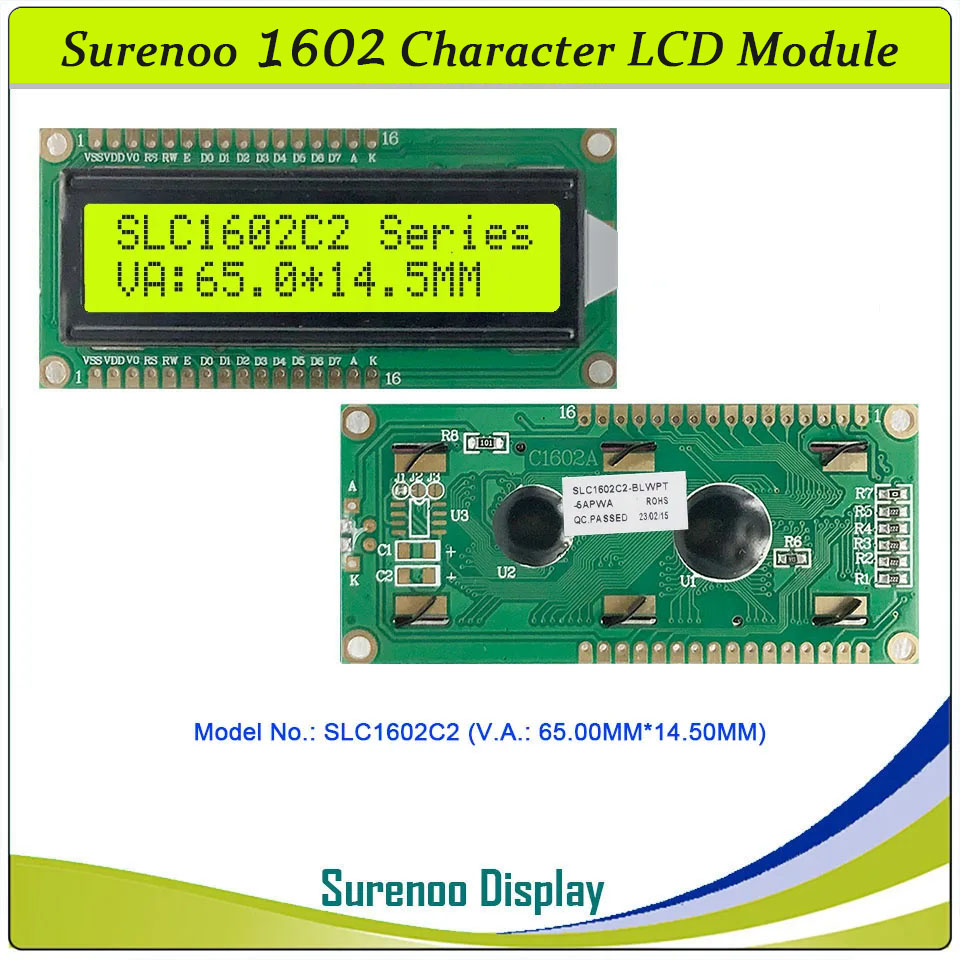

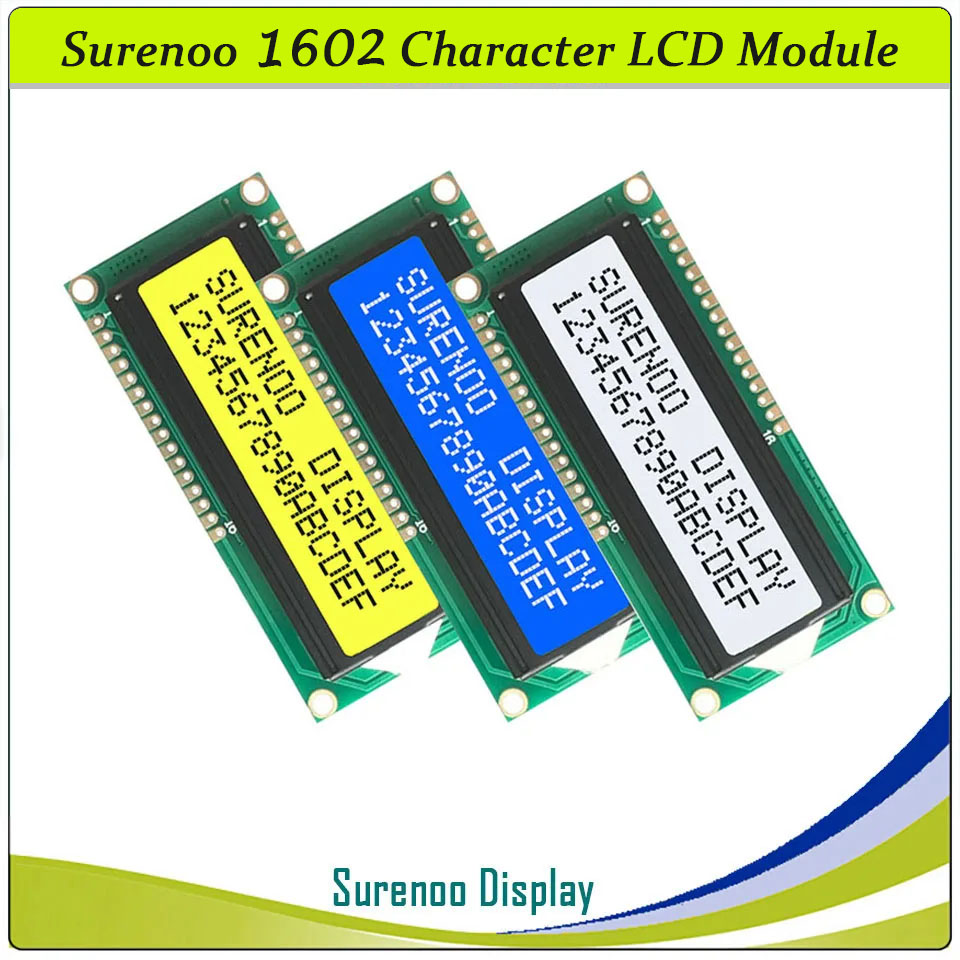

Display Type STN Yellow Green, STN Blue Negative, FSTN Positive
Backlight Type (LED) Yellow Green, White
IC Package COB
Viewing Direction 6:00 O'Clock
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
  • Outline Drawing

  • Interface
Pin No. Pin Name Description
1 VSS Ground 0V
2 VDD Logic Power Supply
3 V0 Operating voltage for LCD
4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
5 R/W Read / Write (H: Read Mode, L: Write Mode)
6 E Enable Signal
7-14 DB0-DB7 Data Bus
15 LED_A Backlight Anode
16 LED_K Backlight Cathode
  • Documents
No. Item File Name File Type ICON Date Description Mark
1 Datasheet SLC1602C PDF 2013-03-17 Standard 1602 Character LCD Module
2 Controller AIP31066 PDF 2008-09-24 Character LCD Controller, Compatible with SPC780, ST7066, HD44780, ......
3 51 Library 51 Library TXT 2006-09-11 STC86S52 6800 4/8-Bit Parallel Library
