Surenoo SSD1963 MCU Display 7.0" inch 800*480 MCU Parallel Interface IPS LCD Display Module Screen Panel Resistive / Capacitive Touch Panel CTP / RTP Optional for STM32 ARM 51 Development Board
Surenoo SSD1963 MCU Display 7.0" inch 800*480 MCU Parallel Interface IPS LCD Display Module Screen Panel Resistive / Capacitive Touch Panel CTP / RTP Optional for STM32 ARM 51 Development Board
WISHLIST
Model No.: SMC070A-800480
Model Size: 7.0 Inch
Resolution: 800*480 TN
Interface: MCU Parallel (SSD1963)
Touch Type: CTP/RTP
Model Size: 7.0 Inch
Resolution: 800*480 TN
Interface: MCU Parallel (SSD1963)
Touch Type: CTP/RTP
38 sold
Quantity
-
Detail
- Overview
Surenoo SSD1963 MCU Display 7.0" inch 800*480 MCU Parallel Interface IPS LCD Display Module Screen Panel Resistive / Capacitive Touch Panel CTP / RTP Optional for STM32 ARM 51 Development Board- Product Parameters

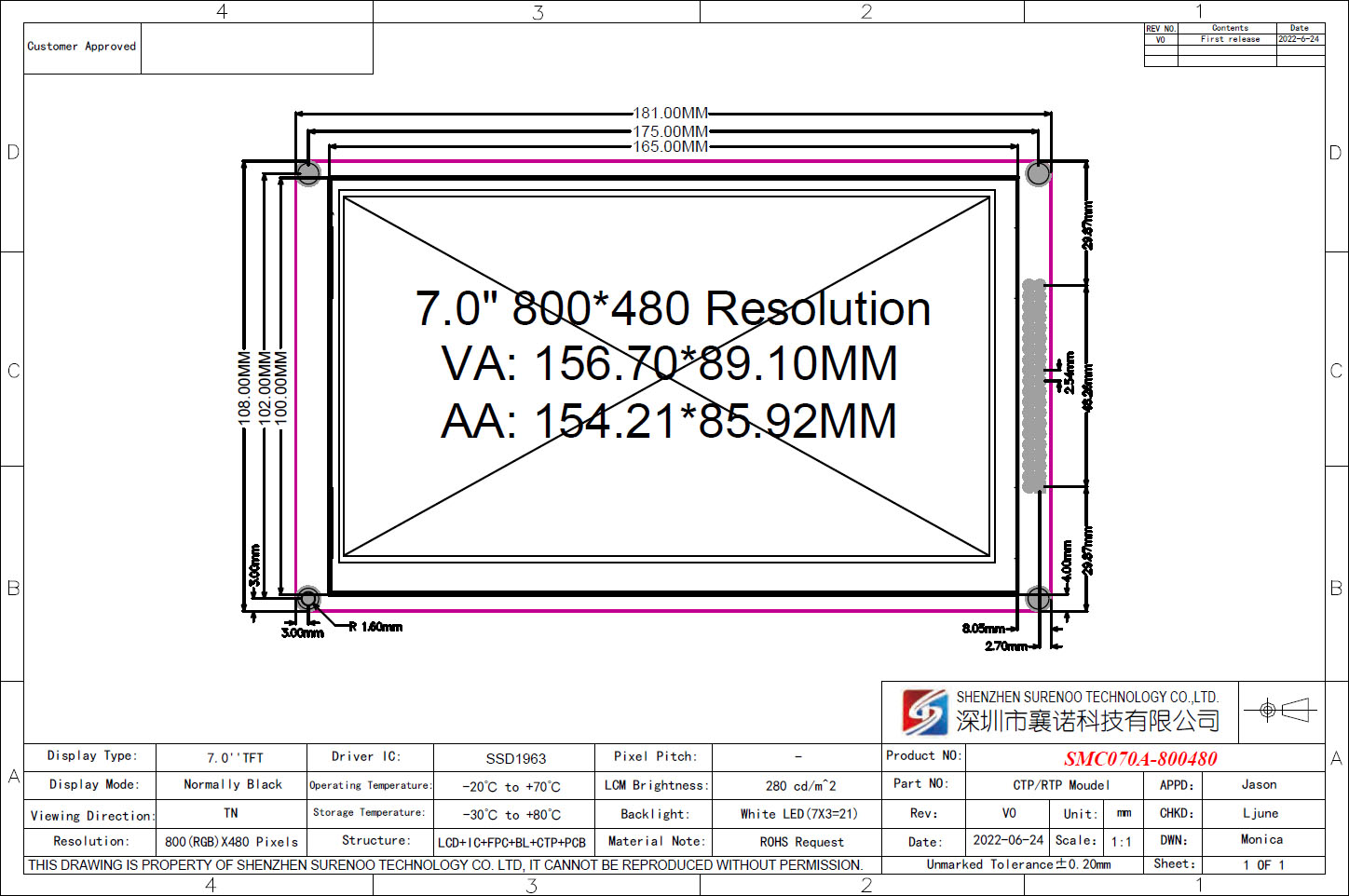

Item of General Informatio Contents Unit LCD Display Size (Diagonal) 7.0 Inch LCD Display Type TFT/TRANSMISSIVE - LCD Display Mode Normal White - Recommended Viewing Direction 6:00 O'Clock (TN) O'Clock Model No. SMC070A-800480 (CTP/RTP) - MPN No. - - LCM Module Size (W×H×T) 183.00×141.00 MM Active Area (W×H) 154.21×85.92 MM Number of Pixels (Resolution) 800(RGB)×480 Pixels Pixel Pitch (W×H) - MM Color Pixel Arrangement RGB Stripe - LCD Driver IC SSD1963 - Interface Type MCU 16-/8-bit Parallel - Color Numbers 16.7M - Backlight Type White LED - - External Dimensions
- Interface Instruction

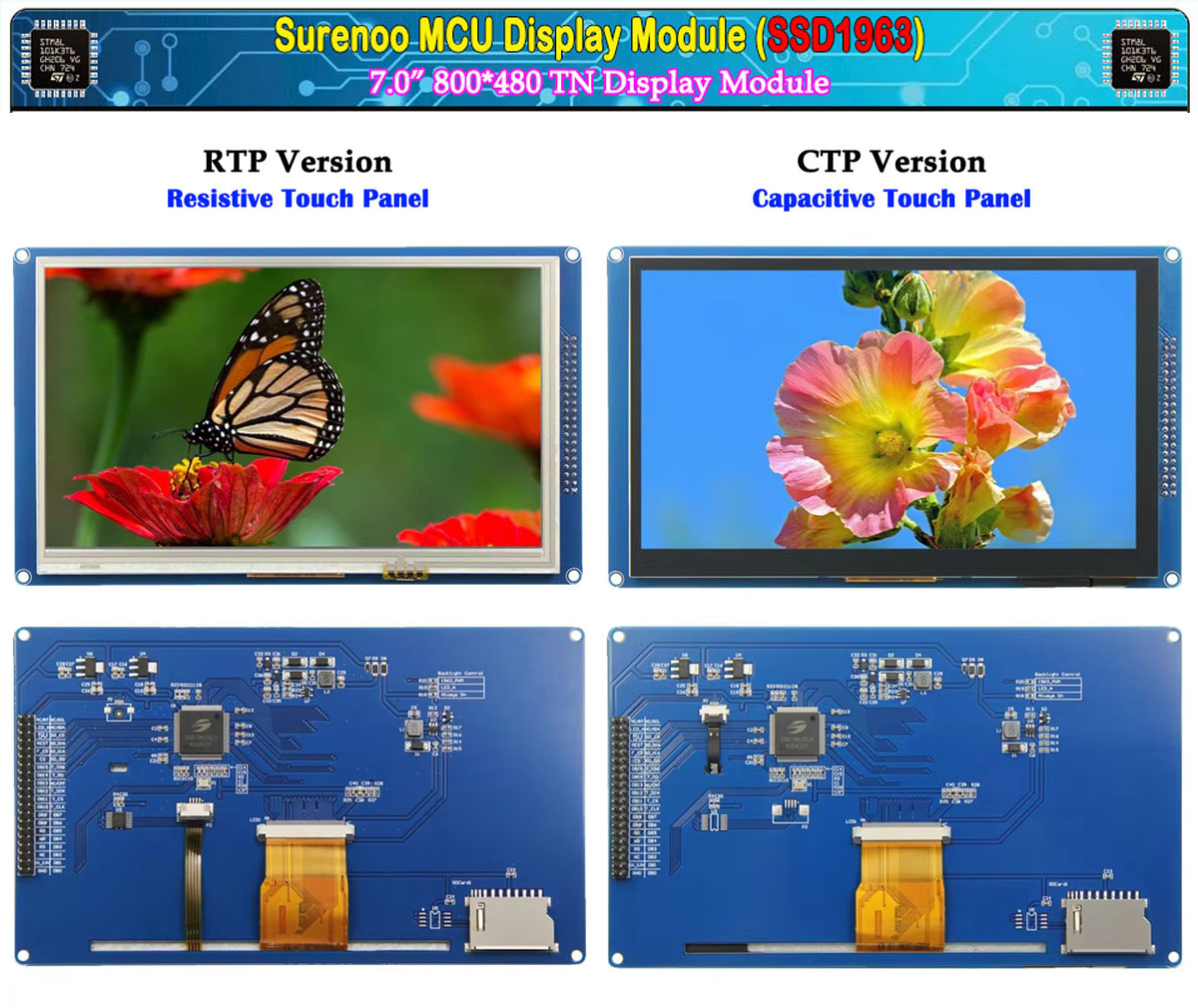

RTP Version CTP Version NO. Symbol Device DESCRIPTION NO. Symbol Device DESCRIPTION 1 GND LCM Module Power Ground 1 GND LCM Power ground 2 Ex_3.3V LCM 3.3V Power Supply 2 Ex_3.3V LCM 3.3V Power Supply 3 NC - No Connection 3 NC - No Connection 4 RS LCD Register/Data select (H_register, L_data) 4 RS LCD Register/Data select (H_register, L_data) 5 WR LCD Write Control PIn 5 WR LCD Write Control PIn 6 RD LCD Read Control PIn 6 RD LCD Read Control PIn 7~14 DB8~DB15 LCD Data Bus (DB15: MSB) 7~14 DB8~DB15 LCD Data Bus(D0:LSB; D15:MSB) 15 CS LCD Chip Selection (low level enable) 15 CS LCD Chip Selection (low level enable) 16 F_CS Flash SPI FLASH Chip Selection Pin (low level enable) 16 F_CS Flash SPI FLASH Chip Selection Pin (low level enable) 17 RST LCD Reset Control Pin (low level reset) 17 RST LCD Reset Control Pin (low level reset) 18 5.0V LCM Module Power Supply (5V Typ.) 18 5.0V LCM Module Power Supply (5V Typ.) 19 LED_A LED LED Backlight control Pin 19 LED_A Power LED Backlight control Pin 20 NC - No Connection 20 C_INT CTP CTP Interrupt detection pin 21~28 DB0~DB7 LCD Data Bus (DB0: LSB) 21~28 DB0~DB7 LCD Data Bus (DB0: LSB) 29 T_CLK RTP RTP SPI Bus Clock Control Pin 29 NC - No Connection 30 T_CS RTP RTP IC Chip Select Control Pin (Low level enable) 30 NC - No Connection 31 T_DIN RTP RTP Panel SPI bus write data pin 31 NC - No Connection 32 NC - No Connection 32 C_RST CTP CTP Reset Pin 33 T_DO RTP RTP SPI Bus Read Data Pin 33 NC - No Connection 34 T_IRQ RTP RTP Interrupt Detection Pin (Low level enable) 34 NC - No Connection 35 SD_DO SD SDIO Bus Read Data Pin 35 SD_DO SD SDIO Bus Read Data Pin 36 SD_CLK SD SDIO Bus Clock Control Pin 36 SD_CLK SD SDIO Bus Clock Control Pin 37 SD_DIN SD SDIO Bus Write Data Pin 37 SD_DIN SD SDIO Bus Write Data Pin 38 SD_CS SD Chip Select Control Pin (Low level enable) 38 SD_CS SD Chip Select Control Pin (Low level enable) 39 NC - No Connection 39 C_SDA CTP CTP IIC Data Control Pin 40 NC - No Connection 40 C_SCK CTP CTP IIC Clock Control Pin -
