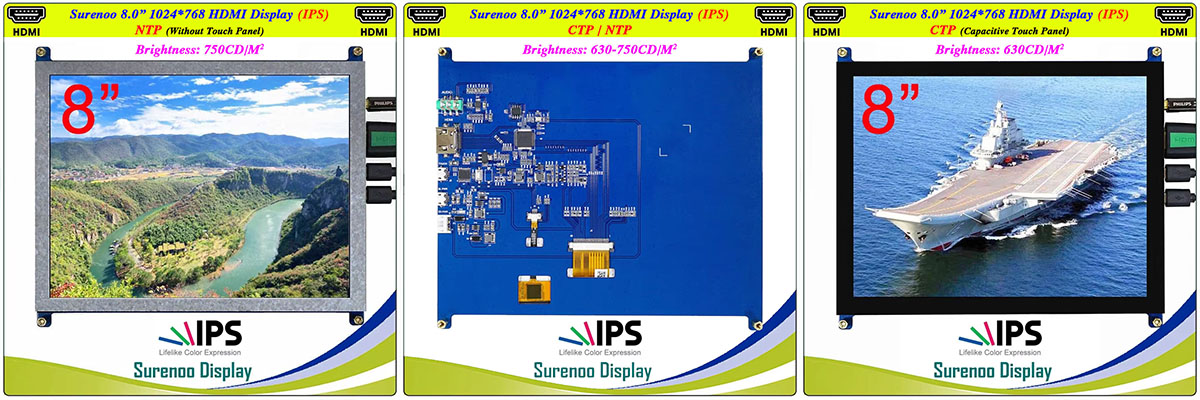

Surenoo HDMI Display 8.0" inch 1024*768 High Brightness 630-750 CD/M2 IPS LCD Display Module Screen Monitor USB Capacitive Touch Panel CTP for Windows Win11 RaspBerry Pi 4B/5

WISHLIST
High Brightness HDMI Display (630-750CD/M2)
Model No.: SHD080A-1024768
Brightness: High Brightness=630-750CD/M2
Model Size: 8.0 Inch IPS
Resolution: 1024*768
Interface: HDMI
Touch Type: CTP/NTP
18 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

    • Product Parameters
    Item of General Information Contents Unit
    LCD Display Size (Diagonal) 8.0" Inch
    LCD Display Type
    		 TFT/TRANSMISSIVE
    		 -
    LCD Display Mode Normally Black
    		 -
    Recommended Viewing Direction IPS Full Viewing Angle O'Clock
    Model No. SHD080A-1024768-CTP/NTP -
    Resolutions 1024(RGB)*768 -
    Video Input Interface
    		 HDMI -
    Power Supply
    		 Micro USB 5.0V -
    Touch Type USB 5-Points Capacitive Touch Panel / Without Touch Panel -
    Backlight Type
    		 White LED (High Brightness: 630-750CD/M2) -
    Luminance(TYP)
    		 630-750 CD/M2
    LCM Module Size (W×H×T) 183.00×159.00
    		 MM
    Active Area (W×H) 162.05×121.54
    		 MM
    • External Dimensions

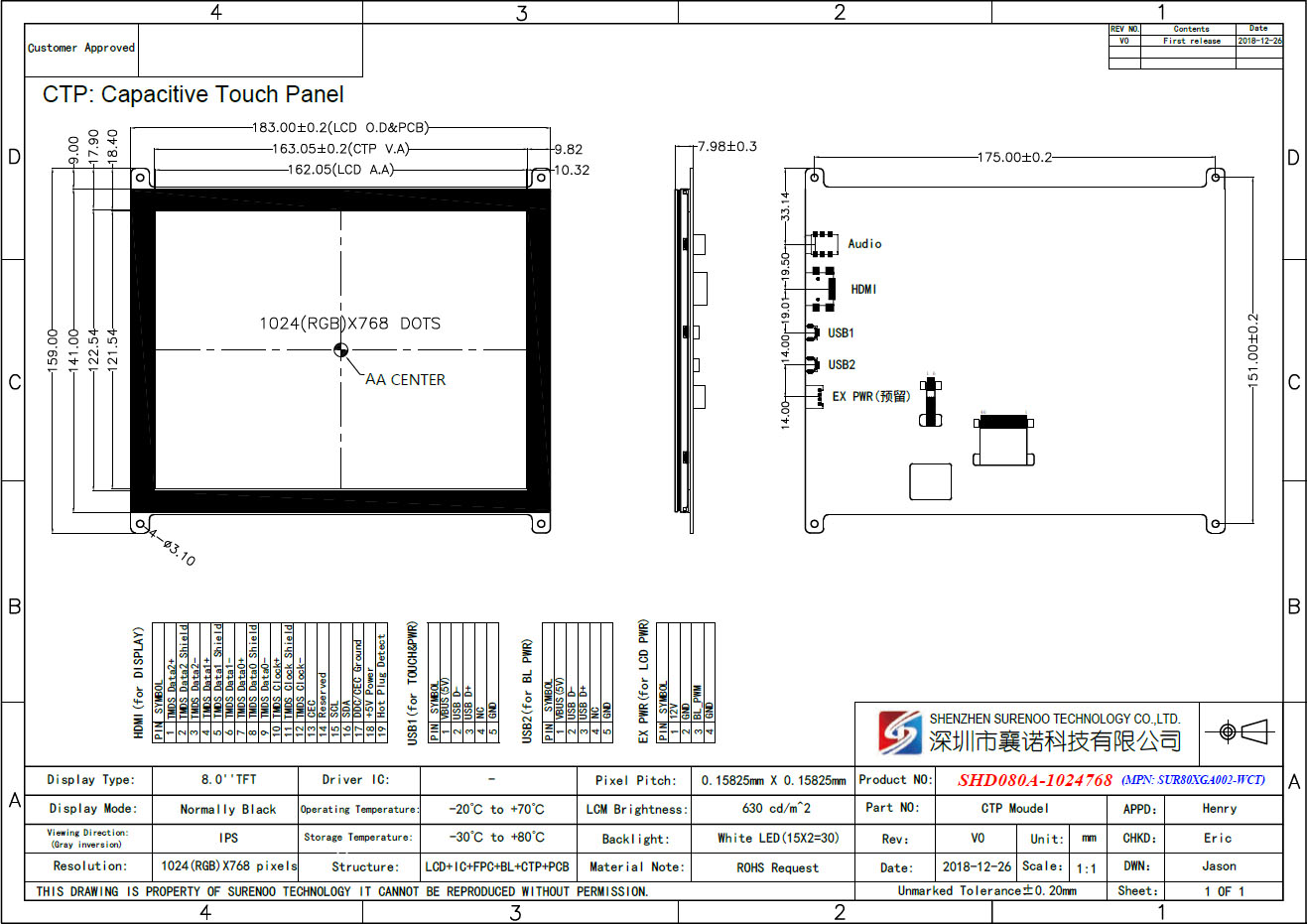

    1. SHD080A-1024768-CTP (630CD/M2)

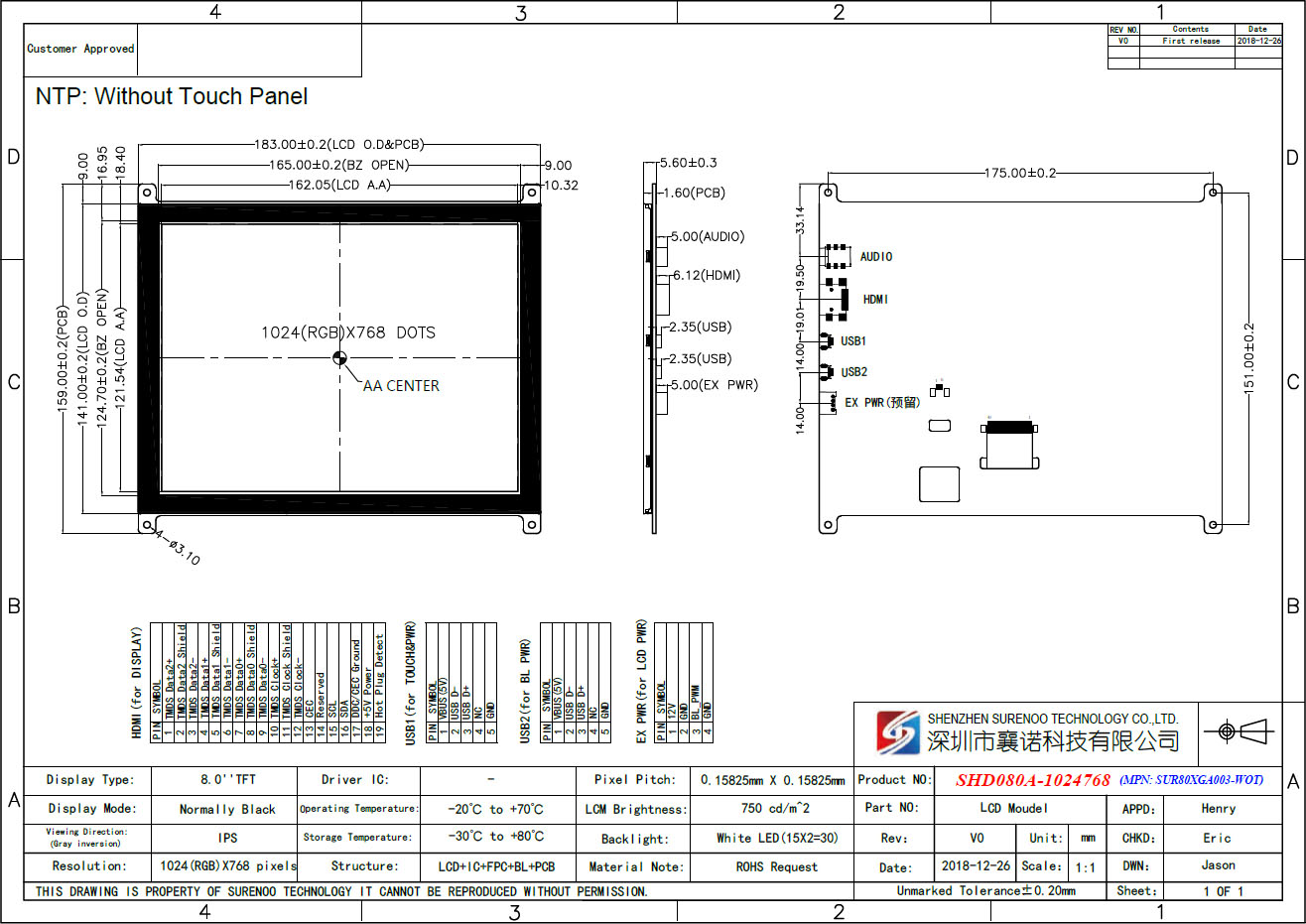

    2. SHD080A-1024768-NTP (750CD/M2)

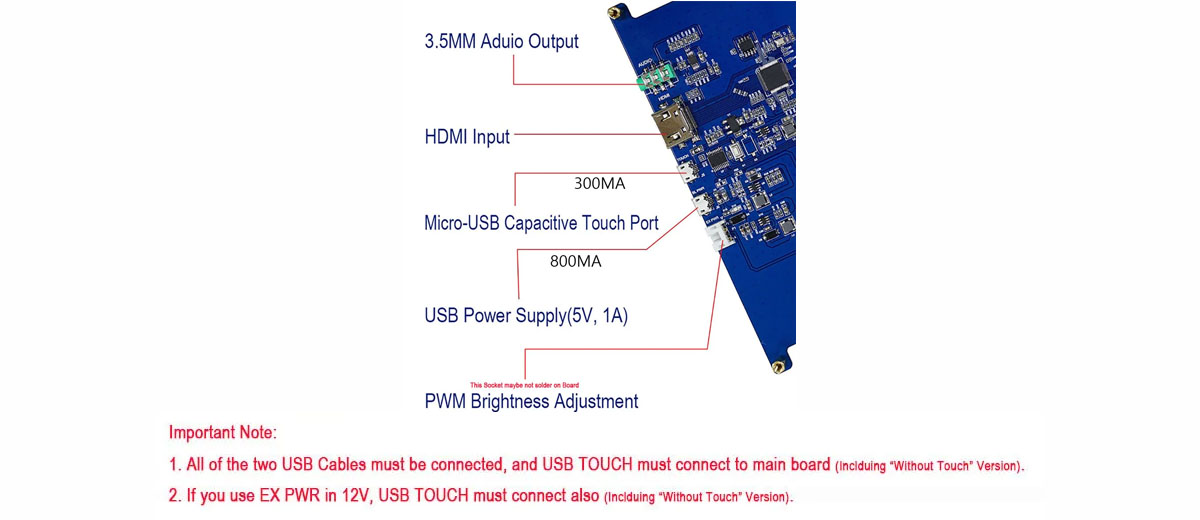

    • Function & Interface

    >> Pin Definition of HDMI Interface
    PIN
    		 Symbol
    		 Function Description
    1 TMDS Data2+ Positive side of channel 2 TMDS low-voltage signal differential input pair
    2 TMDS Data2 Shield Ground
    3 TMDS Data2- Negative side of channel 2 TMDS low-voltage signal differential input pair
    4 TMDS Data1+ Positive side of channel 1 TMDS low-voltage signal differential input pair
    5 TMDS Data1 Shield Ground
    6 TMDS Data1- Negative side of channel 1 TMDS low-voltage signal differential input pair
    7 TMDS Data0+ Positive side of channel 0 TMDS low-voltage signal differential input pair
    8 TMDS Data0 Shield
    		 Ground
    9 TMDS Data0-
    		 Negative side of channel 0 TMDS low-voltage signal differential input pair
    10 TMDS Clock+
    		 Positive side of reference clock. TMDS low-voltage signal differential input pair
    11 TMDS Clock Shield
    		 Ground
    12 TMDS Clock-
    		 Negative side of reference clock. TMDS low-voltage signal differential input pair
    13 CEC
    		 No Connection
    14 Reserved(N.C.)
    		 No Connection
    15 SCL
    		 DDC SCL
    16 SDA
    		 DDC SDA
    17 DDC/CEC Ground
    		 Ground
    18 +5V Power
    		 +5V Power
    19 Hot Plug Detect Hot Plug Detect

    >> Pin Definition of Micro USB Port
    USB for Touch Panel USB for Power Supply
    PIN
    		 Symbol
    		 Function Description
    		 PIN Symbol Function Description
    1 5.0V USB Power 1 5.0V
    		 USB Power
    2 D+ USB Data+ 2 NC No Connection
    3 D- USB Data- 3 NC No Connection
    4 NC No Connection 4 NC No Connection
    5 GND Power Ground
    		 5 GND
    		 Power Ground
