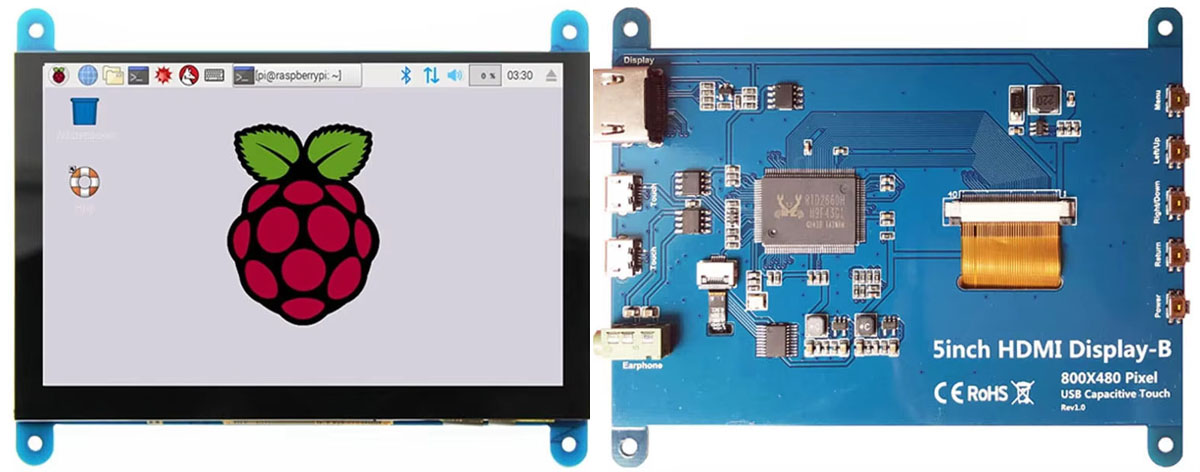

SHD050B: 800*480 Display, Capacitive Touch Panel, TN or IPS Mode is Optional, Support Audio Output
Model No.: SHD050B-800480
Model Size: 5.0 Inch
Resolution: 800*480 TN/IPS
Interface: HDMI
Touch Type: CTP
85 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    • Product Parameters
    Item of General Information Contents Unit
    LCD Display Size (Diagonal) 5.0" TN/IPS Inch
    LCD Display Type
    		 TFT/TRANSMISSIVE
    		 -
    LCD Display Mode TN: Normally White
    IPS: Normally Black
    		 -
    Recommended Viewing Direction TN: 6:00
    IPS: Full View Angle
    		 O'Clock
    Model No. SHD050A-800480 (TN/IPS) -
    Resolutions 800(RGB)*480 -
    Video Input Interface
    		 HDMI -
    Power Supply
    		 Micro USB 5.0V -
    Touch Type CTP: Capacitive Touch Panel -
    Backlight Type
    		 White LED -
    Luminance(TYP)
    		 350-400 CD/M2
    LCM Module Size (W×H) 121.11×95.24
    		 MM
    Active Area (W×H) 108.00×64.80
    		 MM

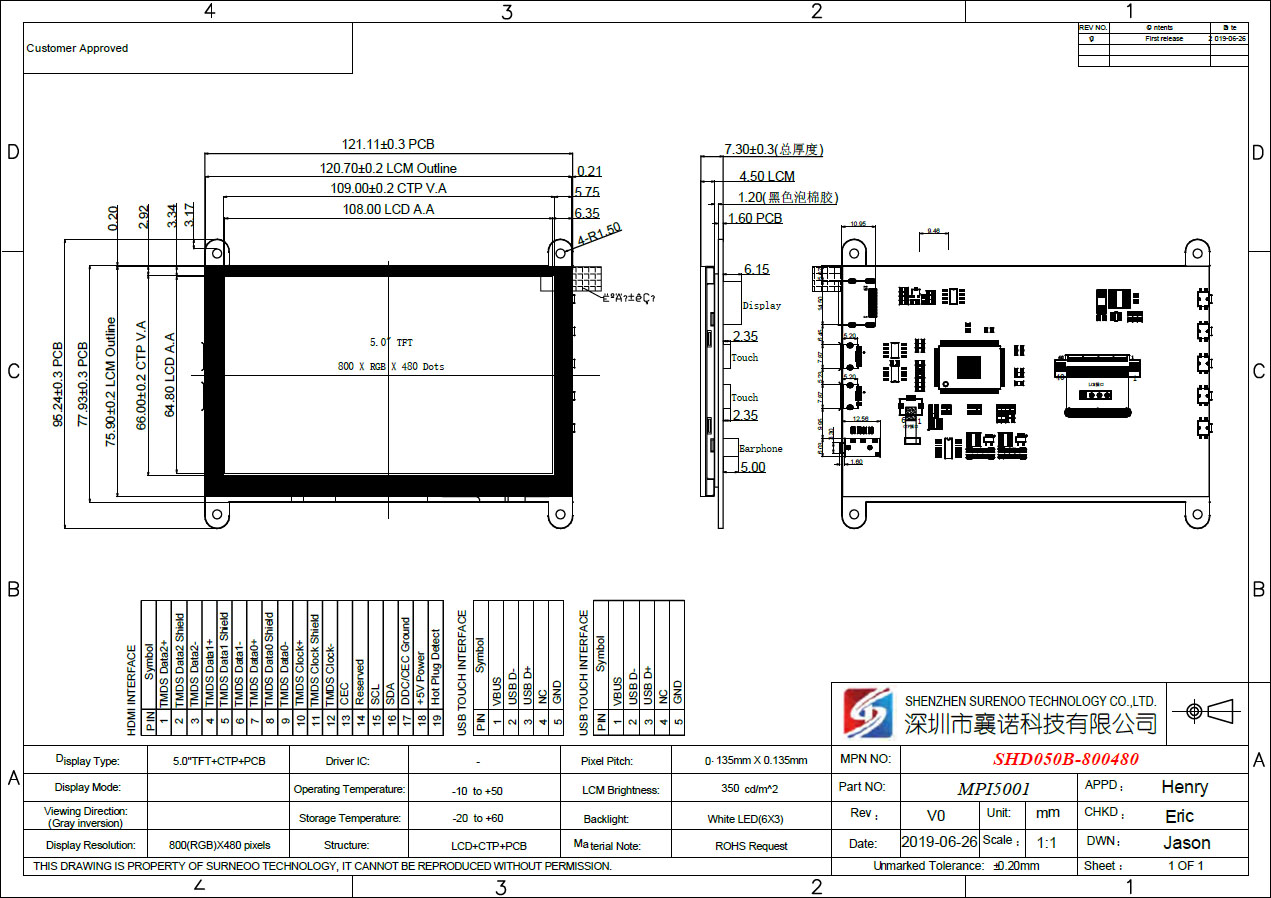

    • External Dimensions

    • Function & Interface
    >> Pin Definition of HDMI Interface
    PIN
    		 Symbol
    		 Function Description
    1 TMDS Data2+ Positive side of channel 2 TMDS low-voltage signal differential input pair
    2 TMDS Data2 Shield Ground
    3 TMDS Data2- Negative side of channel 2 TMDS low-voltage signal differential input pair
    4 TMDS Data1+ Positive side of channel 1 TMDS low-voltage signal differential input pair
    5 TMDS Data1 Shield Ground
    6 TMDS Data1- Negative side of channel 1 TMDS low-voltage signal differential input pair
    7 TMDS Data0+ Positive side of channel 0 TMDS low-voltage signal differential input pair
    8 TMDS Data0 Shield
    		 Ground
    9 TMDS Data0-
    		 Negative side of channel 0 TMDS low-voltage signal differential input pair
    10 TMDS Clock+
    		 Positive side of reference clock. TMDS low-voltage signal differential input pair
    11 TMDS Clock Shield
    		 Ground
    12 TMDS Clock-
    		 Negative side of reference clock. TMDS low-voltage signal differential input pair
    13 CEC
    		 No Connection
    14 Reserved(N.C.)
    		 No Connection
    15 SCL
    		 DDC SCL
    16 SDA
    		 DDC SDA
    17 DDC/CEC Ground
    		 Ground
    18 +5V Power
    		 +5V Power
    19 Hot Plug Detect Hot Plug Detect

    >> Pin Definition of Micro USB Port
    PIN
    		 Symbol
    		 Function Description
    1 5.0V USB Power
    2 D+ USB Data+
    3 D- USB Data-
    4 NC No Connection
    5 GND Power Ground
