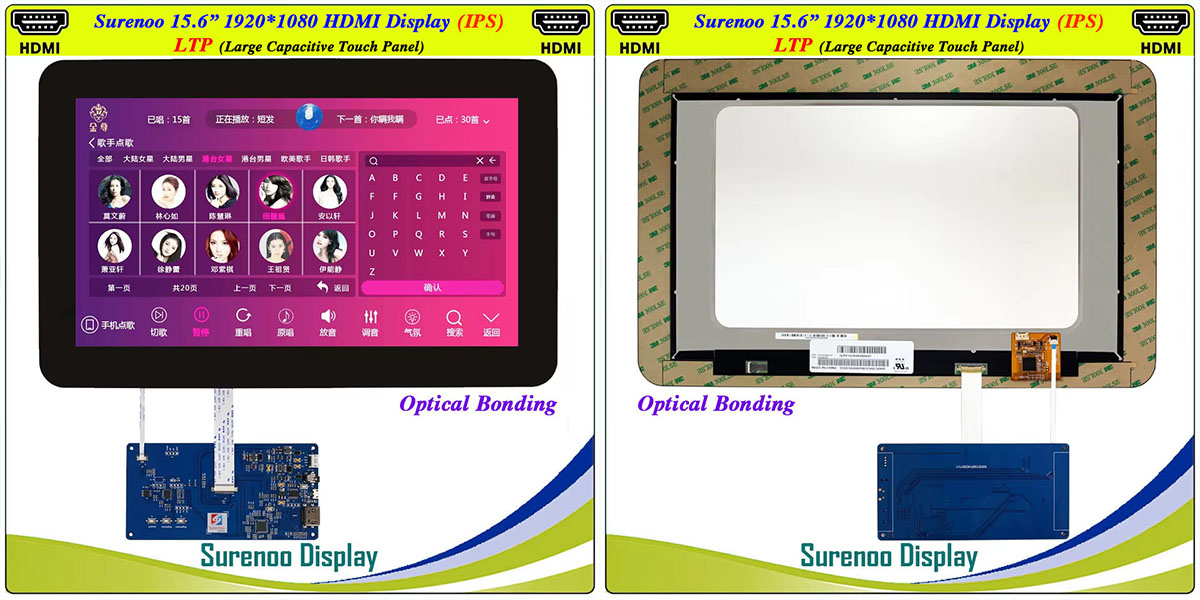

Model No.: SHD156A-19201080
Model Size: 15.6 Inch
Resolution: 1920*1080 IPS
Interface: HDMI
Touch Type: Large Capacitive Touch Panel (LTP)
48 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview


    1. 15.6 inch IPS full Angle display
    >> The viewing Angle is large
    >> True color
    >> Dynamic picture quality is excellent

    2. 1920x1080 Resolution
    >> HD Vision
    >> Display is very delicate

    3. HDMI video input interfaces
    >> High definition video display
    >> Can be used as an HDMI display

    4. Supports multiple system displays
    >> Support systems such as Raspbian, Kali Linux, Ubuntu, Kodi, Win10 IOT, and touch free drive
    >> Support Win7/8/10/11 and other systems, touch free drive
    • Product Parameters
    Item of General Information Contents Unit
    LCD Display Size (Diagonal) 15.6" Inch
    LCD Display Type
    		 TFT/TRANSMISSIVE
    		 -
    LCD Display Mode Normally Black
    		 -
    Recommended Viewing Direction ALL VIEW (IPS) O'Clock
    Model No. SHD156A-19201080
    		 -
    Resolutions 1920(RGB)*1080 -
    Video Input Interface
    		 HDMI Type A
    		 -
    Power Supply
    		 DC IN 12V (3.5*1.5MM) / ATX Plug In 12V -
    Touch Type Micro-USB 5-Points Capacitive Touch Panel (CTP) -
    Touch Controller
    		 - -
    Backlight Type
    		 White LED -
    Luminance(TYP)
    		 300 CD/M2
    LCM Module Size (W×H) 405.56×254.99 MM
    Active Area (W×H) 344.16×193.59
    		 MM

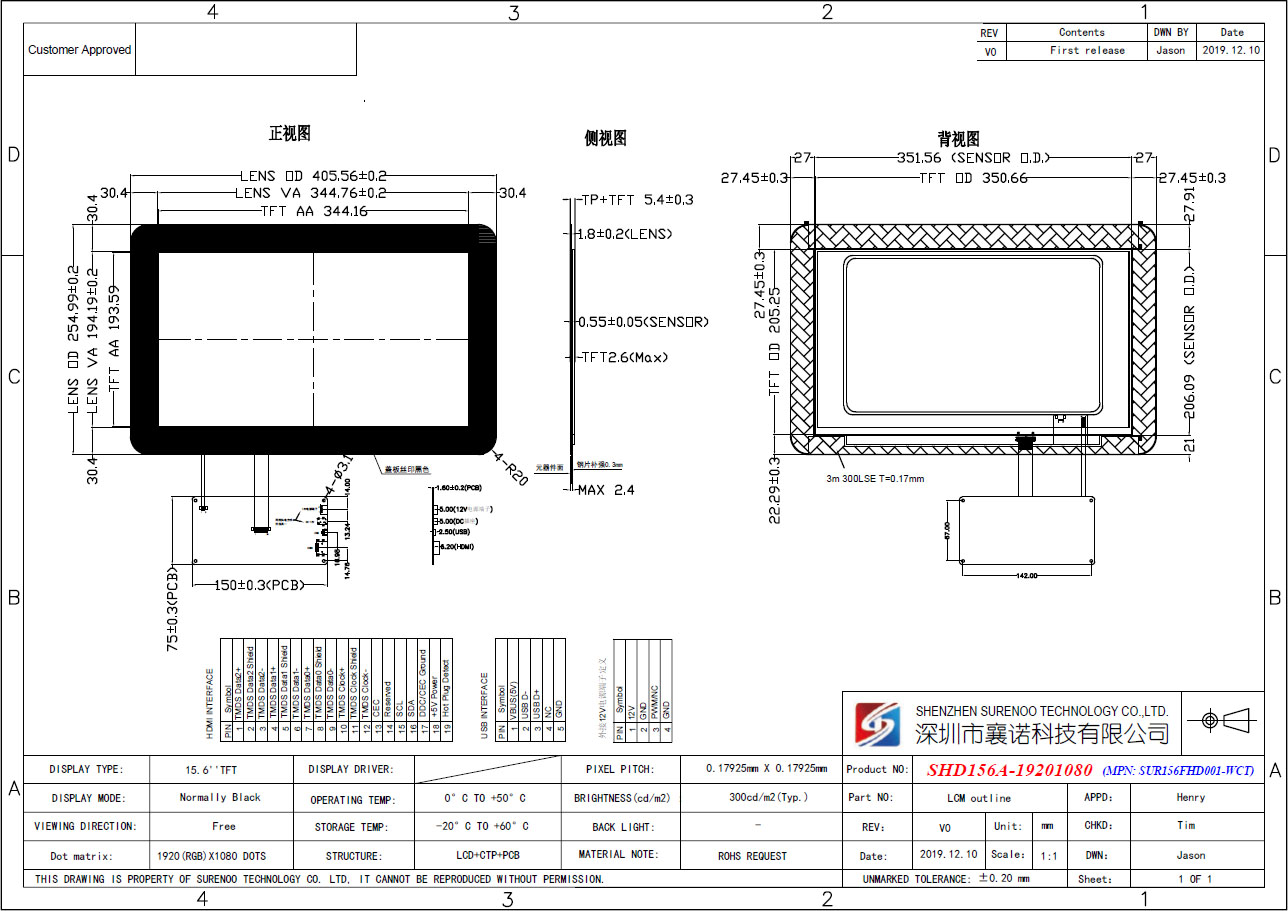

    • External Dimensions

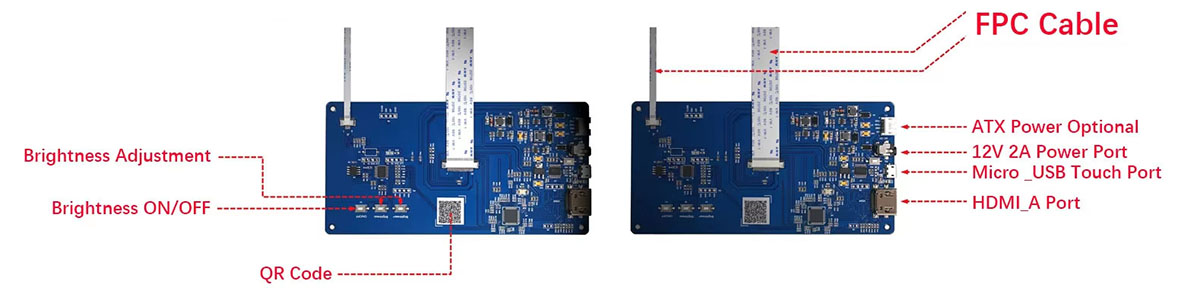

    • Function Interface

    >> Pin Definition of HDMI Interface
    PIN
    		 Identifier
    		 Function Description
    1 TMDS Data2+ Positive side of channel 2 TMDS low-voltage signal differential input pair
    2 TMDS Data2 Shield Ground
    3 TMDS Data2- Negative side of channel 2 TMDS low-voltage signal differential input pair
    4 TMDS Data1+ Positive side of channel 1 TMDS low-voltage signal differential input pair
    5 TMDS Data1 Shield Ground
    6 TMDS Data1- Negative side of channel 1 TMDS low-voltage signal differential input pair
    7 TMDS Data0+ Positive side of channel 0 TMDS low-voltage signal differential input pair
    8 TMDS Data0 Shield
    		 Ground
    9 TMDS Data0-
    		 Negative side of channel 0 TMDS low-voltage signal differential input pair
    10 TMDS Clock+
    		 Positive side of reference clock. TMDS low-voltage signal differential input pair
    11 TMDS Clock Shield
    		 Ground
    12 TMDS Clock-
    		 Negative side of reference clock. TMDS low-voltage signal differential input pair
    13 CEC
    		 No Connection
    14 Reserved(N.C.)
    		 No Connection
    15 SCL
    		 DDC SCL
    16 SDA
    		 DDC SDA
    17 DDC/CEC Ground
    		 Ground
    18 +5V Power
    		 +5V Power
    19 Hot Plug Detect Hot Plug Detect

    >> Pin Definition of Micro USB Port
    PIN
    		 Symbol
    		 Function Description
    1 5.0V USB Power
    2 D+ USB Data+
    3 D- USB Data-
    4 NC No Connection
    5 GND Power Ground

    >> ATX Plug In     External Power (12V)
    PIN
    		 Symbol
    		 Function Description
    1 12V External power input(12V)
    2 GND Power Ground
    3 PWM/NC USB Data-
    4 GND
