Surenoo HDMI Display 7.0" inch 1080*1080 Round Circular IPS LCD Display Module Screen Monitor Single Double Dual Display Extend Copy Mode for Windows Win 10 Win 11

WISHLIST
Model No.: SHR070A-10801080
Model Size: 7.0 Inch Round
Resolution: 1080*1080 IPS
Interface: Micro-HDMI
Touch Type: NTP (Without Touch Panel)
18 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    •  Product Overview

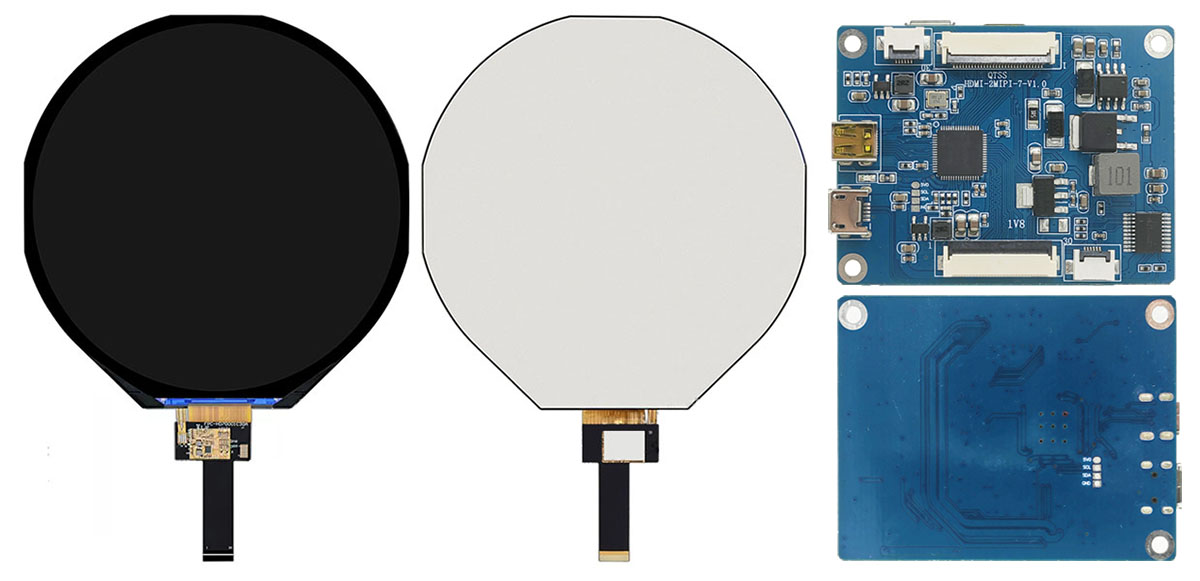

    >> Part ❶: Display
    Product Name TFT Display (Round)
    Display Size 7.0 Inch
    Resolution 1080*1080
    Display Direction IPS Full-View Angle
    Interface Type MIPI Interface
    Driver Chip FL5893
    Module Size 186.15x191.28x4.8 (mm)
    Display Area 177.55x177.55 (mm)
    FPC Pins 30P/0.5
    Working Voltage 3.0~3.6V
    Operating Temperature -20~70°C
    Display Color RGB

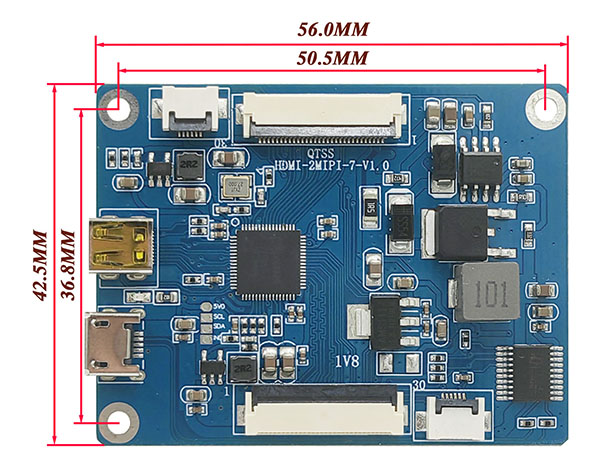

    >> Part ❷: HDMI Driver Board
    Demonstration Type HDMI-2-MIPI (30P)
    Interface Micro-HDMI (19P)
    Master Control IC LT6911C High-performance MlPl driver
    Display 7.0"-1080*1080
    Interface (Display) MIPI Interface (30P)
    Volatge 5.0V
    Maximum Power 4W
    Firmware Upgrade USB Download
    PCB Size 40.17(L)*40.44(W)*5.00(H-MAX) mm
    Working Temperature -20~60°C
    Storage Temperature -30~80°C
    Working Humidity 10%~95%
    Storage Humidity
    		 10%~95%
    Testing Environment Reference is made to the national standard GB2423.2 test method

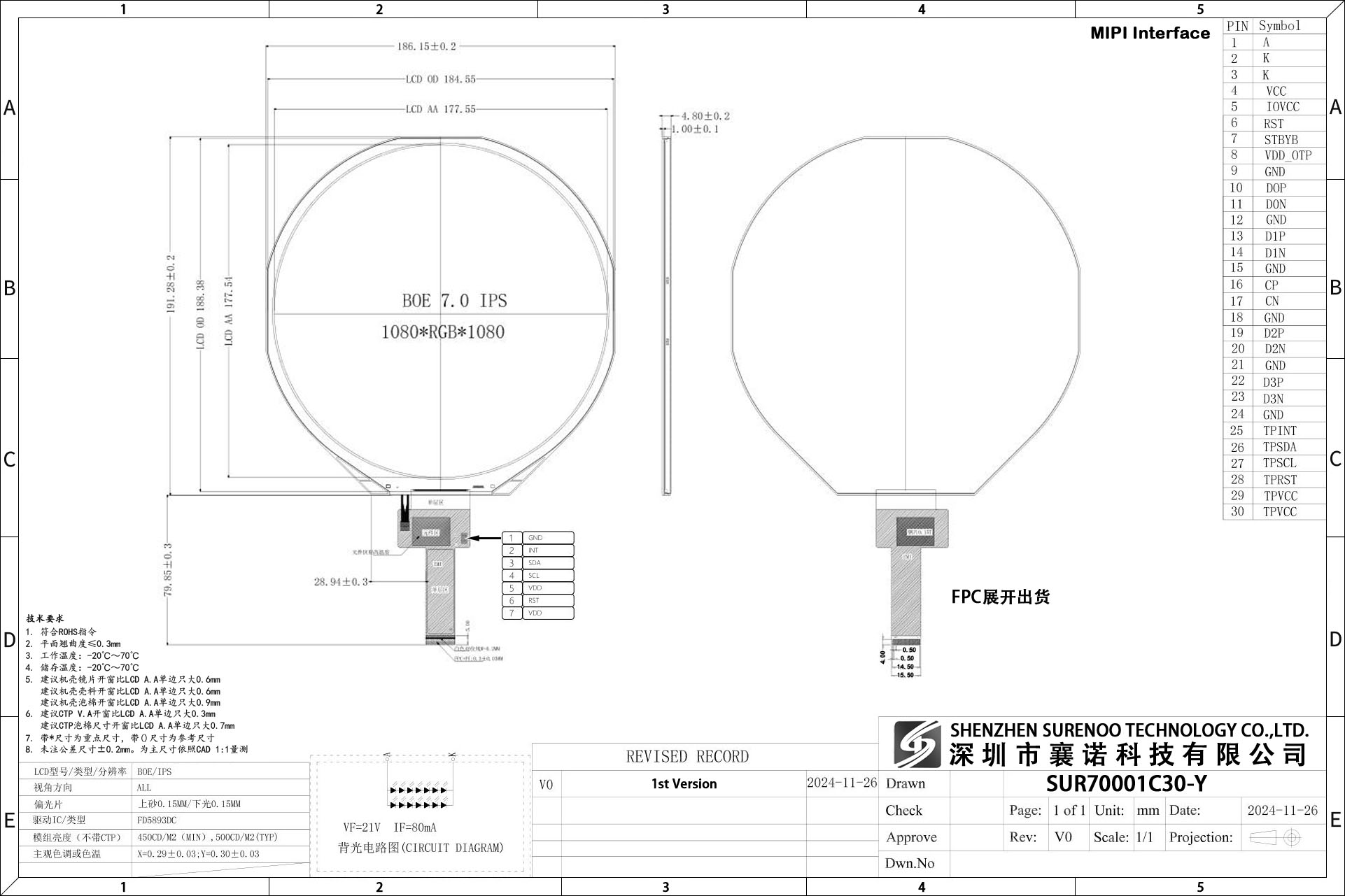

    • External Dimensions

    • Interface


    >> Pin Definition of MIPI Interface for Display
    PIN
    		 Symbol
    		 Function Description
    		 PIN
    		 Symbol
    		 Function Description
    1 A Back-light Anode 16 CP
    		 MIPI-DSI DATA signal input
    2 K Back-light Cathode 17 CN
    		 MIPI-DSI DATA signal input
    3 K Back-light Cathode 18 GND
    		 Power Ground
    4 VCC Power supply for I/O block. 2.8-3.3V 19 D2P
    		 MIPI-DSI DATA signal input
    5 VCC Power supply for I/O block. 1.8-3.3V 20 D2N
    		 MIPI-DSI DATA signal input
    6 RST Reset Input Pin 21 GND
    		 Power Ground
    7 STBYB Internal pull low, CP test enable, active high. If not used 22 D3P
    		 MIPI-DSI DATA signal input
    8 VDD_OTP
    		 Power supply for OTP circuit 23 D3N
    		 MIPI-DSI DATA signal input
    9 GND Power Ground
    		 24 GND Power Ground
    10 D0P
    		 MIPI-DSI DATA signal input
    		 25 TP_INT No Connection (NTP)
    11 D0N
    		 MIPI-DSI DATA signal input 26 TP_SDA No Connection (NTP)
    12 GND
    		 Power Ground 27 TP_SCL
    		 No Connection (NTP)
    13 D1P
    		 MIPI-DSI DATA signal input
    		 28 TP_RST
    		 No Connection (NTP)
    14 D1N
    		 MIPI-DSI DATA signal input
    		 29 TP_VCC
    		 No Connection (NTP)
    15 GND
    		 Power Ground
    		 30 TP_VCC
    		 No Connection (NTP)

    >> Pin Definition of HDMI Interface
    PIN
    		 Symbol
    		 Function Description
    1 TMDS Data2+ Positive side of channel 2 TMDS low-voltage signal differential input pair
    2 TMDS Data2 Shield Ground
    3 TMDS Data2- Negative side of channel 2 TMDS low-voltage signal differential input pair
    4 TMDS Data1+ Positive side of channel 1 TMDS low-voltage signal differential input pair
    5 TMDS Data1 Shield Ground
    6 TMDS Data1- Negative side of channel 1 TMDS low-voltage signal differential input pair
    7 TMDS Data0+ Positive side of channel 0 TMDS low-voltage signal differential input pair
    8 TMDS Data0 Shield
    		 Ground
    9 TMDS Data0-
    		 Negative side of channel 0 TMDS low-voltage signal differential input pair
    10 TMDS Clock+
    		 Positive side of reference clock. TMDS low-voltage signal differential input pair
    11 TMDS Clock Shield
    		 Ground
    12 TMDS Clock-
    		 Negative side of reference clock. TMDS low-voltage signal differential input pair
    13 CEC
    		 No Connection
    14 Reserved(N.C.)
    		 No Connection
    15 SCL
    		 DDC SCL
    16 SDA
    		 DDC SDA
    17 DDC/CEC Ground
    		 Ground
    18 +5V Power
    		 +5V Power
    19 Hot Plug Detect Hot Plug Detect

    >> Pin Definition of Micro USB Port
    PIN
    		 Symbol Function Description
    1 5.0V
    		 USB Power
    2 NC
    		 No Connection
    3 NC
    		 No Connection
    4 NC
    		 No Connection
    5 GND
    		 Power Ground
    • Packing List
    Packing Items
    		 Single Screen Dual Screen
    (Extend Mode)
    		 Dual Screen
    (Copy Mode)
    1. 7.0" 1080*1080 IPS Screen X1 PCS X2 PCS X2 PCS
    2. MIPI to HDMI Driver Board X1 PCS
    		 X1 PCS X1 PCS
    3. Micro HMDI Cable X1 PCS
    		 X1 PCS X1 PCS
    4. Micro USB Cable X1 PCS
    		 X1 PCS
    		 X1 PCS
    5. FFC Extend Cable & Connector -
    		 X2 Set X2 Set
    6. USB FAN & FAN PCB Adater - X1 Set
    		 X1 Set
