Model No.: SHD101E-1024600
Model Size: 10.1 Inch
Resolution: 1024*600 IPS
Interface: HDMI
Touch Type: CTP
27 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Keywords

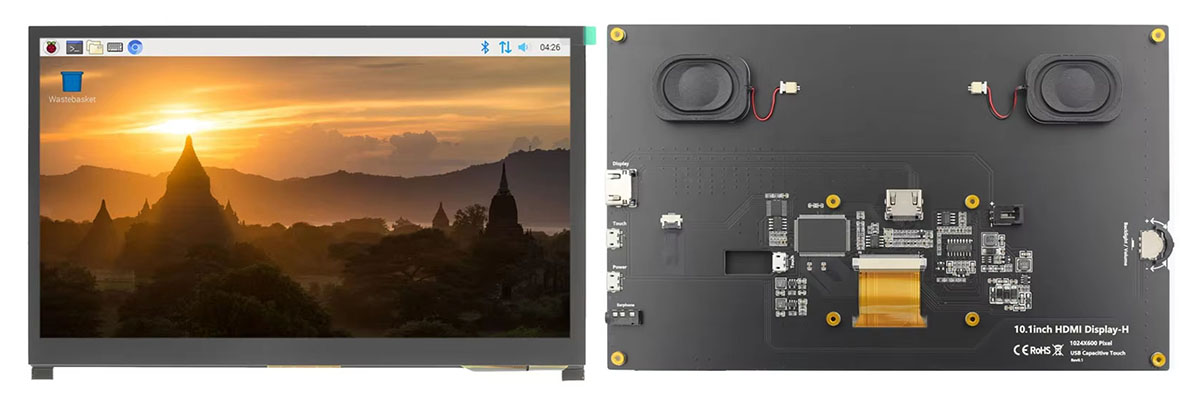

    10.1" inch 1024*600 HDMI IPS LCD Monitors, USB Capacitive Touch Panel,  8Ω-2W Dual Speaker

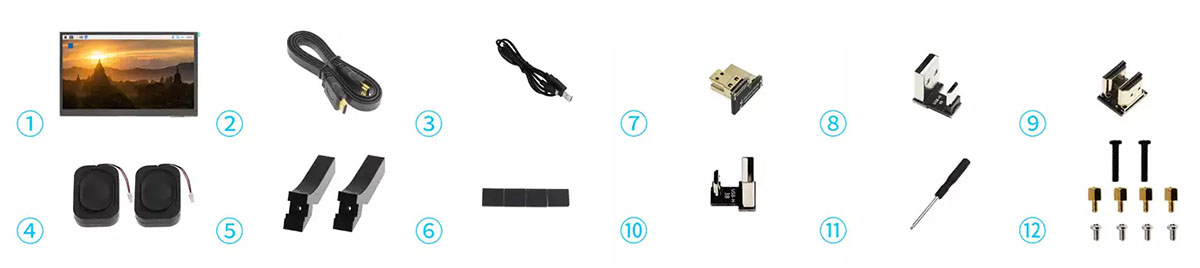

    Screw Positioning Holes for RaspBerry Pi 3B-4B (Free USB and HDMI Adapter)

    • Product Parameters
    Item of General Information Contents Unit
    LCD Display Size (Diagonal) 10.1" Inch
    LCD Display Type
    		 TFT/TRANSMISSIVE
    		 -
    LCD Display Mode Normally Black
    		 -
    Recommended Viewing Direction IPS Full Angle O'Clock
    Model No. SHD101E-1024600 -
    Resolutions 1024(RGB)*600 -
    Video Input Interface
    		 HDMI -
    Power Supply
    		 Double Micro USB 5.0V

    Touch Type USB 5-Points Capacitive Touch Panel -
    Backlight Type
    		 White LED -
    Luminance(TYP)
    		 300 CD/M2
    LCM Module Size (W×H) 236.00×145.57
    		 MM
    Active Area (W×H) 222.72×125.28
    		 MM

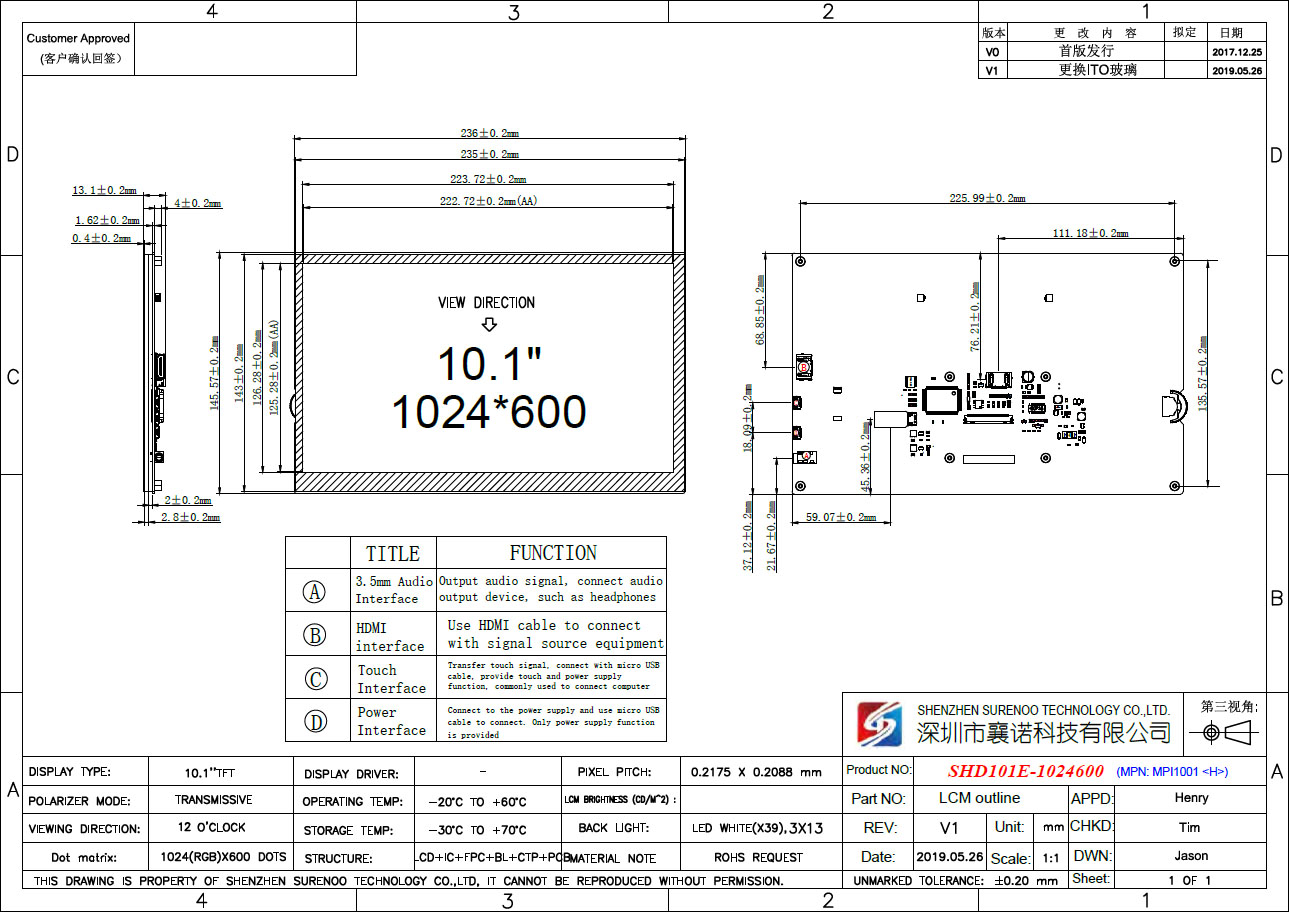

    • External Dimensions

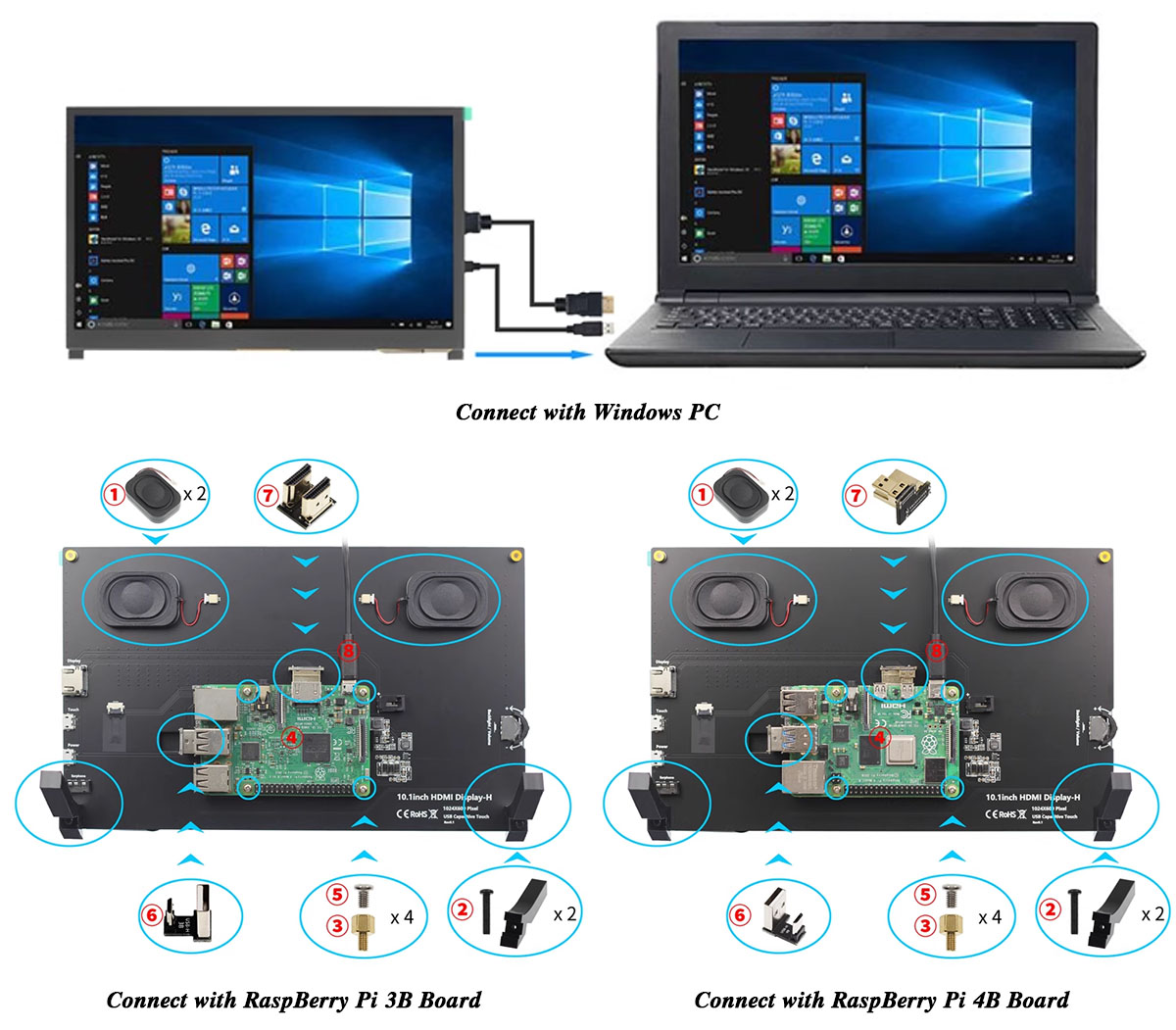

    • Function & Interface
    >> Pin Definition of HDMI Interface
    PIN
    		 Symbol
    		 Function Description
    1 TMDS Data2+ Positive side of channel 2 TMDS low-voltage signal differential input pair
    2 TMDS Data2 Shield Ground
    3 TMDS Data2- Negative side of channel 2 TMDS low-voltage signal differential input pair
    4 TMDS Data1+ Positive side of channel 1 TMDS low-voltage signal differential input pair
    5 TMDS Data1 Shield Ground
    6 TMDS Data1- Negative side of channel 1 TMDS low-voltage signal differential input pair
    7 TMDS Data0+ Positive side of channel 0 TMDS low-voltage signal differential input pair
    8 TMDS Data0 Shield
    		 Ground
    9 TMDS Data0-
    		 Negative side of channel 0 TMDS low-voltage signal differential input pair
    10 TMDS Clock+
    		 Positive side of reference clock. TMDS low-voltage signal differential input pair
    11 TMDS Clock Shield
    		 Ground
    12 TMDS Clock-
    		 Negative side of reference clock. TMDS low-voltage signal differential input pair
    13 CEC
    		 No Connection
    14 Reserved(N.C.)
    		 No Connection
    15 SCL
    		 DDC SCL
    16 SDA
    		 DDC SDA
    17 DDC/CEC Ground
    		 Ground
    18 +5V Power
    		 +5V Power
    19 Hot Plug Detect Hot Plug Detect

    >> Pin Definition of Micro USB Port
    Touch Function Power Fucntion
    PIN
    		 Symbol
    		 Function Description
    		 PIN
    		 Symbol Function Description
    1 5.0V USB Power 1 5.0V
    		 USB Power
    2 D+ USB Data+ 2 NC
    		 No Connection
    3 D- USB Data- 3 NC
    		 No Connection
    4 NC No Connection 4 NC
    		 No Connection
    5 GND Power Ground 5 GND
    		 Power Ground
