Surenoo Thin and Light Design HDMI Display 7.0" inch 1024*600 40P/0.5 FPC Connetor IPS / QLED LCD Display Module Screen Monitor with USB Capacitive Touch Panel CTP for Windows Win11 RaspBerry Pi 4B/5
Model Size: 7.0 Inch
Resolution: 1024*600 IPS/QLED
Interface: 40P/0.5MM FPC Connector (HDMI)
Touch Type: LTP
Thin and Light Design
-
Detail
- Overview
1. 7.0 inch QLED/IPS Display
>> 170-degree wide view angle>> True color>> Dynamic picture quality is excellent
>> 5-point capacitive touch
2. 1024x600 Resolution>> HD Vision>> Display is very delicate
3. 40P/0.5MM FPC Connector (HDMI) video input interfaces>> High definition video display>> Can be used as an HDMI display
>> Thin and Light Design
4. Support multiple device access>> Can connect to mainstream development boards such as Raspberry Pi, Banana Pi, BB Black, etc>> Can connect to mainstream game consoles such as PS4, Xbox360, Switch, etc>> Can connect to mainstream TV boxes and digital cameras (display only)
5. Supports multiple system displays>> Support systems such as Raspbian, Kali Linux, Ubuntu, Kodi, Win10 IOT, and touch free drive>> Support Win7/8/10/11 and other systems, touch free drive- Product Parameters
Item of General Information Contents Unit LCD Display Size (Diagonal) 7.0" QLED/IPS Inch LCD Display Type TFT/TRANSMISSIVE - LCD Display Mode Normally Black - Recommended Viewing Direction QLED/IPS Full Viewing Angle O'Clock Model No. SHD070J-1024600-LTP (QLED/IPS) - Resolutions 1024(RGB)*600 - Video Input Interface 40P/0.5MM FPC Connector (HDMI) - Color Gamut IPS: 45% NTSC / QLED: 78% NTSC - Touch Type USB 5-Points Capacitive Touch Panel (CTP) - Backlight Type White LED - Luminance(TYP) 350 CD/M2 LCM Module Size (W×H×T) 173.00×102.00 MM Active Area (W×H) 154.21×85.92 MM
- External Dimensions <SHD070J-1024600-LTP (QLED/IPS)>
- Function & Interface <40P/0.5MM FPC Connector (HDMI)>
PIN Symbol Function Description PIN Symbol Function Description 1 NC Not connect 21 GND Ground (0V) 2 NC Not connect 22 TMDS Clock- Differential data signal 3 NC Not connect 23 CEC Consumer electronics control signals 4 5V IN DC 5V power input 24 SCL I2C clock line, internal 10kΩ pull-up 5 5V IN DC 5V power input 25 SDA I2C data line, internal 10kΩ pull-up 6 5V IN DC 5V power input 26 GND Ground (0V) 7 3V3 OUT DC 3.3V power output 27 +5V Power With HPD to achieve insertion detection 8 GND Ground (0V) 28 Hot Plug Detect Hot plug detect signal 9 GND Ground (0V) 29 NC Not Connect 10 GND Ground (0V) 30 NC Not Connect 11 TMDS Data 2+ Differential data signal 31 NC Not Connect 12 GND Ground (0V) 32 NC Not Connect 13 TMDS Data 2- Differential data signal 33 D+ USB differential data signal 14 TMDS Data 1+ Differential data signal 34 D- USB differential data signal 15 GND Ground (0V) 35 GND Ground (0V) 16 TMDS Data 1- Differential data signal 36 BL_PWM Display backlight adjustment 17 TMDS Data 0+ Differential data signal 37 BL_EN Display backlight enable 18 GND Ground (0V) 38 NC Not connect 19 TMDS Data 0- Differential data signal 39 NC Not connect 20 TMDS Clock + Differential data signal 40 NC Not connect - More Pictures
Device & System SupportSupport Windows / Linux / Android main board which has HDMI signal and USB touch signal
Used with development adapter, support the following devices:All versions of Raspberry Pi
Jetson Series Boards
Windows PC
Integrated Structure DesignProvide secondary development resources to facilitate integrated design
Boost simple development for embedding engineering applications quickly
development adapter connectionThinner and more space savingDifferent with the conventional connection method, integrate 40PIN multi-function interface for one-cable communication. Integrate the driver circuit into an FPC cable, the thinnest only needs 3mm thickness space

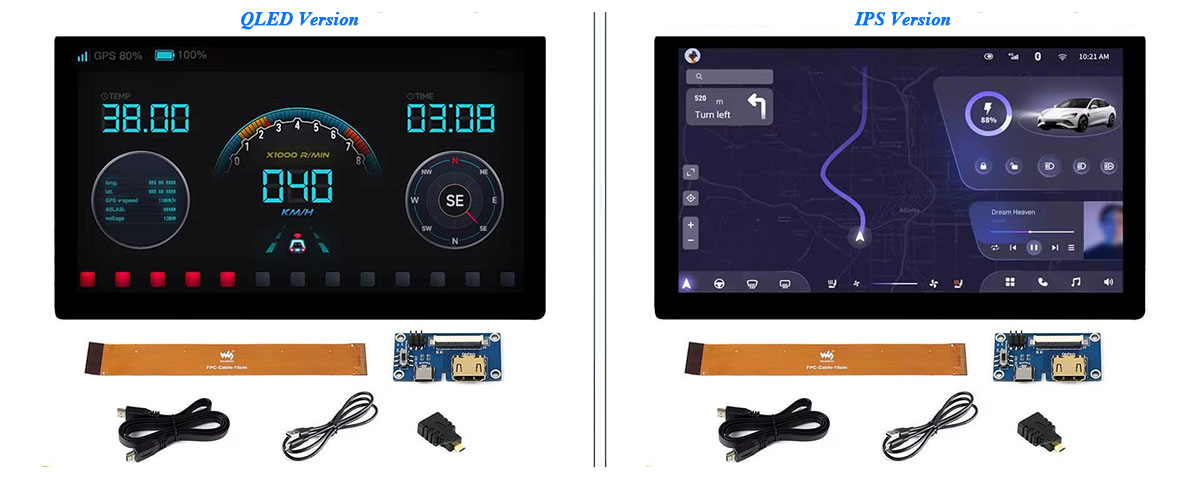

QLED Quantum Dot TechnologyWider color gamut
color gamut of this QLED display is up to: NTSC 78%, sRGB 92%
* This function is only available on the QLED version
More pure chroma
chroma of QLED increases 58.3%, makes the color more pure, more vivid
* This function is only available on the QLED version
Longer lifetime
due to its inorganic characteristic, the color life of QLED could be up to 60000 hours without color degradation
* This function is only available on the QLED version
5-Point Capacitive TouchGently touch, and see what you get, enjoy multi-point UI interaction via Flexible operation.
Adapting touch function with USB signal, support 5-point touch

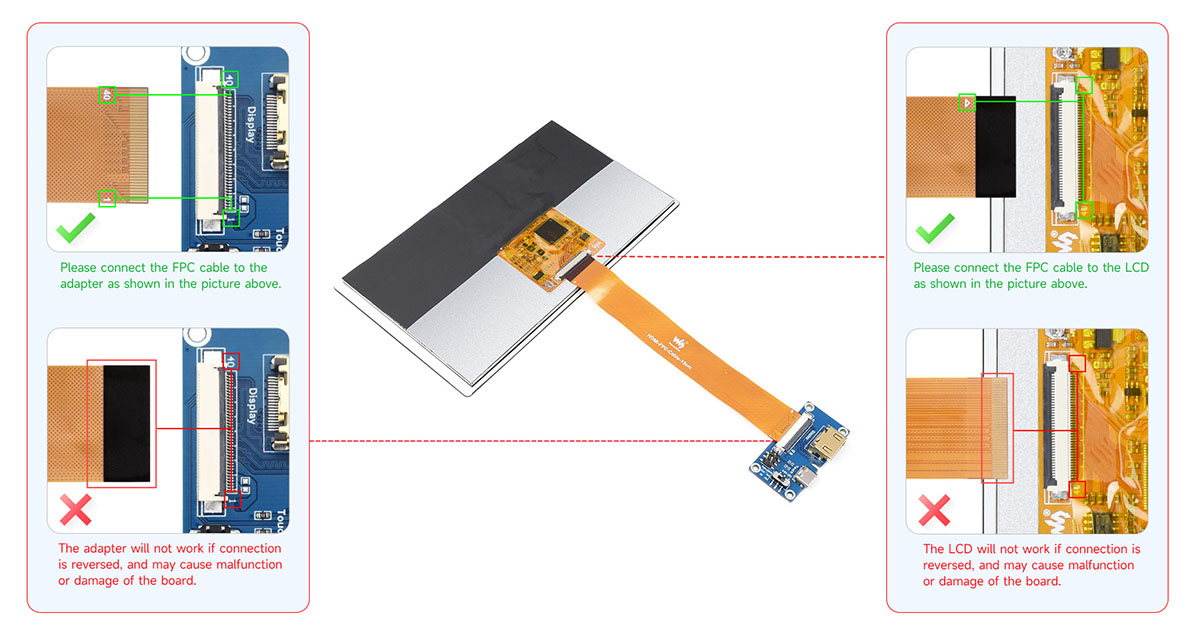

Connection ExampleFor the first use, it is recommended to use development adapter for connection
* for reference, Raspberry Pi board is NOT included.
Interface Introduction
Dimensions
