Nextion Intelligent Enhanced Basic Series HMI Touch Display: 7.0" 800*480 800480 HMI Serial UART TFT LCD Module Display Screen Panel Resisive RTP Capacitive Touch Panel CTP Without Enclosure NX8048T070 / NX8048K070 / NX8048P070-011R / NX8048P070-011C

Selection Advisement

Furthering our commitment to provide cost-effective and ease-of-use HMI products to our customers, we want to direct the focus to our HMI Solutions Discovery Series and Intelligent Series models which have more capabilities and rich features at lower or comparable prices.

For the Enhanced Series 4.3''/5.0''/7.0'' HMI display, the Nextion Intelligent Series emerges as the ideal option.
This series delivers a comprehensive and future-proof solution, aligning perfectly with the evolving demands of next-generation projects.
By opting for the Intelligent Series, you're ensuring that your projects are well-equipped to embrace upcoming challenges and innovations. The Intelligent Series represents a smart investment in long-term success.

Selection Compare

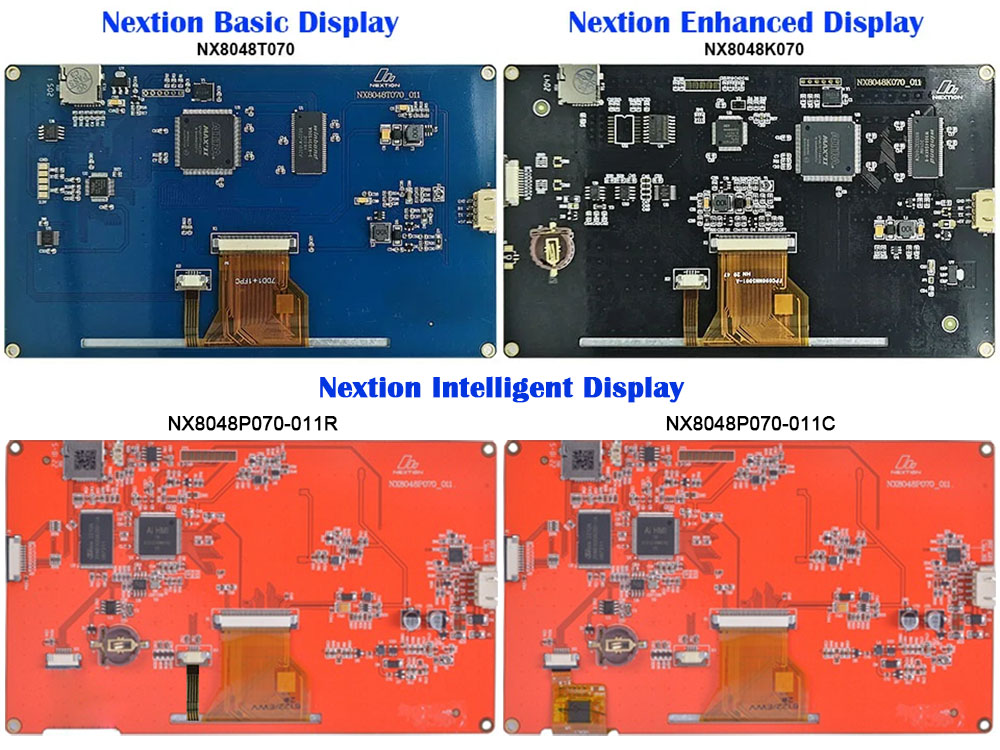

Basic-NX8048T070 vs Enhanced-NX8048K070 vs Intelligent-NX8048P070-011R/C
MODEL NAME	NX8048T070	NX8048K070	NX8048P070-011R	NX8048P070-011C
Series	Basic	Enhanced	Intelligent	Intelligent
Size	7.0″	7.0″	7.0″	7.0″
Resolution	800*480	800*480	800*480	800*480
Touch Panel	Resistive	Resistive	Resistive	Capacitive
Color	65536	65536	65536	65536
TTL Serial Voltages	RX 3.3 / TX 3.3	RX 3.3 / TX 3.3	RX 3.3 / TX 3.3	RX 3.3 / TX 3.3
Flash	16 MB	32 MB	128 MB	128 MB
SRAM	3584 Byte	8192 Byte	512KB	512KB
MCU Speed	48 MHz	108 MHz	200 MHz	200 MHz
EEPROM	—	1024 Byte	1024 Byte	1024 Byte
GPIOs	—	8 Digital (4 PWM)	8 Digital (2 PWM)	8 Digital (2 PWM)
RTC	—	Yes	Yes	Yes
Runtime microSD	—	—	√	√
Image Compression	—	—	√	√
Audio/Video Resource	—	—	√	√
New Components	—	—	√ +11 Components	√ +11 Components
Hardware Graphics Assistance	—	—	*.png/*.jpg/*.video transparency alpha-blending	*.png/*.jpg/*.video transparency alpha-blending
Price	$79.9 USD	$79.9 USD	$69.9 USD	$79.9 USD
Conclusion	NRND	NRND	Recommended	Recommended

NRND = Not Recommended for New Design

Nextion Editor Overview

Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Discovery Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCll text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.


Versatile Character Encoding

With several character encoding, you are able to create the HMI project in your language characters and strings.

Fonts and Text Styling

The font creator allows you to generate the specific fonts applied in each component value or text attribute. e.g.Generate the font of "Arial" with Height "24" and Encoding "UTF-8"

25+Amazing WYSIWYG Components

Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way

Component Attribute Setting

The component attribute setting gives you the options to design all the aspects of the component that you need.

Free Simulator Debug

Debug the HMI project at any time even without the Nextion Display. The instruction input area allows you to send any Nextion commands to check the feedback and interactions.

Nextion Operational Commands

The operational commands allow users to program the HMI interactions by coding in Events windows

Text-based Instruction Set

Simple ASCll text based instructions will dramatically reduce your HMI project development workloads

Support Simple Assignment Operators

To handle the calculation and assignment for the text and Numeric data, the simple assignment operators help.
