SLG240128H Outline=159.40x101.00MM Surenoo 5.8" inch 240128 240X128 240*128 Graphic LCD Module Display Screen Panel Replacement for HITACHI LMG7410 LMG7410PLBC LMG7420 LMG7420PLFC-X SP14N002 SP14N003 LMG6411 LMG6411PLGE LMG6402 LMG6402PLFR

WISHLIST
Model No.: SLG240128H
Replacment for: LMG7420/LMG7410/SP14N002/SP14N003/LMG6411/LMG6402
Display Format: 240*128 Dots
PCB Size: 159.40x101.00MM
83 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    • Specification
    Gross Weight  0.240Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years

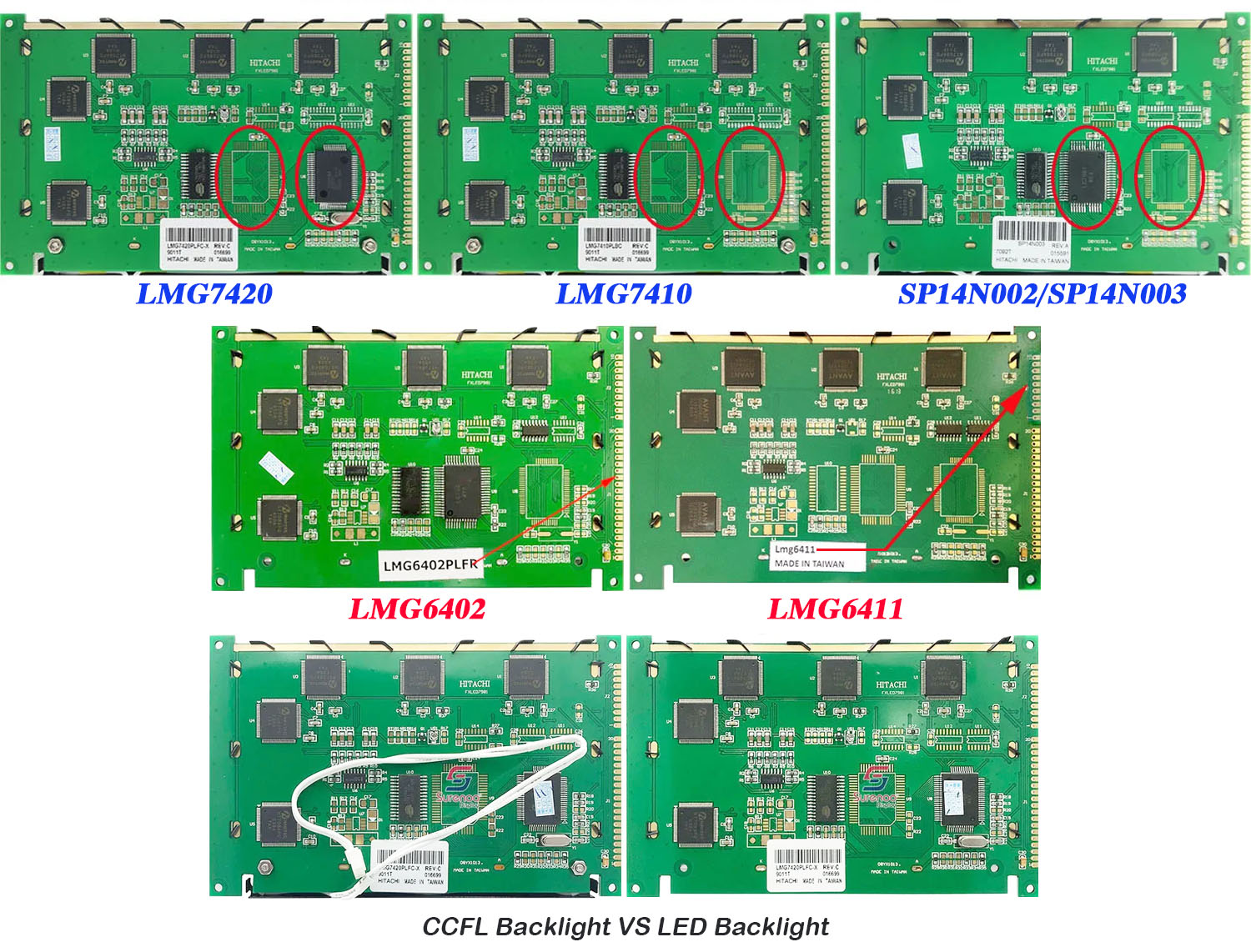

    Part No. SLG240128H (LMG7420/LMG7410/SP14N002/SP14N003/LMG6402/LMG6411)
    Display Format 5.8" 240*128 Dots
    Interface Different Part No, Different Interface
    IC or Equivalent -
    Voltage 5.0V in default
    Connection 1X10P/2.54 & 1X20P/2.54 Pin Header
    Outline Dimension 159.40(W)x101.00(H)x11.00(T)mm
    Visual Area 124.00x70.00mm
    Active Area 119.97x63.97mm
    Display Type STN Blue Negative, FSTN Positive, D-FSTN Negative
    Backlight Type  CCFL White / LED White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃

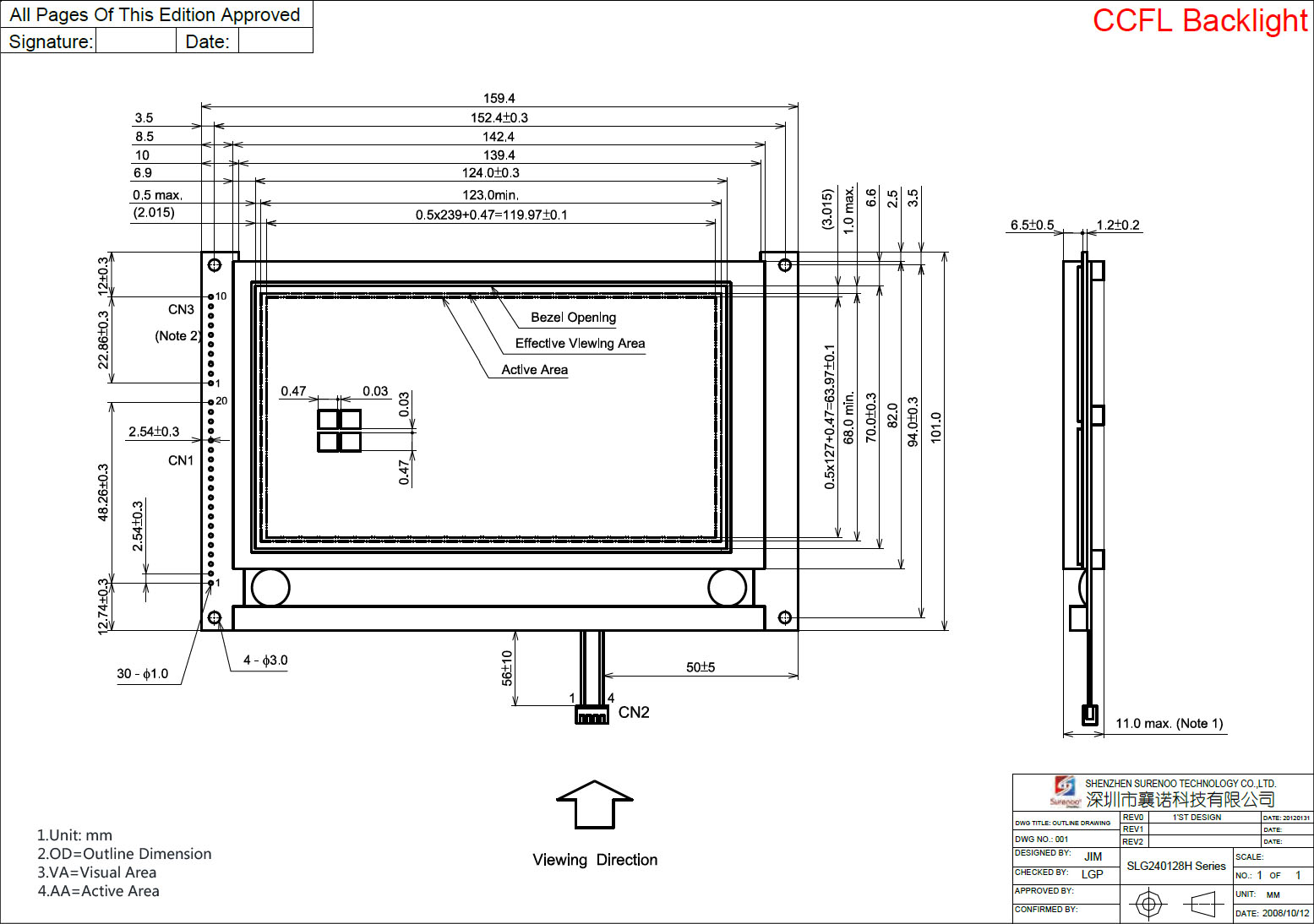

    • Outline Drawing



    • FAQ
    1. This display is replacement and repair only, don't for new products design.
    2. If you have the following Issue, please check the matched solution.

    2.1 Contrast Issue:  If you have the contrast Issue (The concentration is too deep or too shallow), Please check the following solution.

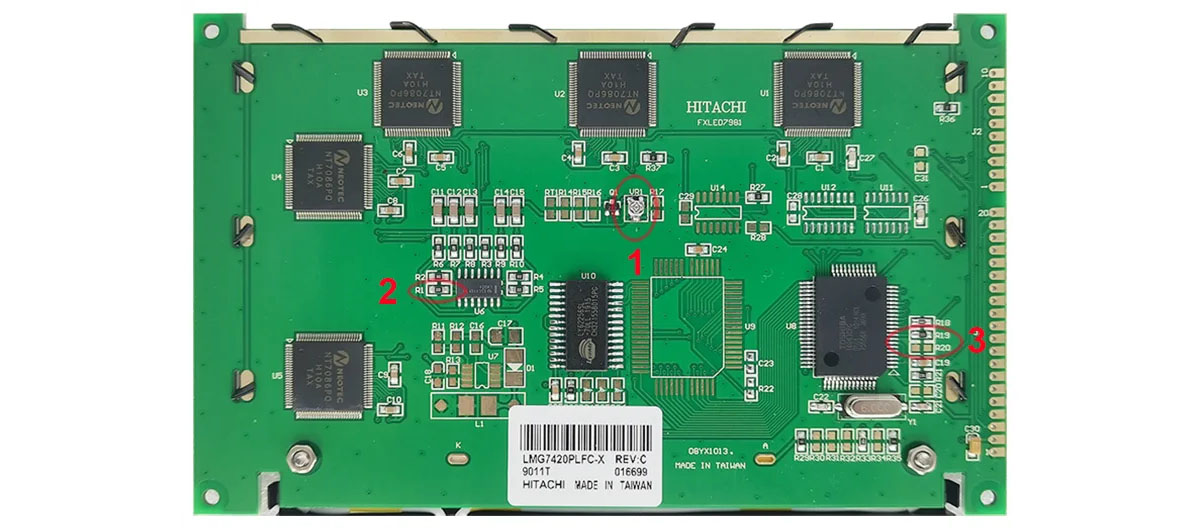

    Soluition: Please use screw knife to adiust VR1(1) to make it in good contrast, if it can't be adjusted in good contrast, please change R1(2) from 153 to 243 (Resistor). and then adjust VR1 again.

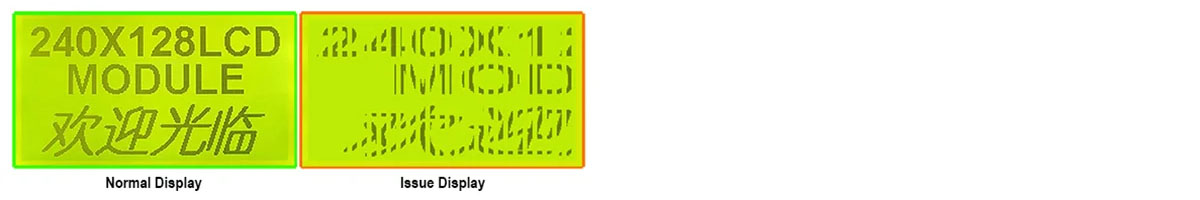

    2.2 The following Image Issue:


    Soluition:     This is 8-bit & 6-bit issue, please move R19 resistor to R20(3) to solve it.

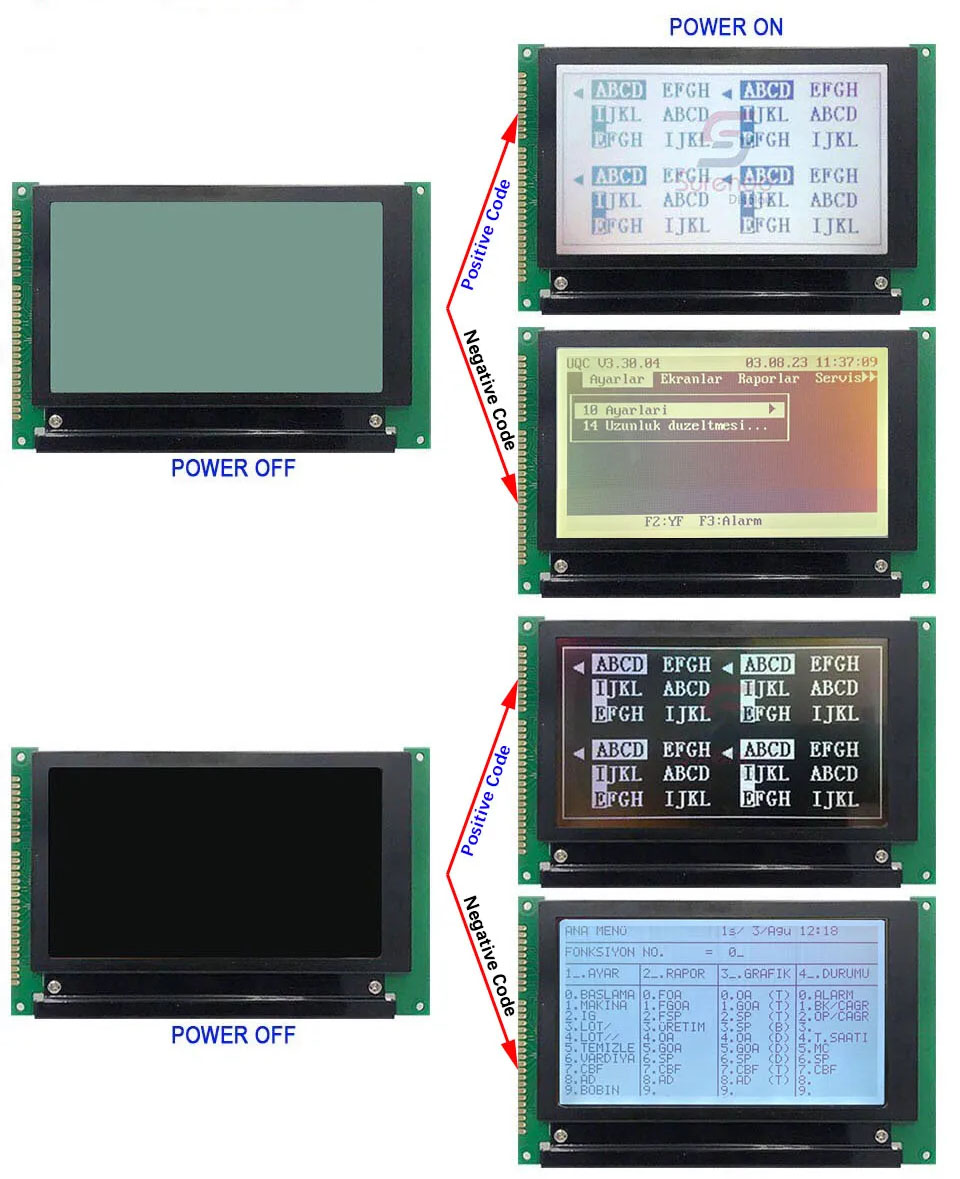

    3. How to select the color of your display?

    Color issue Between White and Black Colors, Some Customer's Machine may build-in Negalive Code, it's very easy to confuse the color of this display, about how to select the color of the display, please check the following steps carefully.

    >> Please Power Off the Display, if the Display Panel is Gray, please select the Gray Color (Power Off);
    >> Please Power Off the Display, if the Display Panel is Black, please select the Black Color (Power Off);
    >> lf you don't understand it, please send us more photos of your original display to confirm it with our Customer Service.
