SLC4004A Outline=190.00X54.00MM 4004 40*4 Surenoo Character LCD Module Display Screen Panel 6800 4/8-bit Parallel Serial IIC I2C LCD2USB USB2LCD AIP31066 SPLC780D ST7066 Controller STN Yellow Green Blue Negative LED Backlight for LCD Smartie AIDA64

WISHLIST
Model No.: SLC4004A
Display Format: 40X04 Characters
Outline: 190.00*54.00MM
Controller: AIP31066, ST7066 or Equal
128 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

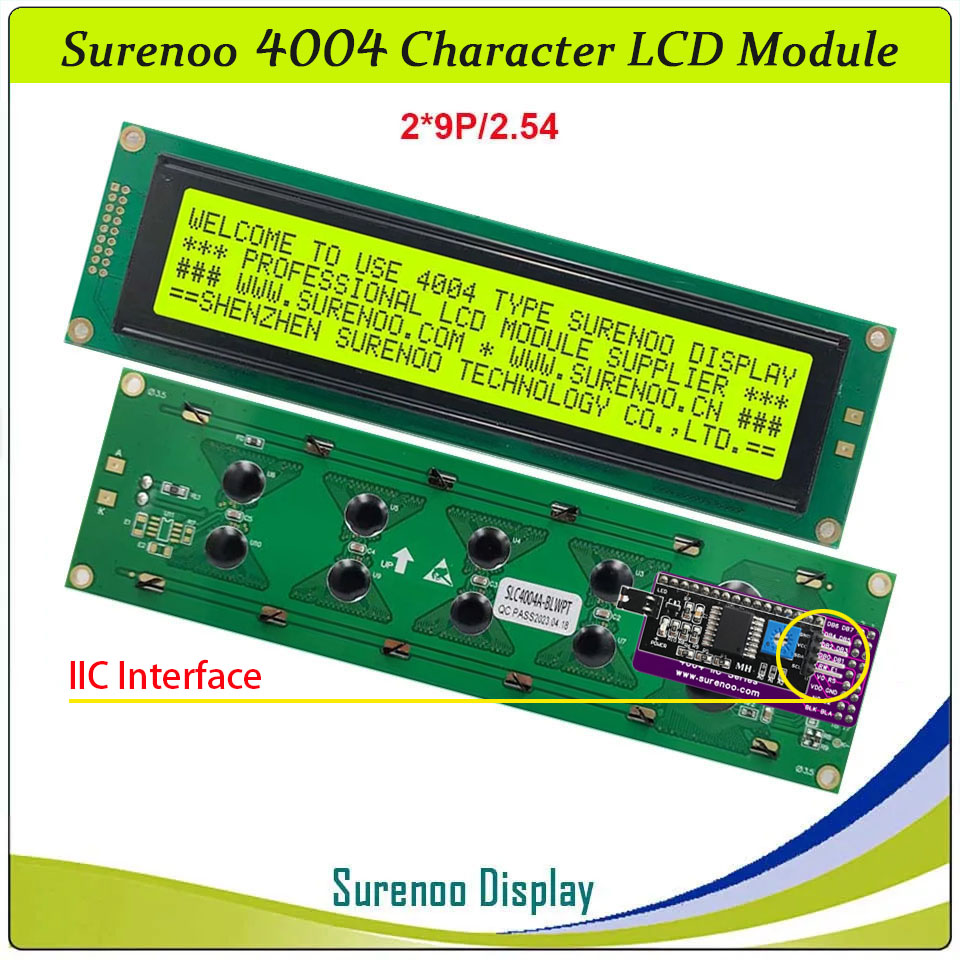

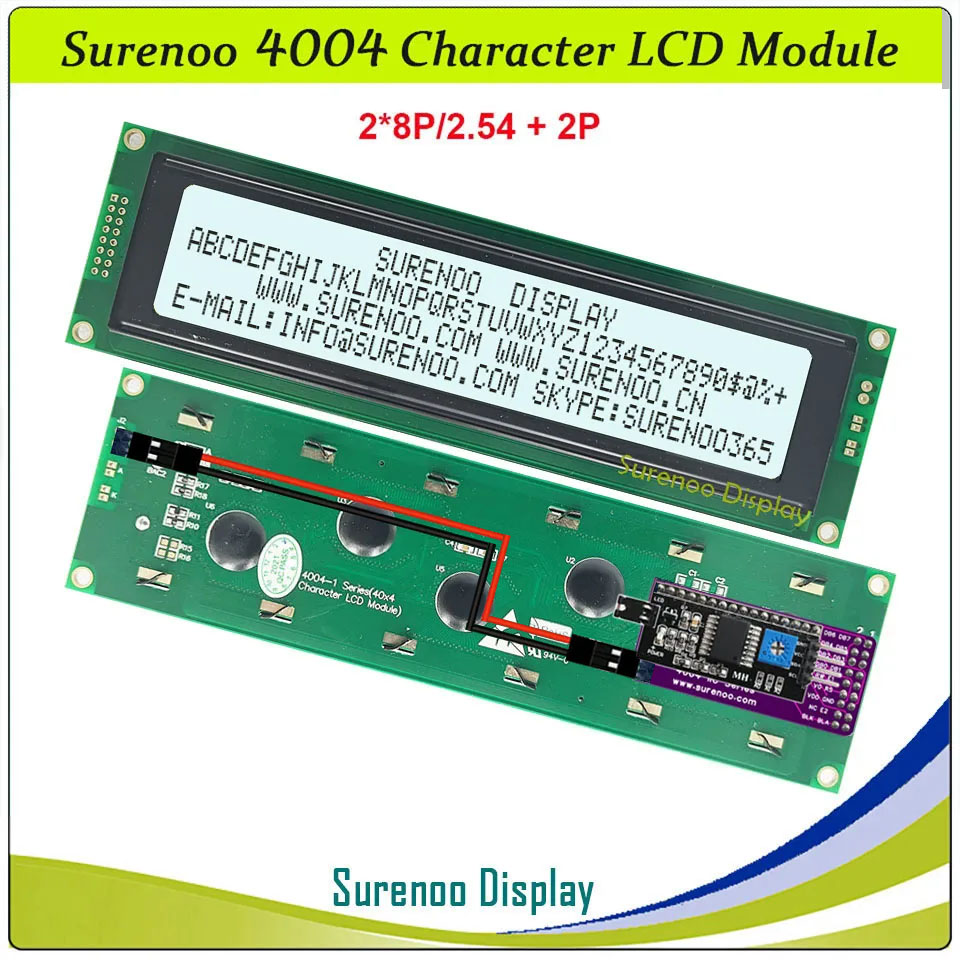

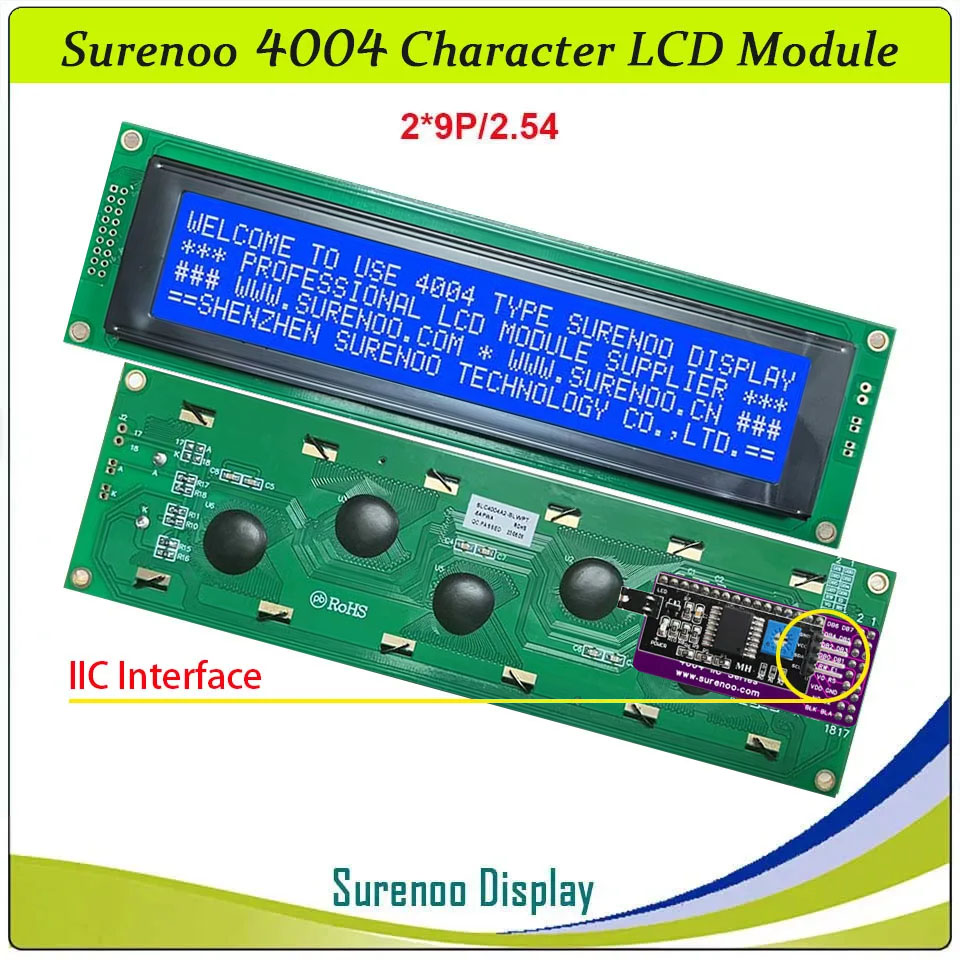

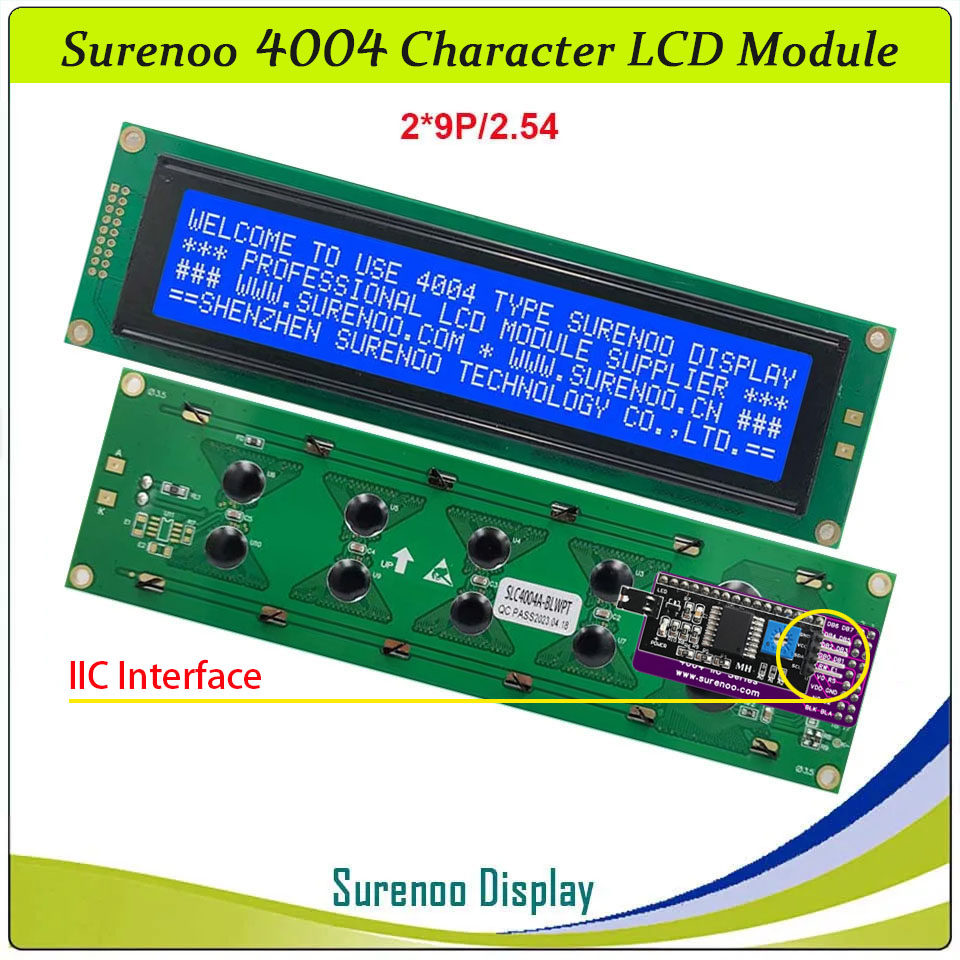

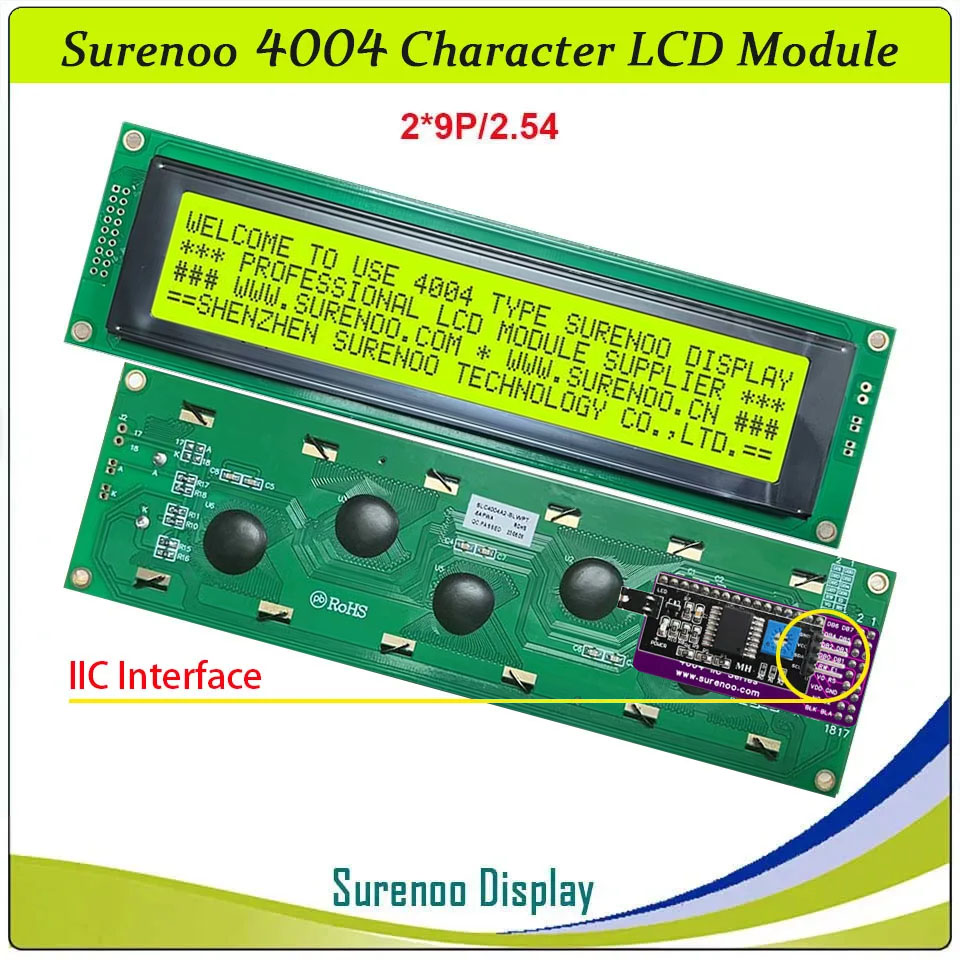

    SLC4004A is 40 characters wide, 4 rows character lcd module, AIP31066 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31066 datasheet for the full character set. It's 5V or 3.3V power supply, and I2C adapter board is optional for Arduino.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.

    • Specification
    Gross Weight  0.160Kg
    Manufacturer Surenoo
    Display Type Character LCD Module
    Continuity Supply More than 10 years
    Part No. SLC4004A
    Display Format 40x4 Character

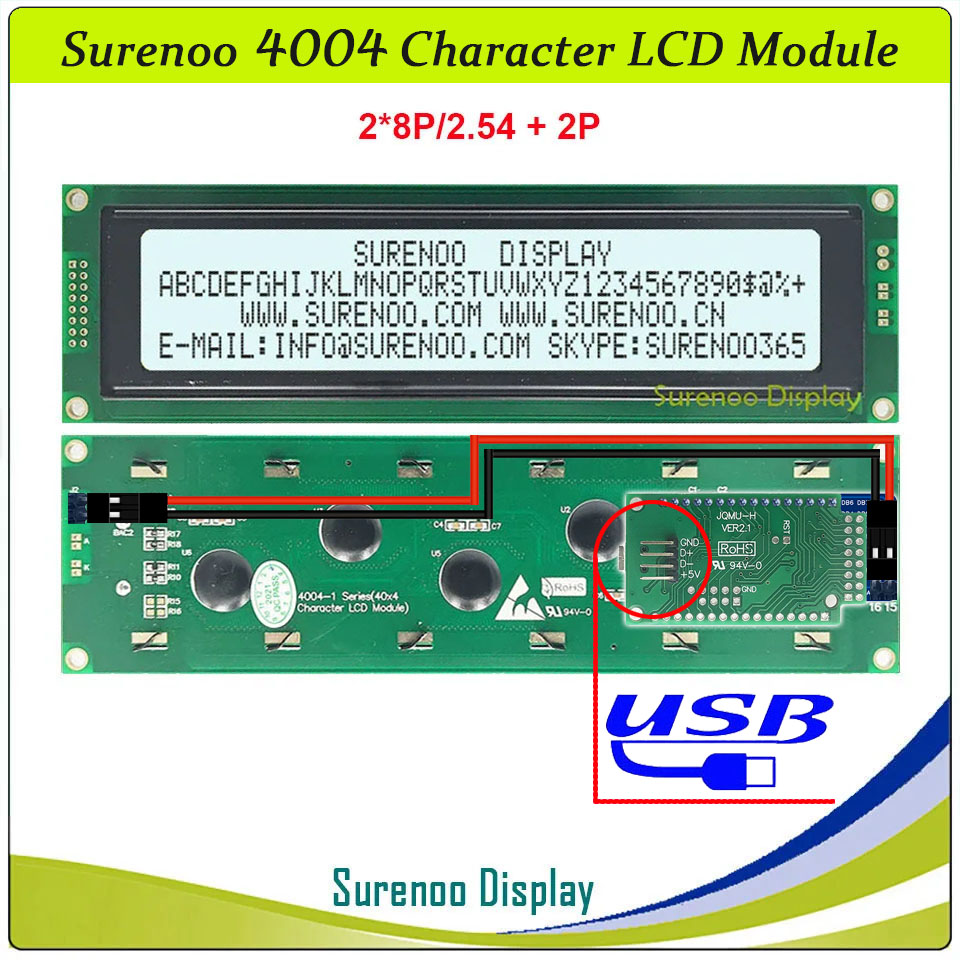

    Interface 6800 4-bit Parallel, 6800 8-bit Parallel, IIC, LCD2USB Interface
    IC or Equivalent AIP31066, ST7066 or Equal
    Fonts English-Japanese
    Voltage(Type) 5.0V in default, 3.3V is Optional

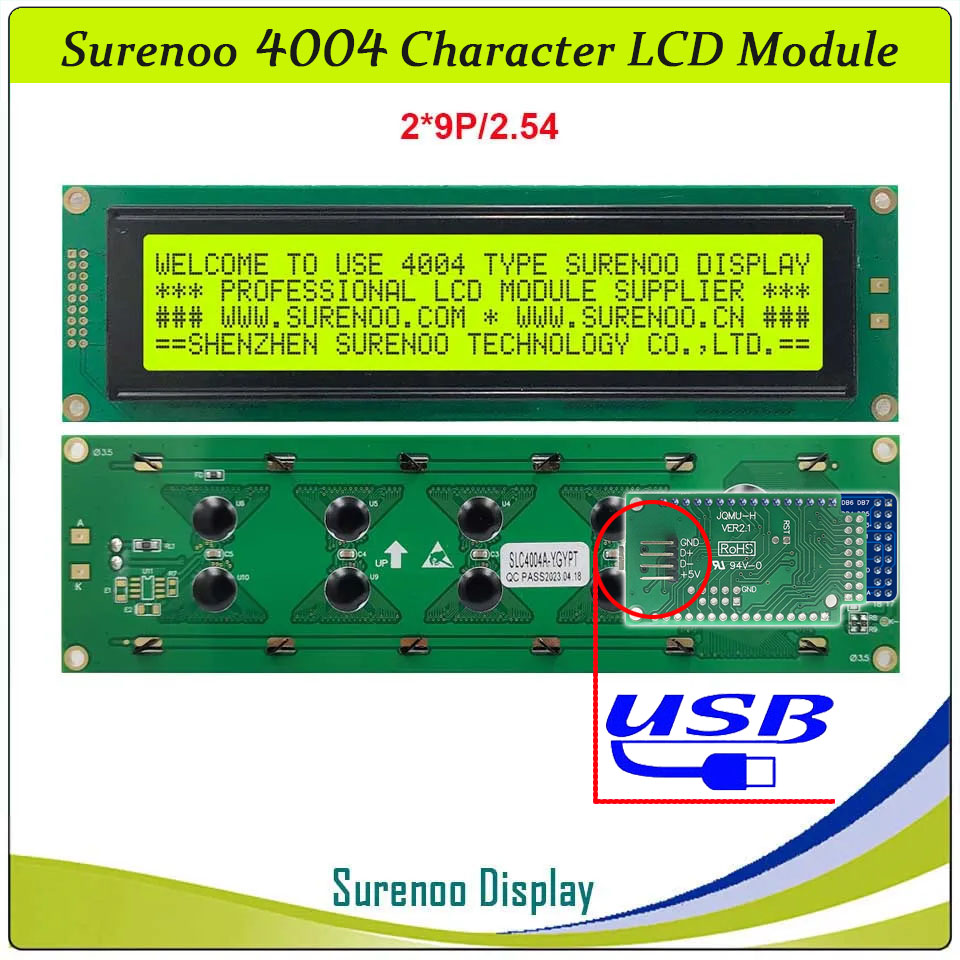

    Connection 2X9P/2.54 Pin Header
    Outline Dimension 190.00(W)x54.00(H)x13.50(T)mm
    Visual Area 147.00x30.00mm
    Active Area 140.45x23.16mm

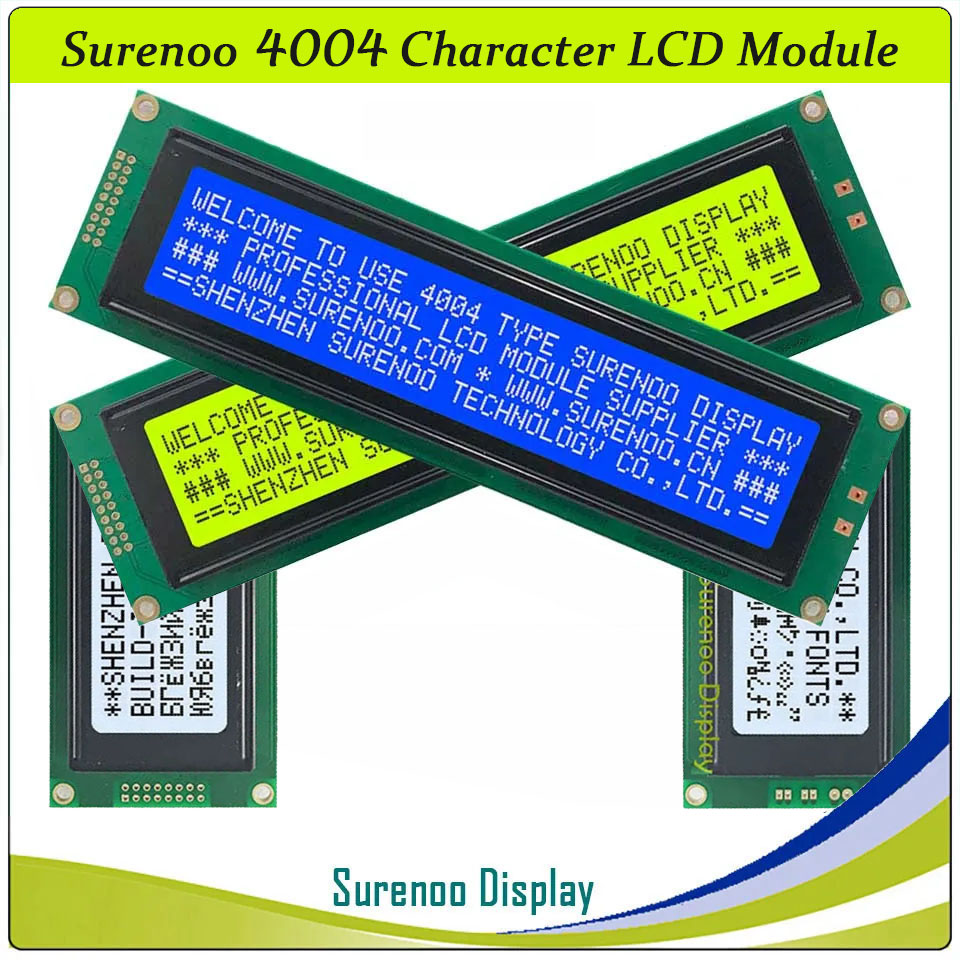

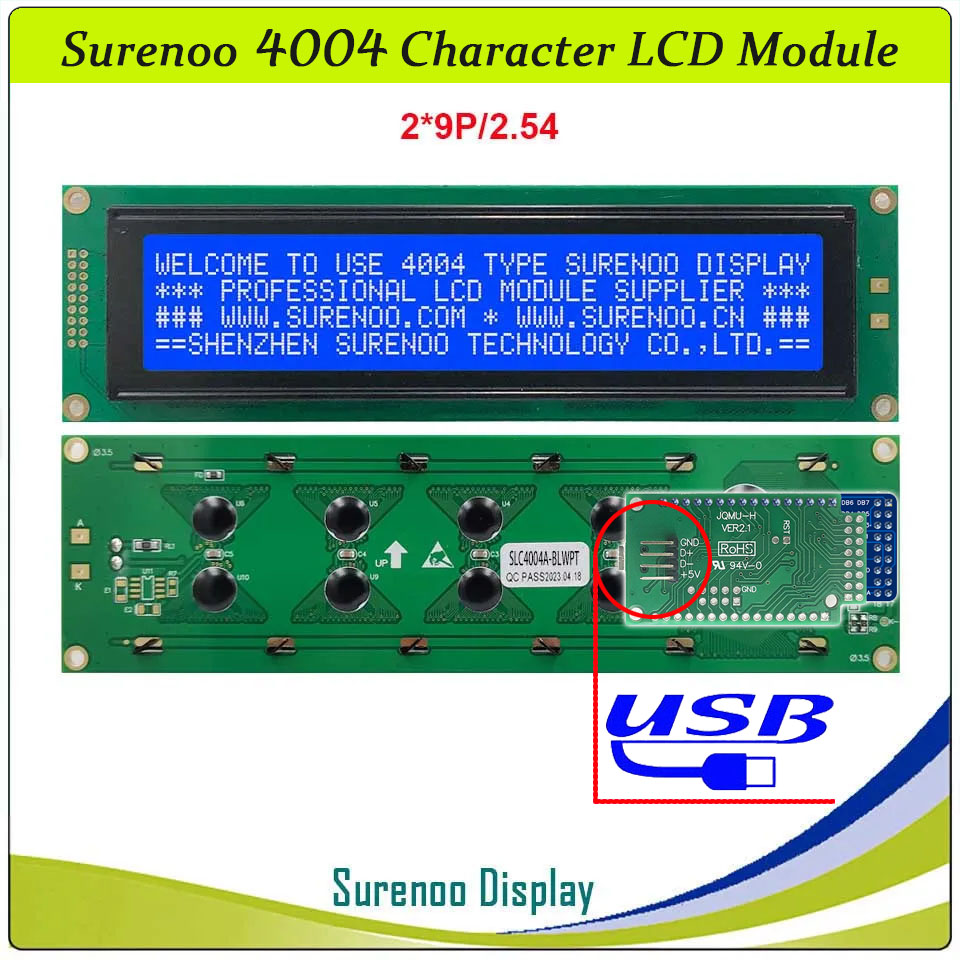

    Display Type STN LCD-Yellow Green, STN Blue Negative, FSTN Positive
    Backlight Type (LED) Yellow Green, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃

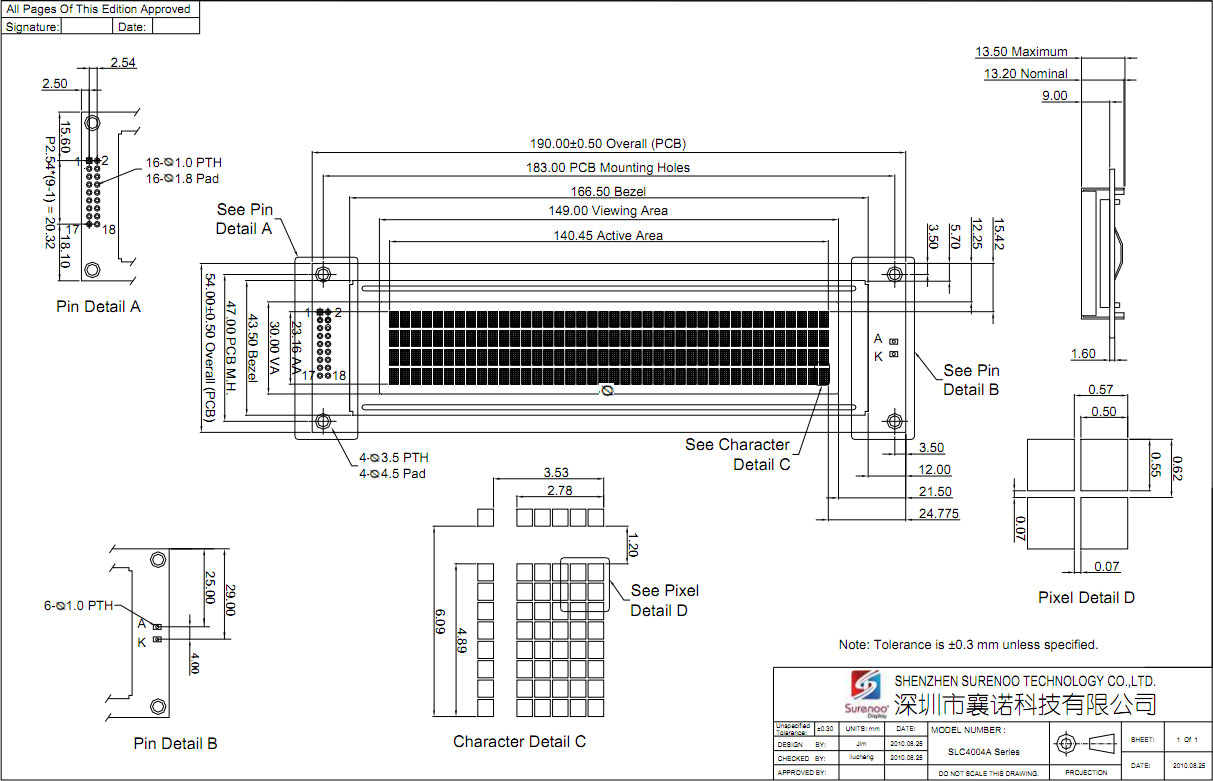

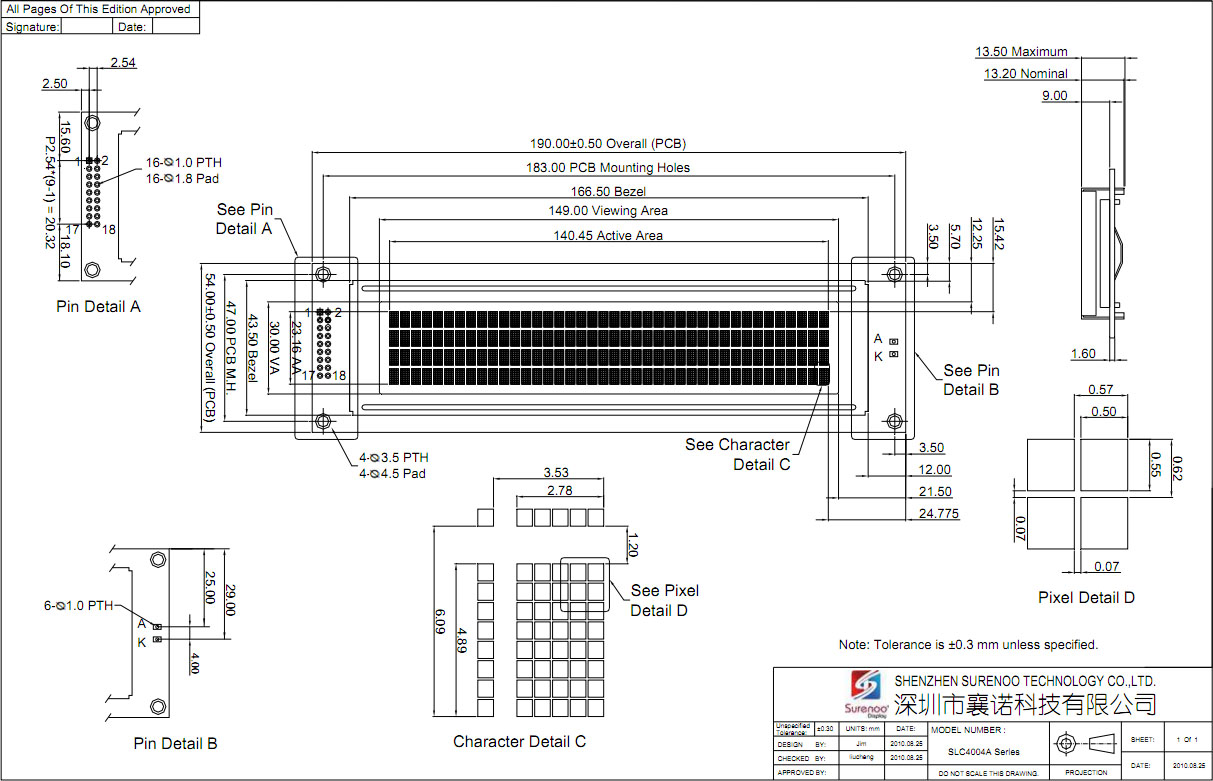

    • Outline Drawing

    • Interface
    Pin No.
    		 Symbol
    		 Decription

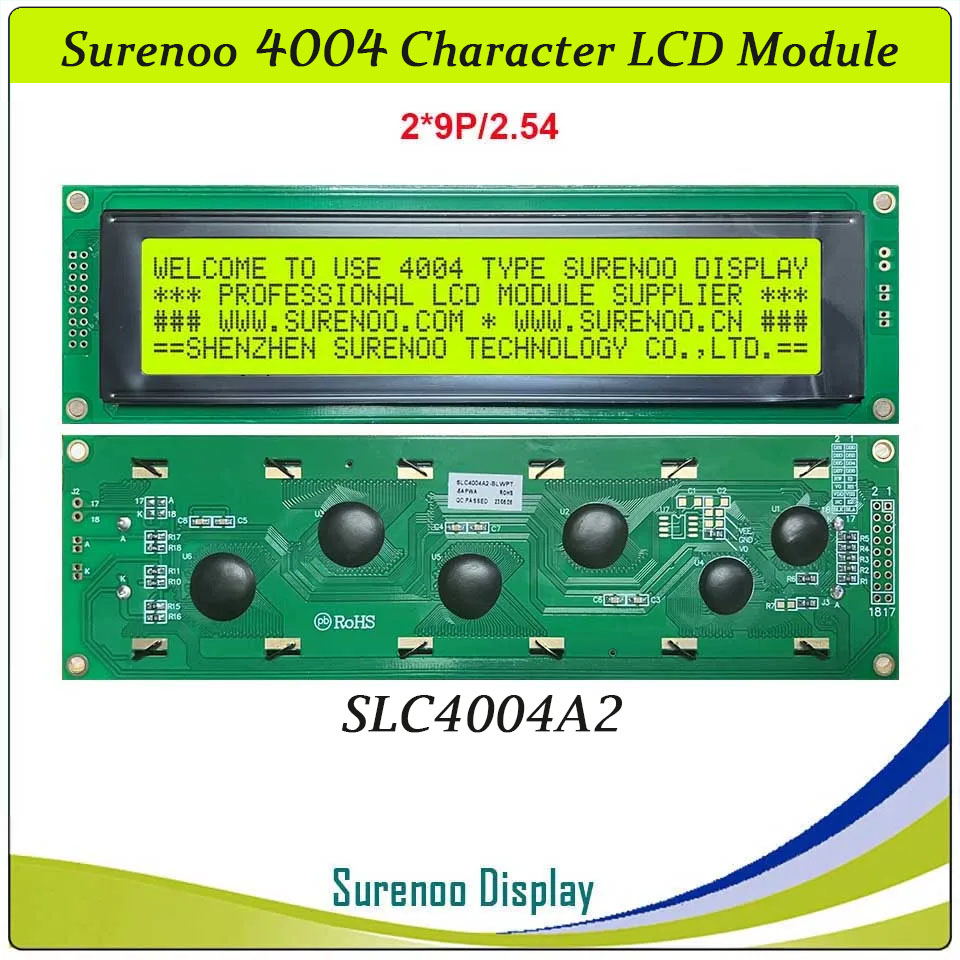

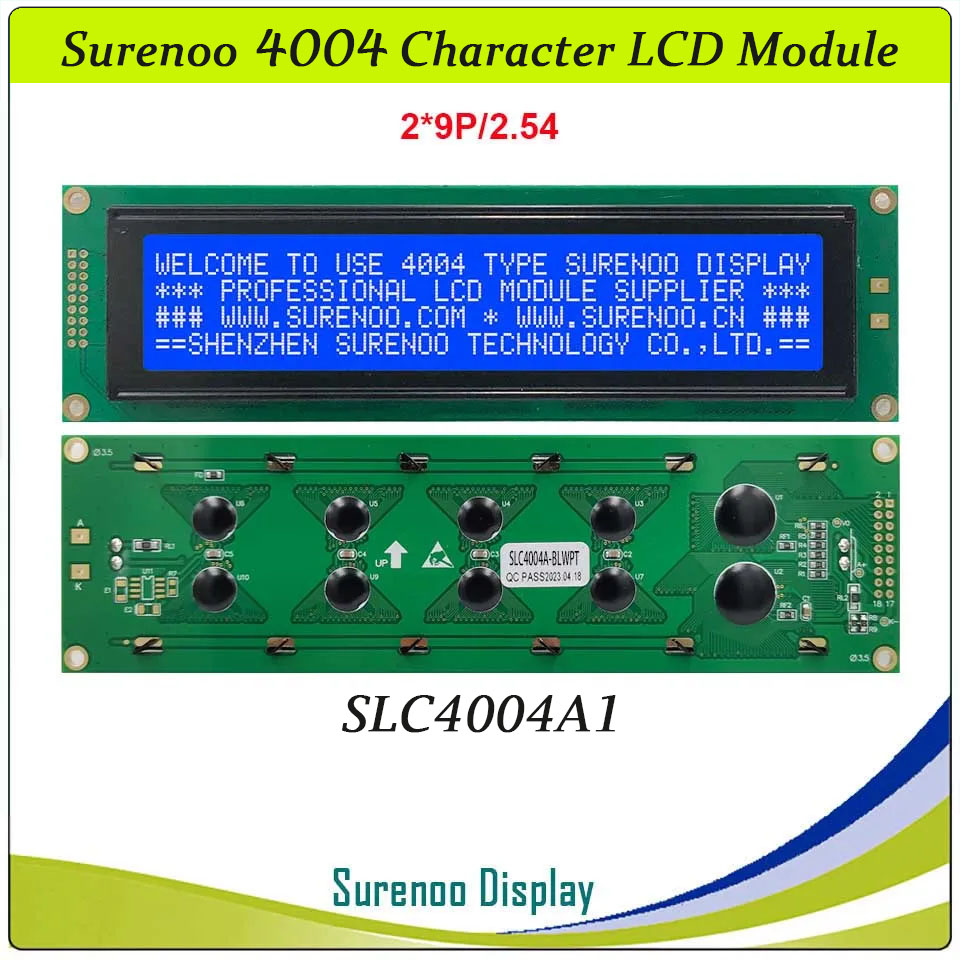

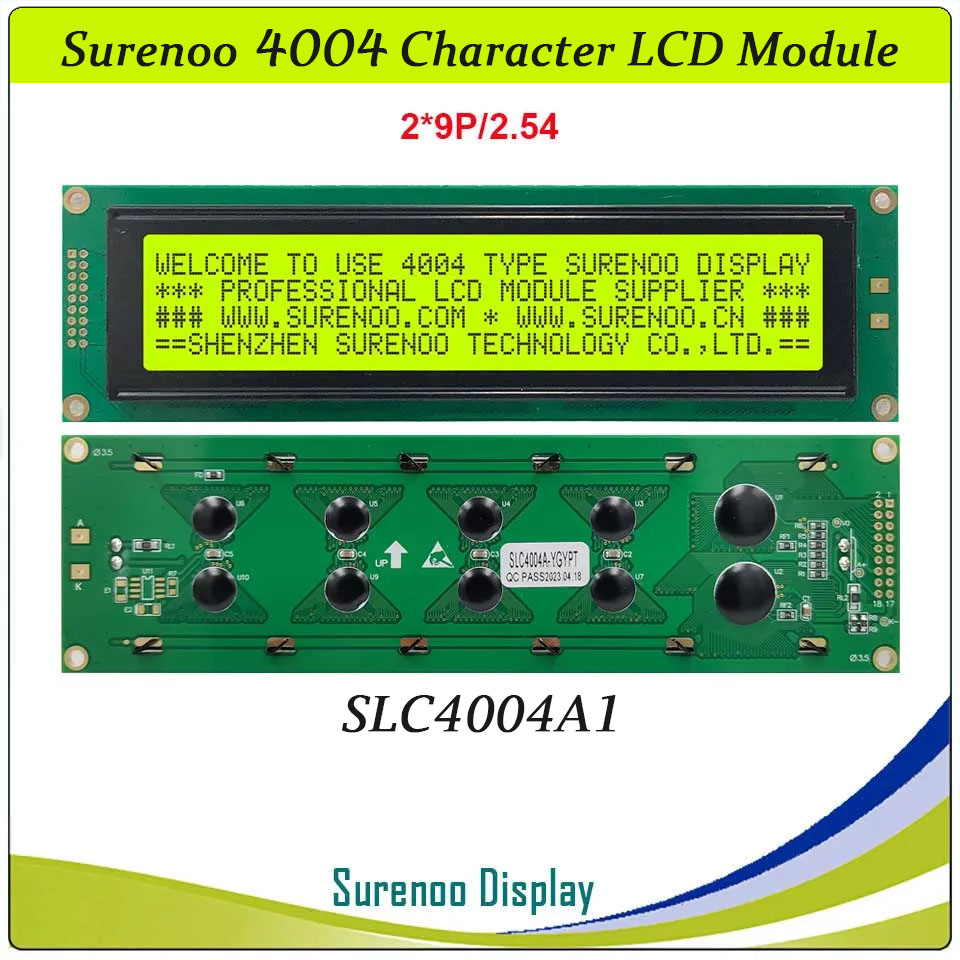

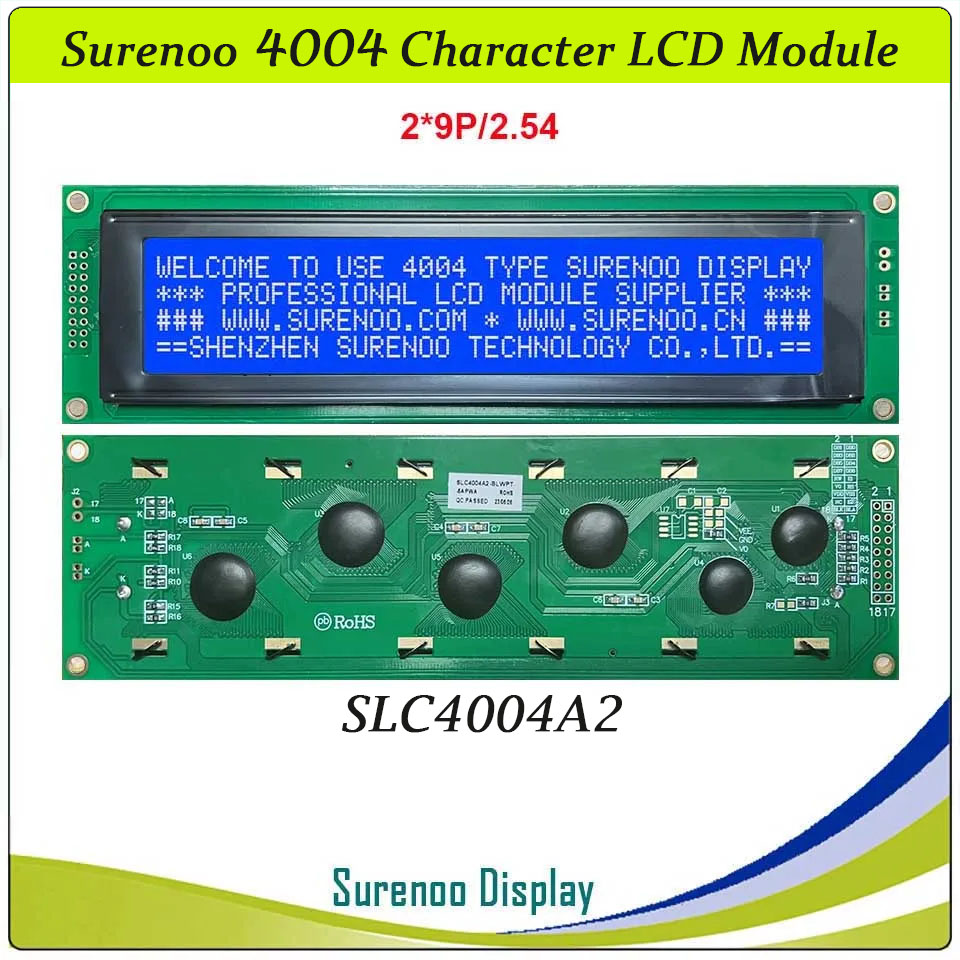

    SLC4004A1(B) SLC4004A2
    1-8 DB7-DB0 DB0-DB7 Data Bus
    9 E1 Enable Signal
    10 R/W Read / Write (H: Read Mode, L: Write Mode)
    11 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
    12 Vee Input Voltage for LCD
    13 VSS Ground 0V
    14 VCC Logic Power Supply
    15 E2 Enable Signal
    16 NC No Connection
    17 LED_A Backlight Anode
    18 LED_K Backlight Cathode
