SLC1602F PCB=80.00X36.00MM 1602 16*2 Surenoo Character LCD Module Display Screen Panel Serial RS232 UART CMOS STN Yellow Green Blue Negative with White LED Backlight For Arduino PLC PC

Model No.: SLC1602F
Display Format: 16X02 Characters
PCB Size: 80.00X36.00MM
Interface: RS232 / UART
34 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLC1602F is 16 characters wide, 2 rows character lcd module,  build-in RS232 or UART interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31066 datasheet for the full character set. It's 5V power supply.

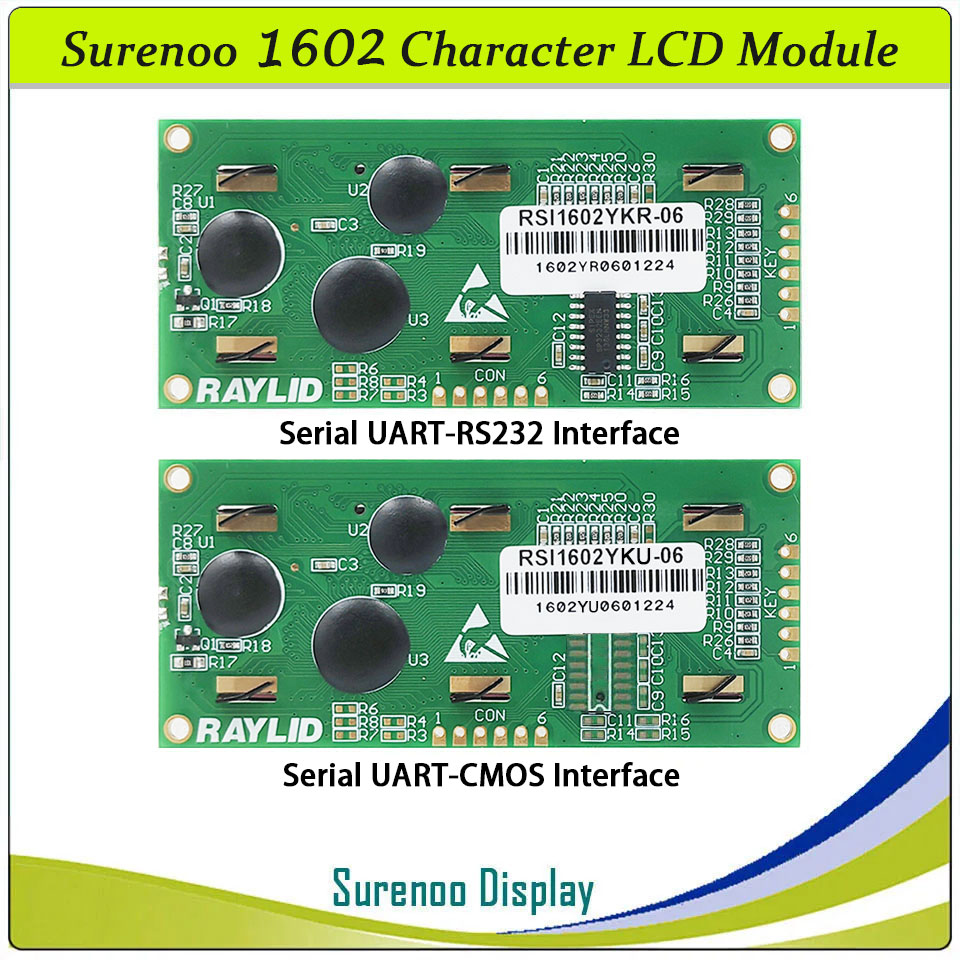

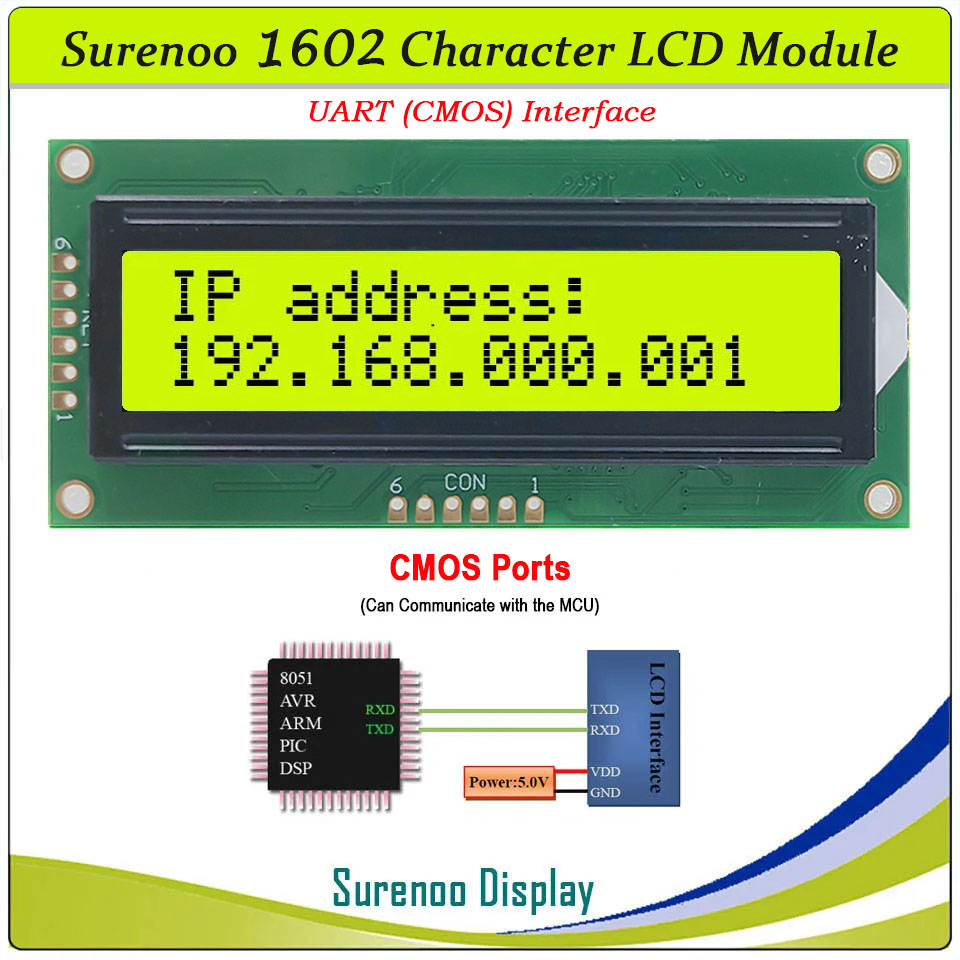

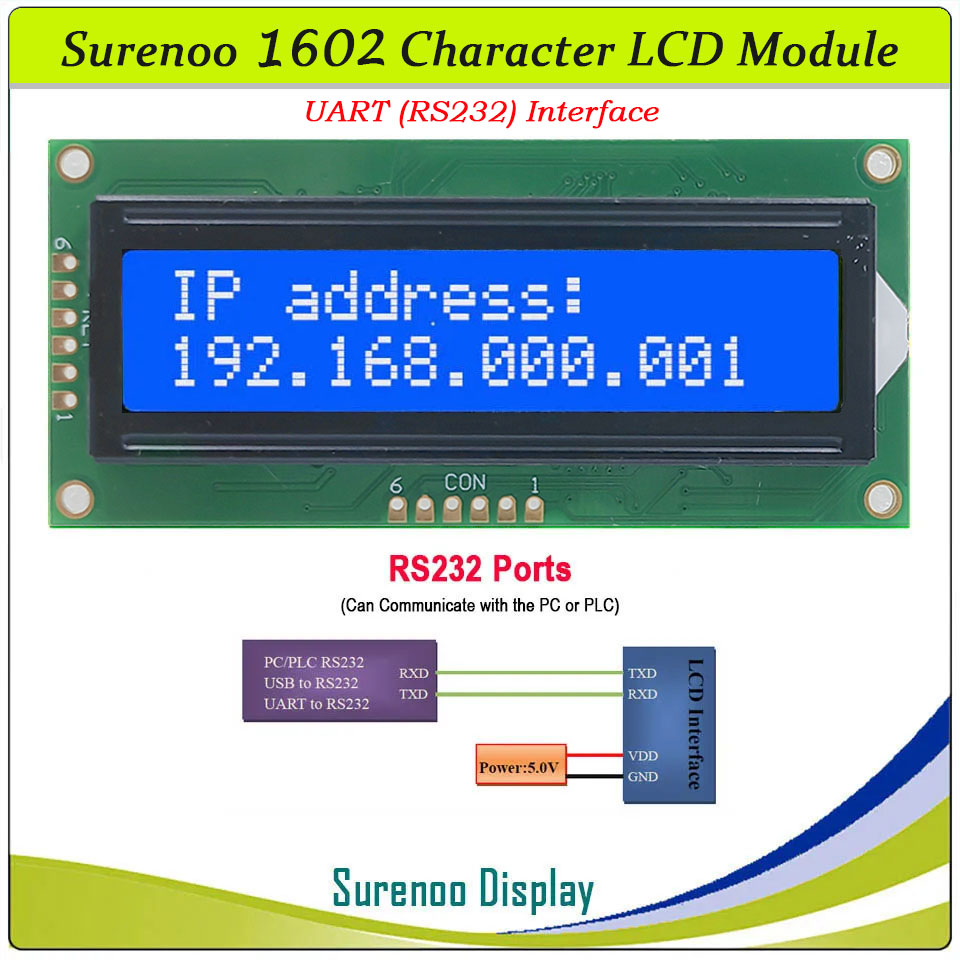

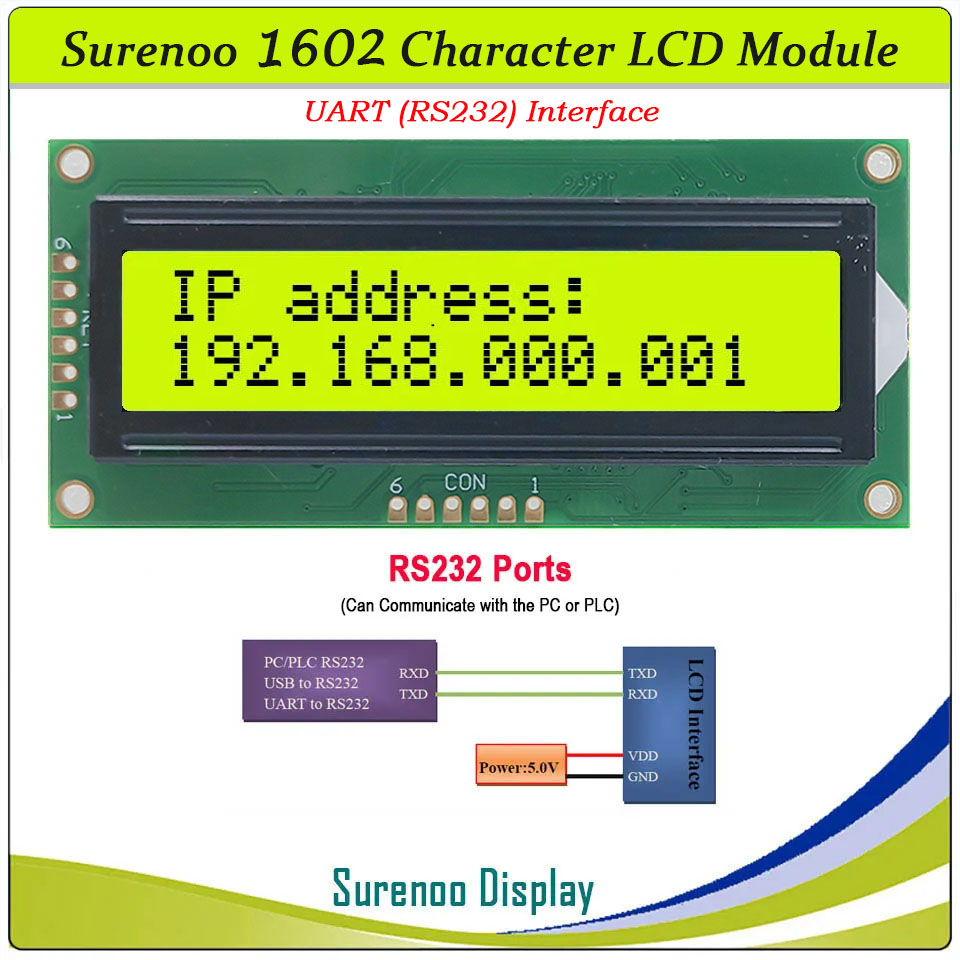

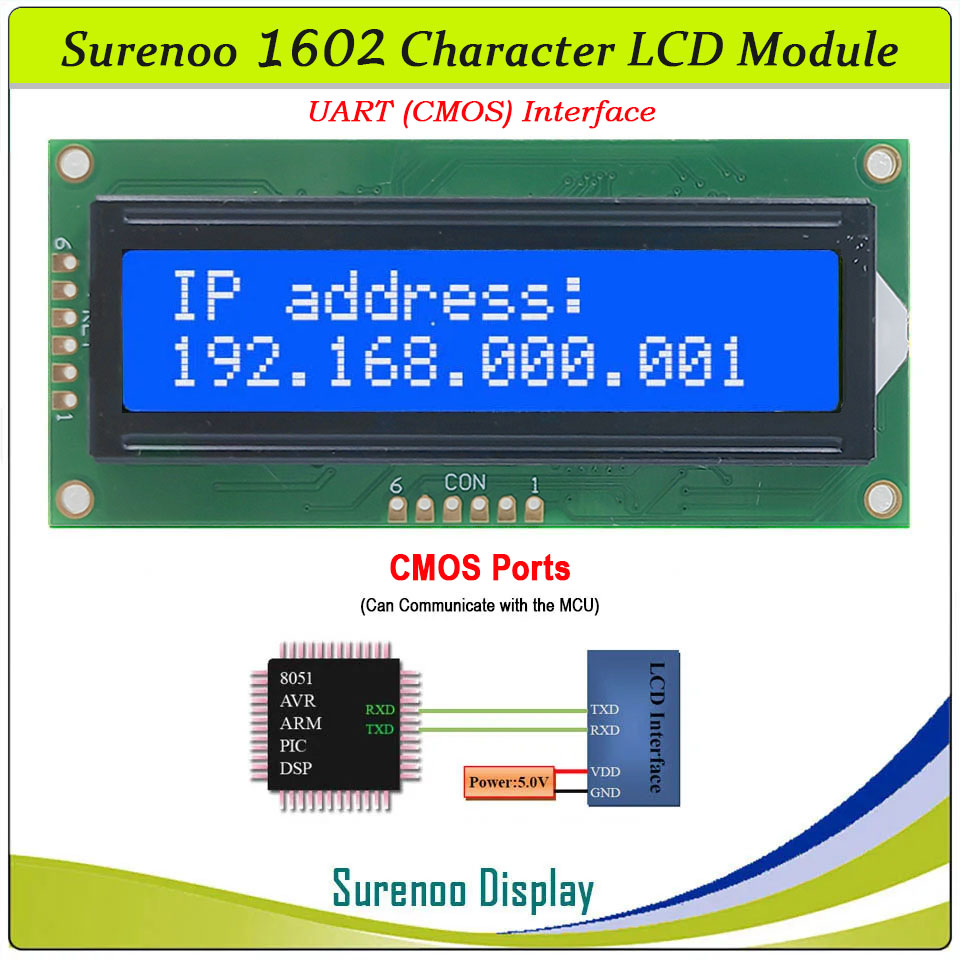

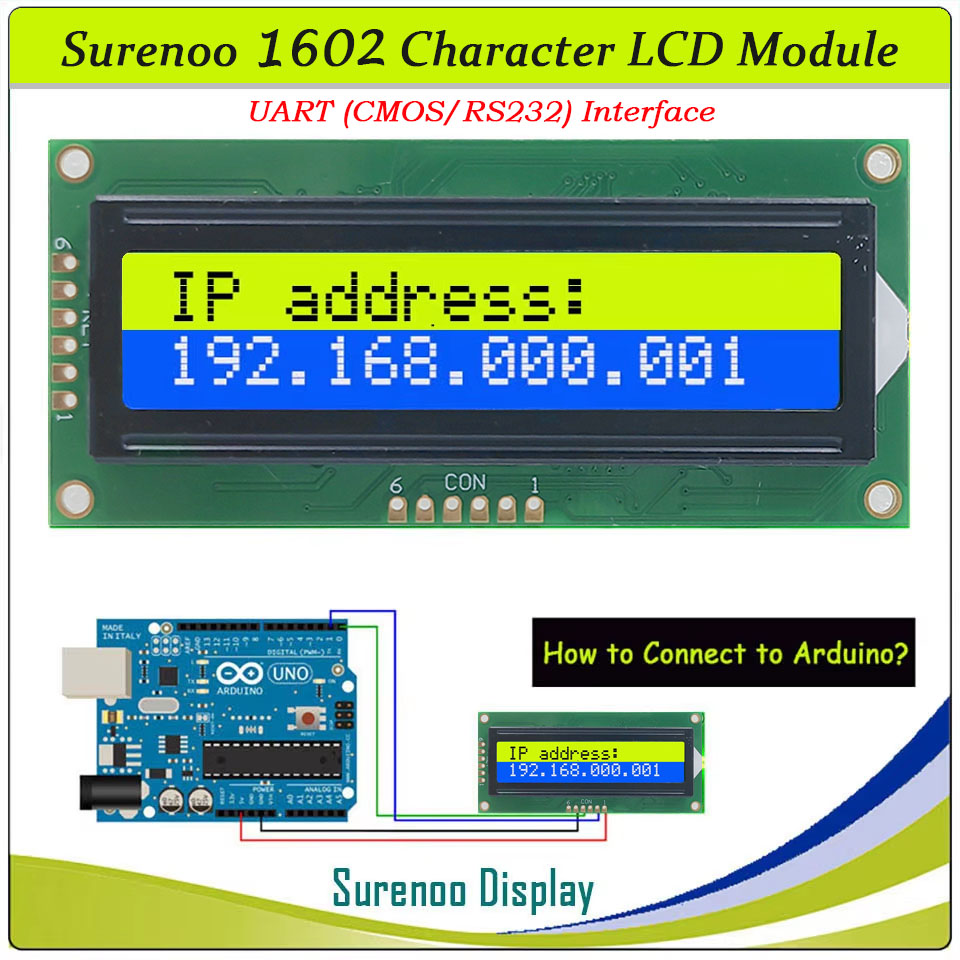

    RS232 is easily controlled by MCU such as PC and PLC. UART can work with UART of Processor directly.
    • Specification
    Gross Weight  0.040Kg
    Manufacturer Surenoo
    Continuity Supply More than 10 years
    Part No. SLC1602F
    Display Format 16x2 Character
    Interface RS232 / UART
    Band Rate 9600b/s
    Data Bits 8 bit
    Parity / Stop Bits None / 1 bit
    Fonts English-Japanese
    Voltage(Type) 5.0V in default
    Connection 1X5P/2.54 Pin Header
    Outline Dimension 80.00(W)x36.00(H)x11.00(T)mm
    Visual Area 64.50x14.50mm
    Active Are 55.70x11.00mm
    Display Type STN Yellow Green, Blue Negative
    Backlight Type (LED) Yellow Green, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing


    • Interface
    Pin No. Symbol I/O Description
    RS232/UART Interface
    1 VDD P Power (+5.0V)
    2 RXD I Receive Data
    3 BUSY O Busy Signal, High is Busy
    4 TXD O Transmit Data
    5 GND P Ground
    KEY Interface
    1 KEY0 I KeyPad Scan Signal
    2 KEY1 I KeyPad Scan Signal
    3
    		 KEY2
    		 I
    		 KeyPad Scan Signal
    4
    		 KEY3
    		 I
    		 KeyPad Scan Signal
    5
    		 KEY4
    		 I
    		 KeyPad Scan Signal
    6 GND
    		 P
    		 Ground

    • Application

    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SLC1602F PDF 2013-03-17 Standard 1602 Character LCD Module
    2 Tools & Code Tools & Code ZIP 2009-07-19 Tools & Code for RS232/UART 1602 Display
