Model No.: SLC1602N
Display Format: 16X02 Characters
PCB Size: 53*20MM
Controller: AIP31066, ST7066 or Equal
98 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLC1602N is 16 characters wide, 2 rows character lcd module, AIP31066 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31066 datasheet for the full character set. It's 5V or 3.3V power supply, and I2C adapter board is optional for Arduino.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems,industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.020Kg
    Manufacturer Surenoo
    Display Type Character LCD Module / IIC Display
    Continuity Supply More than 10 years
    Part No. SLC1602N
    Display Format 16x2 Character
    Interface 6800 4-bit Parallel, 6800 8-bit Parallel, Serial IIC
    IC or Equivalent AIP31066, ST7066 or Equal
    Fonts English-Japanese
    Voltage(Type) 5.0V in default
    Connection 1X16P/1.0 FFC
    Outline Dimension 53.00(W)x20.00(H)x8.10(T)mm
    Visual Area 36.00x10.00mm
    Active Are 34.10x7.40mm
    Display Type STN Yellow Green, STN Blue Negative, FSTN Positive
    Backlight Type (LED) Yellow Green, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃

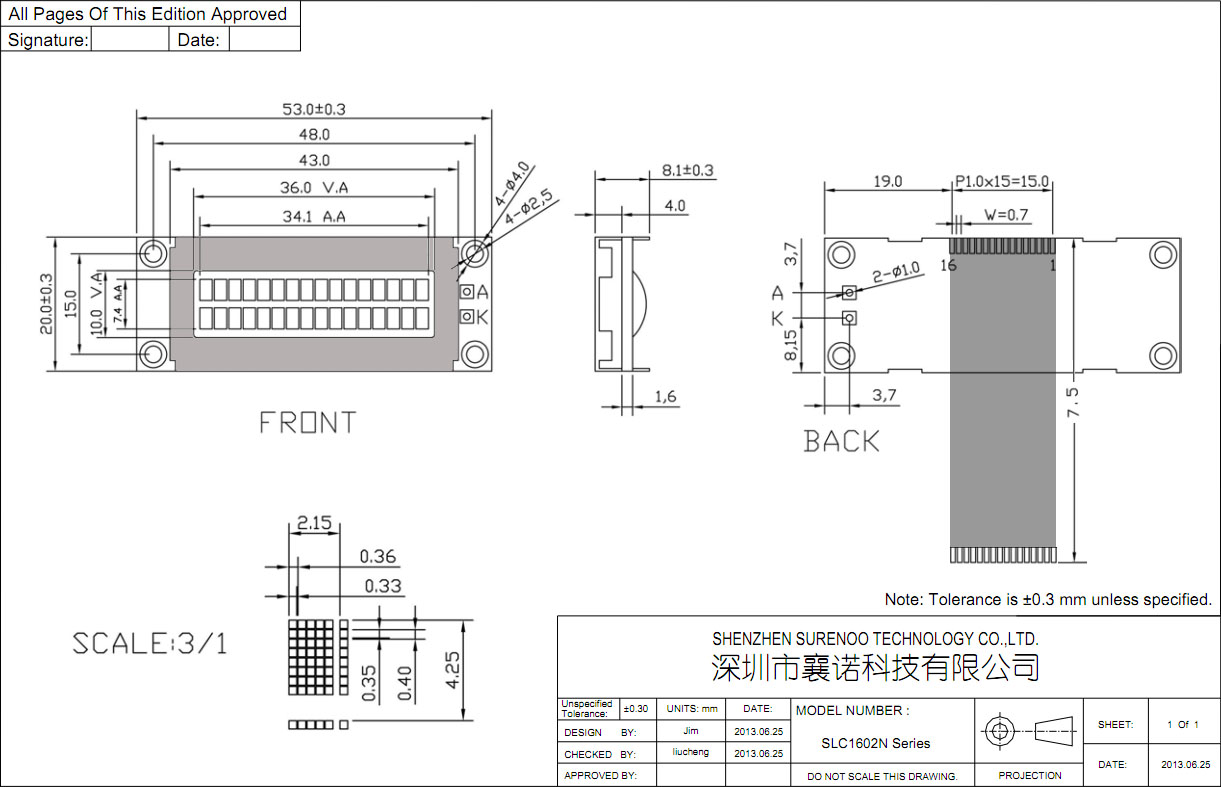

    • Outline Drawing

    • Interface
    Pin No. Pin Name Description
    1 VSS Ground 0V
    2 VDD Logic Power Supply
    3 V0 Operating voltage for LCD
    4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
    5 R/W Read / Write (H: Read Mode, L: Write Mode)
    6 E Enable Signal
    7-14 DB0-DB7 Data Bus
    15 LED_A Backlight Anode
    16 LED_K Backlight Cathode
