SLC0801B PCB=39.80X27.50MM 0801 8*1 Surenoo Character LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel Serial IIC I2C AIP31066 SPLC780D ST7066 Controller STN Yellow Green LED Backlight

Model No.: SLC0801B
Display Format: 08X01 Characters
PCB Size: 39.80X27.50MM
Controller: AIP31066, ST7066 or Equal
64 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLC0801B is 8 characters wide, 1 row character lcd module, AIP31066 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31066 datasheet for the full character set. It's 5V or 3.3V power supply, and I2C adapter board is optional for Arduino.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.020Kg
    Manufacturer Surenoo
    Display Type Character LCD Module
    Continuity Supply More than 10 years
    Part No. SLC0801B
    Display Format 8x1 Characters
    Interface 6800 4-bit Parallel, 6800 8-bit Parallel
    IC or Equivalent AIP31066, ST7066 or Equal
    Fonts English-Japanese, Other Fonts is Optional for Bulk Order.
    Voltage(Type) 5.0V in default
    Connection 1*16P/2.0 Pin Header
    Outline Dimension 39.80(W)x27.50(H)x10.50(T)mm
    Visual Area 33.20x10.00mm
    Active Area
    		 29.44x6.24mm
    Display Type STN LCD-Yellow Green
    Backlight Type (LED) Yellow Green
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃

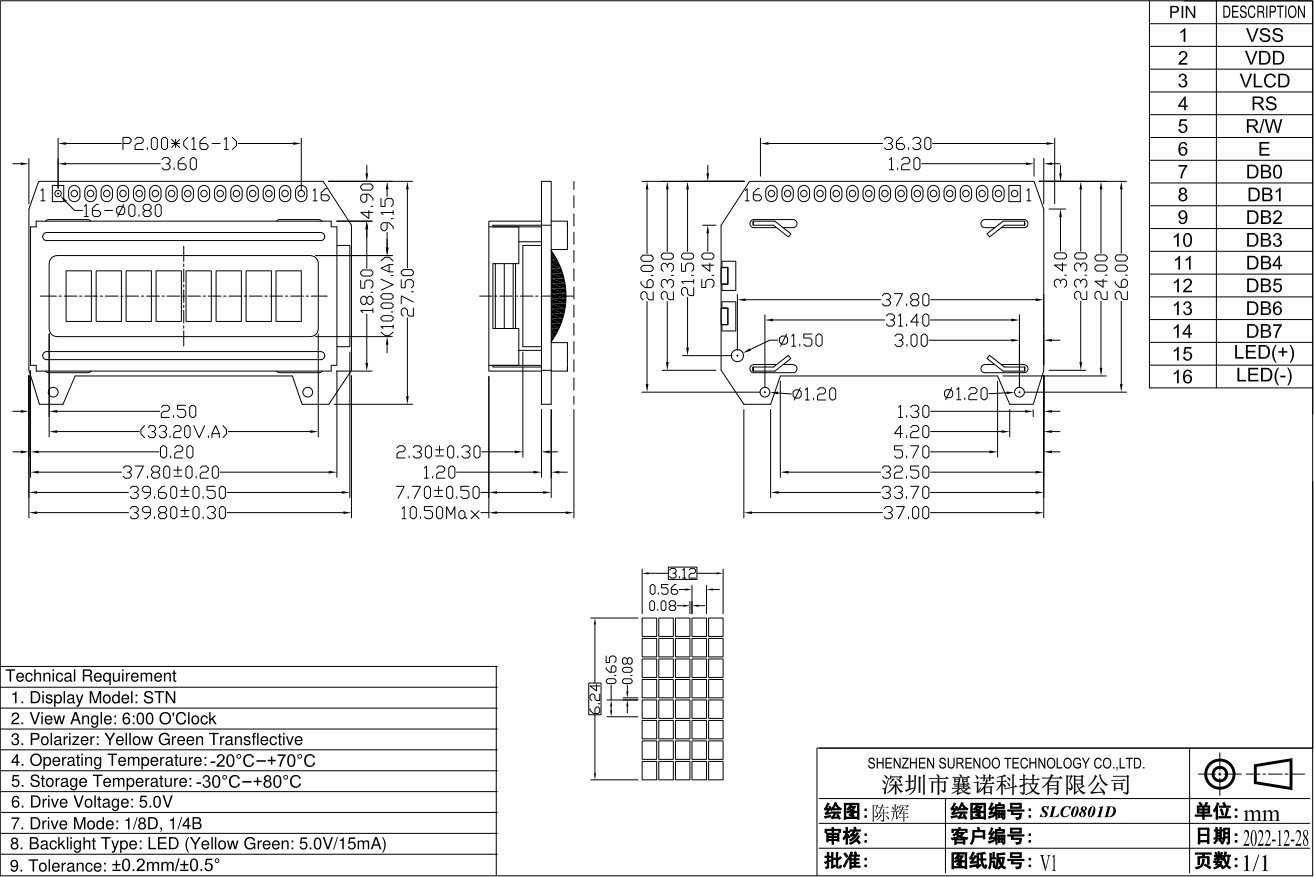

    • Outline Drawing

    • Interface
    Pin No. Pin Name Description
    1 VSS Ground 0V
    2 VDD Power Supply for LCD
    3 V0 Operating voltage for LCD
    4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
    5 R/W Read / Write (H: Read Mode, L: Write Mode)
    6 E Enable Signal
    7-14 DB0-DB7 Data Bus
    15 LED_A Backlight Anode
    16 LED_K Backlight Cathode
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SLC0802B PDF 2013-03-17 Standard 0801 Character LCD Module
    2 Controller AIP31066 PDF 2008-09-24 Character LCD Controller, Compatible with SPC780, ST7066, HD44780, ......
    3 51 Library 51 Library PDF 2006-09-11 STC86S52 6800 4/8-Bit Parallel Library
