Model No.: SLC0802A
Display Format: 08X02 Characters
PCB Size: 40.00X35.80MM
Controller: AIP31066, ST7066 or Equal
161 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLC0802A is 8 characters wide, 2 row character lcd module, AIP31066 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31066 datasheet for the full character set. It's 5V or 3.3V power supply, and I2C adapter board is optional for Arduino.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.025Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module / IIC Display
    Continuity Supply More than 10 years
    Part No. SLC0802A
    Display Format 8x2 Characters
    Interface 6800 4-bit Parallel, 6800 8-bit Parallel, Serial IIC
    IC or Equivalent AIP31066, ST7066 or Equal
    Fonts English-Japanese Other Fonts is Optional for Bulk Order.
    Voltage(Type) 5.0V in default, 3.3V is Optional
    Connection 2*8P/2.54 Pin Header
    Outline Dimensio A1: 40.00(W)x35.80(H)x7.50(T)mm / A2: 40.00(W)x35.80(H)x12.00(T)mm
    Visual Area 30.00x14.00mm
    Active Area
    		 25.74x9.48mm
    Display Type STN LCD-Yellow Green, STN Blue Negative
    Backlight Type (LED) Yellow Green, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃

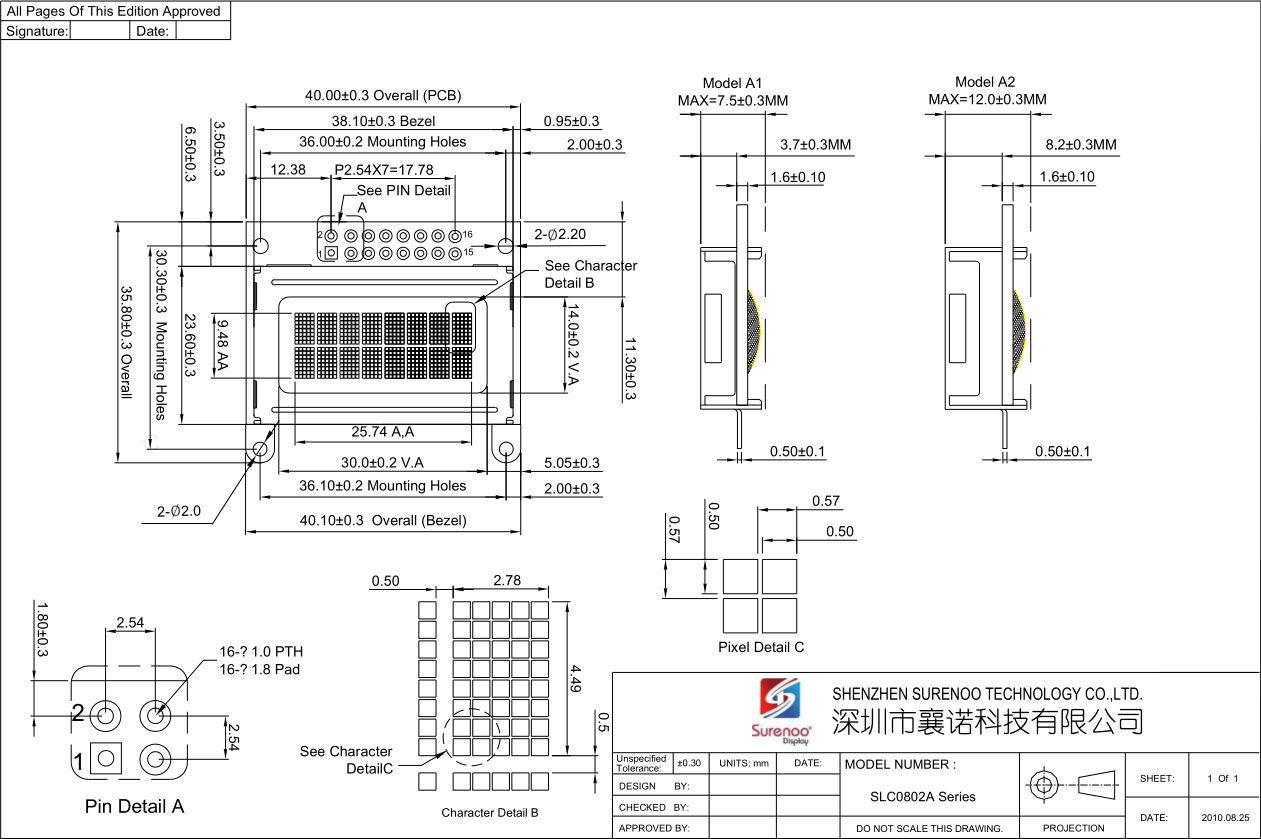

    • Outline Drawing

    • Interface
    Pin No. Pin Symbol Description
    1 VSS Ground 0V
    2 VDD Power Supply for LCD
    3 V0 Operating voltage for LCD
    4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
    5 R/W Read / Write (H: Read Mode, L: Write Mode)
    6 E Enable Signal
    7-14 DB0-DB7 Data Bus
    15 LED_A Backlight Anode
    16 LED_K Backlight Cathode
