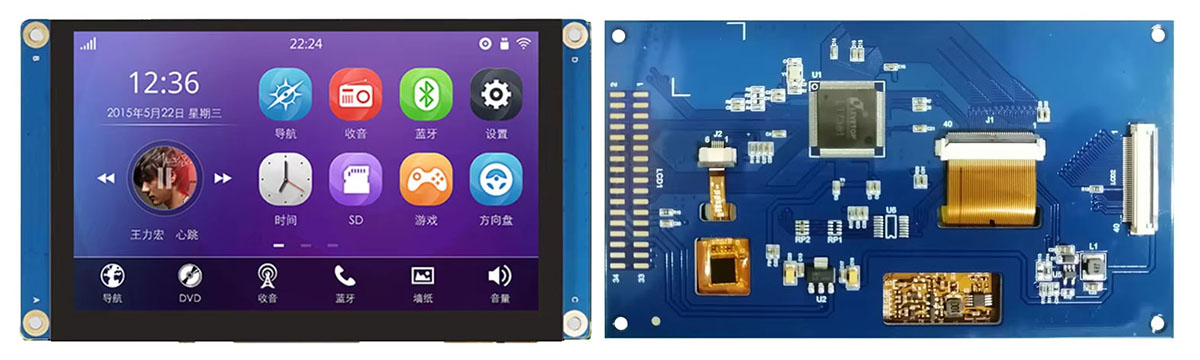

Surenoo LT7381 MCU Display 5.0" inch 800*480 TN MCU Parallel Interface LCD Display Module Screen Panel Capacitive Touch Panel CTP Optional for STM32 ARM 51 Development Board

WISHLIST
Model No.: SMC050B-800480
Model Size: 5.0 Inch
Resolution: 800*480 TN
Interface: MCU Parallel (LT7381)
Touch Type: CTP
98 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
      • Overview
      Surenoo LT7381 MCU Display 5.0" inch 800*480 TN MCU Parallel Interface LCD Display Module Screen Panel Capacitive Touch Panel CTP Optional for STM32 ARM 51 Development Board
        • Product Parameters
        Item of General Informatio Contents Unit
        LCD Display Size (Diagonal) 5.0 Inch
        Recommended Viewing Direction N: (6:00 O'Clock) O'Clock
        Model No. SMC050A-800480-TN -
        MPN No. SUR50WV011-WCT
        		 -
        LCM Module Size (W×H×T) 136.00×78.05×7.28 MM
        Active Area (W×H) 108.00×64.80
        		 MM
        Number of Pixels (Resolution) 800(RGB)×480 Pixels
        LCD Driver IC LT7381 -
        Interface Type MCU 16-/8- Bit Parallel -
        Color Numbers 16.7M -
        Backlight Type White LED -

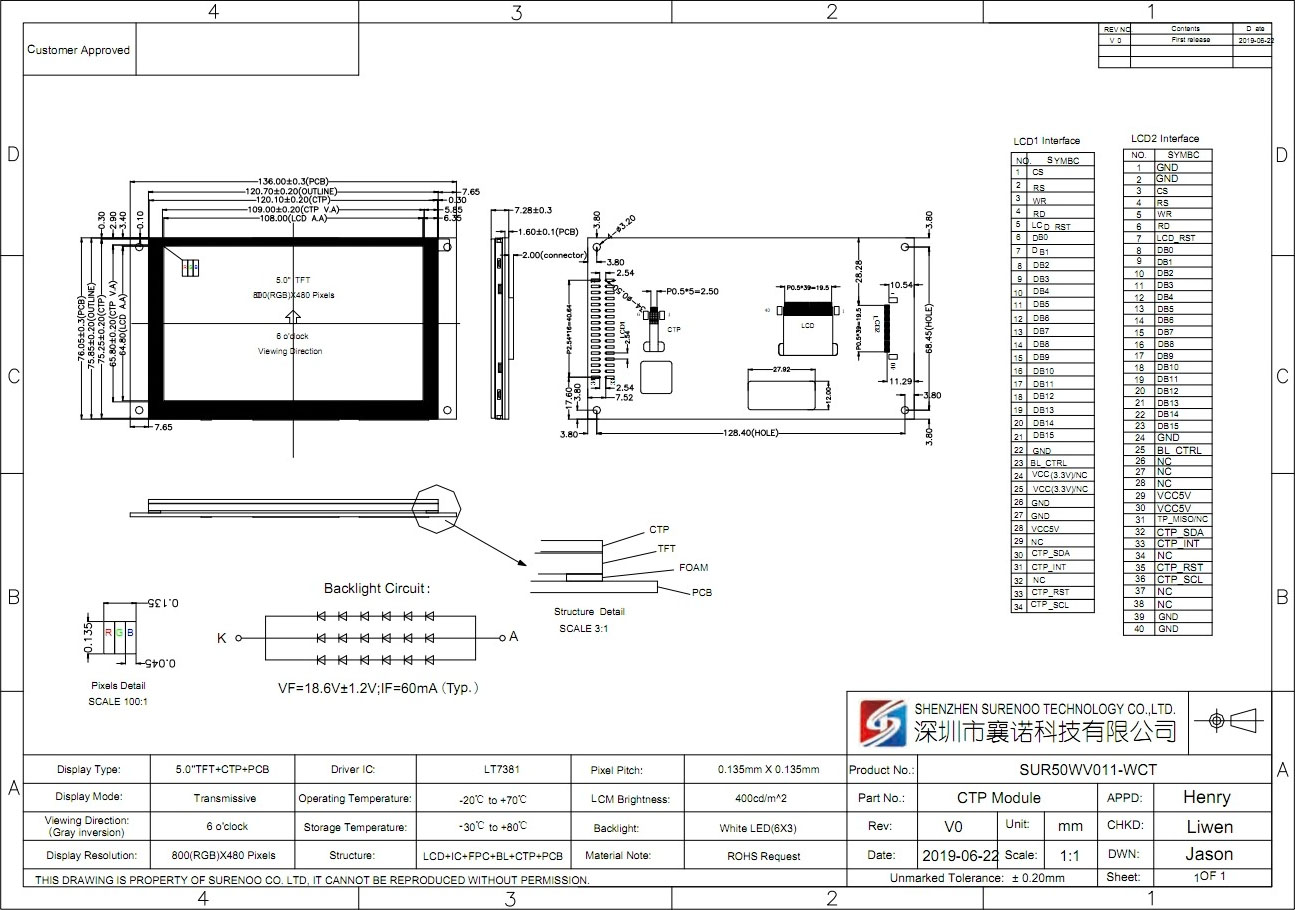

        • External Dimensions (SMC050A-800480-TN-CTP)

        • Interface Instruction


        LCD1 Interface (2X17P/2.54) LCD2 Interface (40P/0.5)
        NO. Symbol I/O DESCRIPTION NO. Symbol I/O DESCRIPTION
        - - - - 1~2 GND Power Power ground
        1 CS I Chip select 3 CS I Chip select
        2 RS I Data/Command select 4 RS I Data/Command select
        3 WR I Write strobe signal 5 WR I Write strobe signal
        4 RD I Read strobe signal 6 RD I Read strobe signal
        5 LCD_RST I LCD RESET signal, Low is active 7 LCD_RST I LCD RESET signal, Low is active
        6~21 DB0~DB15 I/O Data bus(D0:LSB; D15:MSB) 8~23 DB0~DB15 I/O Data bus(D0:LSB; D15:MSB)
        22 GND Power Power ground 24 GND Power Power ground
        23 BL_CTRL I Backlight control pin 25 BL_CTRL I Backlight control pin
        24~25 NC - No connection 26~28 NC - No connection
        26~27 GND Power Power ground - - - -
        28 VCC5V Power Module Power input (5V Typ.) 29~30 VCC5V Power Module Power input (5V Typ.)
        29 NC - No connection 31 TP_MISO/NC - No connection
        30 CTP_SDA I TP Serial Data Input 32 CTP_SDA I TP Serial Data Input
        31 CTP_INT I TP INT Interrupt Output 33 CTP_INT I TP INT Interrupt Output
        32 NC - No connection 34 NC - No connection
        33 CTP_RST I TP Chip reset pin 35 CTP_RST I TP Chip reset pin
        34 CTP_SCL I TP Clock Input 36 CTP_SCL I TP Clock Input
        - - - - 37~38 NC - No connection
        - - - - 39~40 GND Power Power ground
