SHD070J: QLED/IPS Display, 40P/0.5MM FPC Connector (HDMI), Thin and Light Design
Model No.: SHD070J-1024600-LTP (QLED/IPS)
Model Size: 7.0 Inch
Resolution: 1024*600 IPS/QLED
Interface: 40P/0.5MM FPC Connector (HDMI)
Touch Type: LTP
Thin and Light Design
18 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

    1. 7.0 inch QLED/IPS Display
    >>     170-degree wide view angle​
    >> True color
    >> Dynamic picture quality is excellent
    >> 5-point capacitive touch

    2. 1024x600 Resolution
    >> HD Vision
    >> Display is very delicate

    3. 40P/0.5MM FPC Connector (HDMI) video input interfaces
    >> High definition video display
    >> Can be used as an HDMI display
    >> Thin and Light Design

    4. Support multiple device access
    >> Can connect to mainstream development boards such as Raspberry Pi, Banana Pi, BB Black, etc
    >> Can connect to mainstream game consoles such as PS4, Xbox360, Switch, etc
    >> Can connect to mainstream TV boxes and digital cameras (display only)

    5. Supports multiple system displays
    >> Support systems such as Raspbian, Kali Linux, Ubuntu, Kodi, Win10 IOT, and touch free drive
    >> Support Win7/8/10/11 and other systems, touch free drive
    • Product Parameters
    Item of General Information Contents Unit
    LCD Display Size (Diagonal) 7.0" QLED/IPS Inch
    LCD Display Type
    		 TFT/TRANSMISSIVE
    		 -
    LCD Display Mode Normally Black
    		 -
    Recommended Viewing Direction QLED/IPS Full Viewing Angle O'Clock
    Model No. SHD070J-1024600-LTP (QLED/IPS)  -
    Resolutions 1024(RGB)*600 -
    Video Input Interface
    		 40P/0.5MM FPC Connector (HDMI) -
    Color Gamut
    		 IPS: 45% NTSC / QLED: 78% NTSC -
    Touch Type USB 5-Points Capacitive Touch Panel (CTP) -
    Backlight Type
    		 White LED -
    Luminance(TYP)
    		 350 CD/M2
    LCM Module Size (W×H×T) 173.00×102.00
    		 MM
    Active Area (W×H) 154.21×85.92
    		 MM

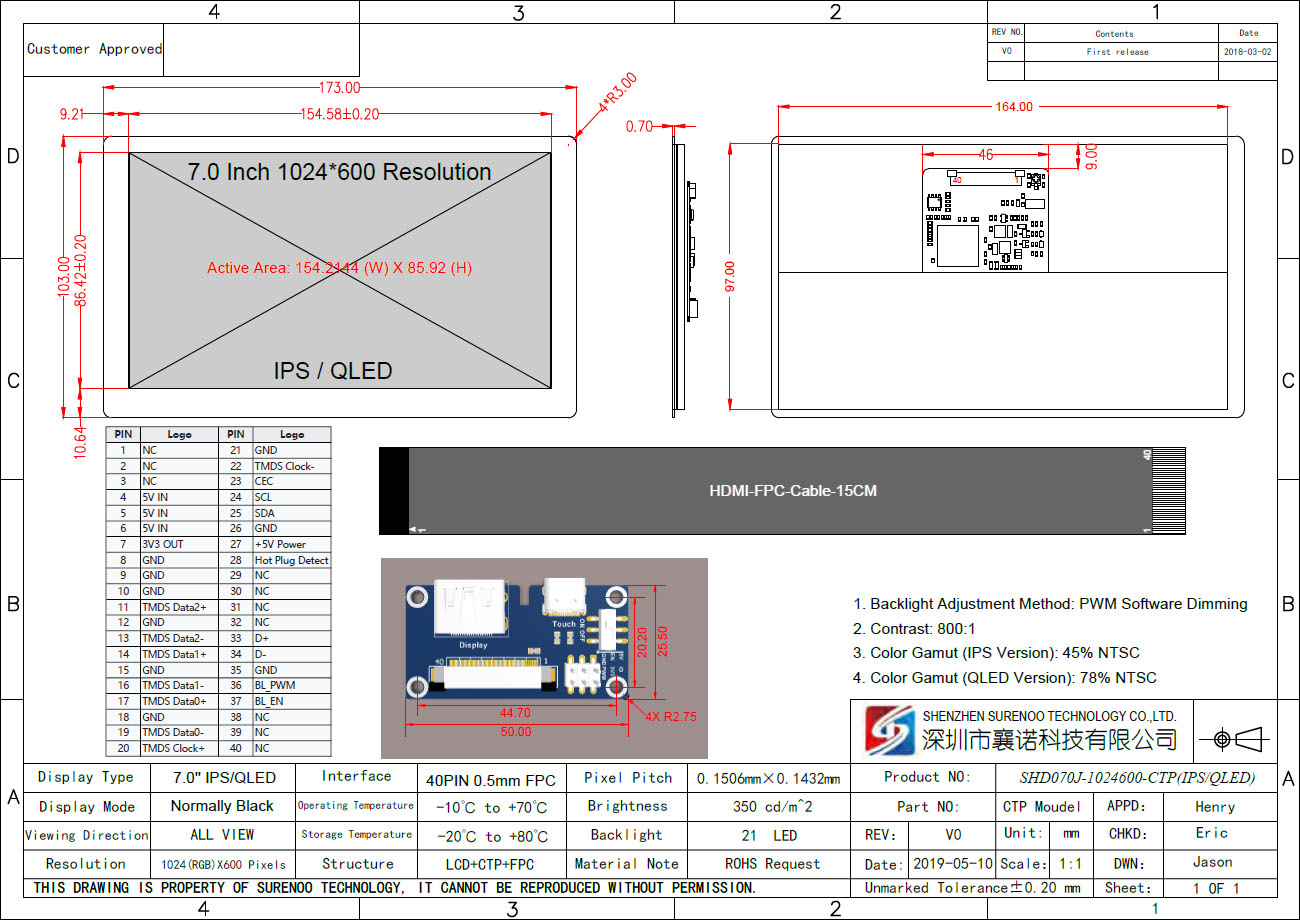

    • External Dimensions <SHD070J-1024600-LTP (QLED/IPS)>

    • Function & Interface <40P/0.5MM FPC Connector (HDMI)>
    PIN
    		 Symbol
    		 Function Description
    		 PIN Symbol Function Description
    1 NC Not connect  21 GND Ground (0V)
    2 NC Not connect 22 TMDS Clock- Differential data signal
    3 NC Not connect 23 CEC Consumer electronics control signals
    4 5V IN DC 5V power input 24 SCL I2C clock line, internal 10kΩ pull-up
    5 5V IN DC 5V power input 25 SDA I2C data line, internal 10kΩ pull-up
    6 5V IN DC 5V power input 26 GND Ground (0V)
    7 3V3 OUT DC 3.3V power output 27 +5V Power With HPD to achieve insertion detection
    8 GND
    		 Ground (0V) 28 Hot Plug Detect Hot plug detect signal
    9 GND
    		 Ground (0V)
    		 29 NC Not Connect
    10 GND
    		 Ground (0V)
    		 30 NC Not Connect
    11 TMDS Data 2+ Differential data signal 31 NC Not Connect
    12 GND Ground (0V) 32 NC Not Connect
    13 TMDS Data 2-
    		 Differential data signal
    		 33 D+ USB differential data signal
    14 TMDS Data 1+
    		 Differential data signal
    		 34 D- USB differential data signal
    15 GND
    		 Ground (0V)
    		 35 GND  Ground (0V)
    16 TMDS Data 1-
    		 Differential data signal 36 BL_PWM Display backlight adjustment
    17 TMDS Data 0+
    		 Differential data signal
    		 37 BL_EN Display backlight enable
    18 GND
    		 Ground (0V)
    		 38 NC Not connect
    19 TMDS Data 0- Differential data signal
    		 39 NC Not connect
    20 TMDS Clock +
    		 Differential data signal
    		  40 NC Not connect

    • More Pictures

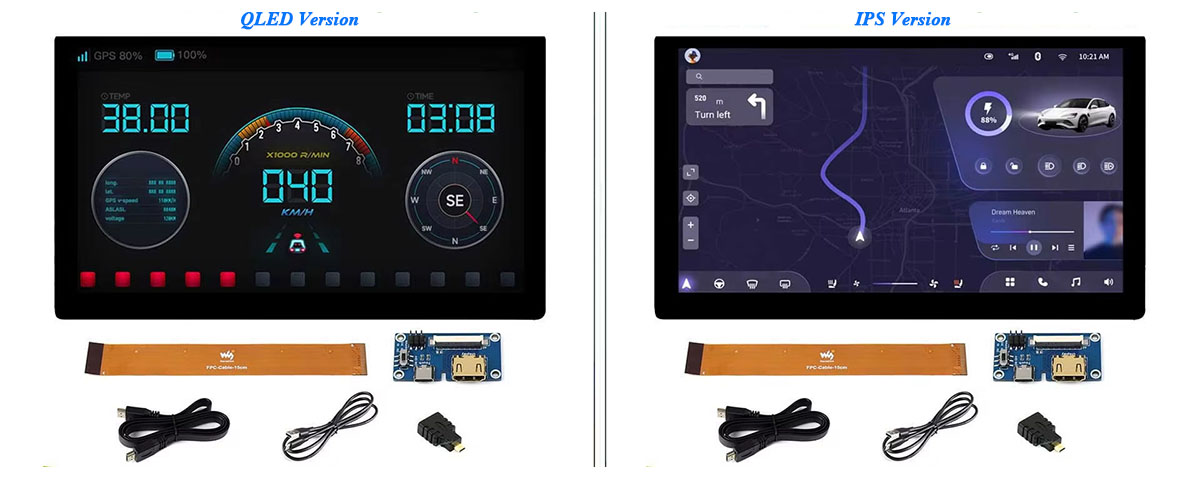

    7-inch IPS/QLED Dispaly

    Integrated Structure | Thin and Light Screen Design



    • Size7″
    • Resolution1024×600
    • Display PanelIPS/QLED
    • Viewing Angle170°
    • Touch TypeCapacitive(optional)
    • Touch Points5-Points
    • ConsumptionLow Power
    • Certification 1RoHS2.0
    • Certification 2CE
    Device & System Support

    Support Windows / Linux / Android main board which has HDMI signal and USB touch signal



    Used with development adapter, support the following devices:

    All versions of Raspberry Pi
    Jetson Series Boards
    Windows PC



    Optional Development Adapter



    Integrated Structure Design

    Provide secondary development resources to facilitate integrated design
    Boost simple development for embedding engineering applications quickly


    development adapter connection

    Thinner and more space saving

    Different with the conventional connection method, integrate 40PIN multi-function interface for one-cable communication. Integrate the driver circuit into an FPC cable, the thinnest only needs 3mm thickness space


    170° Wide Viewing Angle

    QLED Quantum Dot Technology

    Wider color gamut

    color gamut of this QLED display is up to: NTSC 78%, sRGB 92%

    * This function is only available on the QLED version

    More pure chroma

    chroma of QLED increases 58.3%, makes the color more pure, more vivid

    * This function is only available on the QLED version

    Longer lifetime

    due to its inorganic characteristic, the color life of QLED could be up to 60000 hours without color degradation

    * This function is only available on the QLED version

    5-Point Capacitive Touch

    Gently touch, and see what you get, enjoy multi-point UI interaction via Flexible operation.
    Adapting touch function with USB signal, support 5-point touch


    Connection Example

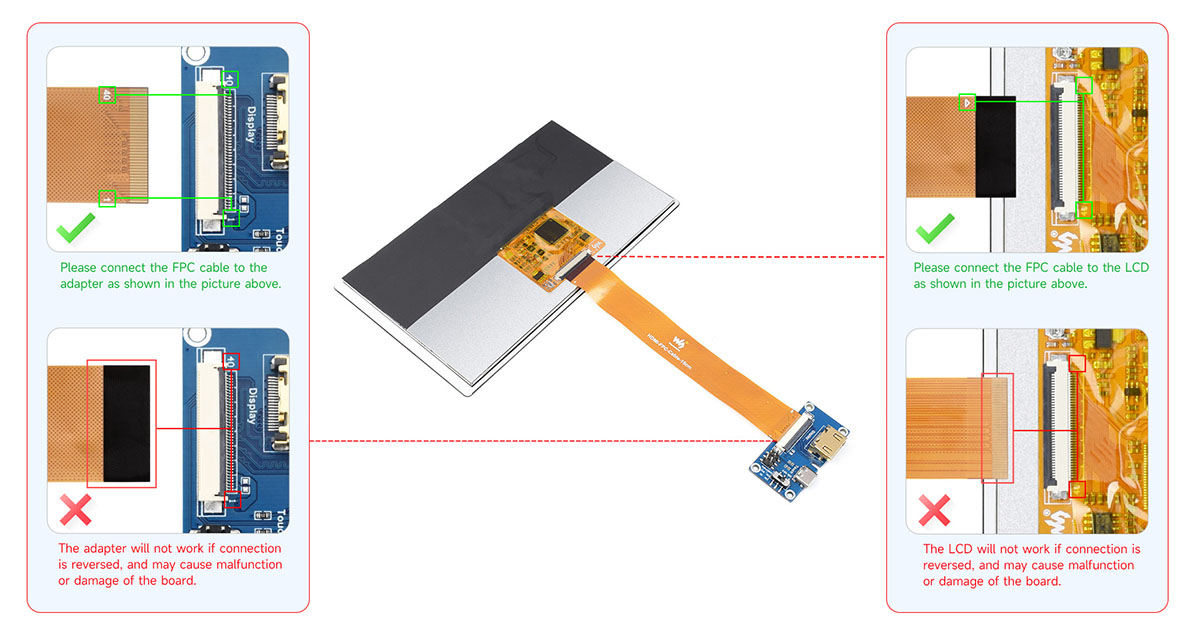

    For the first use, it is recommended to use development adapter for connection

    * for reference, Raspberry Pi board is NOT included.

    Interface Introduction

    Application Scenarios

    New energy, electronic sentinel, human-machine interface, smart home
    IoT, Industrial applications, consumer electronics

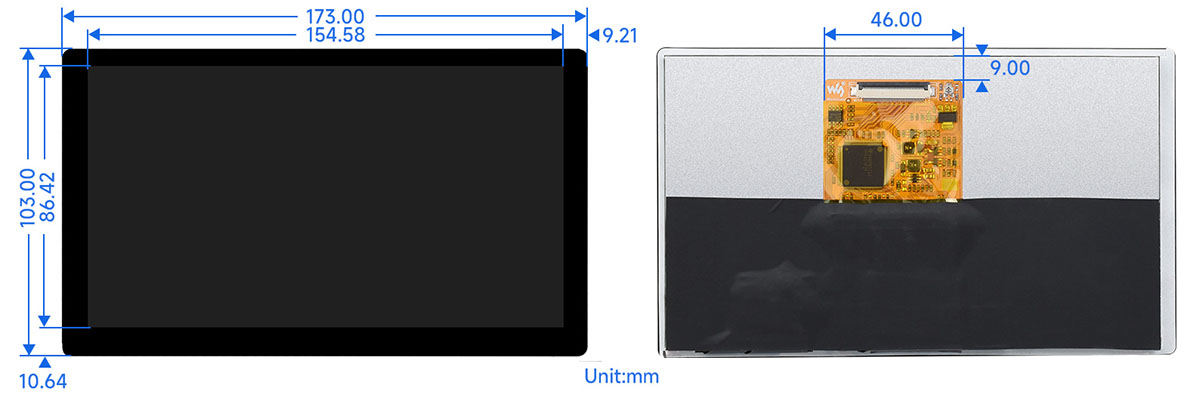

    Dimensions
