Surenoo DSI Display 10.1" inch 800*1280 high-definition IPS LCD Display Module Screen with Capacitive Touch Panel CTP DSI MIPI Interface for Orange Pi OPI-5 / OPI-5B / OPI-5Plus / OPI-5Pro / OPI-5Max Development Board

WISHLIST
Model No.: SDSO101A_8001280
Model Size: 10.1 Inch
Resolution: 800*1280 IPS
Interface: Mipi DSI
Touch Type: Capacitive Touch Panel (CTP)
98 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Tips
    1. The Orange Pi Official OS cannot be used directly for DSI Display, and kernel drivers need to be updated.
    2. Please request the Image Download Link from our Surenoo Customer Service after your purchase.
    3. Orange Pi Board is not including in the Package, please buy it in Orange Pi Official Store.
    4. 10.1 inch 800*1280 Portrait DSI Display
         Linux OS Support Landscape & Portrait Rotation
         Android OS Support Portrait Only
    • Overview
    Surenoo DSI Display 10.1" inch 800*1280 high-definition IPS LCD Display Module Screen with Capacitive Touch Panel CTP DSI MIPI Interface for Orange Pi OPI-5 / OPI-5B / OPI-5Plus / OPI-5Pro / OPI-5Max Development Board
      • Product Parameters
      Item of General Informatio Contents Unit
      LCD Display Size (Diagonal 10.1 Inch
      LCD Display Type TFT/TRANSMISSIVE
      		 -
      LCD Display Mode Normally Black
      		 -
      Recommended Viewing Direction ALL VIEW (IPS) O'Clock
      Model No. SDSO101A_8001280 -
      MPN No. SUR101HD032-WCT
      		 -
      LCM Module Size (W×H×T) 146.28×233.58×7.91 MM
      Active Area (W×H) 135.36×216.58
      		 MM
      Number of Pixels (Resolution) 800(RGB)×1280 Pixels
      Pixel Pitch (W×H) 0.1692×0.1692 MM
      Color Pixel Arrangement RGB Stripe -
      LCD Driver IC - -
      Interface Type MIPI 4 Lane -
      Color Numbers 16.7M -
      Backlight Type White LED -
      CTP  Type Capacitive Touch Panel (CTP) --
       Surface Hardness 6H -
       Transparency ≥82%
      		 -
       Driver IC GT9271
      		 -
       Interface IIC -
       Support Points 5 -

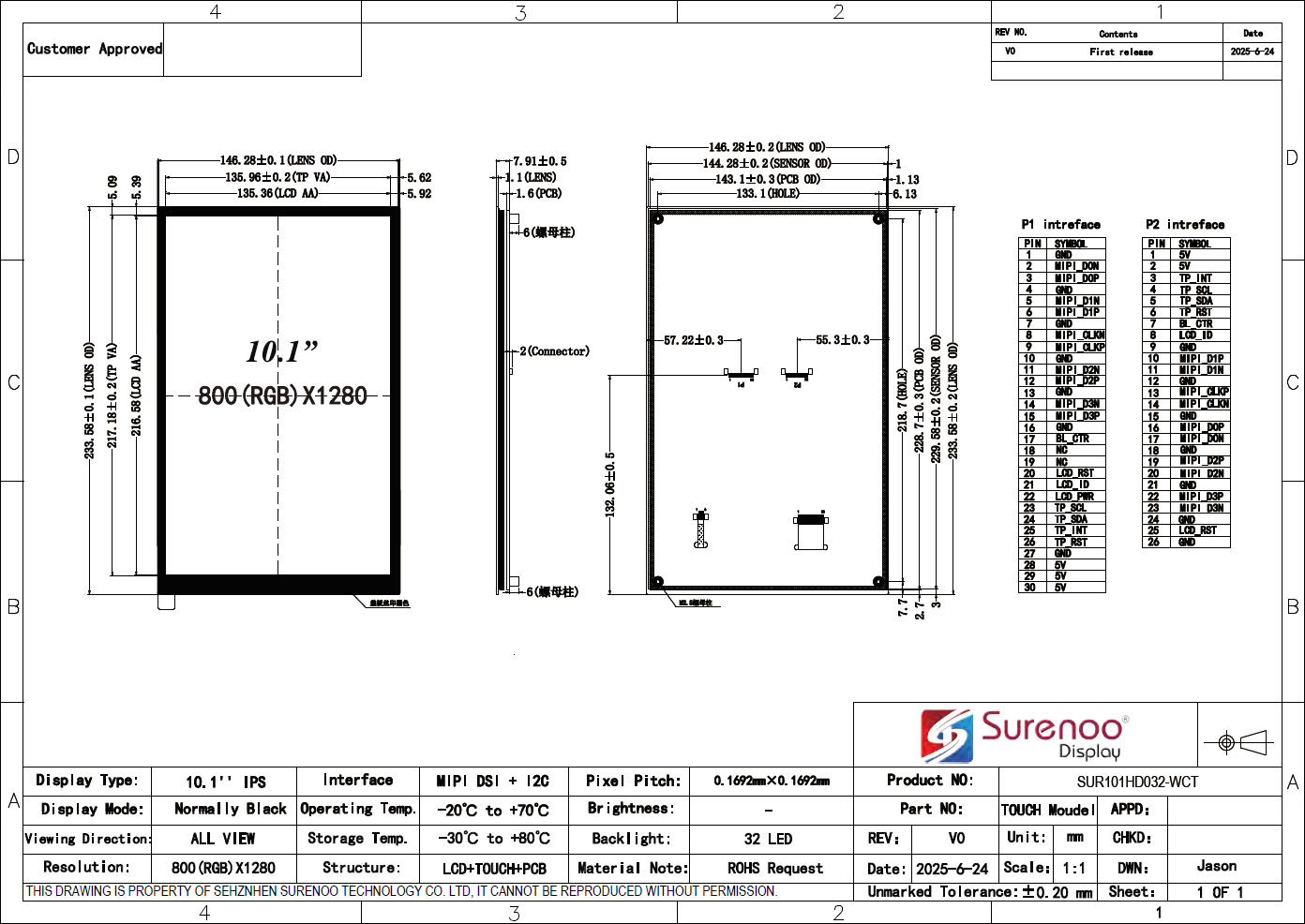

      • External Dimensions

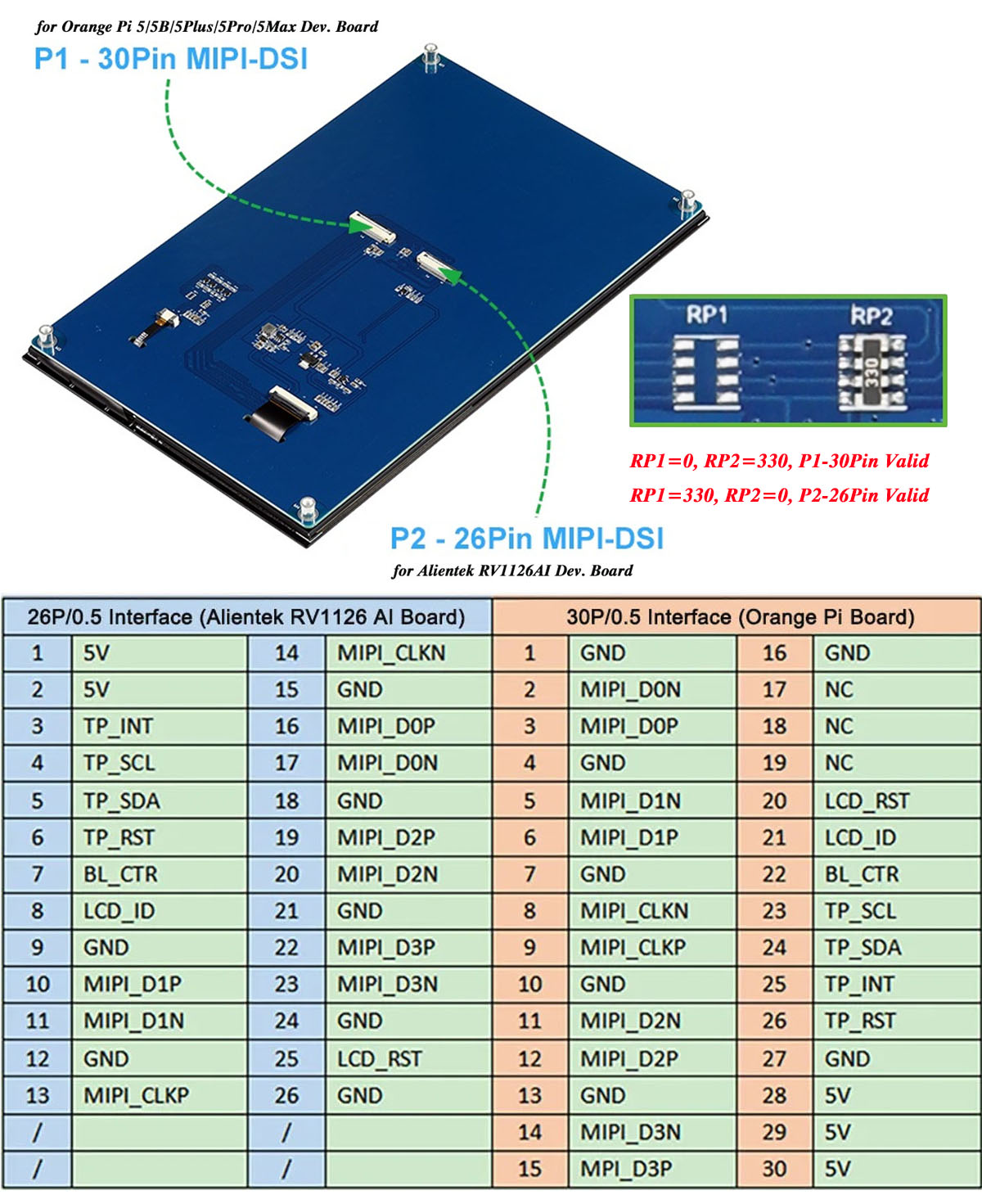

      • Interface Description

      • Packing List
      1. 10.1" Touch Display X1PCS
      2. Matched FFC Cable X1PCS
      3. Screw X4PCS
