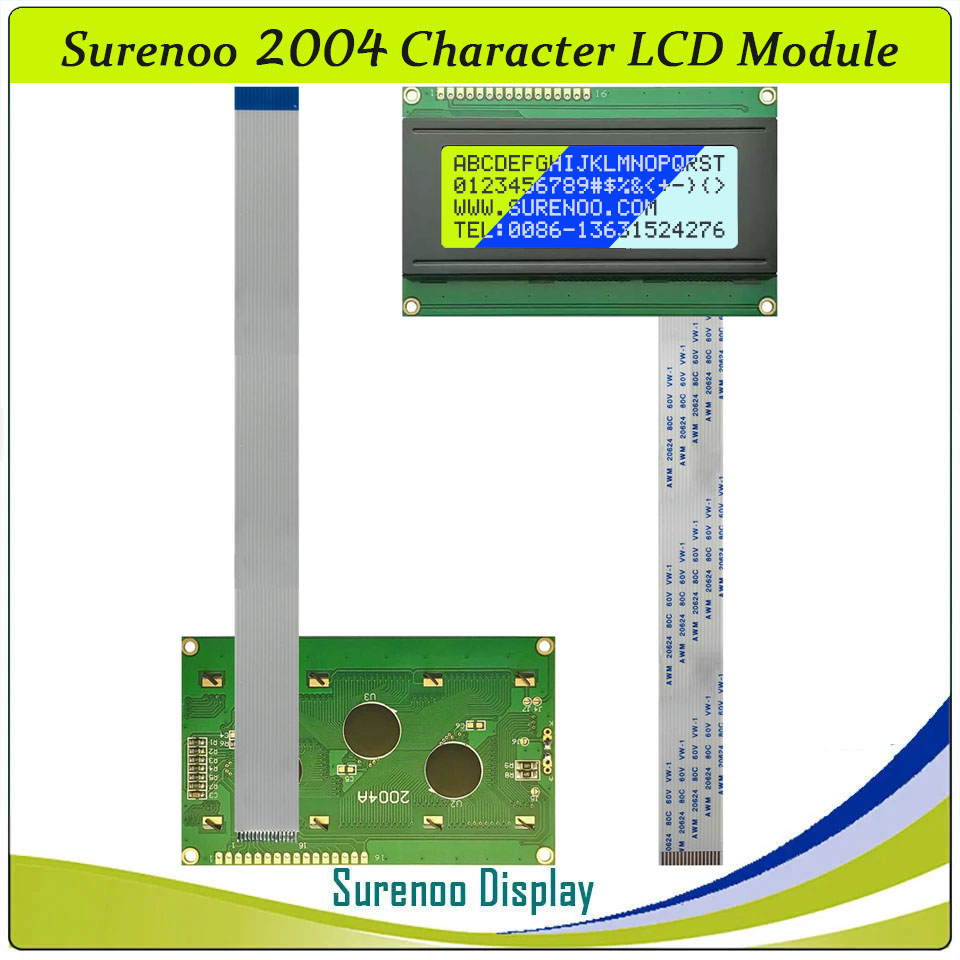

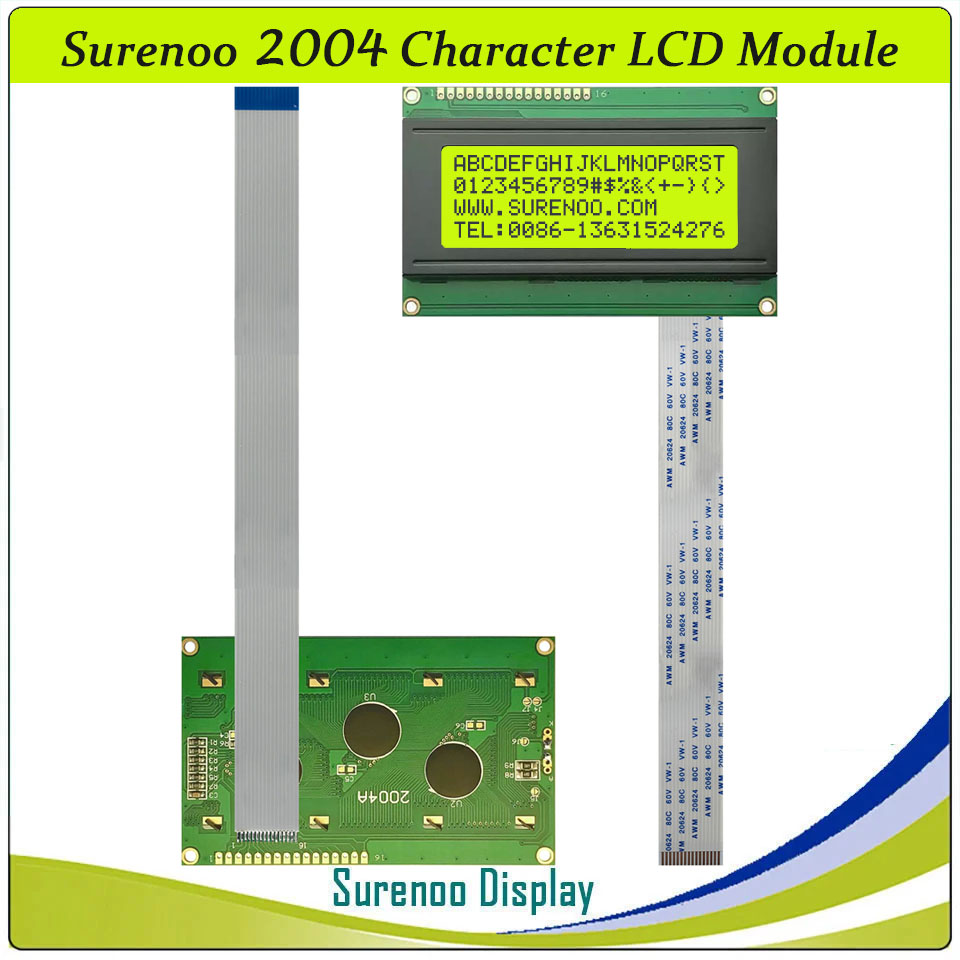

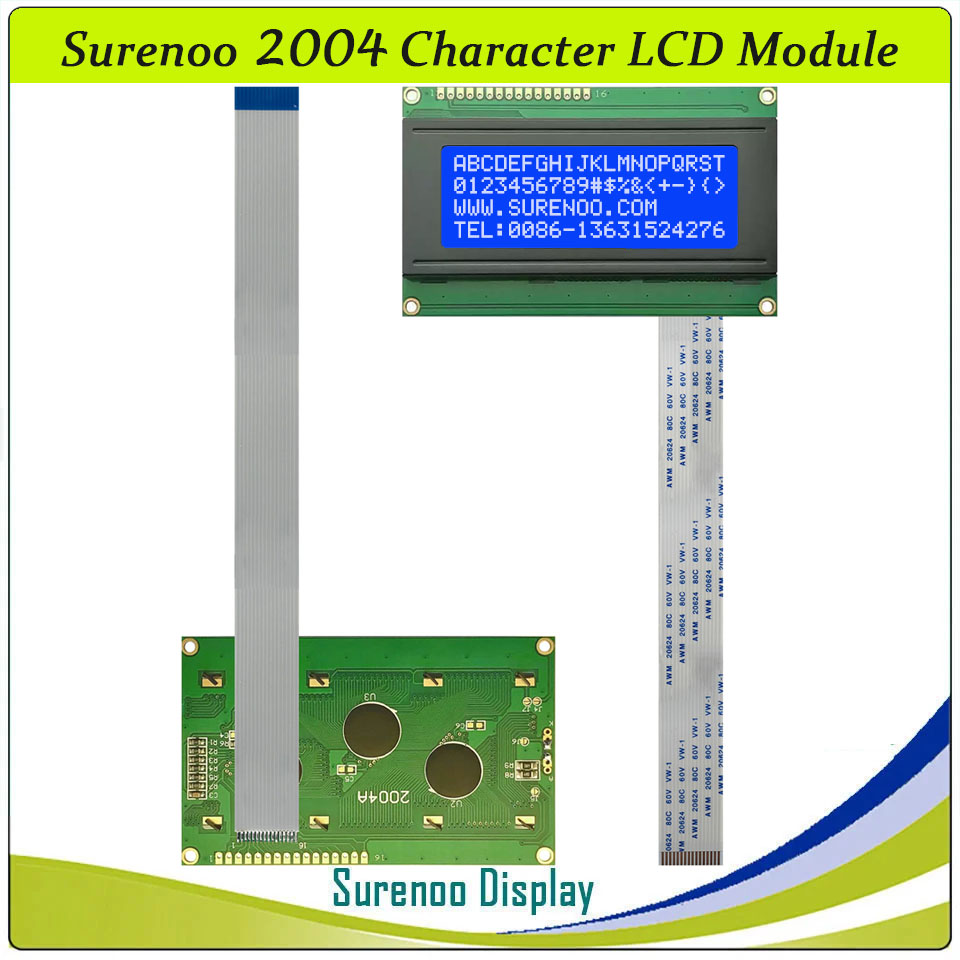

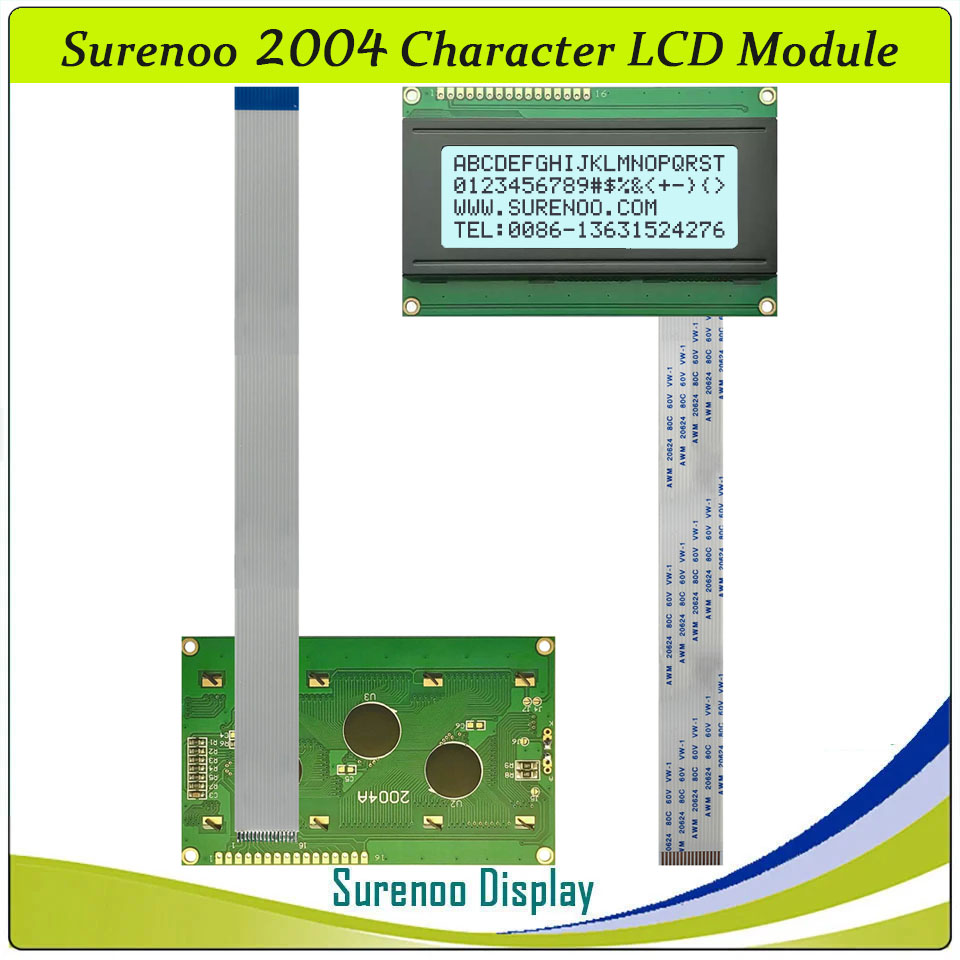

SLC2004A6 PCB=98.00X60.00MM 2004 20*4 Surenoo Character LCD Module Display Screen Panel 6800 4/8-bit Parallel Serial IIC I2C AIP31066 ST7066 Controller STN Yellow Green Blue FSTN Positive LED Backlight with 16P/1.0 FFC FPC

WISHLIST
Model No.: SLC2004A6 (16P/1.0 FFC)
Display Format: 20X04 Characters
PCB Size: 98.00X60.00MM
Controller: AIP31066, ST7066 or Equal
573 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLC2004A6 is 20 characters wide, 4 rows character lcd module, AIP31066 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese / English-European / English-Russian / English-Hebrew, see the AIP31066 datasheet for the full character set. It's 5V or 3.3V power supply, and I2C adapter board is optional for Arduino.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.080Kg
    Manufacturer Surenoo
    Display Type Character LCD Module
    Continuity Supply More than 10 years
    Part No. SLC2004A6
    Display Format 20x4 Character
    Interface 6800 4-bit Parallel, 6800 8-bit Parallel
    IC or Equivalent AIP31066, ST7066 or Equal
    Fonts English-Japanese
    Voltage(Type) 5.0V in default, 3.3V is Optional
    Connection 1X16P/2.54 Pin Header & 1X16P/1.0 FFC
    Outline Dimension 98.00(W)x60.00(H)x13.50(T)mm
    Visual Area 76.00x25.80mm
    Active Area 70.40x20.80mm
    Display Type STN LCD-Yellow Green, STN Blue Negative, FSTN Positive
    Backlight Type (LED) Yellow Green, Green, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
    Pin No. Pin Name Description
    1 VSS Ground 0V
    2 VDD Logic Power Supply
    3 V0 Operating voltage for LCD
    4 RS Data / Instruction (H: Data Signal, L: Instruction Signal)
    5 R/W Read / Write (H: Read Mode, L: Write Mode)
    6 E Enable Signal
    7-14 DB0-DB7 Data Bus
    15 LED_A Backlight Anode
    16 LED_K Backlight Cathode
