Model No.: JC4880P443
Model Size: 4.3 Inch
Resolution: 480*800 IPS
Main Controller: ESP32-P4NRW32
Secondary Controller: ESP32-C6-MINI-1U-N4
Touch Type: CTP

113 sold

Quantity

ADD TO CART

BUY IT NOW

Detail

Tips

Do not provide the default Firmware source code, But provides LVGL display and touch basic examples.

Download & Development Tools

Datasheet Link: http://pan.jczn1688.com/s/mo3t4j

Overview

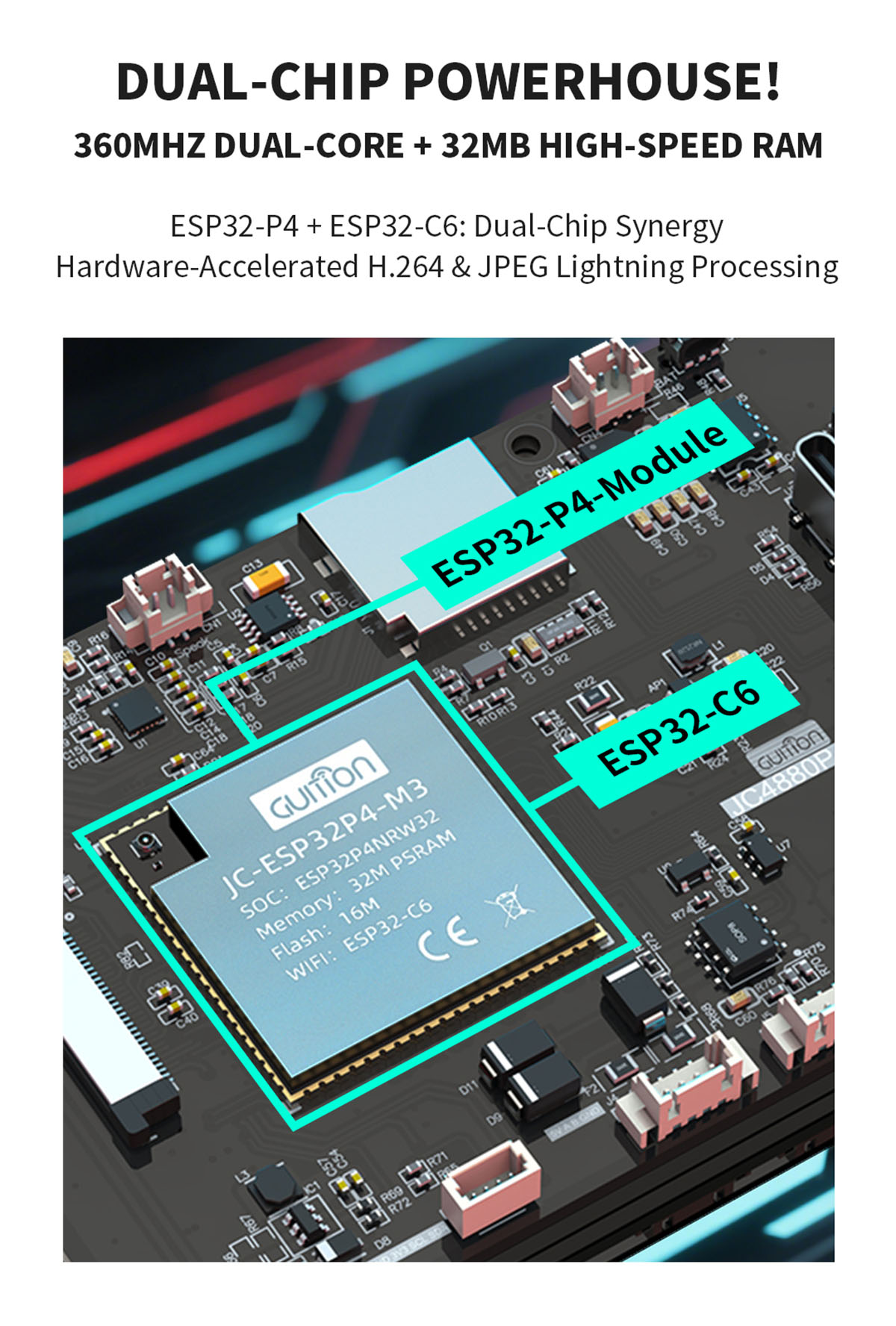

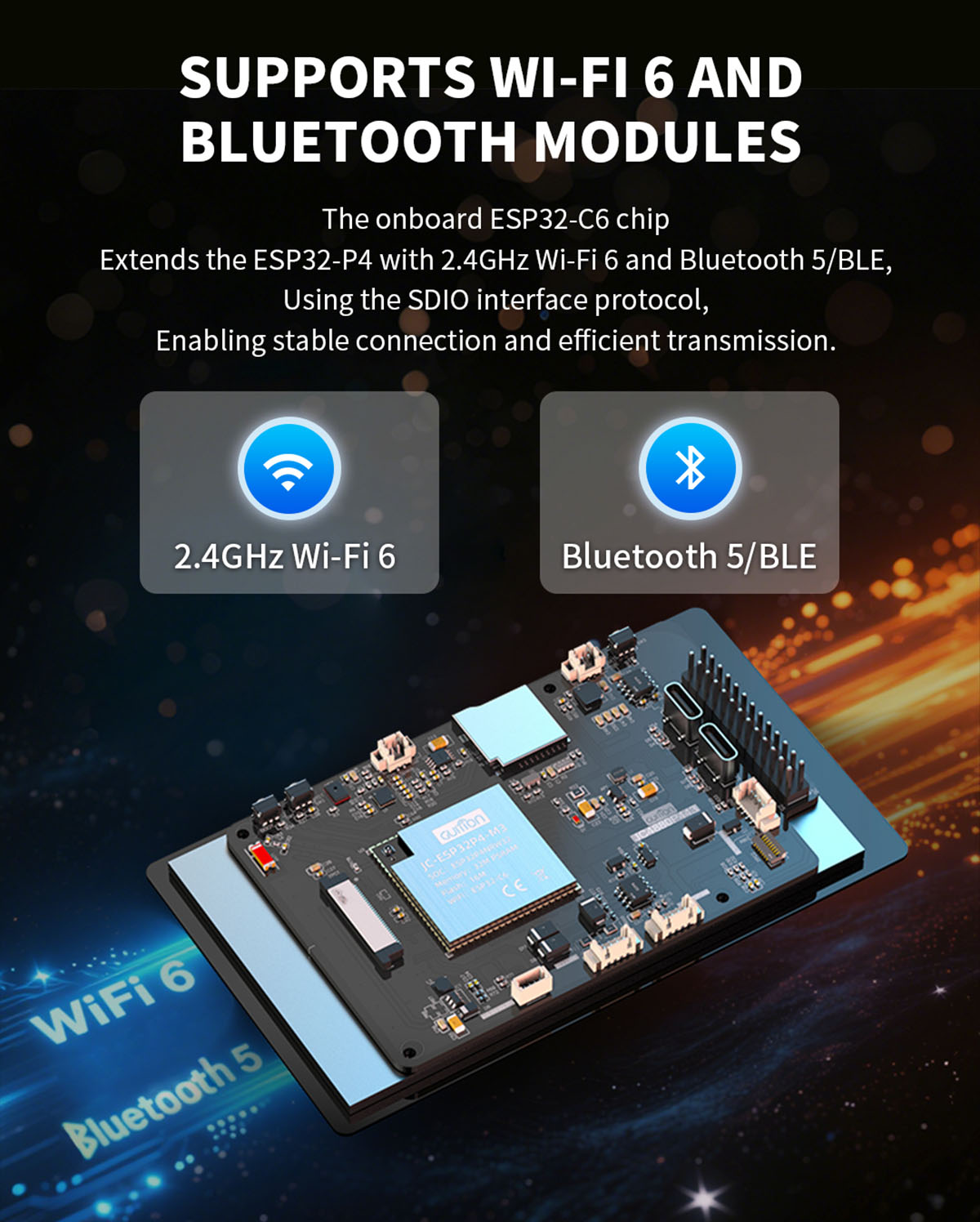

JC4880P443 use ESP32-P4NRW32 & ESP32-C6-MINI-1U-N4 as the controller, the main controller(ESP32-P4NRW32) is a dual-core MCU, ESP32-C6-MINI-1U-N4 integrated WI-FI and Bluetooth functions, the main frequency can reach 400MHz, 768KB_HP 16KB_LP SRAM, 128KB ROM, 32M PSRAM, Flash size is 16MB, 5.0 inch display resolution is 480*800, with Capacitive Touch Panel, Camera & Enclosure is Optional.

The module includes LCD display screen, backlight control circuit, touch screen control circuit.

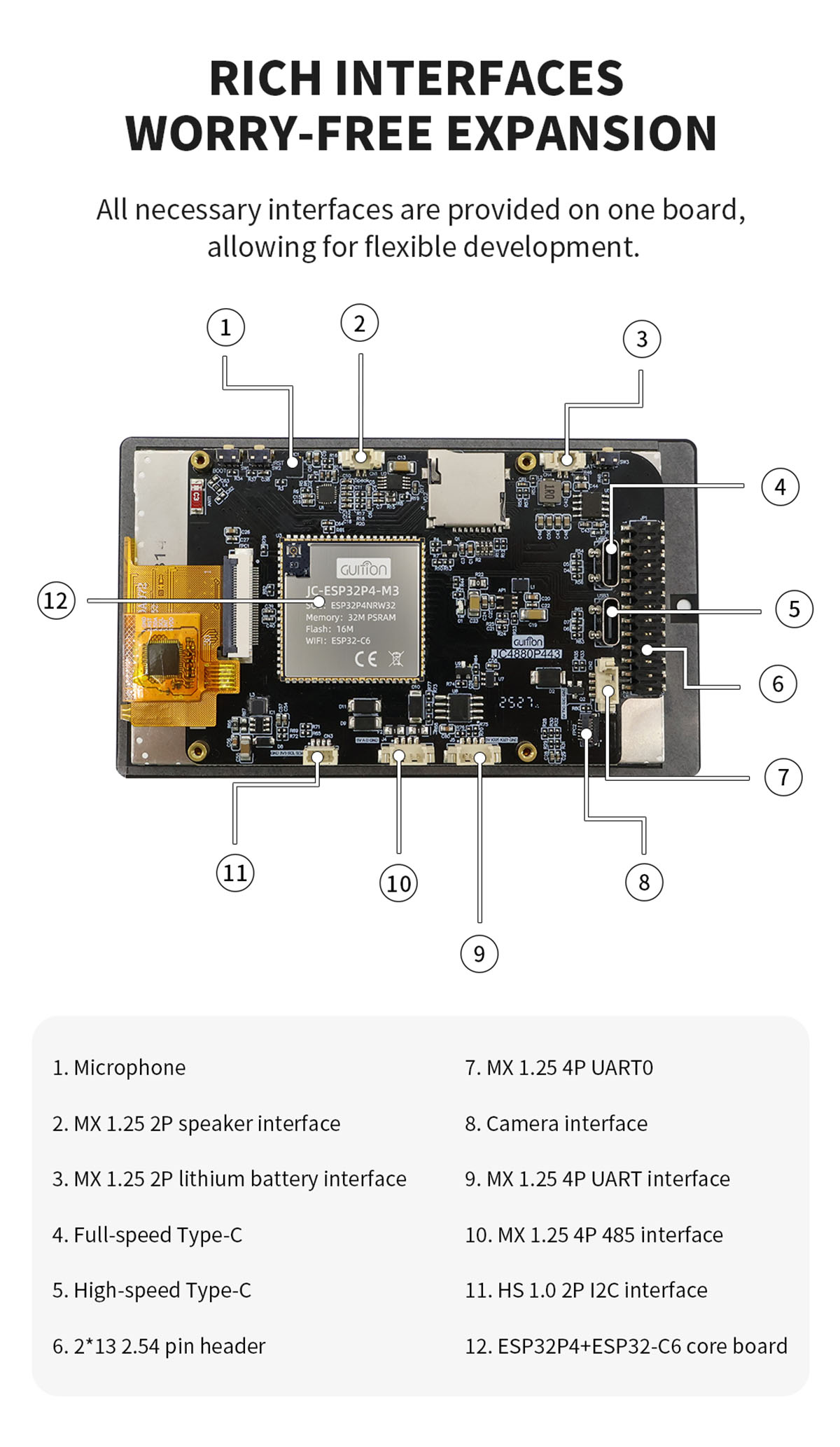

Reserve the TF card interface ,IO port interface, this module supports development in Arduino IDE, ESP IDE, Micropython and LVGL.

Product Parameters

Item	Description
Display Color	16.7M Color
SKU	JC4880P443C_I_W: CTP, IPS, WIFI, Camera & Enclosure (Without) JC4880P443C_I_W_Y: CTP, IPS, WIFI, Camera & Enclosure (With)
Size	4.3 Inch
Type	TFT
LCD Controller	ST7701S
Resolution	480*800(Pixel)

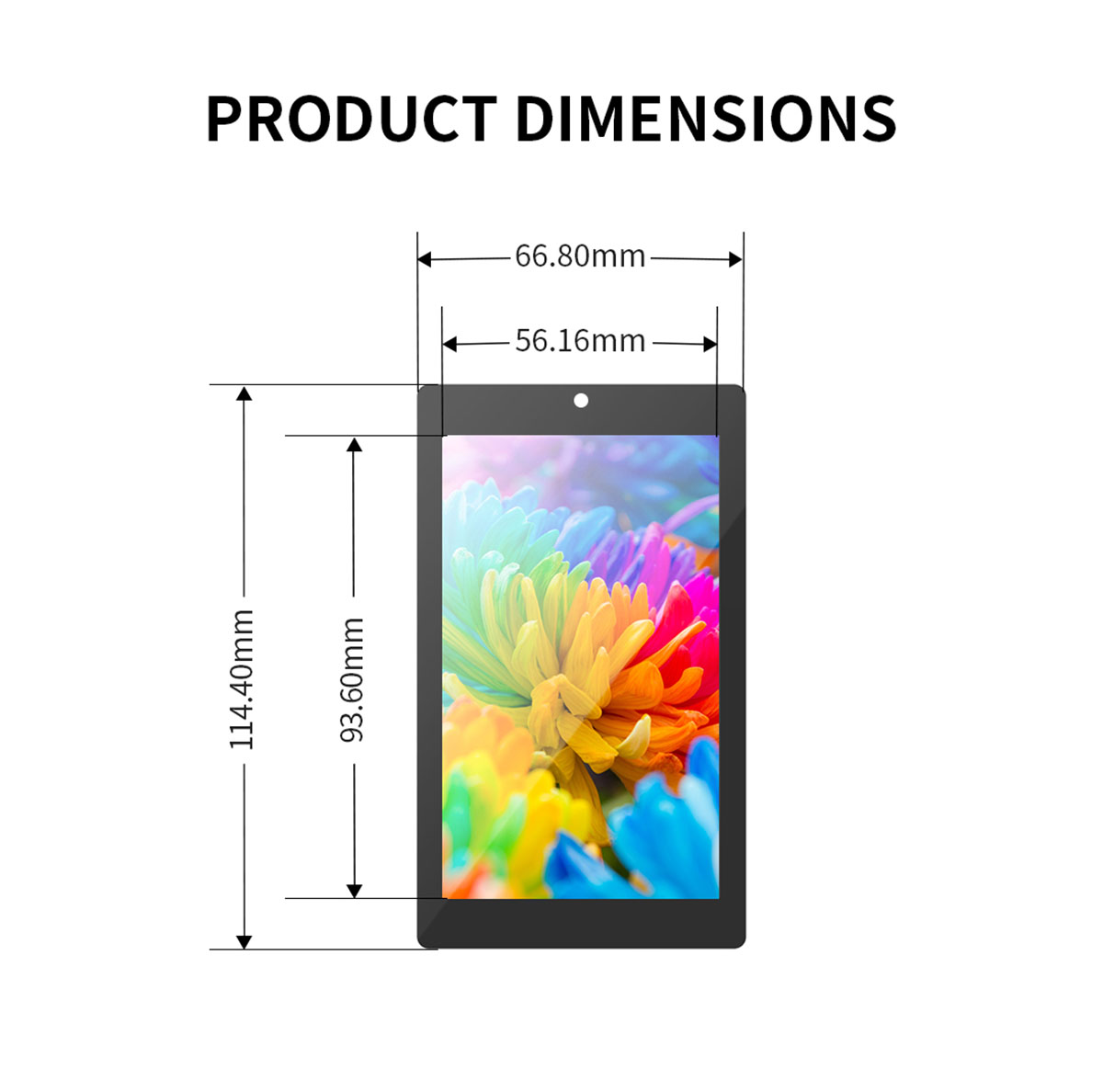

Module Size	66.80*114.40(mm)
Effective Display Area	56.16*93.60(mm)
View	IPS
Operating temperature	-20℃~70℃
storage temperature	-30℃~80℃
Operating Voltage	5.0V
Power consumption	About 360MA

Features

>> 4.3-inch color screen, support 16.7M color display, display rich colors
>> 480X800 resolution
>> Camera & Enclosure is Optional
>> The sample program has been programmed in the factory and can be plugged in
>> With TF card slot for easy expansion storage
>> Provide arduino library functions and sample programs to facilitate rapid secondary development
>> Lithium battery charging and discharging circuit with overcharging and discharging protection
>> Support one-click download program

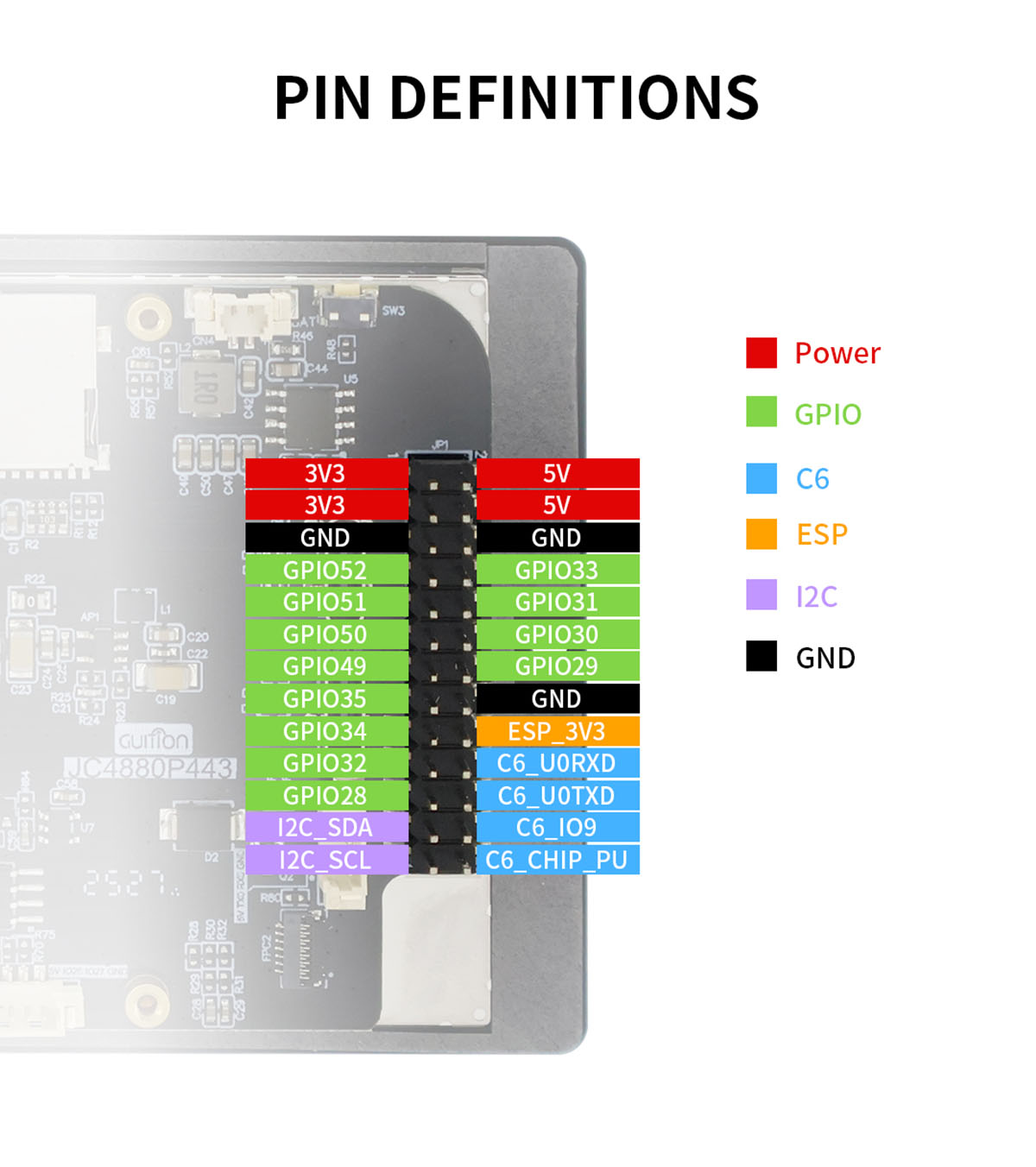

>> More IOs can be used separately by customers
>> Military-grade process standards, long-term stable work
