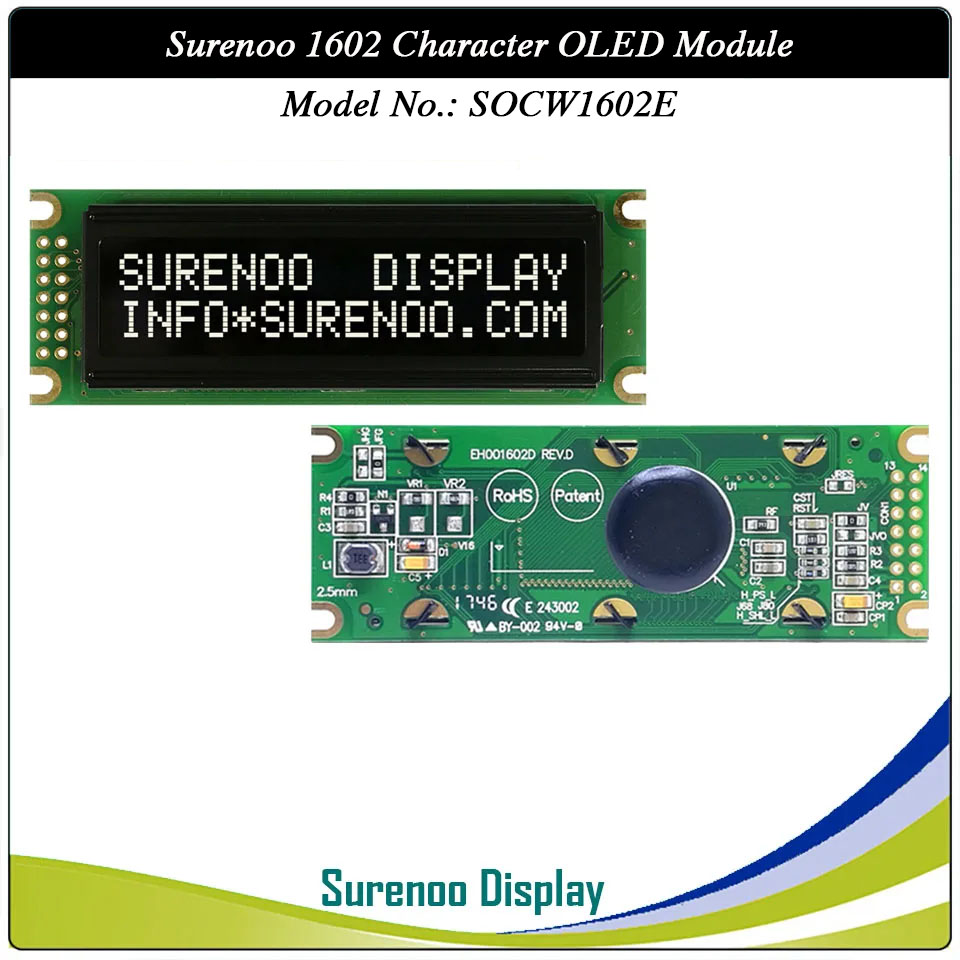

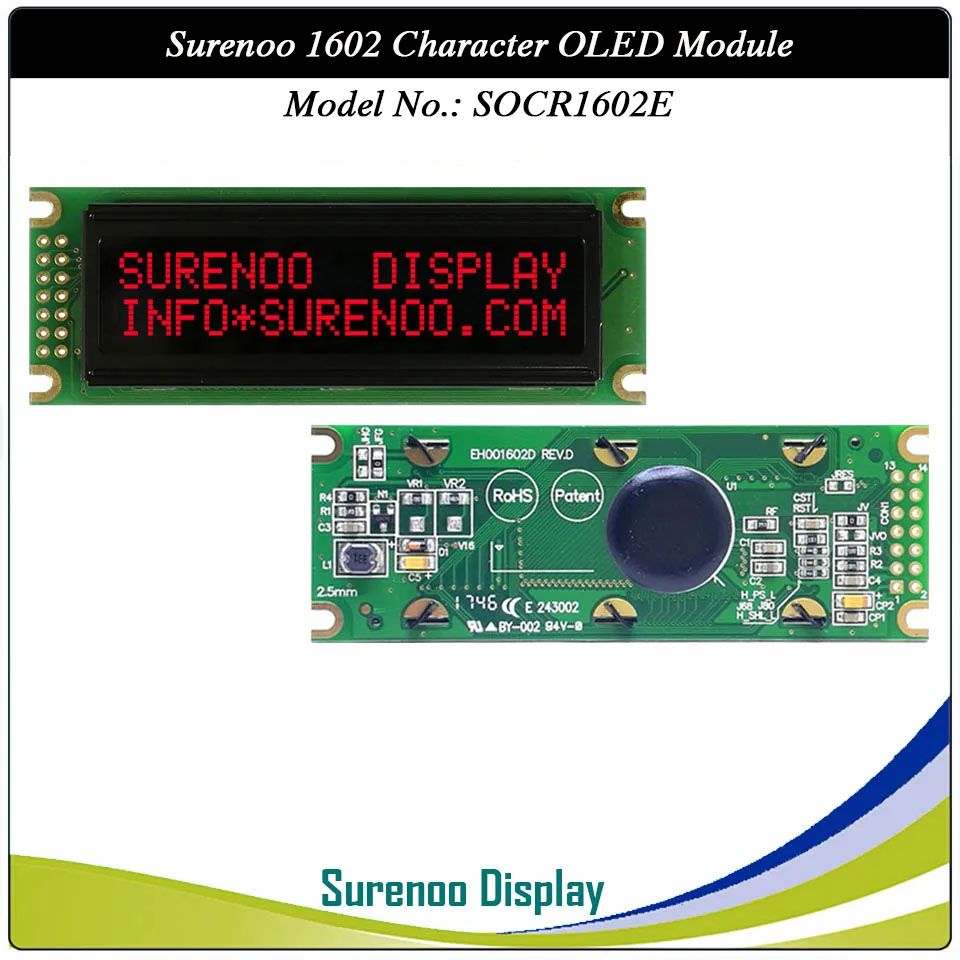

Surenoo OLED Module SOC1602E Outline=85.00X30.00MM Compatible Standard 1602 16*02 16X02 Character LCD Module Display Screen Panel 6800 4/8-bit Parallel Serial SPI IIC I2C PCF8574T WS0010 Controller

Model No.: SOC1602E OLED
Display Format: 16X02 Characters
Outline: 85.00X30.00MM
Controller: WS0010 or Equal
18 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SOC1602E is 16 Characters wide, 2 row Character OLED Module, WS0010 controller (Industry-standard HD44780 compatible controller), 6800 4/8-Bit Parallel & Serial SPI MPU interface, wide operating temperature range, RoHS Compliant, It's 3.3-5.0V power supply.

    WS0010 Buil-in character set supports English/Japanese, West European, Scandinavian European, and Cyrillic (Russian), see the WS0010 datasheet for the full character set.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.036Kg
    Manufacturer Surenoo
    Display Type Character OLED Module
    Continuity Supply More than 10 years
    Part No. SOC1602E
    Display Format 16x2 Characters
    Interface 6800 4/8-Bit Parallel
    IC or Equivalent WS0010 or Equal
    Fonts English/Japanese, West European, Scandinavian European, and Cyrillic (Russian)
    Voltage(Type) 3.3-5.0V
    Connection 2*7P/2.54 Pin Header
    Outline Dimension 85.00(W)x30.00(H)x10.00(T)mm
    Visual Area 66.00x16.00mm
    Active Area
    		 56.95x11.85mm
    Display Type PM-OLED Panel

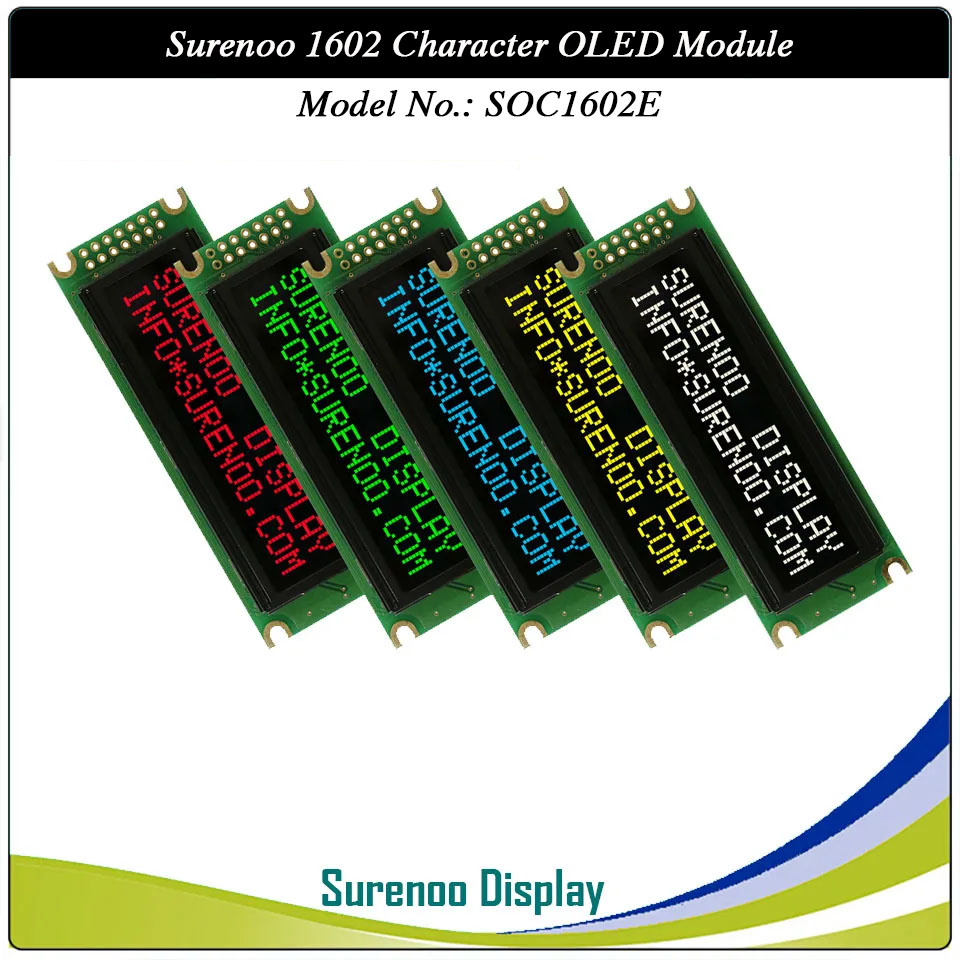

    Colors Code White(SOCW) / Yellow(SOCY) / Green(SOCG) / Blue(SOCB) / Red(SOCR)
    IC Package COB
    Viewing Direction Full Viewing Angle
    Operating Temperature
    -40℃~80℃
    Storage Temperature
    -40℃~80℃
    • Outline Drawing

    • Interface
    Pin No. Pin Name Description
    1 VDD Power Supply for LCD
    2 VSS Ground 0V
    3 NC No Connection
    4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
    5 R/W Read / Write (H: Read Mode, L: Write Mode)
    6 E Enable Signal
    7-14 DB0-DB7 Data Bus
    15 NC No Connection
    16 NC No Connection
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SOC1602E PDF 2013-03-17 Standard 1602 Character OLED Module, Compatible 1602 LCD Module
    2 Controller WS0010 PDF 2008-09-24 WS0010 Character OLED Controller, Compatible with SPC780, ST7066, HD44780, ......, Support Serial SPI
    3 51 Library 51 Library TXT 2006-09-11 STC86S52 6800 4/8-Bit Parallel Library
