Model No.: HLM8619 / HLM8620
Display Format: 320*240 Dots
PCB Size: 157.80X121.60MM (5.7")
8 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    Replacement Display for HLM8619-010200 HLM8620

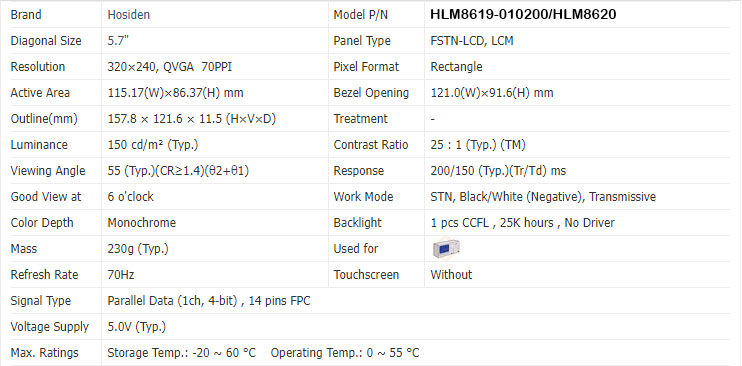

    • Specification

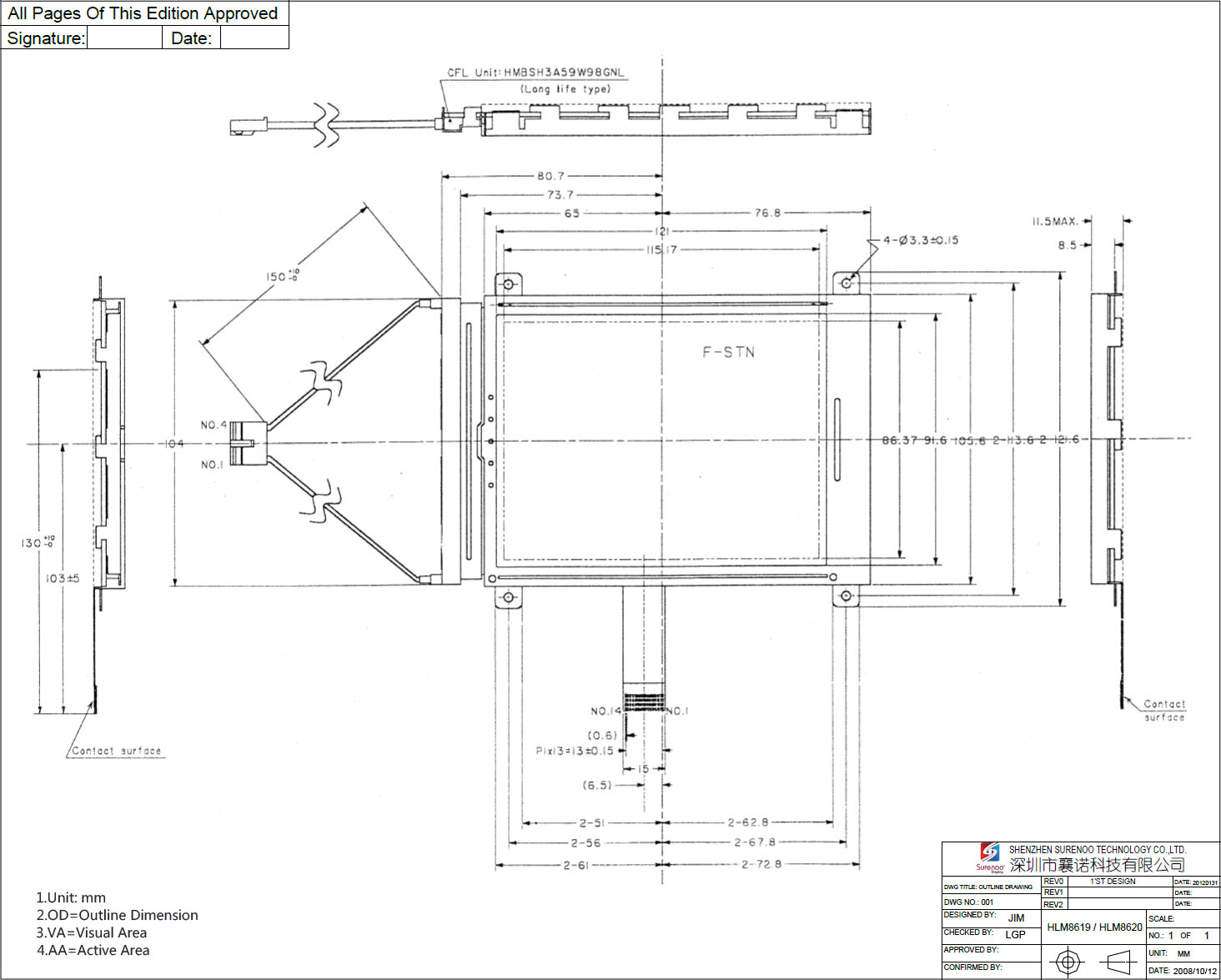

    • Outline Drawing

    • Interface
    Pin No. Symbol Description
    1 V0 Control for LCD drive voltage
    2 VEE Power supply voltage for LCD drive
    3-6 D3-D0 Display Data Bus
    7 NC / M LCD drive signal (AC signal) *1
    8 VSS Ground
    9 VDD +5V Logic Supply Voltage
    10 CP2 Display Data Shift Clock
    11 CP1 Display Data Latch Clock
    12 S Frame Signal (Sync. of display)
    13 DISP OFF Display ON (H) / OFF (L)
    14 FG Frame Ground
